Product Details | SNAP FASTENER CLINCH PLATE
5325-00-776-1219 A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting.
Part Alternates: MS2797710B, MS27977-10B, AN22720B, AN227-20B, MILF10884F, MIL-F-10884F, 5325-00-776-1219, 00-776-1219, 5325007761219, 007761219
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-776-1219 | 16557 ( CLINCH PLATE, SNAP FASTENER ) |

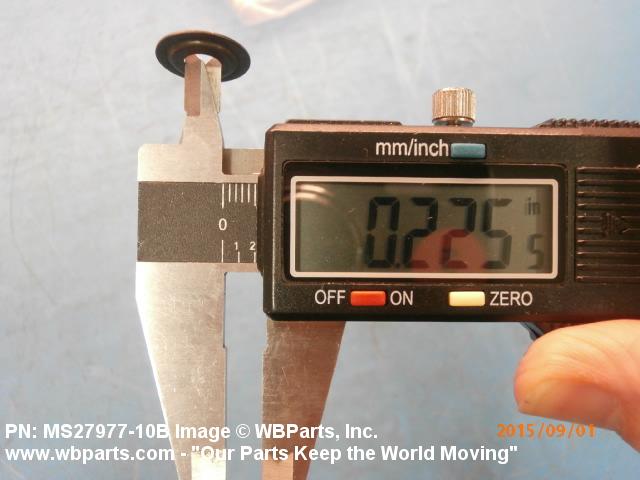

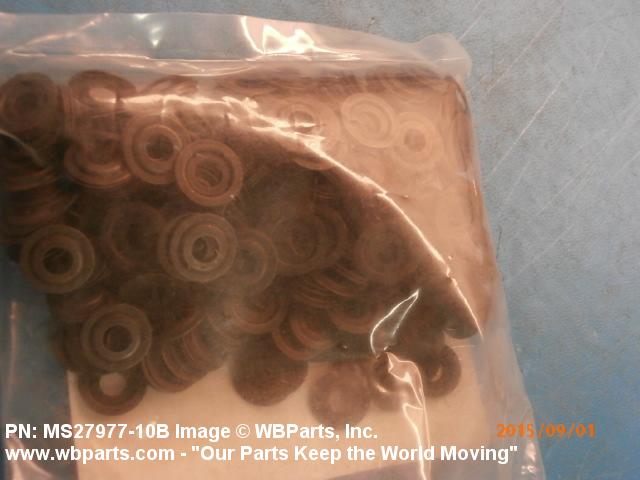

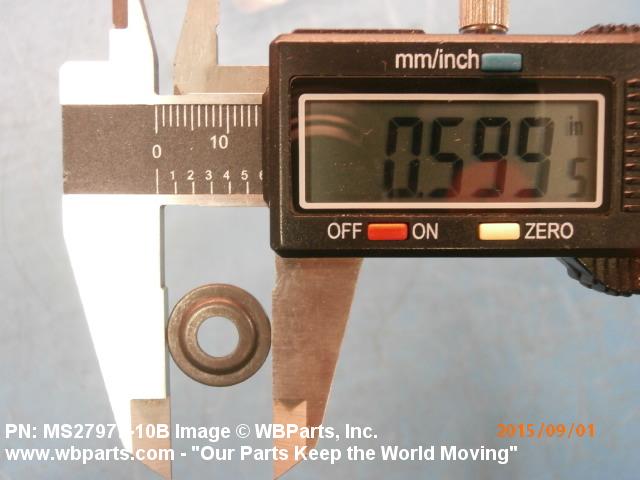

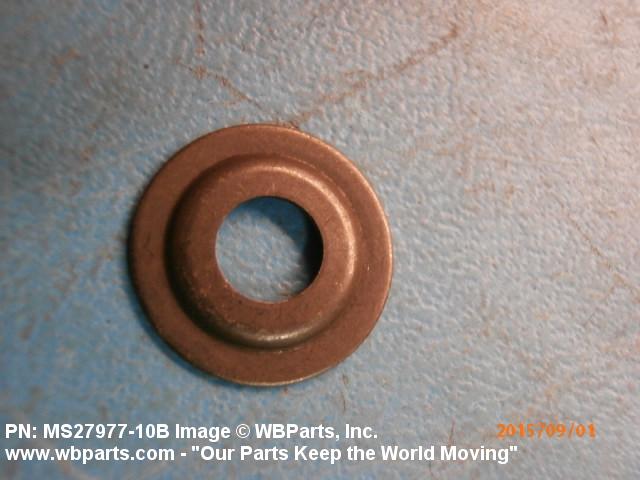

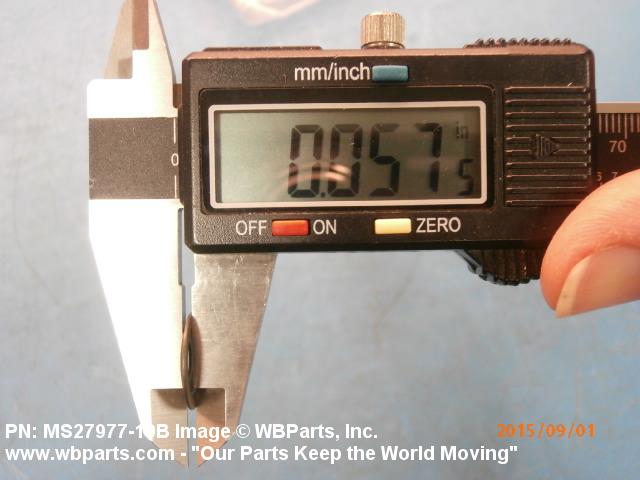

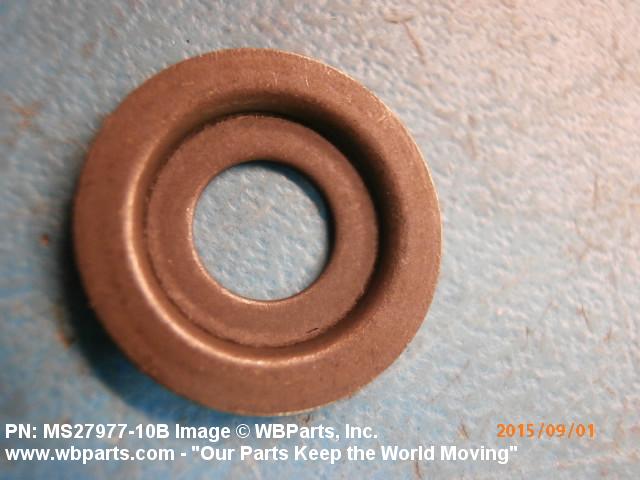

Drawings & Photos | NSN 5325-00-776-1219
Demand History | NSN 5325-00-776-1219
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-776-1219 | 2024-05-15 | 10 | US |
| 5325-00-776-1219 | 2021-11-17 | 1000 | US |
| 5325-00-776-1219 | 2021-10-18 | 25 | DIBBS |
| 5325-00-776-1219 | 2019-11-07 | 200 | DIBBS |
| 5325-00-776-1219 | 2018-10-23 | 100 | DIBBS |
| 5325-00-776-1219 | 2018-09-25 | 100 | DIBBS |
| 5325-00-776-1219 | 2017-10-10 | 100 | DIBBS |
| MS2797710B | 2016-06-27 | 10000 | South Korea |
| MS2797710B | 2016-05-10 | 1000 | South Korea |
| 5325-00-776-1219 | 2016-03-22 | 6 | DIBBS |
| MS2797710B | 2015-07-08 | 400 | South Korea |
| 5325-00-776-1219 | 2014-06-03 | 200 | DIBBS |
| 5325-00-776-1219 | 2013-08-02 | 10 | DIBBS |
| 5325-00-776-1219 | 2013-07-18 | 10 | DIBBS |
| 5325-00-776-1219 | 2012-08-24 | 1 | DIBBS |
| MS2797710B | 2012-03-28 | 80 | UM |
| MS2797710B | 2012-02-20 | 100 | US |
| 5325-00-776-1219 | 2012-02-05 | 100 | DIBBS |
| 5325-00-776-1219 | 2011-03-10 | 100 | DIBBS |
| 5325-00-776-1219 | 2011-03-04 | 99 | DIBBS |
| MS2797710B | 2009-09-09 | 13000 | US |
| MS2797710B | 2009-09-08 | 13000 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5325-00-776-1219
5325-00-776-1365, 5325-00-776-1980, 5325-00-776-2687, 5325-00-776-3862, 5325-00-776-4461
Technical Data | NSN 5325-00-776-1219
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL AND OXIDE FILM OVERALL |
| SNAP FASTENER CLINCH PLATE STYLE | 1 CLINCH PLATE |
| PLATE OVERALL HEIGHT | 0.062 INCHES NOMINAL |
| CLINCH PLATE DIAMETER | 0.609 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27977-10B |
Restrictions/Controls & Freight Information | NSN 5325-00-776-1219
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
