NSN 5325-00-793-1766 11260244, 1126024-4, 26S224

Product Details | TURNLOCK FASTENER STUD ASSEMBLY

5325-00-793-1766 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.

Part Alternates: 11260244, 1126024-4, 26S224, 26S22-4, 3D00634AF, 3D0063-4AF , 5325-00-793-1766, 00-793-1766, 5325007931766, 007931766

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-793-1766	18484 ( STUD ASSEMBLY, TURNLOCK FASTENER )

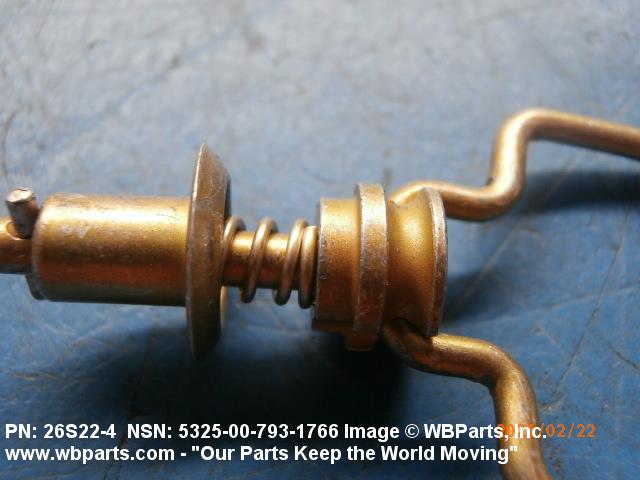

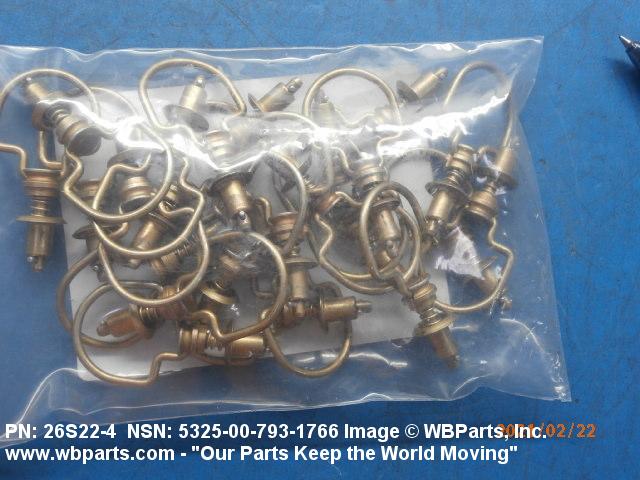

Drawings & Photos | NSN 5325-00-793-1766

Part Number	Request Date	QTY	Origin
5325-00-793-1766	2025-12-336	15	US
5325-00-793-1766	2025-06-168	22	US
1126024-4	2022-03-87	722	DIBBS
26S22-4	2022-03-87	722	DIBBS
1126024-4	2022-03-75	722	DIBBS
26S22-4	2022-03-75	722	DIBBS
1126024-4	2022-02-37	710	DIBBS
26S22-4	2022-02-37	710	DIBBS
1126024-4	2021-07-188	38	DIBBS
26S22-4	2021-07-188	38	DIBBS
1126024-4	2021-02-48	498	DIBBS
26S22-4	2021-02-48	498	DIBBS
26S224	2021-02-40	24	us
1126024-4	2021-01-24	106	DIBBS
26S22-4	2021-01-24	106	DIBBS
5325-00-793-1766	2020-06-157	1	DIBBS-RFPs
1126024-4	2019-09-268	72	DIBBS
26S22-4	2019-09-268	72	DIBBS
1126024-4	2019-09-258	24	DIBBS
26S22-4	2019-09-258	24	DIBBS
1126024-4	2019-08-225	1300	DIBBS
26S22-4	2019-08-225	1300	DIBBS
1126024-4	2019-07-185	1286	DIBBS
26S22-4	2019-07-185	1286	DIBBS
26S224	2017-11-306	2	United States
26S224	2015-07-202	6	us
5325-00-793-1766	2015-07-182	162	DIBBS
5325-00-793-1766	2015-06-154	2983	DIBBS
5325-00-793-1766	2010-05-146	154	DIBBS
5325-00-793-1766	2009-11-310	3000	US
5325-00-793-1766	2009-01-14	1959	DIBBS
5325-00-793-1766	2008-12-343	1523	DIBBS
5325-00-793-1766	2008-11-316	1752	DIBBS
5325-00-793-1766	2008-10-284	1067	US
5325-00-793-1766	2008-10-283	1067	DIBBS
5325-00-793-1766	2008-09-262	700	DIBBS
5325-00-793-1766	2008-07-189	677	DIBBS
5325-00-793-1766	2008-05-133	300	DIBBS
5325-00-793-1766	2008-04-100	281	DIBBS

Cross Reference | NSN 5325-00-793-1766

Part Number	Cage Code	Manufacturer
1126024-4	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
26S22-4	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
26S22-4	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
26S22-4	K1678	FAIRCHILD FASTENERS UK LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-793-1766

Compare

Related Products | NSN 5325-00-793-1766

5325-00-793-1798, 5325-00-793-1840, 5325-00-793-1905, 5325-00-793-2434, 5325-00-793-2656

Technical Data | NSN 5325-00-793-1766

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
TURNLOCK STUD HEAD STYLE	1 FLAT COUNTERSUNK

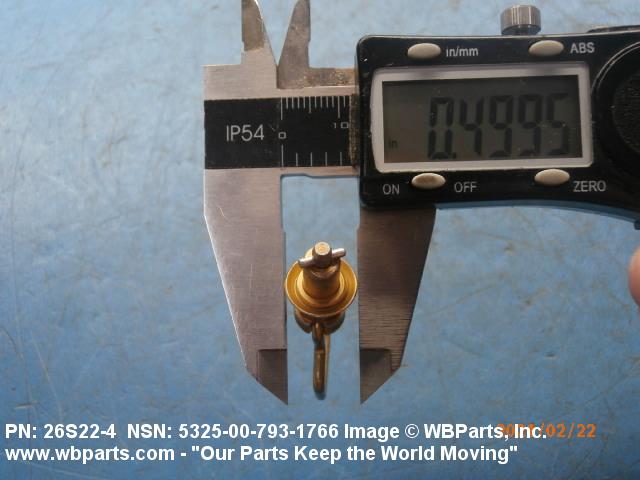

DIAMETER	0.480 INCHES NOMINAL

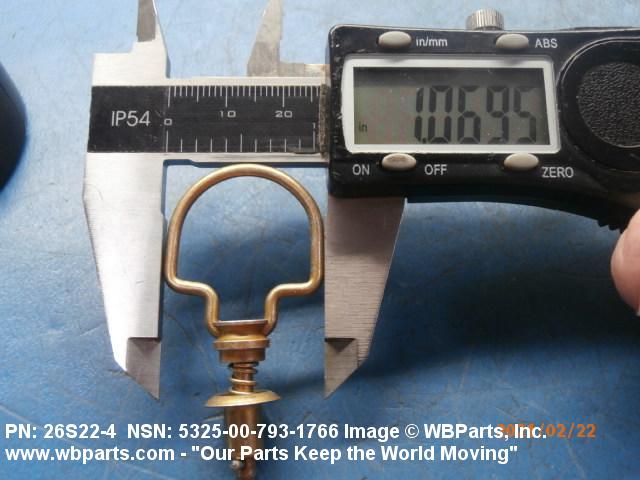

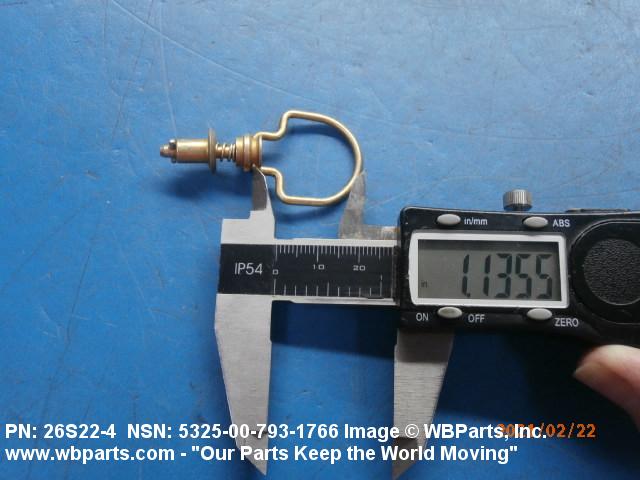

HEAD LENGTH	1.050 INCHES MINIMUM AND 1.140 INCHES MAXIMUM
STUD HEAD HEIGHT	1.338 INCHES MAXIMUM
STUD ASSEMBLY STYLE	1 STUD ASSEMBLY
DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD	0.601 INCHES NOMINAL

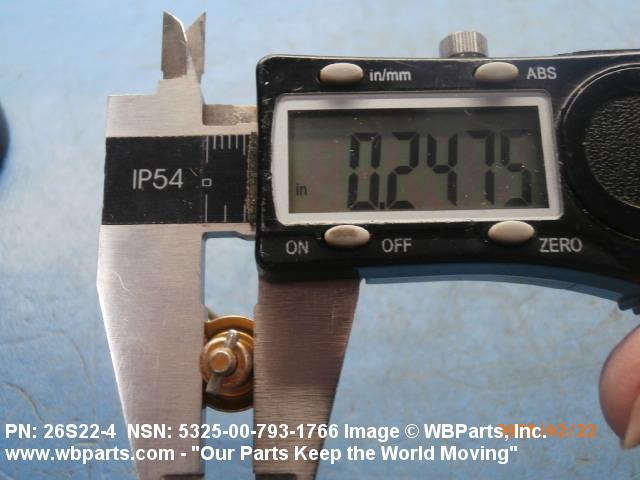

EYELET OUTSIDE DIAMETER	0.247 INCHES NOMINAL
EYELET LENGTH	0.375 INCHES NOMINAL
MATERIAL ACCOMMODATED THICKNESS	0.070 INCHES MINIMUM AND 0.085 INCHES MAXIMUM
MANUFACTURERS CODE	71286
DESIGN CONTROL REFERENCE	26S22-4

Restrictions/Controls & Freight Information | NSN 5325-00-793-1766

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	066440	FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-793-1766

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
