NSN 5325-00-804-2274 MS166254137, MS16625-4137, N1300137AS
Product Details | RETAINING RING
5325-00-804-2274 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166254137, MS16625-4137, N1300137AS, N1300-137AS, N5000137H, N5000-137H, R271NAB0137NN119NNQA1, MILR21248, 7611841, 2775011137, 277-501-1137, 3000X137, 3000-X-137, 3621007P101, 362-1007P101, 5000137W, 5000-137W, 5325-00-804-2274, 00-804-2274, 5325008042274, 008042274
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-804-2274 | 07623 ( RING, RETAINING ) |

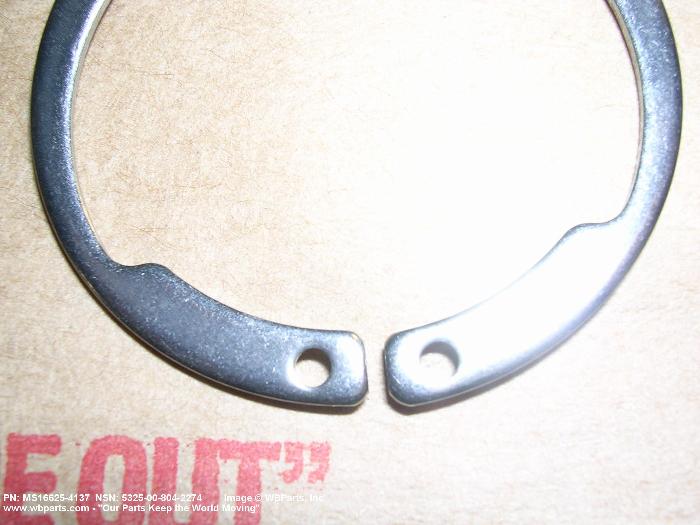

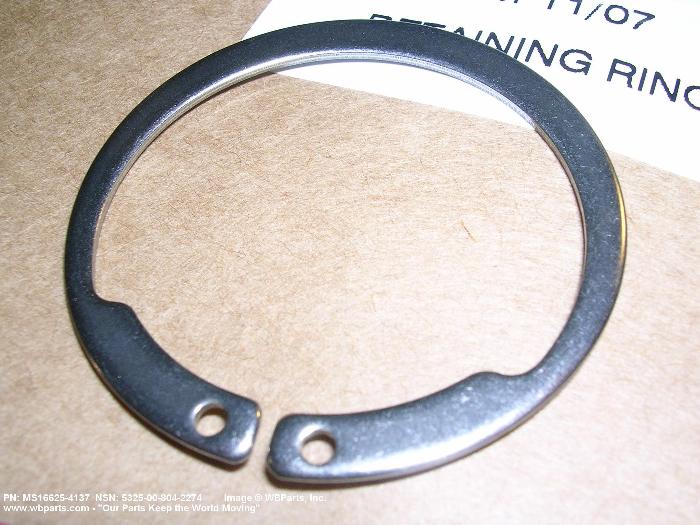

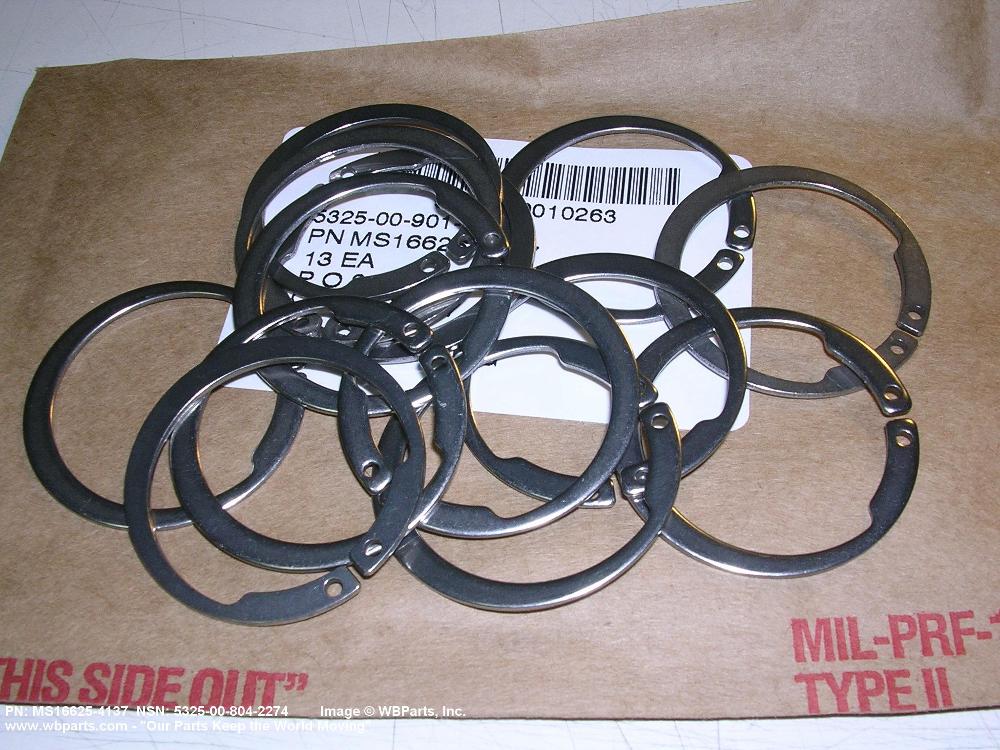

Drawings & Photos | NSN 5325-00-804-2274
Demand History | NSN 5325-00-804-2274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS166254137 | 2017-08-240 | 100 | United States |
| 5325-00-804-2274 | 2017-02-55 | 1 | DIBBS-RFPs |
| MS166254137 | 2016-10-287 | 40 | US |
| MS166254137 | 2014-04-94 | 1 | United States |
| MILR21248 | 2013-04-112 | 5 | MX |
| N5000137H | 2012-04-117 | 6 | RU |
| MILR21248 | 2011-02-47 | 24 | us |
| 3000X137 | 2008-10-295 | 10 | US |
| 5325-00-804-2274 | 2008-08-242 | 6289 | DIBBS |
| 5325-00-804-2274 | 2008-04-114 | 1608 | DIBBS |
| 3000X137 | 2008-04-108 | 40 | US |
| 5325-00-804-2274 | 2008-02-58 | 2802 | DIBBS |
| MS166254137 | 2006-09-269 | 12 | US |
| 5325-00-804-2274 | 2006-08-242 | 500 | JP |
Cross Reference | NSN 5325-00-804-2274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 277-501-1137 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 3000-X-137 | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3000-X-137 | 97464 | TRUARC CO LLC |
| 362-1007P101 | 99687 | RAYTHEON CO EQUIPMENT DEVELOPMENT LAB |
| 5000-137W | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 7611841 | 19200 | US ARMY ARDEC RDECOM |
| MILR21248 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16625-4137 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16625-4137 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N1300-137AS | 54963 | SEEGER INC ANDERTON-UNITED PRODUCTS DIV |
| N5000-137H | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-137H | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-137H | 90970 | BEARING ENGINEERING CO |
| R271NAB0137NN119NNQA1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-804-2274
Related Products | NSN 5325-00-804-2274
Technical Data | NSN 5325-00-804-2274
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 44.0 ROCKWELL C MINIMUM AND 51.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A37 INTERNAL |
| OUTSIDE DIAMETER | 1.526 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.050 INCHES NOMINAL |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR21248 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16625-4137 |
Restrictions/Controls & Freight Information | NSN 5325-00-804-2274
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
