NSN 5325-00-804-2784 MS166251200, MS16625-1200, MS16625200
Product Details | RETAINING RING
5325-00-804-2784 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166251200, MS16625-1200, MS16625200, MS16625-200, MS166254200, MS16625-4200, MCX238, MRE41SNH, A05901, A515X35, N1300200, N1300-200, N1300200CD, N1300-200CD, N5000200, N-5000-200, N5000-200, N5000-200 MD, N5000200MD, N5000200ZD, N5000-200ZD, B1132113, B11321-13, X5008/12/149 ITEM 7, X5008/12/149/7, X5008121497, X500812149ITEM7, PC5171975, RRN200, X200, 02919056, 029-19056, 103824, 10622P11, 11950, 119-50, 1223225, 1-223225, 1243003248, 124-3003-248, 149 ITEM 7, 149/7, 1497, 149ITEM7, 16111, 16182, 19B200, 19B-200, 3000X200STCD, 3000-X200-ST-CD, 3621007P38, 362-1007P38, 381830742002, 38-18307-4200-2, 5000-200 MD, 5000200MD, 502139, 5171975, 560-0515-35, 661416, 6762222, 5325-00-804-2784, 00-804-2784, 5325008042784, 008042784, 560051535
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-804-2784 | 07623 ( RING, RETAINING ) |

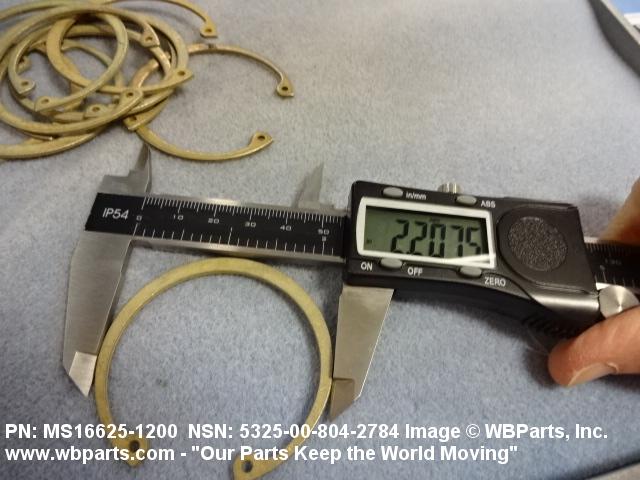

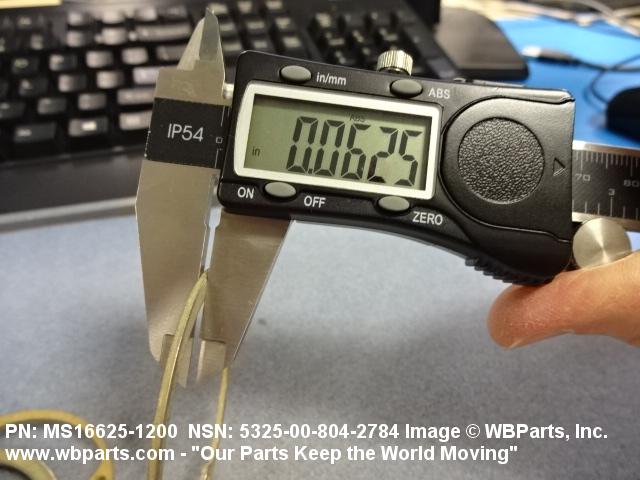

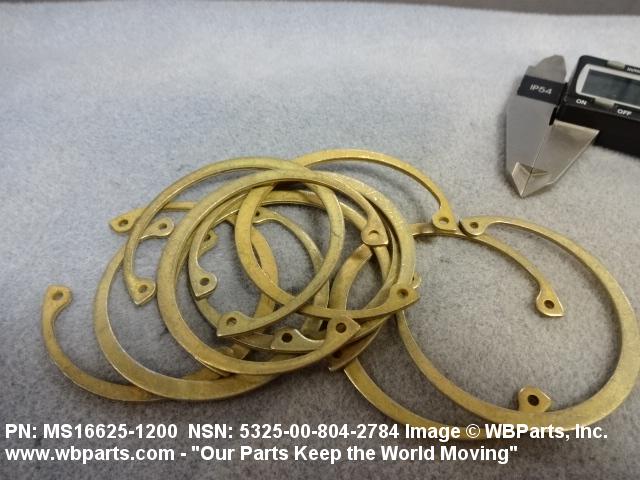

Drawings & Photos | NSN 5325-00-804-2784
Demand History | NSN 5325-00-804-2784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-804-2784 | 2022-11-310 | 1779 | DIBBS |
| 5325-00-804-2784 | 2020-12-344 | 35 | NO |
| 5325-00-804-2784 | 2019-03-74 | 25 | MANUAL |
| MS16625-1200 | 2019-03-74 | 25 | Canada |
| MS166254200 | 2018-08-220 | 2 | ZA |
| 5325-00-804-2784 | 2011-05-126 | 1 | United States |
| MS166254200 | 2010-06-172 | 184 | US |
| MS166251200 | 2009-10-301 | 6248 | United States |
| N1300200 | 2008-10-275 | 20 | US |
| 5325-00-804-2784 | 2008-04-119 | 4465 | DIBBS |
| 5325-00-804-2784 | 2008-04-115 | 5 | United States |
| 5325-00-804-2784 | 2008-03-80 | 535 | DIBBS |
| 5325-00-804-2784 | 2008-02-42 | 236 | DIBBS |
| MS166251200 | 2008-01-31 | 200 | United States |
Cross Reference | NSN 5325-00-804-2784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 029-19056 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1-223225 | 60145 | AEROSTAR GLOBAL LOGISTICS INC. DBA AEROSTAR TECHNICAL SERVICES |
| 1-223225 | 82366 | AERO-MOTIVE COMPANY |
| 103824 | 62983 | EATON AEROSPACE LLC |
| 10622P11 | 27618 | TAYLOR MACHINE WORKS, INC. |
| 119-50 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 124-3003-248 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 149 ITEM 7 | K7018 | WELLMAN GROUP |
| 149/7 | K7018 | WELLMAN GROUP |
| 16111 | 21363 | BLUE TEE CORP. DBA GEFCO |
| 16182 | 21363 | BLUE TEE CORP. DBA GEFCO |
| 19B-200 | 35284 | VOLVO MOTOR GRADERS LIMITED DBA VOLVO MOTOR GRADERS LIMITED |
| 3000-X200-ST-CD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3000-X200-ST-CD | 97464 | TRUARC CO LLC |
| 362-1007P38 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 38-18307-4200-2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5000-200 MD | K0745 | CIRTEQ LTD |
| 502139 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 5171975 | 24617 | GENERAL MOTORS CORP |
| 5171975 | 72582 | MTU AMERICA INC. |
| 560-0515-35 | 09171 | WARD HYDRAULICS DIV A-T-O INC |
| 661416 | 12603 | CLARK EQUIPMENT CO |
| 661416 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| 6762222 | 24617 | GENERAL MOTORS CORP |
| 6762222 | 73342 | ALLISON TRANSMISSION, INC. |
| A05901 | K0967 | MBDA UK LTD |
| A515X35 | 0E9N0 | DAVID BROWN HYDRAULICS INC DBA HYDRECO |
| B11321-13 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| HD0151 | 32MY9 | MILLER INDUSTRIES TOWING EQUIPMENT INC. |
| MCX238 | 71995 | DRESSER INDUSTRIES INC WAUKESHA ENGINE DIV |
| MS16625-1200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16625-200 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| MS16625-200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16625-4200 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N-5000-200 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N1300-200 | 54963 | SEEGER INC ANDERTON-UNITED PRODUCTS DIV |
| N1300-200CD | 54963 | SEEGER INC ANDERTON-UNITED PRODUCTS DIV |
| N5000-200 | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-200 MD | 73136 | HEINTZ STEEL AND MFG CO |
| N5000-200 MD | K0745 | CIRTEQ LTD |
| N5000-200ZD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| PC5171975 | C7432 | POWER COMPONENTS (DEUTSCHLAND) GMBH |
| RRN200 | 54362 | SPIR-O-LOK INC |
| X200 | 97464 | TRUARC CO LLC |
| X5008/12/149 ITEM 7 | K7018 | WELLMAN GROUP |
| X5008/12/149/7 | K7018 | WELLMAN GROUP |
| Y00015456 | FAFH7 | SOFRAME |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-804-2784
Technical Data | NSN 5325-00-804-2784
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,FED STD 66 AISI 1066 OR 1069 OR 1070 OR 1072 OR 1074 OR 1075 OR 1078 OR 1080 OR 1084 OR 1086 OR 1090 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 47.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A37 INTERNAL |
| OUTSIDE DIAMETER | 2.147 INCHES MINIMUM AND 2.180 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.059 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16625-1200 |
Restrictions/Controls & Freight Information | NSN 5325-00-804-2784
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-804-2784
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
