NSN 5325-00-804-6858 MS166254081, MS16625-4081, N130081AS
Product Details | RETAINING RING
5325-00-804-6858 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166254081, MS16625-4081, N130081AS, N1300-81AS, N500081H, N5000-81H, SW120174, SW120-174, 156467, 218275, 3000X81SS2, 3000-X81-SS2, 4111714081, 411171-4081, 500081W, 5000-81W, 5000B1W, 5000-B1W, 50081H, 500-81H, 907581K35, 5325-00-804-6858, 00-804-6858, 5325008046858, 008046858
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-804-6858 | 07623 ( RING, RETAINING ) |

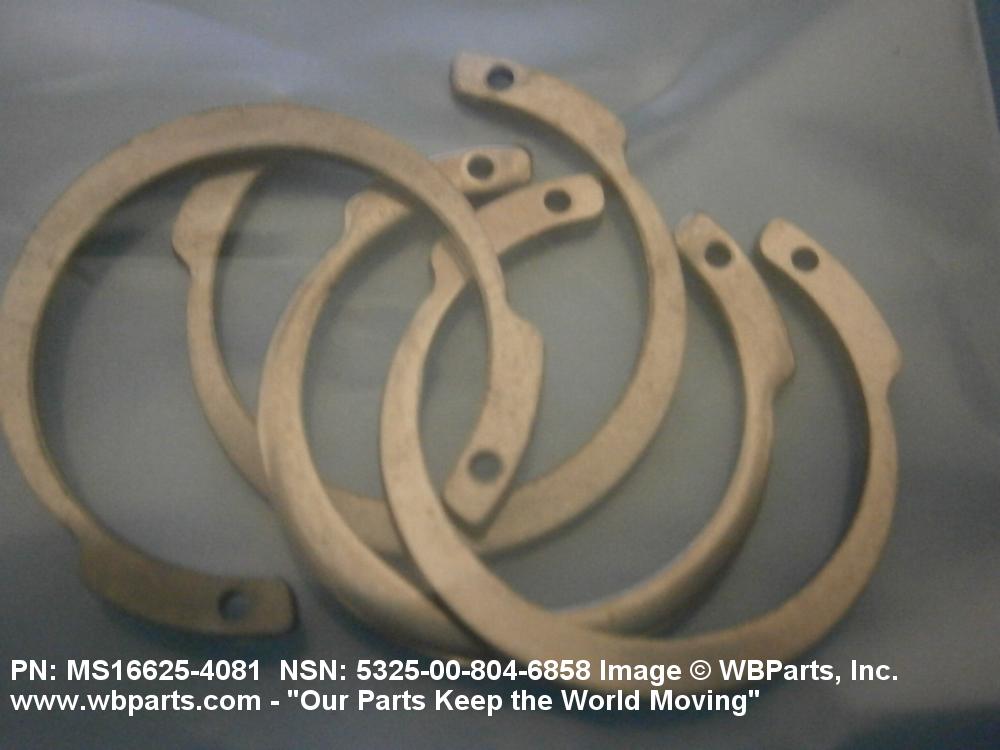

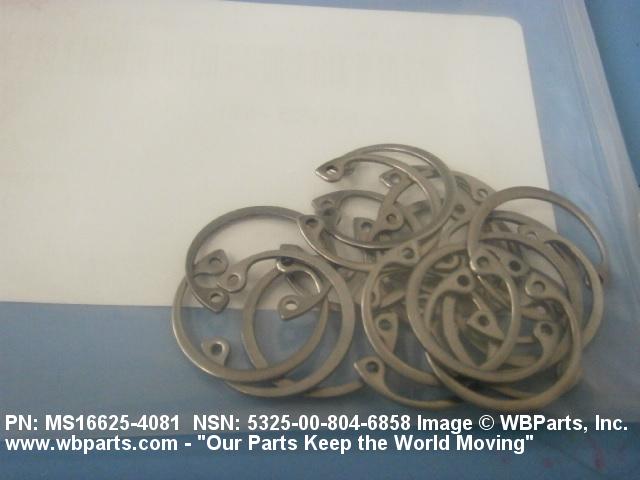

Drawings & Photos | NSN 5325-00-804-6858
Demand History | NSN 5325-00-804-6858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS166254081 | 2024-03-65 | 12 | United States |
| MS166254081 | 2020-07-211 | 6 | United States |
| MS166254081 | 2020-06-176 | 3 | PH |
| MS166254081 | 2019-07-197 | 1 | IN |
| 3000X81SS2 | 2013-10-296 | 10 | US |
| MS166254081 | 2012-06-163 | 100 | Indonesia |
| MS166254081 | 2011-11-327 | 20 | United States |
| MS166254081 | 2011-11-314 | 10 | United States |
| MS166254081 | 2011-11-313 | 20 | United Kingdom |
| 5325-00-804-6858 | 2010-04-117 | 334 | DIBBS |
Cross Reference | NSN 5325-00-804-6858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 156467 | 08712 | PRINCE ALEXANDER PARTNERS INC DIV ARCHITECTURE ENGIEERING AND |
| 218275 | 66503 | WOODWARD, INC. DBA WOODWARD |
| 3000-X81-SS2 | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3000-X81-SS2 | 97464 | TRUARC CO LLC |
| 411171-4081 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 500-81H | 19156 | MOOG INC. |
| 5000-81W | 19156 | MOOG INC. |
| 5000-B1W | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 907581K35 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS16625-4081 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N1300-81AS | 54963 | SEEGER INC ANDERTON-UNITED PRODUCTS DIV |
| N5000-81H | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-81H | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| SW120-174 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-804-6858
Technical Data | NSN 5325-00-804-6858
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 63.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 69.5 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A37 INTERNAL |
| OUTSIDE DIAMETER | 0.901 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.042 INCHES NOMINAL |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16625-4081 |
Restrictions/Controls & Freight Information | NSN 5325-00-804-6858
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-804-6858
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
