NSN 5325-00-805-6004 MS 16624-3025 , MS166243025, MS16624-3025
Product Details | RETAINING RING
5325-00-805-6004 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS 16624-3025 , MS166243025, MS16624-3025, NAS67025P, NAS670-25P, MILR21248, 10327135, 310025STPA, 3100-25-ST-PA, 510025PP, 5100-25PP, 510025SPP, 5100-25-S-PP , 5325-00-805-6004, 00-805-6004, 5325008056004, 008056004
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-805-6004 | 07623 ( RING, RETAINING ) |

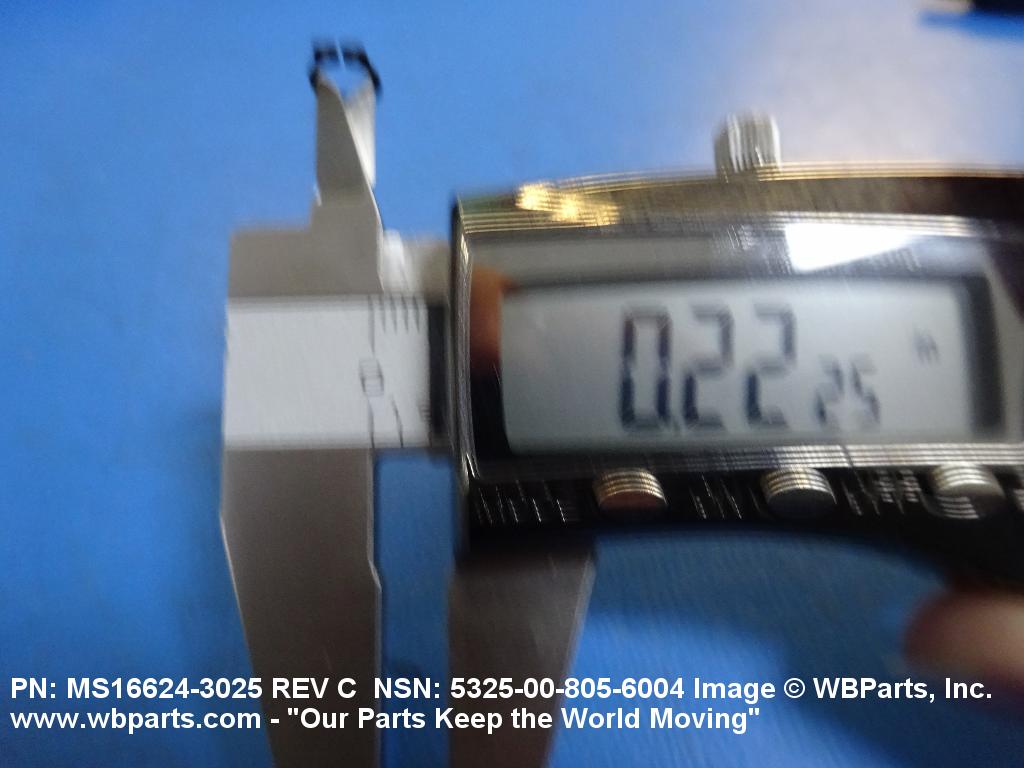

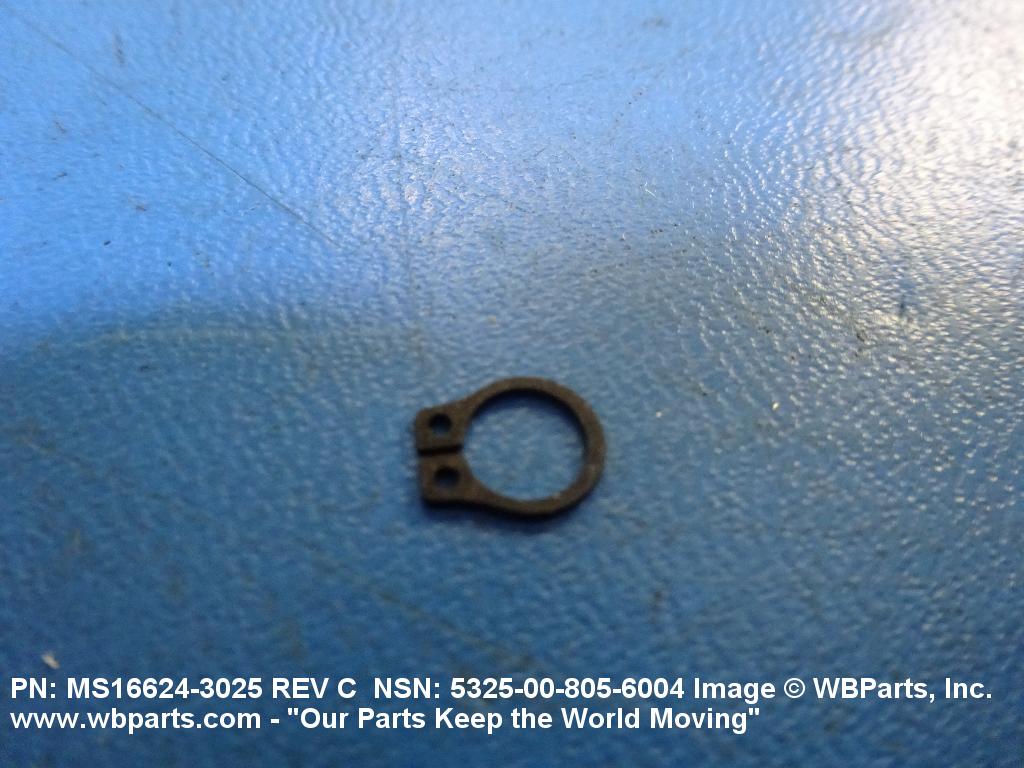

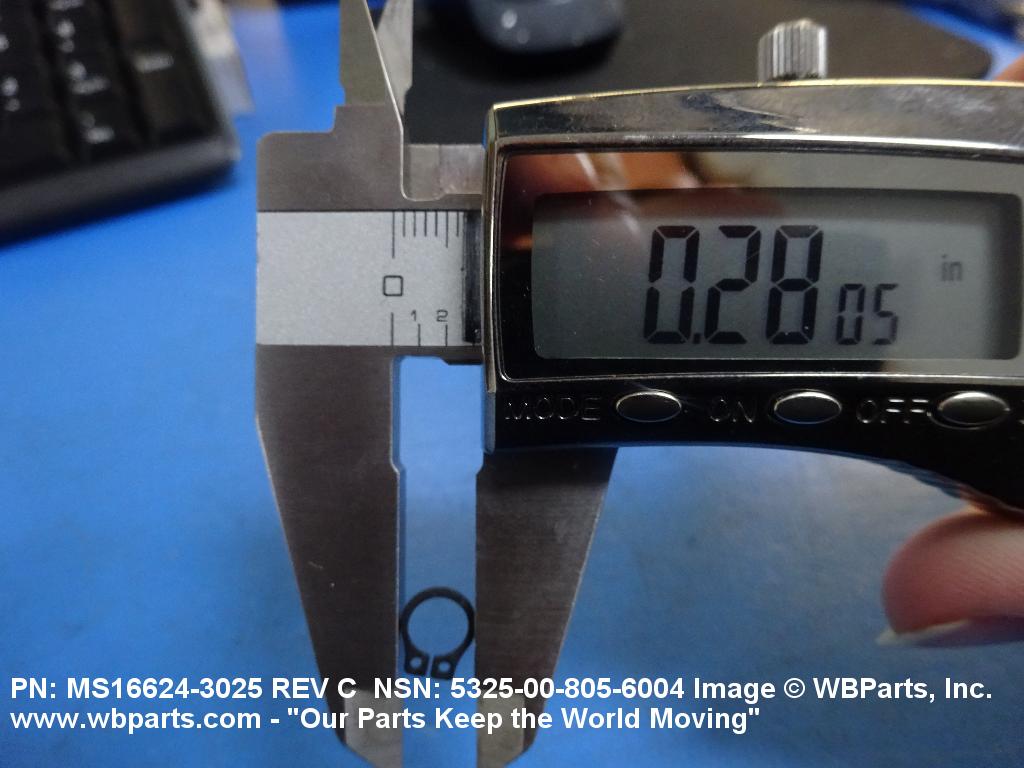

Drawings & Photos | NSN 5325-00-805-6004
Demand History | NSN 5325-00-805-6004
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-805-6004 | 2022-03-89 | 30 | United States |
| MILR21248 | 2013-04-112 | 5 | MX |
| MILR21248 | 2011-02-47 | 24 | us |
Cross Reference | NSN 5325-00-805-6004
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3100-25-ST-PA | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3100-25-ST-PA | 97464 | TRUARC CO LLC |
| 5100-25-S-PP | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 5100-25-S-PP | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| 5100-25PP | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 5100-25PP | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| MILR21248 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS 16624-3025 | 0291H | ROSOMAK S.A |
| MS16624-3025 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS670-25P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS67025P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-805-6004
Technical Data | NSN 5325-00-805-6004
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,FED FED-STD 66 NO. 1066 THRU 1090 |
| SURFACE TREATMENT | PHOSPHATE COATED |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 69.5 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 73.0 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A41 EXTERNAL |
| INSIDE DIAMETER | 0.225 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.025 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR21248 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16624-3025 |
Restrictions/Controls & Freight Information | NSN 5325-00-805-6004
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-805-6004
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
