NSN 5325-00-811-1857 MS279838N, MS27983-8N, 412
Product Details | SNAP FASTENER STUD
5325-00-811-1857 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Part Alternates: MS279838N, MS27983-8N, 412, 5325-00-811-1857, 00-811-1857, 5325008111857, 008111857
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1968 | 00-811-1857 | 16550 ( STUD, SNAP FASTENER ) |

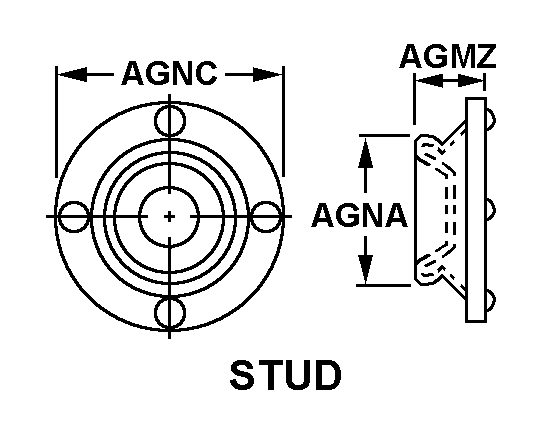

Drawings & Photos | NSN 5325-00-811-1857
Demand History | NSN 5325-00-811-1857
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 412 | 2025-04-107 | 8 | us |
| 412 | 2018-08-227 | 5 | United States |
| MS279838N | 2008-10-276 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-811-1857
Technical Data | NSN 5325-00-811-1857
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SNAP FASTENER STUD STYLE | 10 STUD |
| STUD OVERALL LENGTH | 0.187 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.562 INCHES NOMINAL |
| STUD RETENTION METHOD | CLINCH |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27983-8N |
Restrictions/Controls & Freight Information | NSN 5325-00-811-1857
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-811-1857
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
