NSN 5325-00-849-4001 S100121, S10012-1, S100127
Product Details | PANEL FASTENER INSERT
5325-00-849-4001 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: S100121, S10012-1, S100127, S10012-7, SL205234, SL2052-3-4, SL2052341, SL2052-3-4-1, D108SF395081, D108SF39508-1, 403SF1032083, 403SF1032-08-3, 495GF103208, 495GF1032-08, 495SF1032081, 495SF1032-08-1, 8000528, 80-005-2-8, 5325-00-849-4001, 00-849-4001, 5325008494001, 008494001
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JAN 1967 | 00-849-4001 | 37444 ( INSERT, PANEL FASTENER ) |

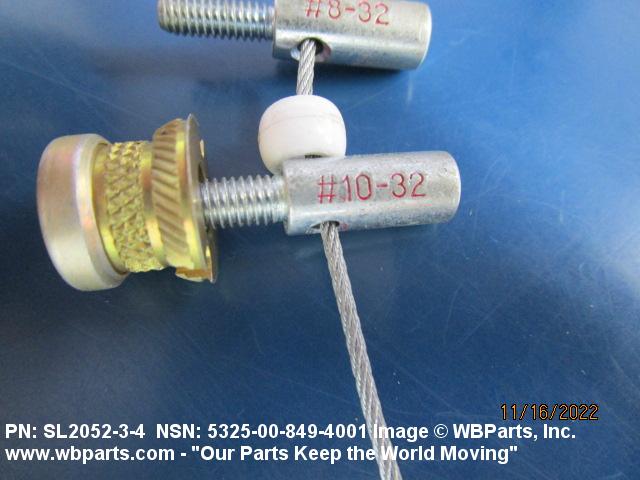

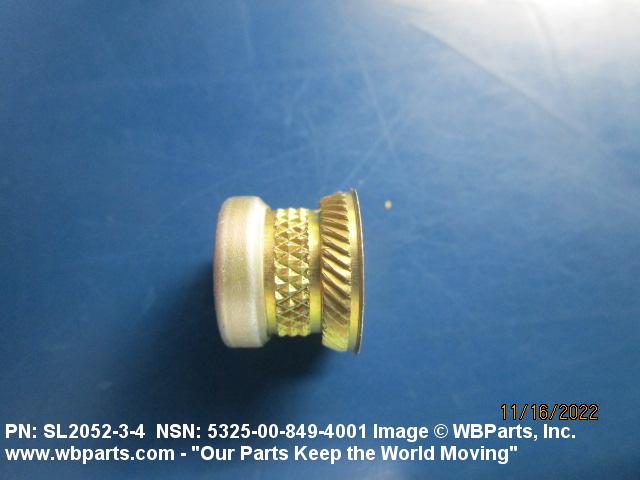

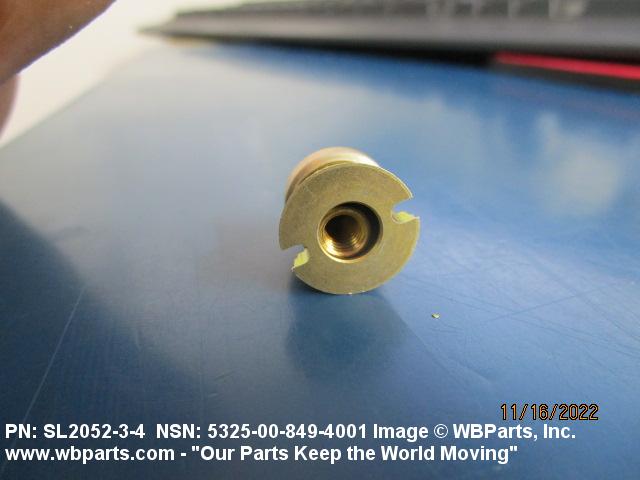

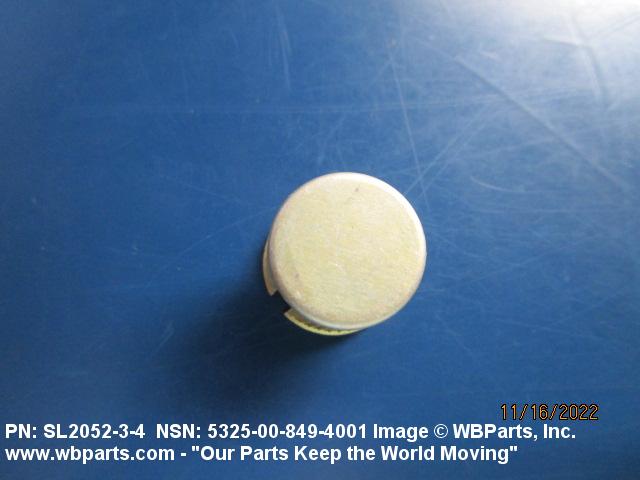

Drawings & Photos | NSN 5325-00-849-4001
Demand History | NSN 5325-00-849-4001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 403SF1032-08-3 | 2025-12-335 | 434 | DIBBS |
| 495SF1032-08-1 | 2025-12-335 | 434 | DIBBS |
| D108SF39508-1 | 2025-12-335 | 434 | DIBBS |
| SL2052-3-4 | 2025-12-335 | 434 | DIBBS |
| SL2052-3-4-1 | 2025-12-335 | 434 | DIBBS |
| 403SF1032-08-3 | 2025-11-323 | 434 | DIBBS |
| 495SF1032-08-1 | 2025-11-323 | 434 | DIBBS |
| D108SF39508-1 | 2025-11-323 | 434 | DIBBS |
| SL2052-3-4 | 2025-11-323 | 434 | DIBBS |
| SL2052-3-4-1 | 2025-11-323 | 434 | DIBBS |
| 403SF1032-08-3 | 2025-04-97 | 113 | DIBBS |
| 495SF1032-08-1 | 2025-04-97 | 113 | DIBBS |
| D108SF39508-1 | 2025-04-97 | 113 | DIBBS |
| SL2052-3-4 | 2025-04-97 | 113 | DIBBS |
| SL2052-3-4-1 | 2025-04-97 | 113 | DIBBS |
| 403SF1032-08-3 | 2025-03-84 | 113 | DIBBS |
| 495SF1032-08-1 | 2025-03-84 | 113 | DIBBS |
| D108SF39508-1 | 2025-03-84 | 113 | DIBBS |
| SL2052-3-4 | 2025-03-84 | 113 | DIBBS |
| SL2052-3-4-1 | 2025-03-84 | 113 | DIBBS |
| 403SF1032-08-3 | 2023-08-236 | 643 | DIBBS |
| 495SF1032-08-1 | 2023-08-236 | 643 | DIBBS |
| D108SF39508-1 | 2023-08-236 | 643 | DIBBS |
| SL2052-3-4 | 2023-08-236 | 643 | DIBBS |
| SL2052-3-4-1 | 2023-08-236 | 643 | DIBBS |
| 8000528 | 2022-11-311 | 10 | PT |
| SL205234 | 2022-11-308 | 10 | United States |
| SL205234 | 2022-10-301 | 7 | United States |
| 403SF1032-08-3 | 2022-02-48 | 85 | DIBBS |
| 495SF1032-08-1 | 2022-02-48 | 85 | DIBBS |
| D108SF39508-1 | 2022-02-48 | 85 | DIBBS |
| SL2052-3-4 | 2022-02-48 | 85 | DIBBS |
| SL2052-3-4-1 | 2022-02-48 | 85 | DIBBS |
| 403SF1032-08-3 | 2022-02-39 | 237 | DIBBS |
| 495SF1032-08-1 | 2022-02-39 | 237 | DIBBS |
| D108SF39508-1 | 2022-02-39 | 237 | DIBBS |
| SL2052-3-4 | 2022-02-39 | 237 | DIBBS |
| SL2052-3-4-1 | 2022-02-39 | 237 | DIBBS |
| 403SF1032-08-3 | 2021-11-322 | 23 | DIBBS |
| 495SF1032-08-1 | 2021-11-322 | 23 | DIBBS |
| D108SF39508-1 | 2021-11-322 | 23 | DIBBS |
| SL2052-3-4 | 2021-11-322 | 23 | DIBBS |
| SL2052-3-4-1 | 2021-11-322 | 23 | DIBBS |
| 403SF1032-08-3 | 2021-08-227 | 200 | DIBBS |
| 495SF1032-08-1 | 2021-08-227 | 200 | DIBBS |
| D108SF39508-1 | 2021-08-227 | 200 | DIBBS |
| SL2052-3-4 | 2021-08-227 | 200 | DIBBS |
| SL2052-3-4-1 | 2021-08-227 | 200 | DIBBS |
| 403SF1032-08-3 | 2021-07-196 | 27 | DIBBS |
| 495SF1032-08-1 | 2021-07-196 | 27 | DIBBS |
| D108SF39508-1 | 2021-07-196 | 27 | DIBBS |
| SL2052-3-4 | 2021-07-196 | 27 | DIBBS |
| SL2052-3-4-1 | 2021-07-196 | 27 | DIBBS |
| 403SF1032-08-3 | 2021-03-68 | 617 | DIBBS |
| 495SF1032-08-1 | 2021-03-68 | 617 | DIBBS |
| D108SF39508-1 | 2021-03-68 | 617 | DIBBS |
| SL2052-3-4 | 2021-03-68 | 617 | DIBBS |
| SL2052-3-4-1 | 2021-03-68 | 617 | DIBBS |
| 403SF1032-08-3 | 2020-06-166 | 666 | DIBBS |
| 495SF1032-08-1 | 2020-06-166 | 666 | DIBBS |
| D108SF39508-1 | 2020-06-166 | 666 | DIBBS |
| SL2052-3-4 | 2020-06-166 | 666 | DIBBS |
| SL2052-3-4-1 | 2020-06-166 | 666 | DIBBS |
| 5325-00-849-4001 | 2019-12-344 | 100 | United States |
| 8000528 | 2018-05-150 | 56 | United States |
| 5325-00-849-4001 | 2017-11-333 | 10 | United States |
| 8000528 | 2016-01-19 | 20 | Sri Lanka |
| 8000528 | 2015-05-148 | 10 | US |
| 8000528 | 2013-01-04 | 30 | MX |
| 8000528 | 2012-10-291 | 90 | Australia |
| 8000528 | 2012-08-220 | 200 | US |
| 8000528 | 2011-08-223 | 500 | US |
| 5325-00-849-4001 | 2011-07-198 | 135 | Australia |
| 5325-00-849-4001 | 2011-05-133 | 9 | US |
| 5325-00-849-4001 | 2010-03-74 | 3816 | DIBBS |
| 5325-00-849-4001 | 2009-12-365 | 4 | us |
| 5325-00-849-4001 | 2009-10-286 | 12 | MX |
| 5325-00-849-4001 | 2009-10-276 | 3007 | DIBBS |
| 8000528 | 2009-09-266 | 14 | Colombia |
| 8000528 | 2009-09-264 | 8 | Colombia |
| 5325-00-849-4001 | 2009-03-63 | 100 | US |
Cross Reference | NSN 5325-00-849-4001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403SF1032-08-3 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 403SF1032-08-3 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 495GF1032-08 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 495SF1032-08-1 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 495SF1032-08-1 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 80-005-2-8 | 97499 | BELL HELICOPTER TEXTRON INC. |
| D108SF39508-1 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| D108SF39508-1 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| D108SF39508-1 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| S10012-1 | 05395 | L-3 COMMUNICATIONS CORPORATION DBA MISSION INTEGRATION DIVISION |
| S10012-7 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| SL2052-3-4 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| SL2052-3-4-1 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-849-4001
Related Products | NSN 5325-00-849-4001
Technical Data | NSN 5325-00-849-4001
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | CHROMATE OR ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-A-8625 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| INSERT STYLE | 17 FLUSH FLANGE |

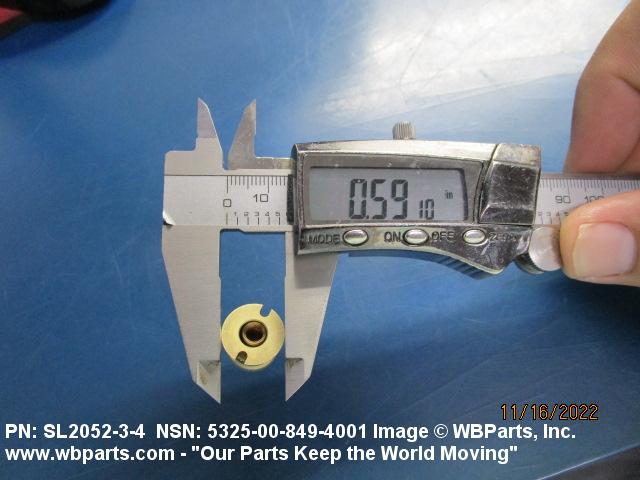

| SHOULDER DIAMETER | 0.593 INCHES NOMINAL |
| FLANGE DIAMETER | 0.593 INCHES NOMINAL |

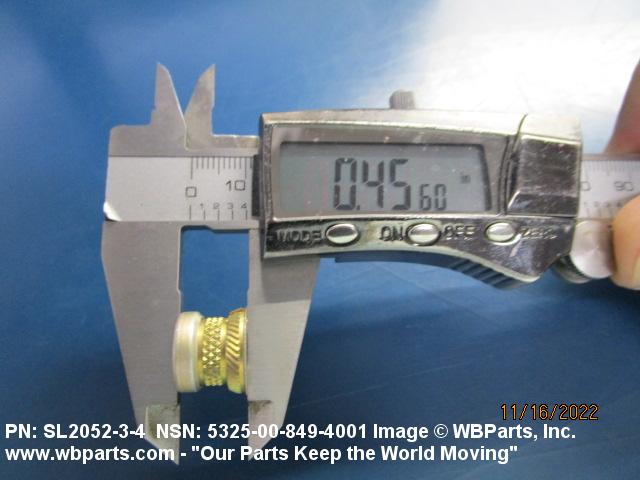

| OVERALL LENGTH | 0.455 INCHES NOMINAL |
