NSN 5325-00-855-2948 AR5T5, BACW20A219, 295306
Product Details | POSITIVE LOCK FASTENER

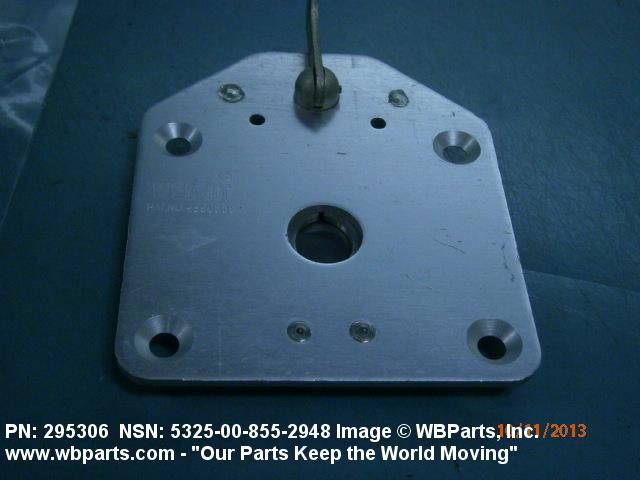

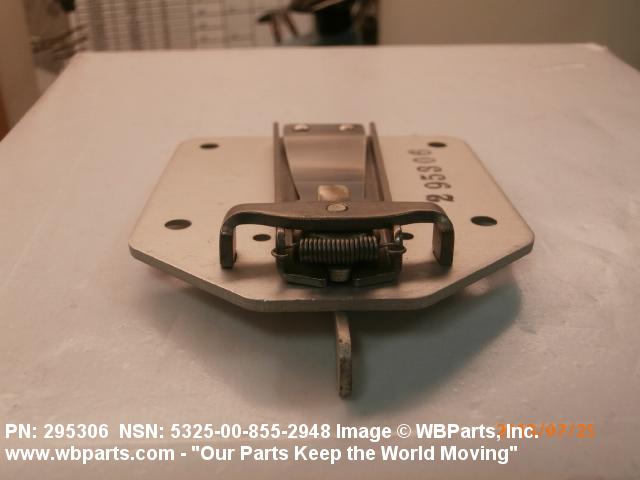

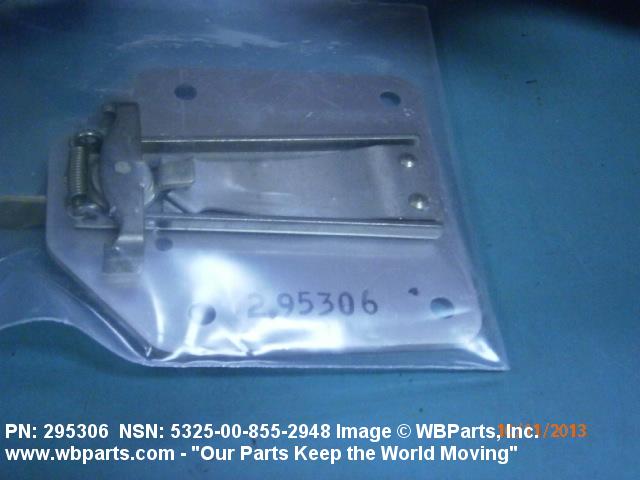

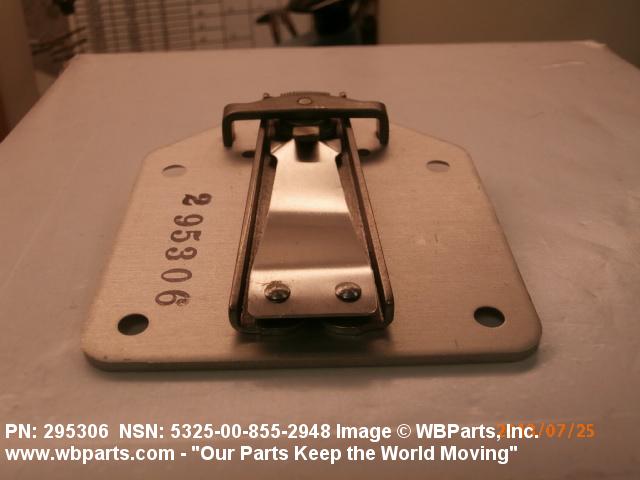

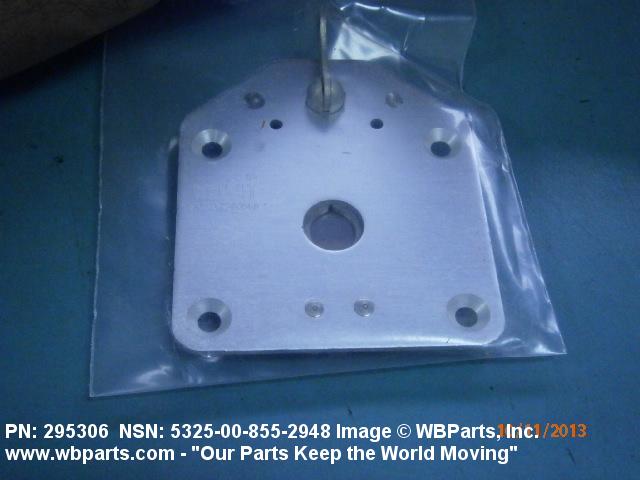

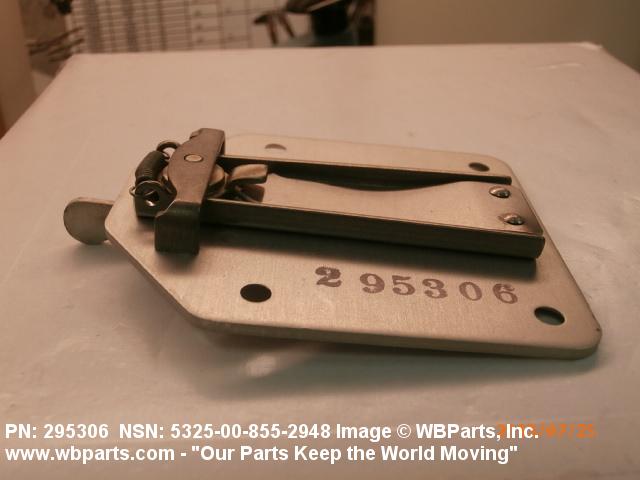

5325-00-855-2948 An item consisting of a STUD, POSITIVE LOCK and a RECEPTACLE, POSITIVE LOCK and may include a washer. It is designed to provide a means for securely locking two items together and allow for quick disconnecting.
Part Alternates: AR5T5, BACW20A219, 295306, 5325-00-855-2948, 00-855-2948, 5325008552948, 008552948
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-855-2948 | 18016 ( FASTENER, POSITIVE LOCK ) |

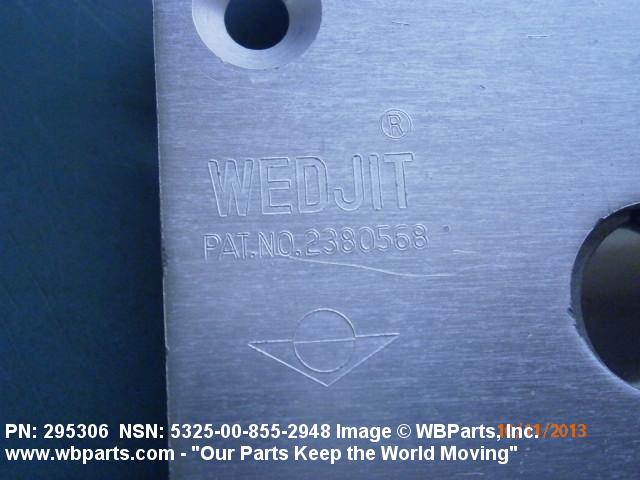

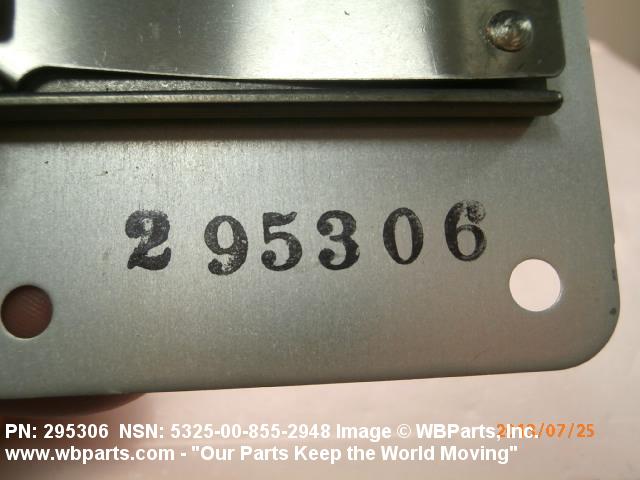

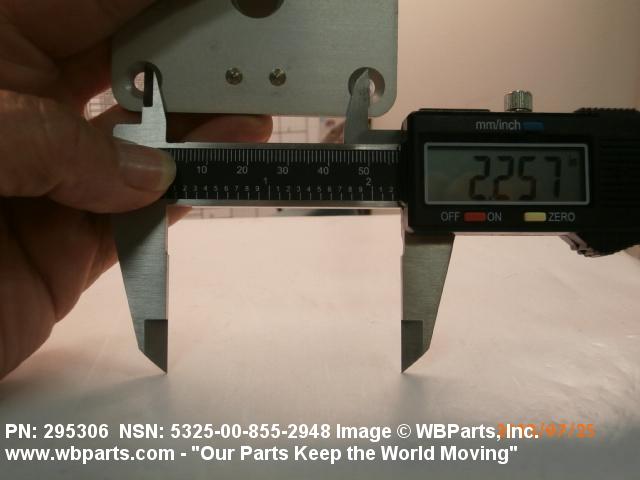

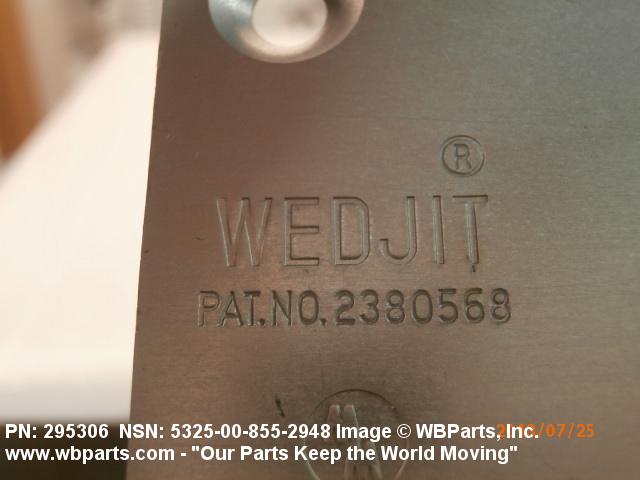

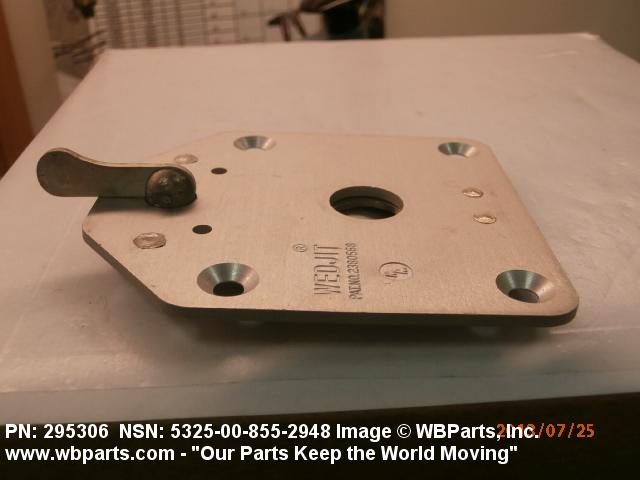

Drawings & Photos | NSN 5325-00-855-2948
Demand History | NSN 5325-00-855-2948
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-855-2948 | 2014-03-83 | 8 | United States |
| 5325-00-855-2948 | 2013-12-357 | 8 | United States |
| 5325-00-855-2948 | 2013-11-326 | 8 | United States |
| 5325-00-855-2948 | 2013-10-277 | 8 | United States |
| 5325-00-855-2948 | 2013-07-193 | 8 | United States |
| 5325-00-855-2948 | 2013-02-52 | 8 | United States |
| 5325-00-855-2948 | 2012-11-307 | 8 | United States |
| 5325-00-855-2948 | 2012-10-276 | 8 | United States |
| 5325-00-855-2948 | 2012-06-172 | 8 | United States |
| 5325-00-855-2948 | 2012-03-80 | 16 | United States |
| 295306 | 2011-10-298 | 16 | United States |
| 5325-00-855-2948 | 2011-01-06 | 16 | United States |
| 5325-00-855-2948 | 2010-11-312 | 4 | DIBBS |
| 5325-00-855-2948 | 2010-06-168 | 120 | United States |
| 5325-00-855-2948 | 2010-06-168 | 8 | United States |
Cross Reference | NSN 5325-00-855-2948
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-855-2948
Related Products | NSN 5325-00-855-2948
Technical Data | NSN 5325-00-855-2948
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY RECEPTACLE MECHANISM ALUMINUM ALLOY STUD |
| SURFACE TREATMENT | ANODIZE RECEPTACLE MECHANISM CADMIUM STUD |

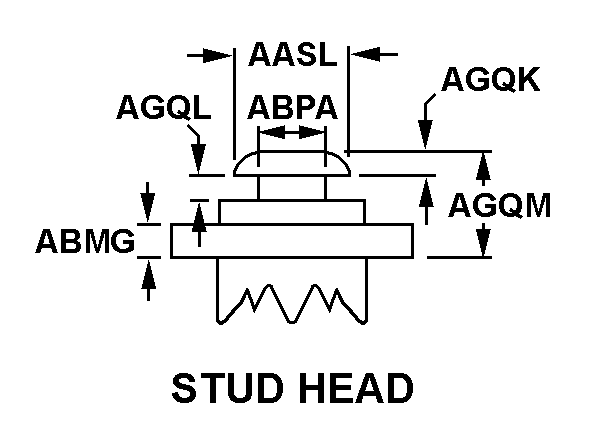

| POSITIVE LOCK STUD HEAD STYLE | 1 STUD HEAD |

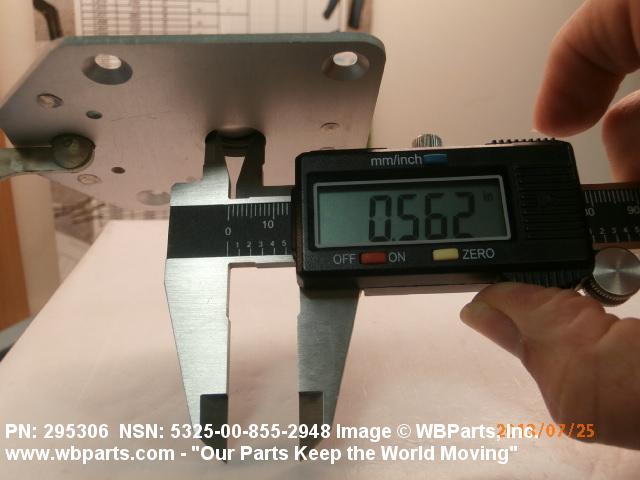

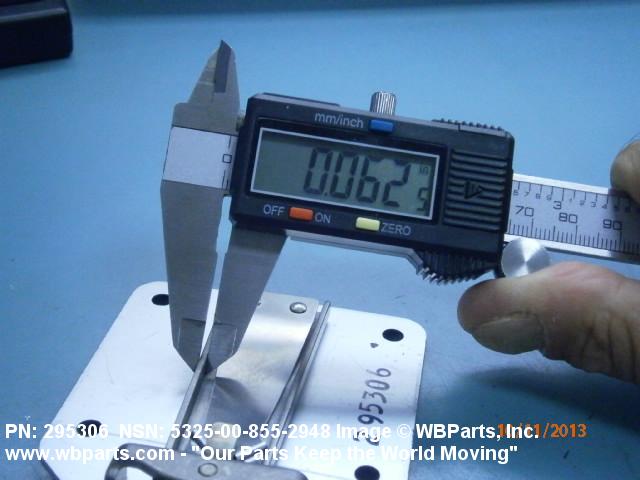

| HEAD DIAMETER | 0.548 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.062 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.396 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.137 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.080 INCHES NOMINAL |

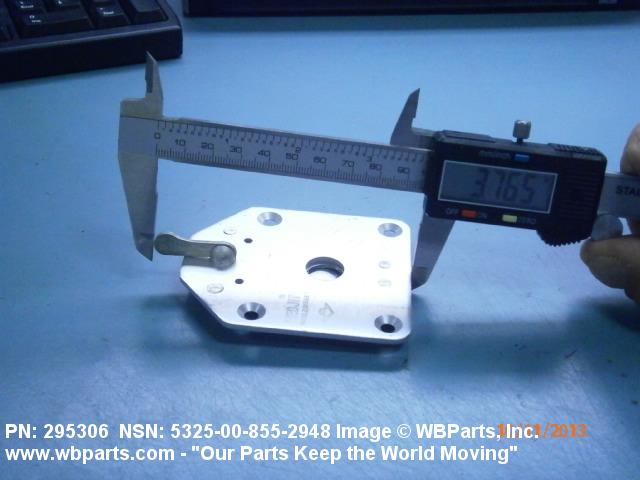

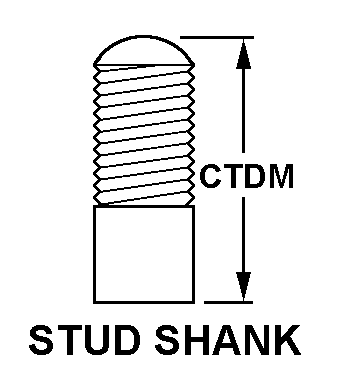

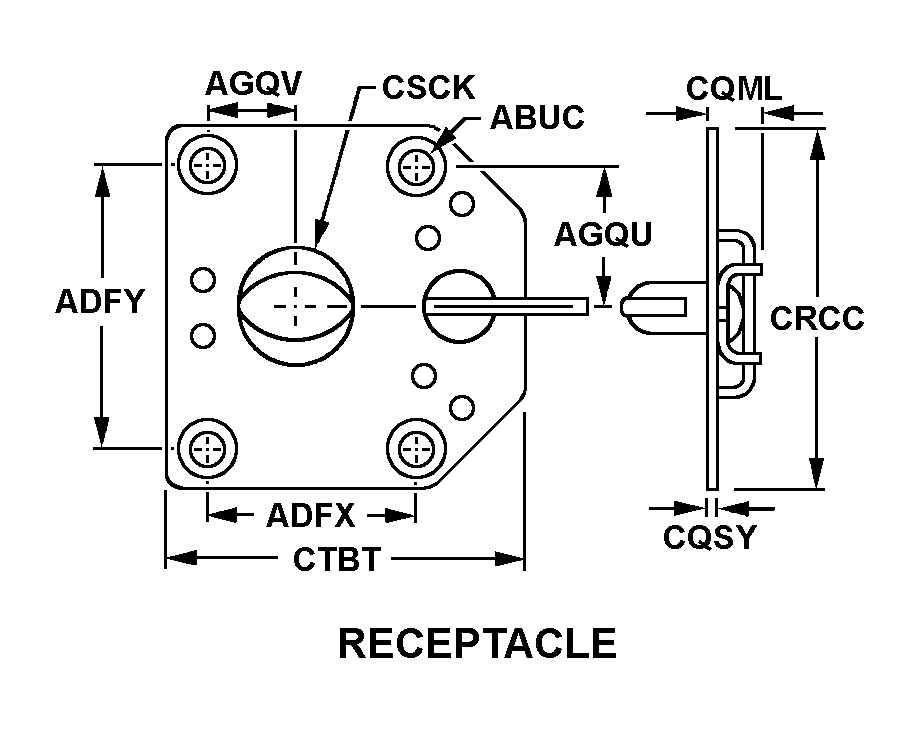

| END OVERALL LENGTH | 0.377 INCHES NOMINAL |
| POSITIVE LOCK STUD SHANK STYLE | 1 STUD SHANK |
| POSITIVE LOCK RECEPTACLE STYLE | 7 RECEPTACLE |

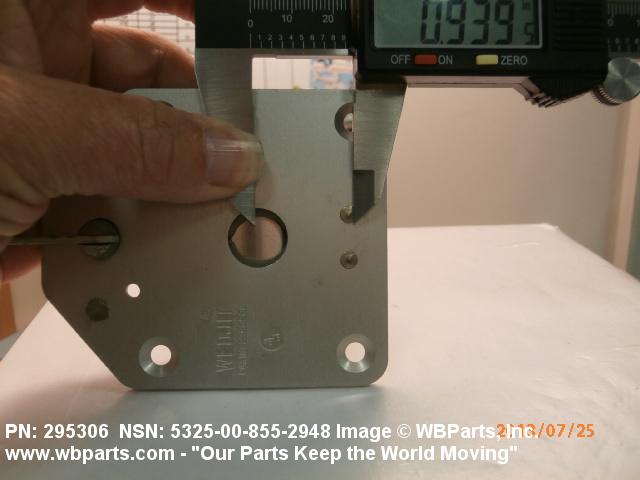

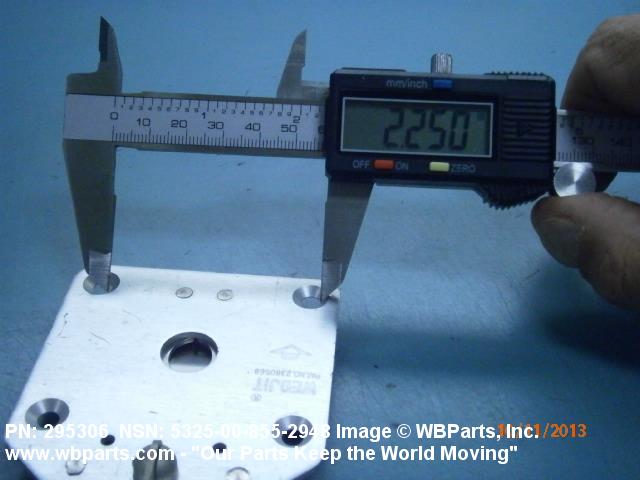

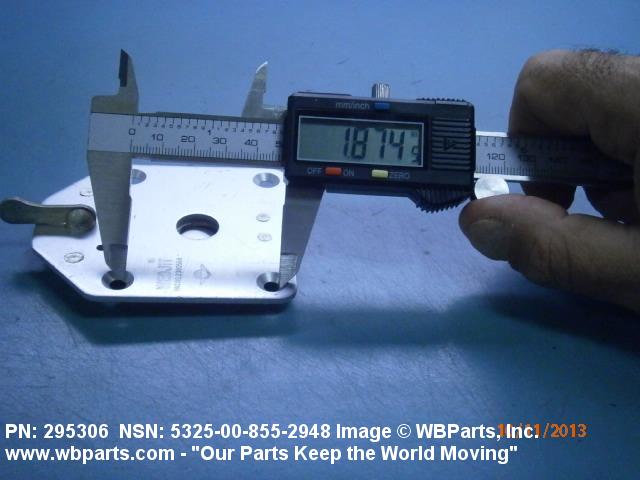

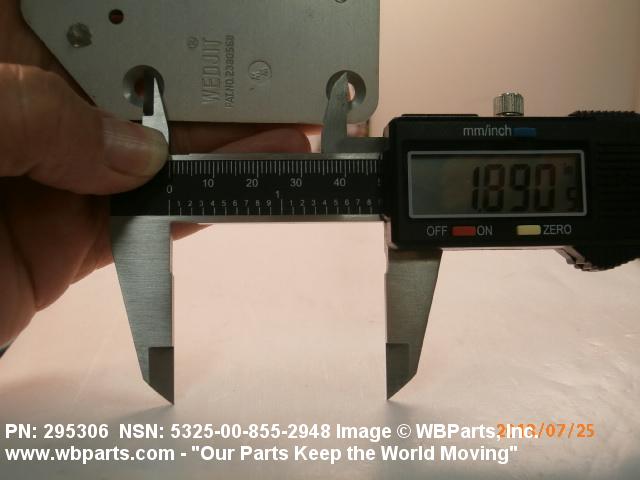

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.875 INCHES NOMINAL |
