NSN 5325-00-859-3783 1127008-12, 27S8121AB, 27S8-12-1AB
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-859-3783 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 1127008-12, 27S8121AB, 27S8-12-1AB, 5325-00-859-3783, 00-859-3783, 5325008593783, 112700812, 008593783
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-859-3783 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

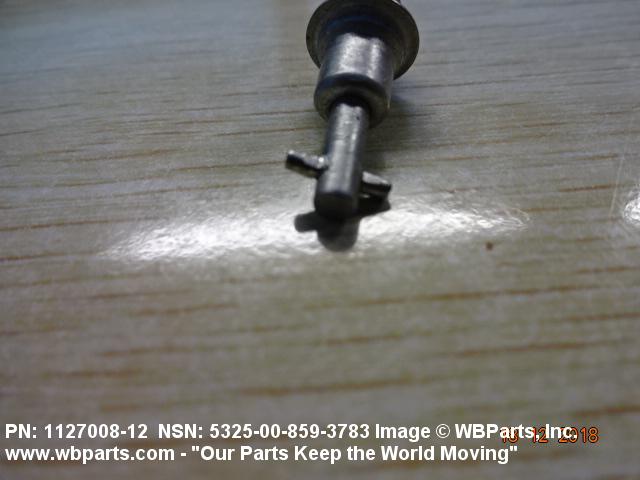

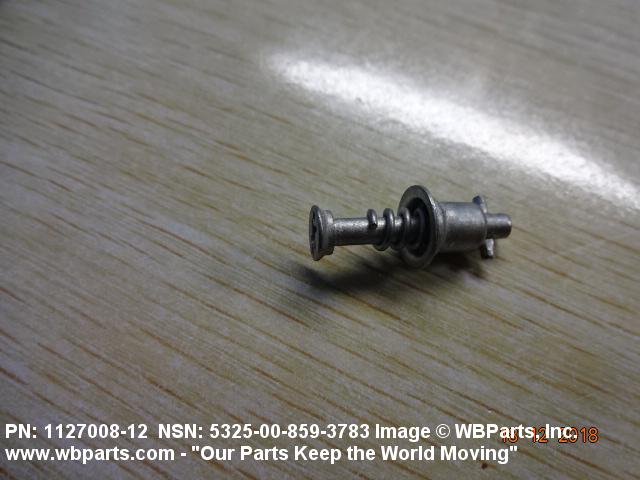

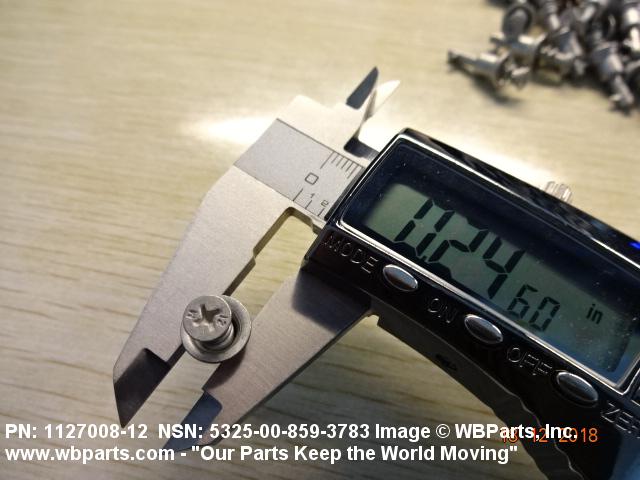

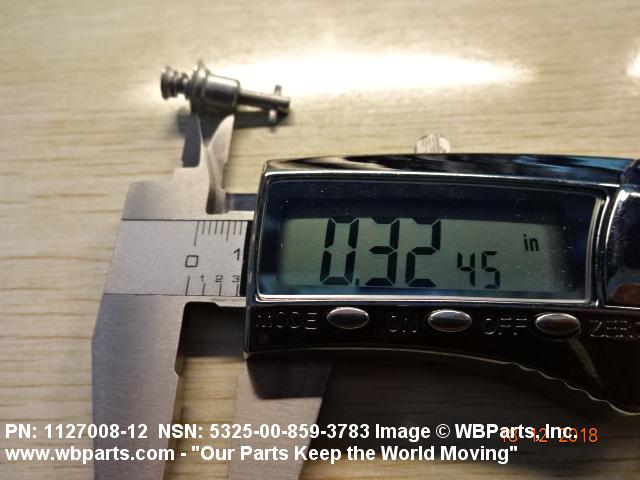

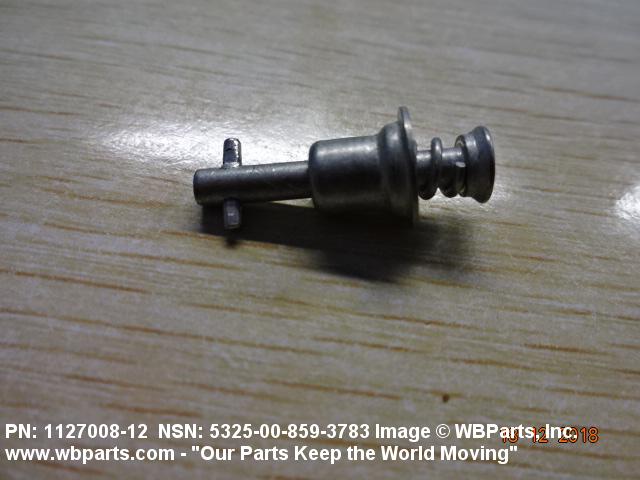

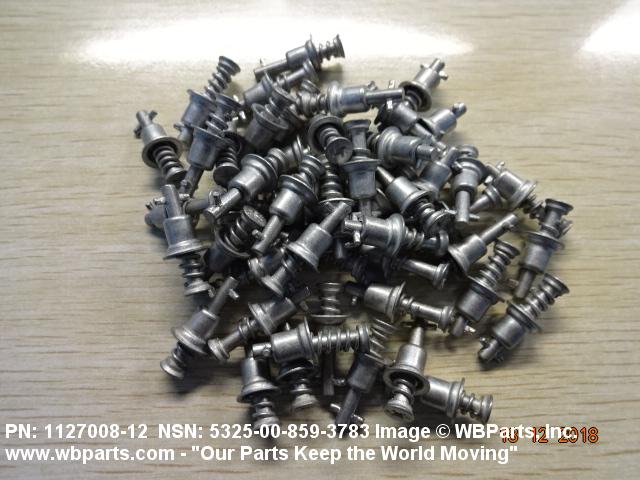

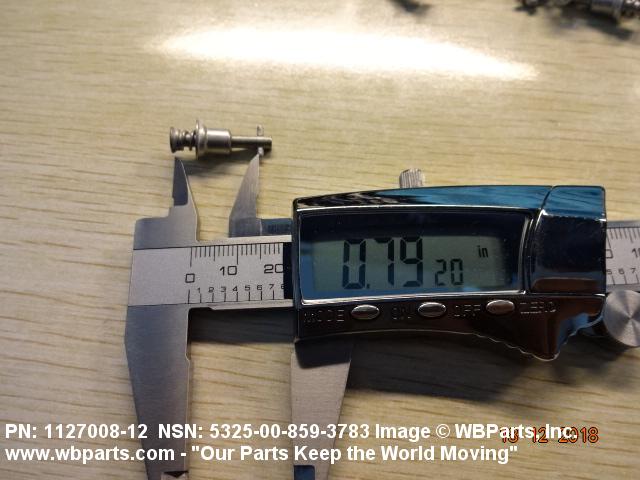

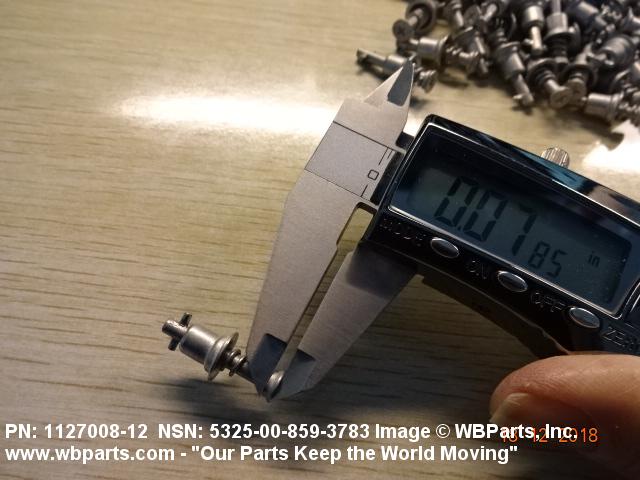

Drawings & Photos | NSN 5325-00-859-3783
Demand History | NSN 5325-00-859-3783
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-859-3783 | 2020-06-181 | 237 | Taiwan |
| 5325-00-859-3783 | 2020-06-157 | 1 | DIBBS-RFPs |
| 1127008-12 | 2020-03-65 | 3600 | DIBBS |
| 27S8-12-1AB | 2020-03-65 | 3600 | DIBBS |
| 1127008-12 | 2020-02-57 | 3600 | DIBBS |
| 27S8-12-1AB | 2020-02-57 | 3600 | DIBBS |
| 5325-00-859-3783 | 2019-06-163 | 210 | Taiwan |
| 27S8121AB | 2018-11-316 | 50 | Thailand |
| 5325-00-859-3783 | 2018-11-316 | 50 | Thailand |
| 5325-00-859-3783 | 2018-07-205 | 3561 | DIBBS |
| 5325-00-859-3783 | 2017-05-145 | 2167 | DIBBS |
| 5325-00-859-3783 | 2017-03-87 | 50 | Taiwan |
| 5325-00-859-3783 | 2017-03-81 | 672 | DIBBS |
| 5325-00-859-3783 | 2017-03-73 | 672 | DIBBS |
| 5325-00-859-3783 | 2014-01-15 | 17 | Taiwan |
| 5325-00-859-3783 | 2010-04-100 | 2303 | DIBBS |
| 5325-00-859-3783 | 2009-05-125 | 2433 | DIBBS |
