NSN 5325-00-903-7544 MILDTL27426, MIL-DTL-27426, RR337

Product Details | RETAINING RING

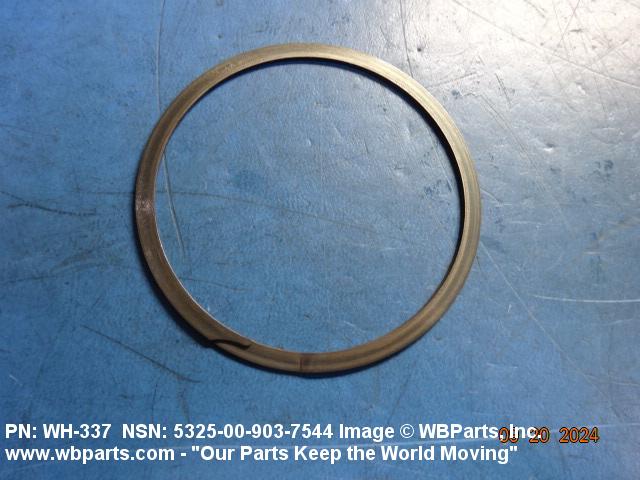

5325-00-903-7544 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MILDTL27426, MIL-DTL-27426, RR337, WH337, WH-337 , 6260019243, 626-001-9243, 5325-00-903-7544, 00-903-7544, 5325009037544, 009037544

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 15 JUN 1966 00-903-7544

Drawings & Photos | NSN 5325-00-903-7544



Demand History | NSN 5325-00-903-7544


Part Number Request Date QTY Origin
RR337 2022-12-14 20 Sweden
MILDTL27426 2018-04-11 1035 KR
5325-00-903-7544 2017-09-14 584 DIBBS
5325-00-903-7544 2014-08-06 562 DIBBS
5325-00-903-7544 2013-11-03 114 DIBBS
MILDTL27426 2013-09-16 2000 CA

Cross Reference | NSN 5325-00-903-7544


Part Number Cage Code Manufacturer
626-001-9243 70210 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
MIL-DTL-27426 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RR337 80756 SPIROLOX, INC.
WH-337 51814 SMALLEY STEEL RING CO.

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5325-00-903-7544


Technical Data | NSN 5325-00-903-7544


Characteristic Specifications
MATERIAL STEEL,FED,FED STD NO. 66,AISI C1070 THRU C1090 OR SAE 1070 THRU 1090
STRENGTH RATING 211000.0 POUNDS PER SQUARE INCH MINIMUM TENSILE
MATERIAL HARDNESS RATING 73.0 ROCKWELL A MINIMUM AND 77.9 ROCKWELL A MAXIMUM
CASEHARDENING INDICATOR NOT CASEHARDENED
RING STYLE A55 SPECIAL FLAT
INSIDE DIAMETER 3.133 INCHES NOMINAL

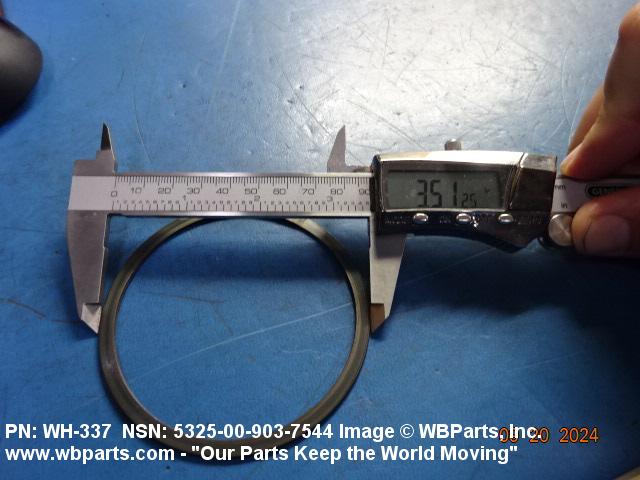

OUTSIDE DIAMETER 3.509 INCHES NOMINAL
CROSS-SECTIONAL SHAPE STYLE D12 DOUBLE OVAL
MAJOR THICKNESS 0.061 INCHES NOMINAL
USAGE DESIGN INTERNAL
NONDEFINITIVE SPEC/STD DATA 2 TYPE AND 1 CLASS AND 3.375 IN. SIZE
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-DTL-27426
