NSN 5325-00-943-6848 HS49468, 00-943-6848, 009436848
Product Details | TRIM SPRING TENSION FASTENER
5325-00-943-6848 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.
Part Alternates: HS49468, 5325-00-943-6848, 00-943-6848, 5325009436848, 009436848
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 FEB 1966 | 00-943-6848 | 18517 ( FASTENER, SPRING TENSION, TRIM ) |

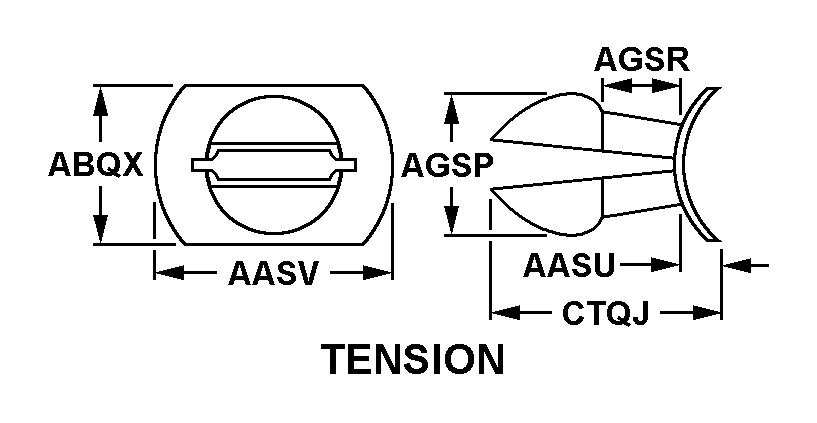

Drawings & Photos | NSN 5325-00-943-6848
Cross Reference | NSN 5325-00-943-6848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS49468 | 83058 | TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-943-6848
Technical Data | NSN 5325-00-943-6848
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CAP |
| SURFACE TREATMENT | CADMIUM CAP |
| FASTENER STYLE | BH16 TENSION |
| HEAD HEIGHT | 0.047 INCHES NOMINAL |
| HEAD LENGTH | 0.500 INCHES NOMINAL |
| HEAD WIDTH | 0.250 INCHES NOMINAL |
| PRONG DIAMETER | 0.184 INCHES NOMINAL |
| LENGTH FROM HEAD TO SHOULDER | 0.125 INCHES NOMINAL |
| FASTENER OVERALL LENGTH | 0.297 INCHES NOMINAL |
| MANUFACTURERS CODE | 83058 |
| DESIGN CONTROL REFERENCE | HS49468 |
Restrictions/Controls & Freight Information | NSN 5325-00-943-6848
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
