NSN 5325-00-966-9846 258731, 25873-1, 00-966-9846
Product Details | PUSH BUTTON FASTENER SOCKET
5325-00-966-9846 A metal device designed to function as a female receptacle for a STUD, PUSH BUTTON FASTENER. May include a clinch plate.
Part Alternates: 258731, 25873-1, 5325-00-966-9846, 00-966-9846, 5325009669846, 009669846
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-966-9846 | 17968 ( SOCKET, PUSH BUTTON FASTENER ) |

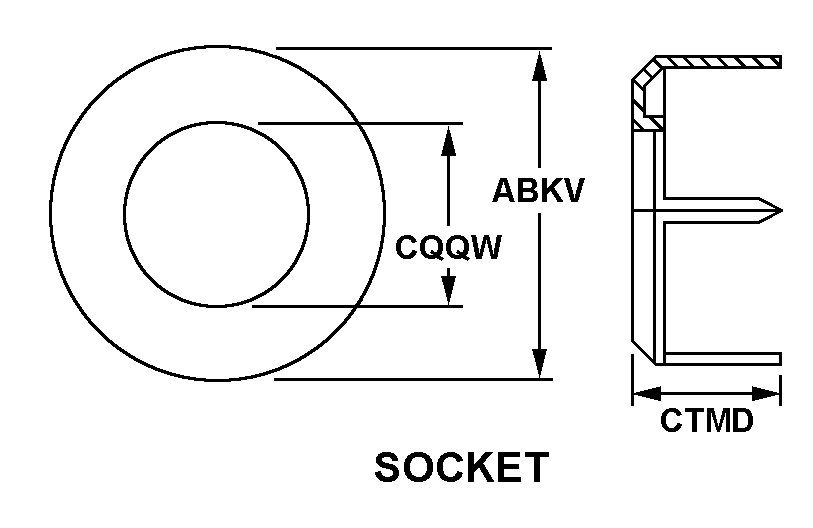

Drawings & Photos | NSN 5325-00-966-9846
Cross Reference | NSN 5325-00-966-9846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25873-1 | 98889 | AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-966-9846
Related Products | NSN 5325-00-966-9846
Technical Data | NSN 5325-00-966-9846
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 BARREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-8506 MIL SPEC SINGLE MATERIAL RESPONSE BARREL |
| SURFACE TREATMENT | PASSIVATE BARREL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE BARREL |
| PUSH BUTTON SOCKET STYLE | 5 SOCKET |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| SOCKET INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| PUSH BUTTON SOCKET OVERALL LENGTH | 0.965 INCHES NOMINAL |
| SPECIAL FEATURES | CHAMFER TOP END 0.031 BY 0.031 IN. DEEP |
Restrictions/Controls & Freight Information | NSN 5325-00-966-9846
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-966-9846
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
