NSN 5325-00-982-0177 GR520C7, R3-1/2, R31-2
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-982-0177 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: GR520C7, R3-1/2, R31-2, R3-1-5, R35CBY, R35, R315, R312, R3.5, 58001826000435, 5800182-6000-435, 5L374100588, 5L3741-005-88, 11697605, 2220128718, 235018C3C, 2350-18-C3C, 238-102-301, 5325-00-982-0177, 00-982-0177, 5325009820177, 009820177, 238102301
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 1966 | 00-982-0177 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

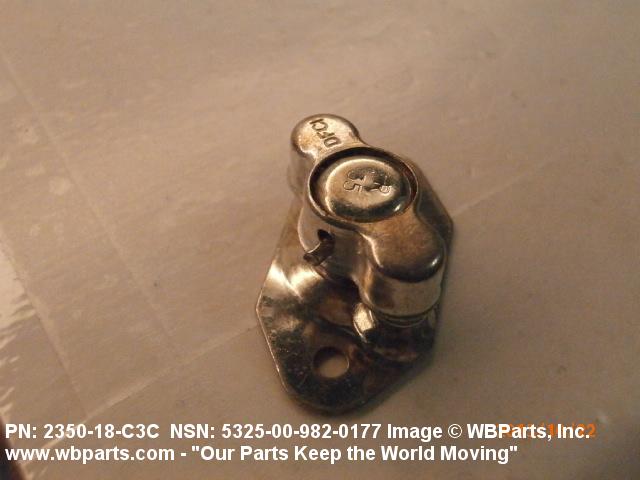

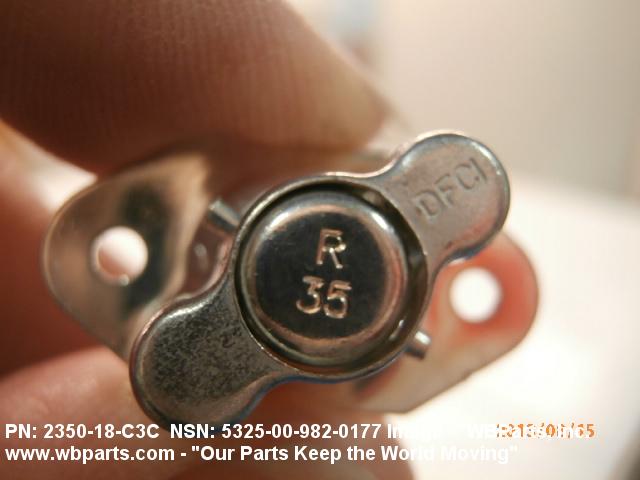

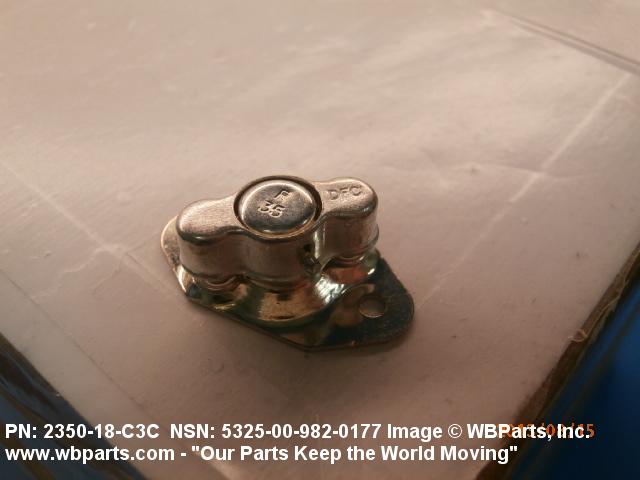

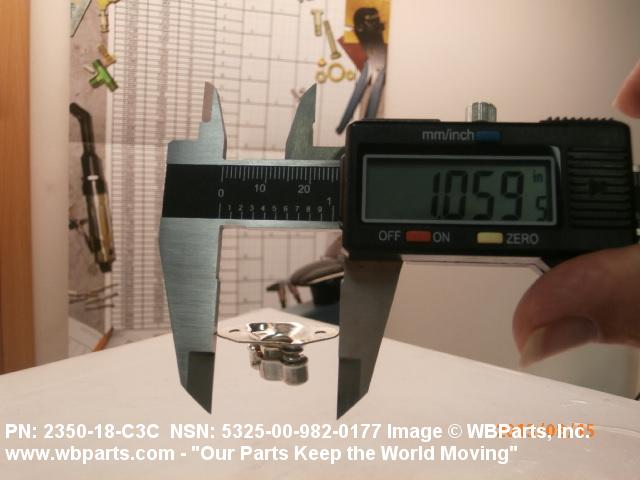

Drawings & Photos | NSN 5325-00-982-0177
Demand History | NSN 5325-00-982-0177
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R312 | 2025-10-303 | 34 | Canada |
| 5325-00-982-0177 | 2025-05-126 | 10 | US |
| GR520C7 | 2025-05-122 | 34 | US |
| 5325-00-982-0177 | 2025-02-43 | 4 | US |
| 5325-00-982-0177 | 2025-02-38 | 4 | US |
| GR520C7 | 2023-01-16 | 175 | United States |
| 5325-00-982-0177 | 2022-08-234 | 10 | CO |
| GR520C7 | 2022-01-11 | 1000 | US |
| 5325-00-982-0177 | 2021-10-280 | 32 | US |
| GR520C7 | 2021-06-169 | 20 | UM |
| R312 | 2016-11-315 | 20 | Austria |
| R312 | 2015-11-307 | 106 | United States |
| 235018C3C | 2014-11-318 | 25 | United States |
| 235018C3C | 2014-11-318 | 50 | United States |
| GR520C7 | 2014-03-63 | 6 | United States |
| GR520C7 | 2014-03-63 | 50 | United States |
| GR520C7 | 2014-03-63 | 100 | United States |
| 235018C3C | 2013-10-274 | 6 | United States |
| R35 | 2013-10-274 | 6 | United States |
| 235018C3C | 2013-08-225 | 10 | United States |
| 235018C3C | 2012-09-269 | 10 | US |
| 5325-00-982-0177 | 2012-06-166 | 100 | United States |
| 235018C3C | 2012-03-74 | 20 | United States |
| R35 | 2012-03-74 | 18 | United States |
| R35 | 2012-02-59 | 18 | United States |
| R35 | 2011-07-194 | 12 | United States |
| 235018C3C | 2011-03-61 | 12 | United States |
| R35 | 2011-03-61 | 12 | United States |
| R35 | 2010-04-102 | 600 | Australia |
| R35 | 2010-04-102 | 600 | Australia |
| R35 | 2010-04-98 | 48 | US |
| R35 | 2010-04-97 | 600 | United Kingdom |
| 5L374100588 | 2009-07-182 | 20 | United States |
| 5325-00-982-0177 | 2009-06-169 | 1 | DIBBS |
| R35 | 2009-04-110 | 78 | us |
| 5325-00-982-0177 | 2009-02-48 | 100 | Canada |
| 5325-00-982-0177 | 2009-02-48 | 8 | DIBBS |
| 5325-00-982-0177 | 2008-11-330 | 50 | DIBBS |
| 5325-00-982-0177 | 2008-10-290 | 25 | DIBBS |
| 5325-00-982-0177 | 2008-09-264 | 1 | DIBBS |
| 5325-00-982-0177 | 2008-09-246 | 25 | DIBBS |
| 5325-00-982-0177 | 2008-07-213 | 25 | us |
| 5325-00-982-0177 | 2008-07-208 | 1500 | MX |
| 5325-00-982-0177 | 2008-07-190 | 25 | DIBBS |
| 5325-00-982-0177 | 2008-03-86 | 155 | United States |
| 235018C3C | 2008-02-35 | 100 | United States |
| 5325-00-982-0177 | 2008-01-04 | 2 | US |
Cross Reference | NSN 5325-00-982-0177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11697605 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 2220128718 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 2350-18-C3C | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 238-102-301 | A1997 | ELETTRONICA SPA |
| 238-102-301 | C3141 | ELETTRONICA GMBH |
| 5800182-6000-435 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 5L3741-005-88 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| GR520C7 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| R3-1-5 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| R3-1/2 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| R3.5 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| R31-2 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| R31-2 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| R35 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| R35CBY | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-982-0177
Related Products | NSN 5325-00-982-0177
Technical Data | NSN 5325-00-982-0177
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BARREL |
| TURNLOCK RECEPTACLE STYLE | 26 RECEPTACLE |

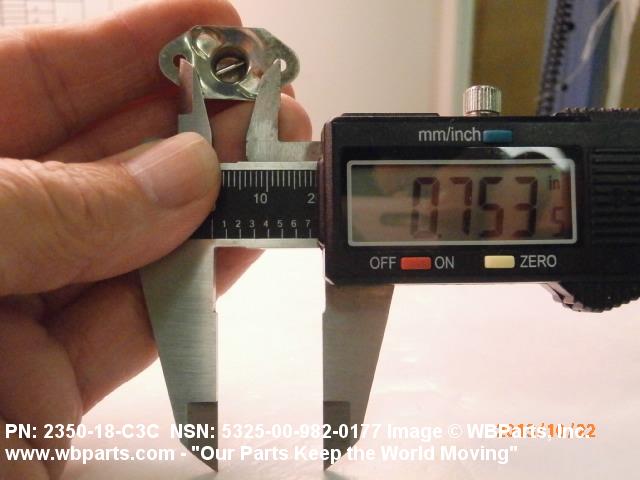

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |

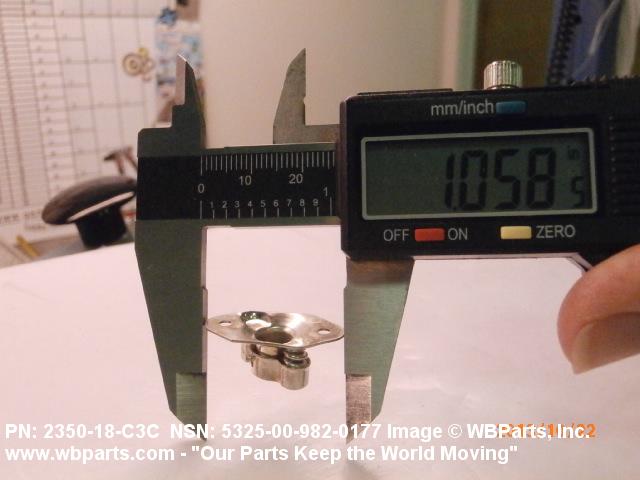

| RECEPTACLE OVERALL LENGTH | 1.062 INCHES NOMINAL |

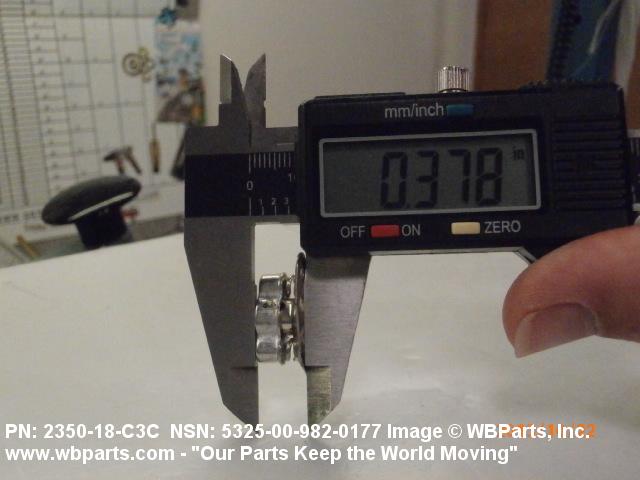

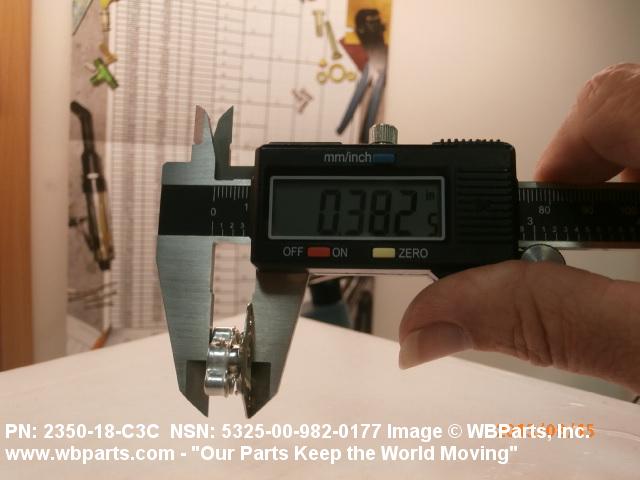

| RECEPTACLE HEIGHT | 0.385 INCHES NOMINAL |

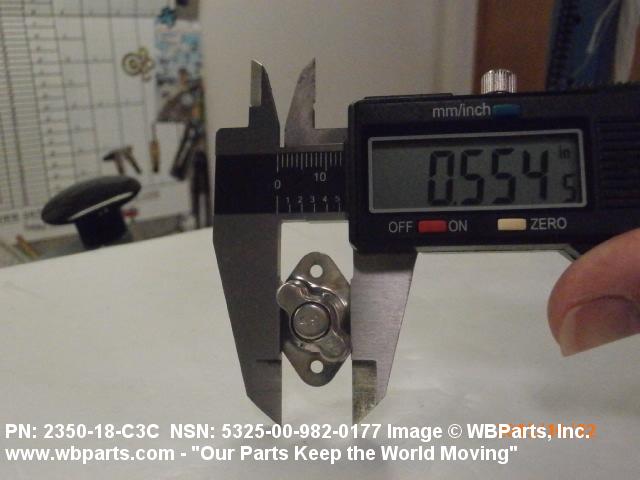

| RECEPTACLE WIDTH | 0.552 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |

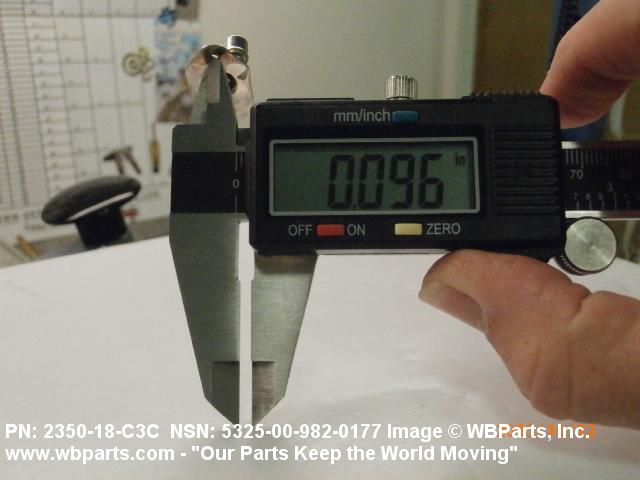

| TURNLOCK MOUNTING HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-982-0177
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-982-0177
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
