NSN 5325-00-998-3310 49330, 00-998-3310, 009983310
Product Details | TRIM SPRING TENSION FASTENER
5325-00-998-3310 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.
Part Alternates: 49330, 5325-00-998-3310, 00-998-3310, 5325009983310, 009983310
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 1967 | 00-998-3310 | 18517 ( FASTENER, SPRING TENSION, TRIM ) |

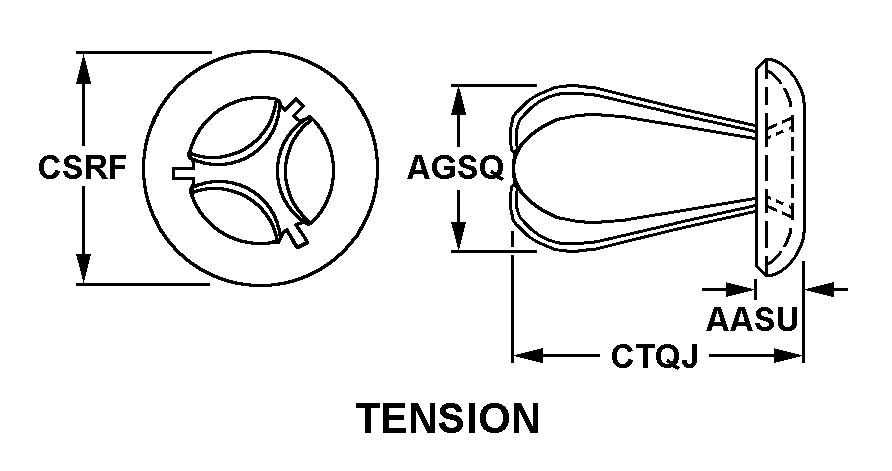

Drawings & Photos | NSN 5325-00-998-3310
Demand History | NSN 5325-00-998-3310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 49330 | 2018-04-100 | 80 | Indonesia |
| 49330 | 2011-11-333 | 200 | US |
| 5325-00-998-3310 | 2011-01-31 | 50 | US |
| 5325-00-998-3310 | 2009-08-223 | 100 | Canada |
| 5325-00-998-3310 | 2009-06-160 | 200 | US |
Cross Reference | NSN 5325-00-998-3310
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49330 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-998-3310
Technical Data | NSN 5325-00-998-3310
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| FASTENER STYLE | BH8 TENSION |
| HEAD HEIGHT | 0.078 INCHES NOMINAL |
| LARGEST PRONG WIDTH | 0.175 INCHES NOMINAL |
| FASTENER OUTSIDE DIAMETER | 0.406 INCHES NOMINAL |
| FASTENER OVERALL LENGTH | 0.296 INCHES NOMINAL |
| MANUFACTURERS CODE | 61864 |
| DESIGN CONTROL REFERENCE | 49330 |
Restrictions/Controls & Freight Information | NSN 5325-00-998-3310
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
