NSN 5325-01-015-2600 MS32113CR, MS3211-3CR, 25334000003A
Product Details | RETAINING RING
5325-01-015-2600 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS32113CR, MS3211-3CR, 25334000003A, 2533400-0003A, 5325-01-015-2600, 01-015-2600, 5325010152600, 010152600
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1976 | 01-015-2600 | 07623 ( RING, RETAINING ) |

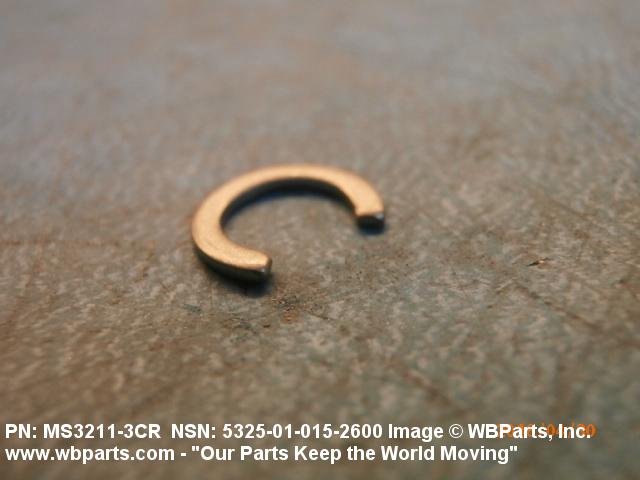

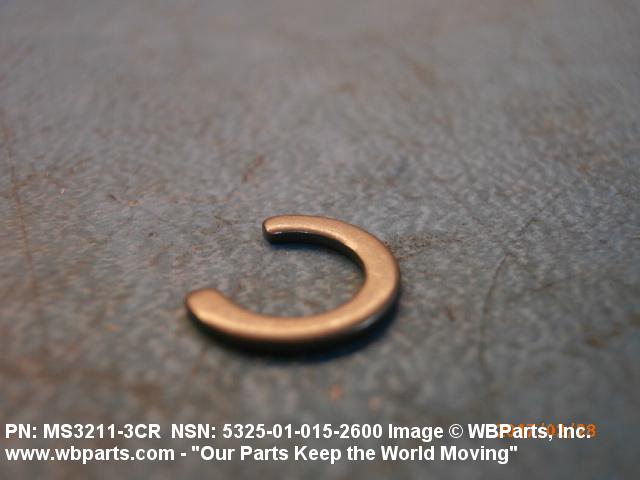

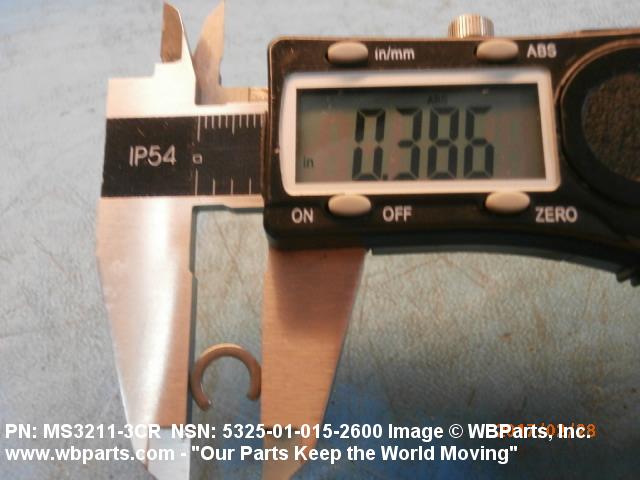

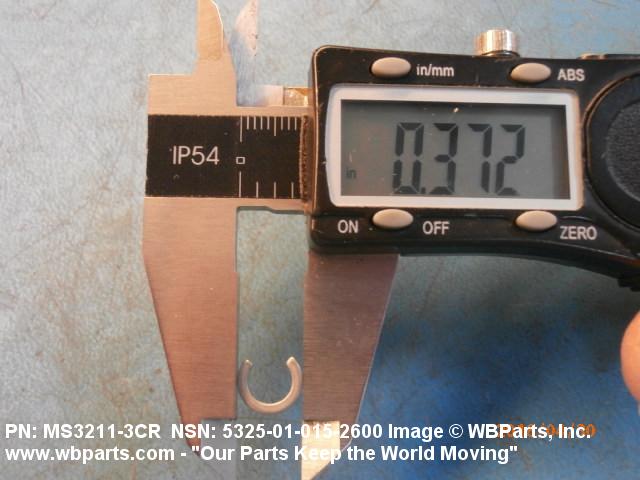

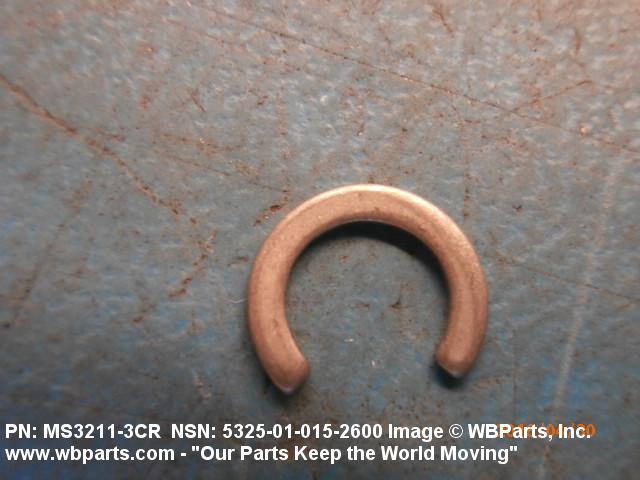

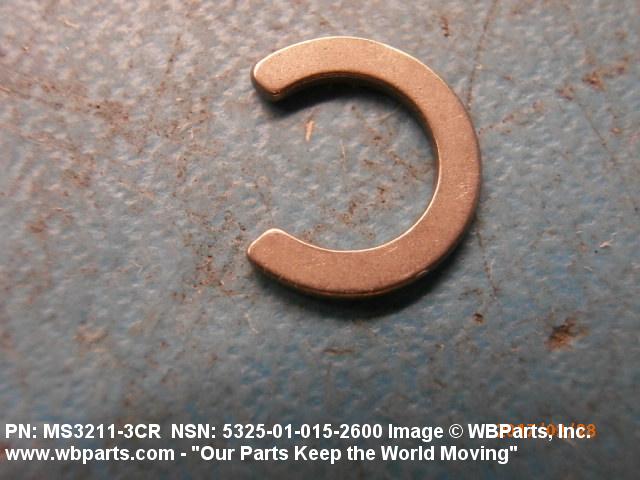

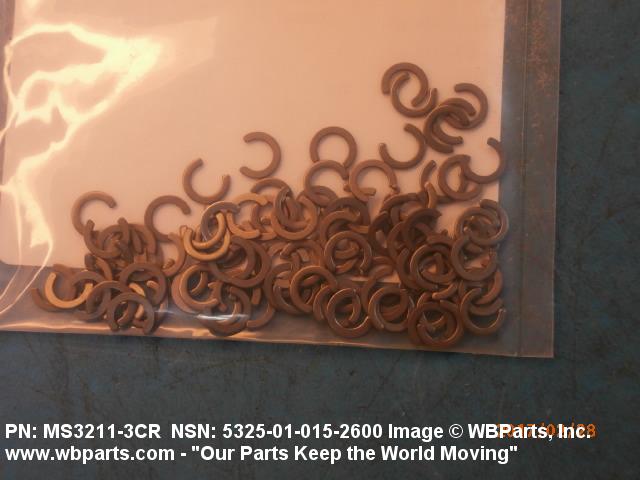

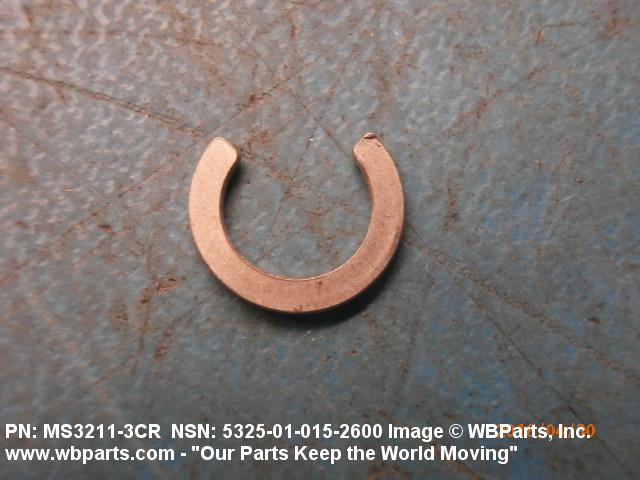

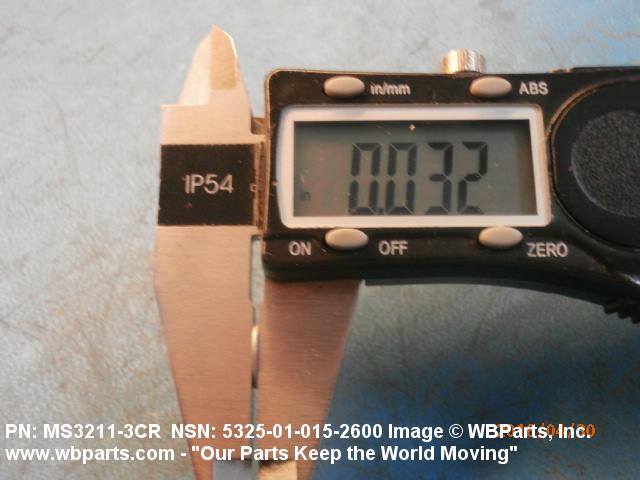

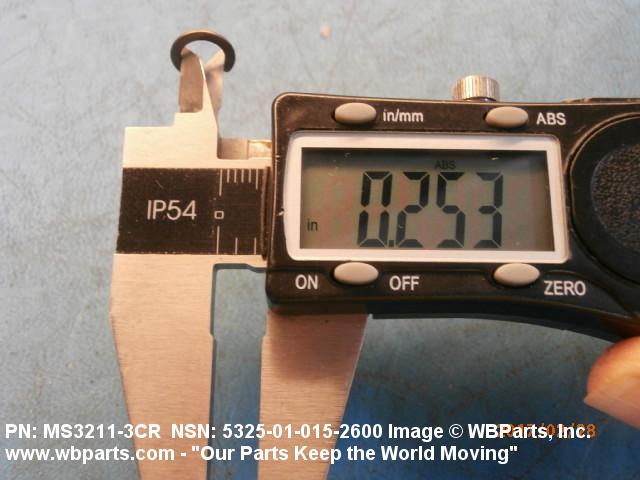

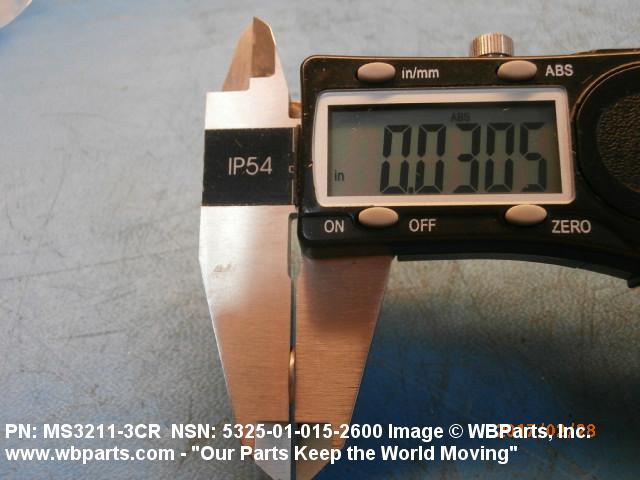

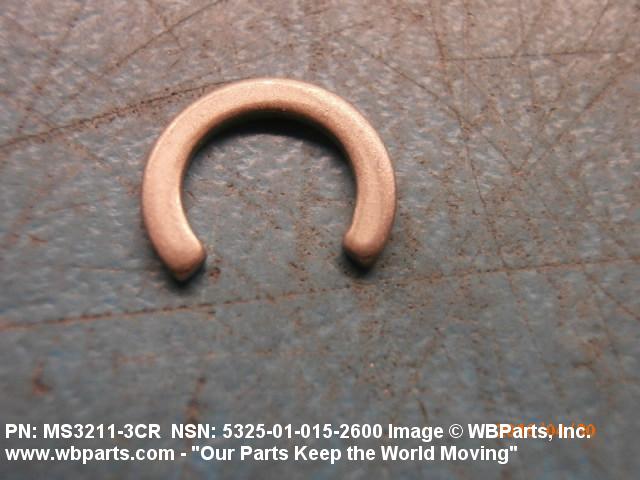

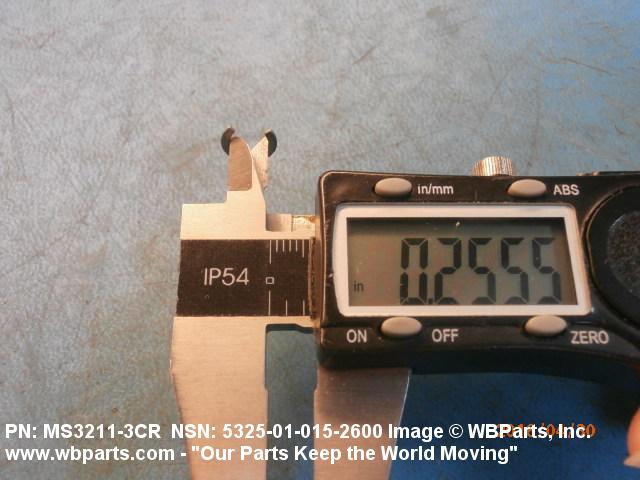

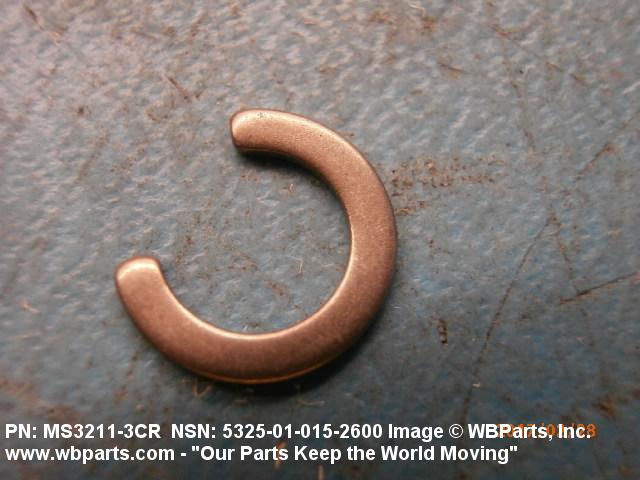

Drawings & Photos | NSN 5325-01-015-2600
Demand History | NSN 5325-01-015-2600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS32113CR | 2025-02-35 | 72 | us |
| MS32113CR | 2023-11-317 | 50 | us |
| MS32113CR | 2023-11-317 | 100 | us |
| MS32113CR | 2023-11-317 | 250 | us |
| MS32113CR | 2023-11-306 | 50 | us |
| MS32113CR | 2023-11-306 | 100 | us |
| MS32113CR | 2023-11-306 | 200 | us |
| MS32113CR | 2023-03-86 | 24 | us |
| MS32113CR | 2023-03-81 | 50 | us |
| MS32113CR | 2023-03-72 | 24 | us |
| MS32113CR | 2020-06-161 | 312 | United States |
| MS32113CR | 2020-01-21 | 200 | United States |
| MS32113CR | 2018-04-102 | 15 | United States |
| MS32113CR | 2018-04-102 | 75 | United States |
| MS32113CR | 2018-04-102 | 100 | United States |
| MS32113CR | 2017-01-30 | 100 | United States |
| MS32113CR | 2017-01-12 | 24 | United States |
| MS32113CR | 2015-06-161 | 100 | United States |
| MS32113CR | 2015-02-48 | 18 | United States |
| MS32113CR | 2013-03-81 | 100 | United States |
| 5325-01-015-2600 | 2012-05-135 | 20 | us |
| 5325-01-015-2600 | 2012-05-129 | 20 | us |
| MS32113CR | 2009-02-41 | 200 | United States |
| MS32113CR | 2008-07-184 | 200 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-015-2600
Technical Data | NSN 5325-01-015-2600
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,QQ-S-763,CLASS 302 ANNEALED OR STEEL,ASTM-A167,TYPE 302,ANNEALED |
| SURFACE TREATMENT | PASSIVATED,QQ-P-35 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A1 STRAIGHT GAP |
| END STYLE | C4 VERTEX CENTER OR ABOVE |
| INSIDE DIAMETER | 0.250 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.384 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.029 INCHES MINIMUM AND 0.033 INCHES MAXIMUM |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2533400-0003A |
Restrictions/Controls & Freight Information | NSN 5325-01-015-2600
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-015-2600
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
