NSN 5325-01-017-2112 1060401, 10604-01, 465232
Product Details | NONMETALLIC GROMMET
5325-01-017-2112 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 1060401, 10604-01, 465232, 5325-01-017-2112, 01-017-2112, 5325010172112, 010172112
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAR 1976 | 01-017-2112 | 33729 ( GROMMET, NONMETALLIC ) |

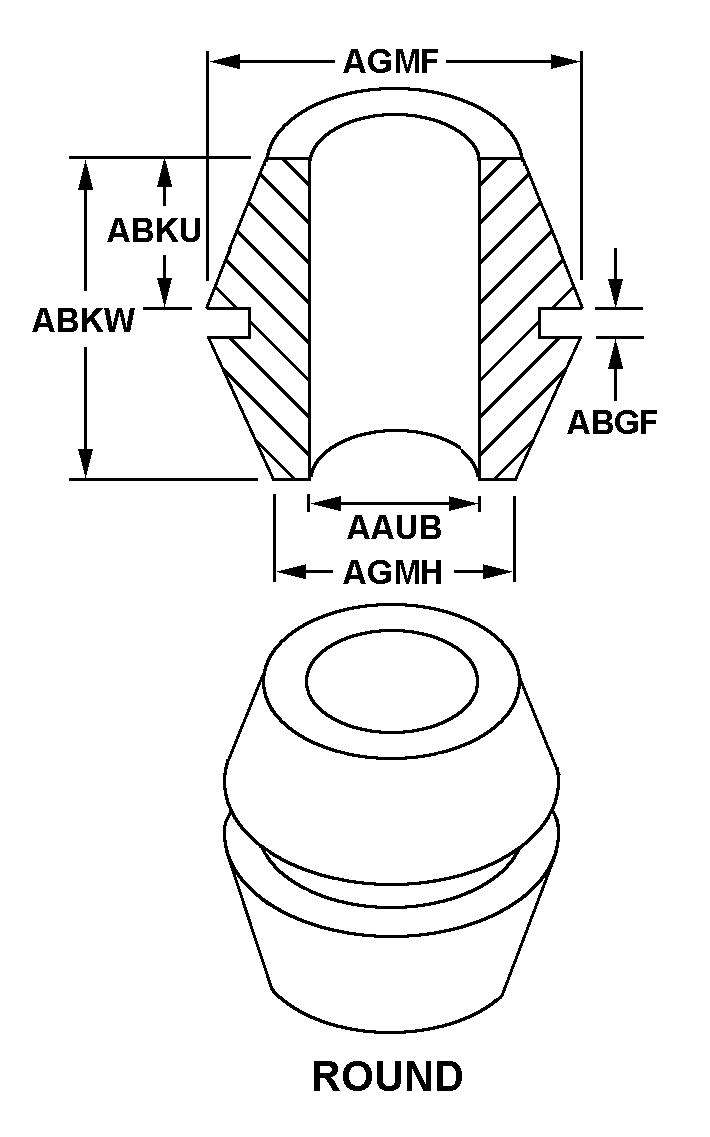

Drawings & Photos | NSN 5325-01-017-2112
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-017-2112
Technical Data | NSN 5325-01-017-2112
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| COLOR | BLACK GROMMET |
| GROMMET STYLE | 6 ROUND |
| HOLE DIAMETER | 1.135 INCHES MINIMUM AND 1.150 INCHES MAXIMUM |
| GROOVE WIDTH | 0.730 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.220 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 1.440 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 1.280 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | 55.0 MINIMUM SHORE DUROMETER A AND 70.0 MAXIMUM SHORE DUROMETER A |
| MANUFACTURERS CODE | 89305 |
| DESIGN CONTROL REFERENCE | 465232 |
Restrictions/Controls & Freight Information | NSN 5325-01-017-2112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5325-01-017-2112
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
