Product Details | RETAINING RING
5325-01-020-3873 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: CA18163, MILSTD130K, MIL-STD-130K, 10224820-2, 5325-01-020-3873, 01-020-3873, 5325010203873, 102248202, 010203873
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 APR 1976 | 01-020-3873 | 07623 ( RING, RETAINING ) |

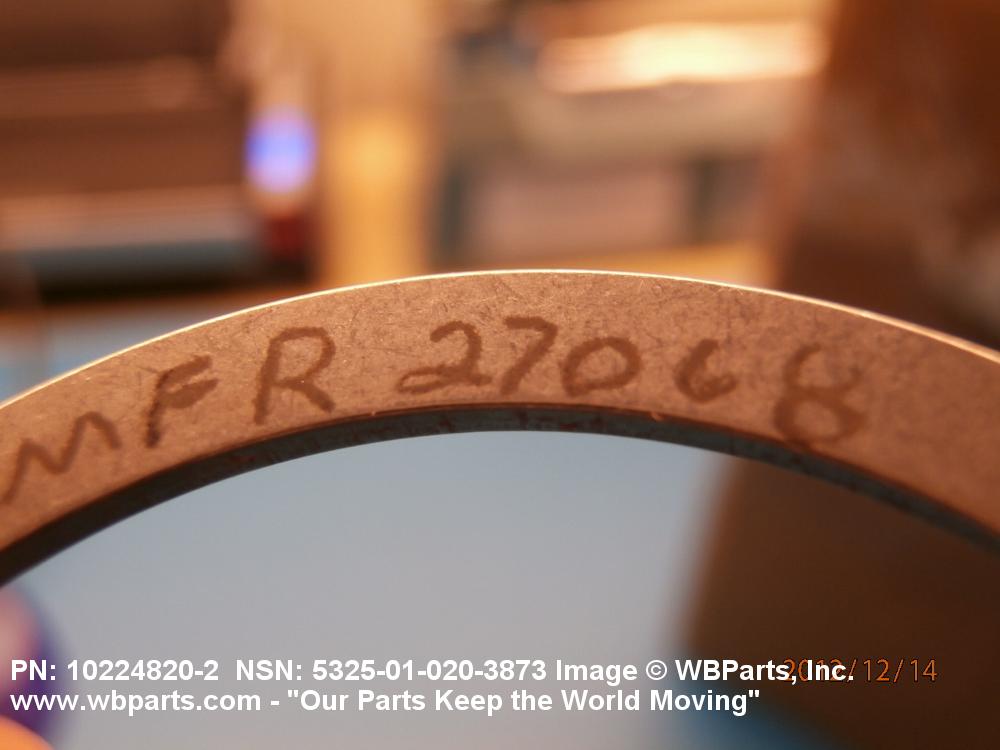

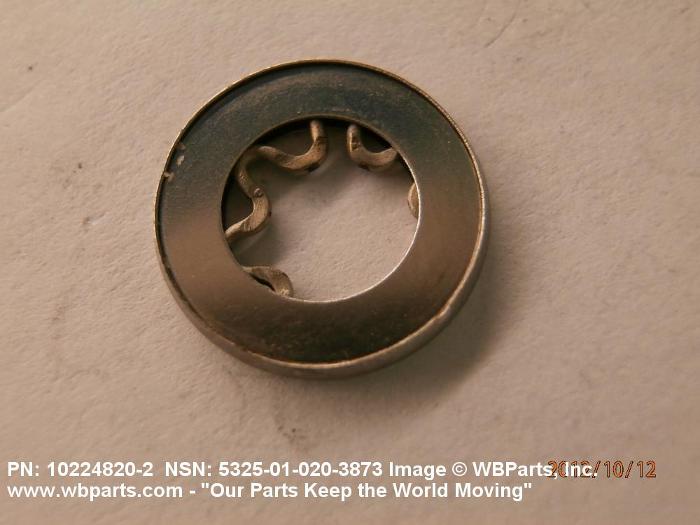

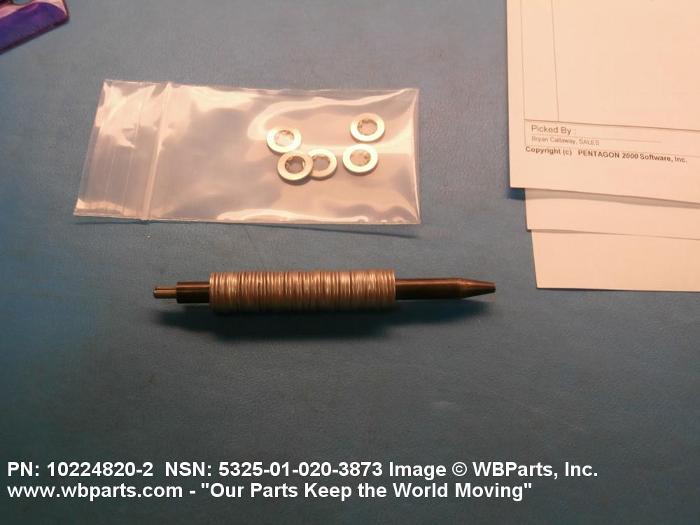

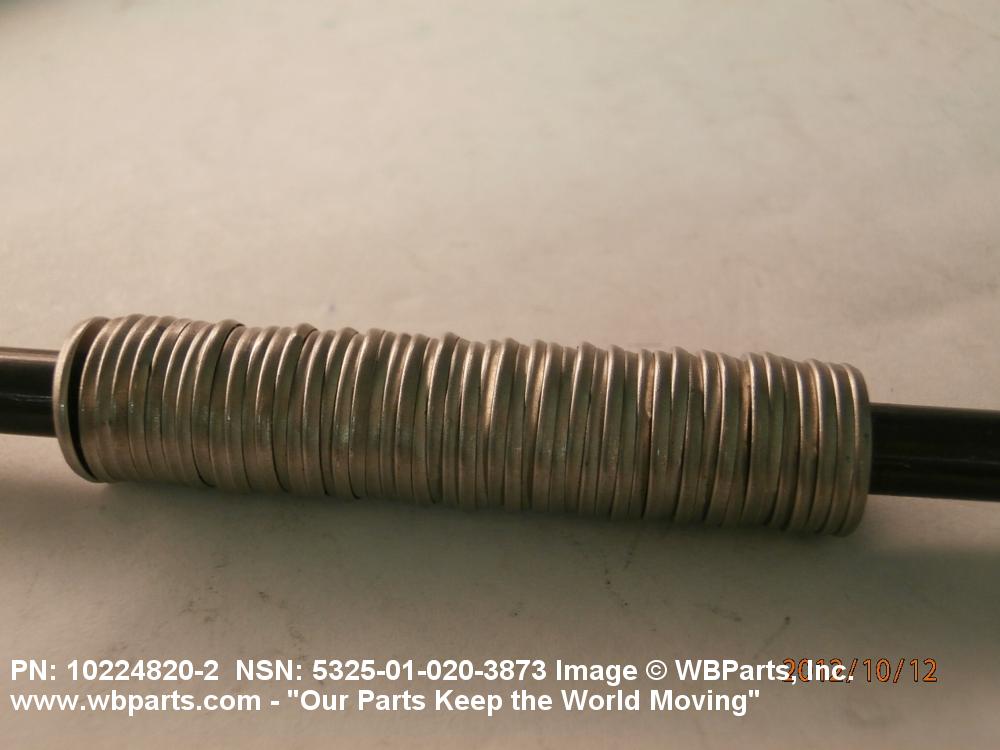

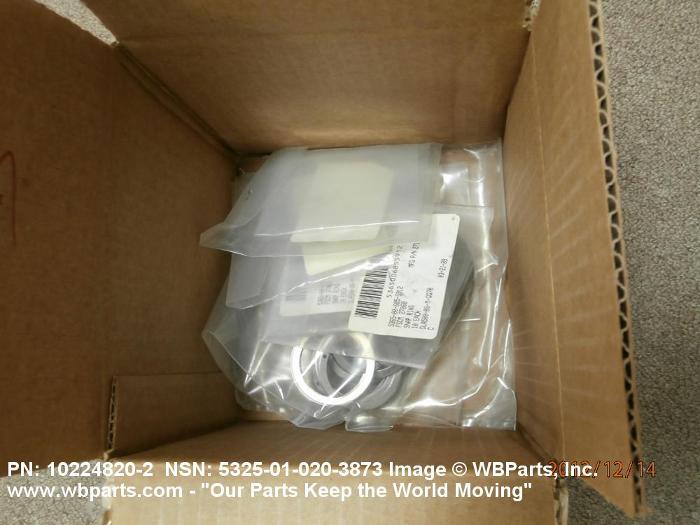

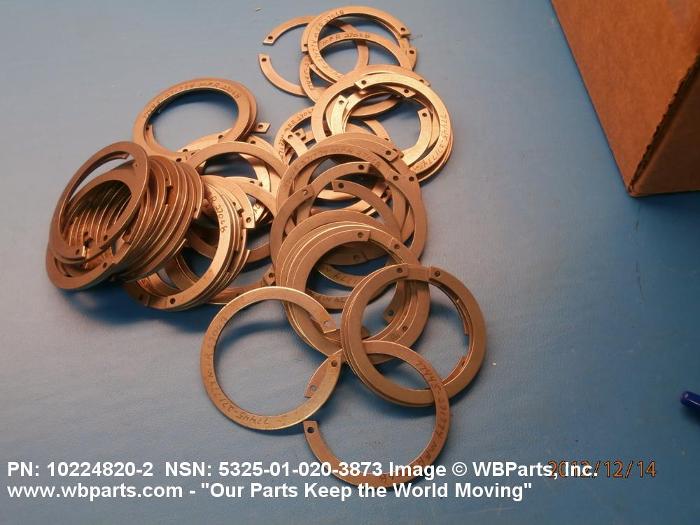

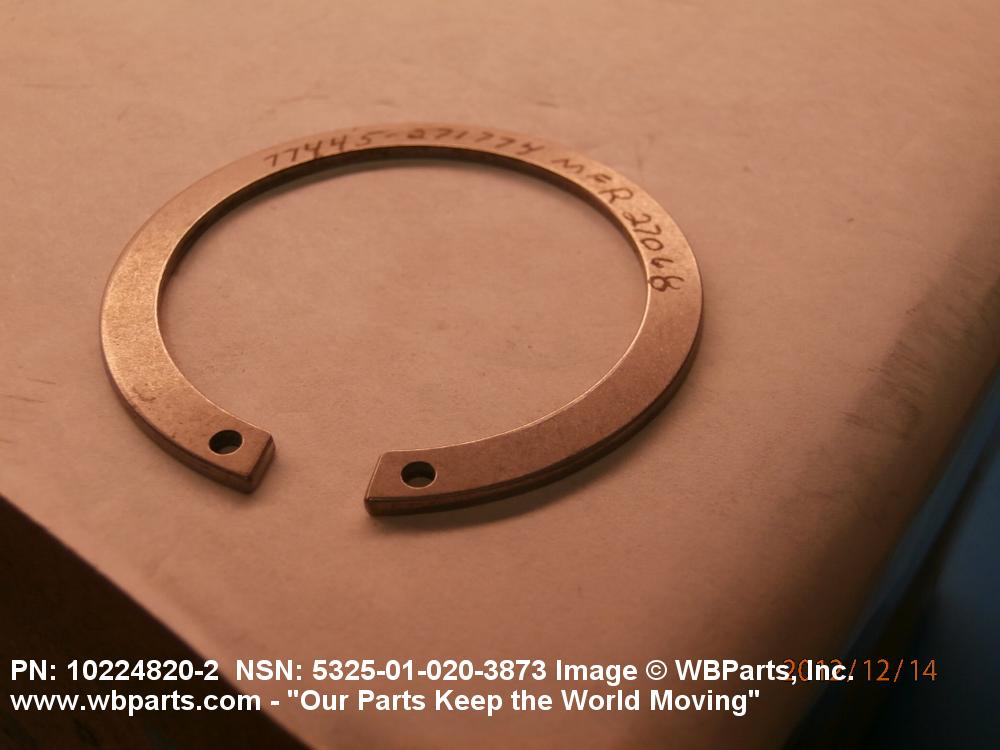

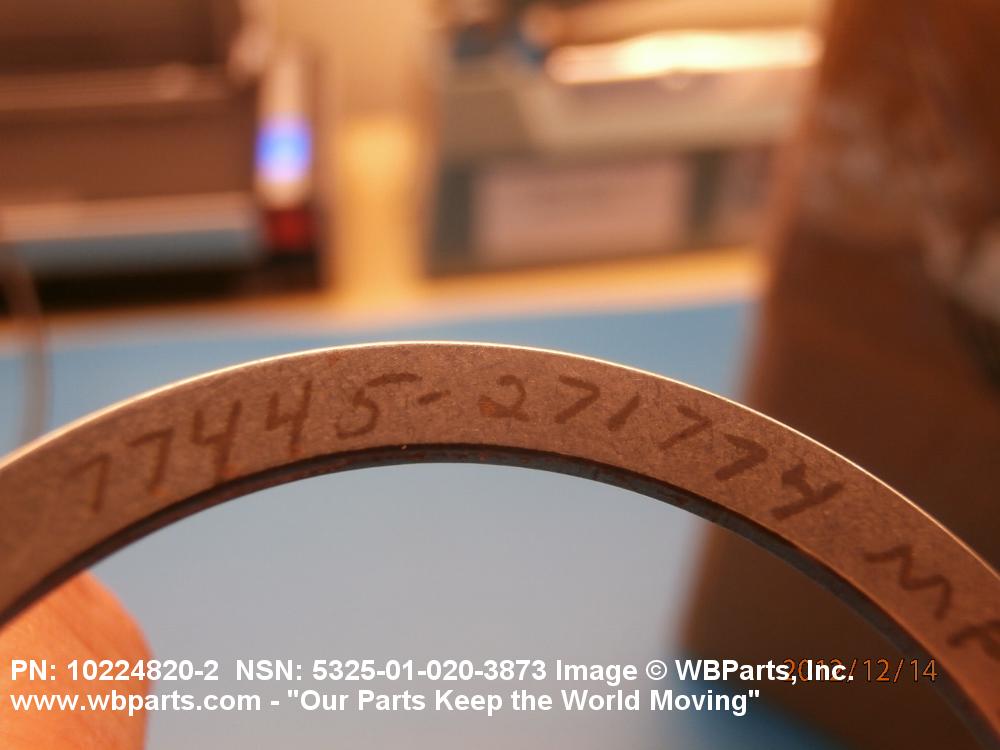

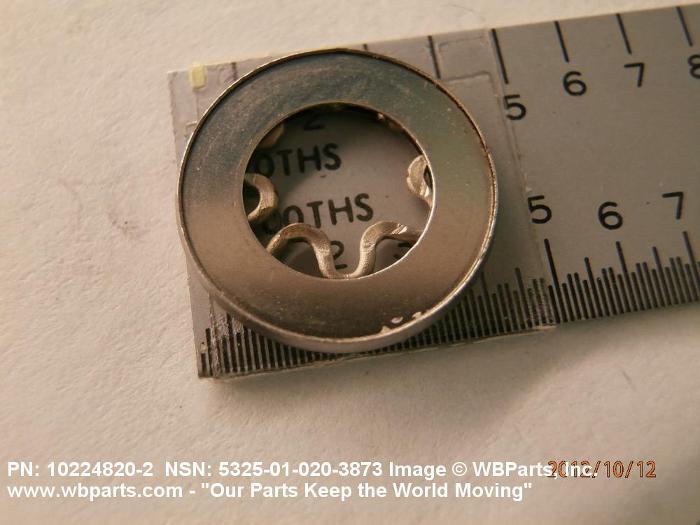

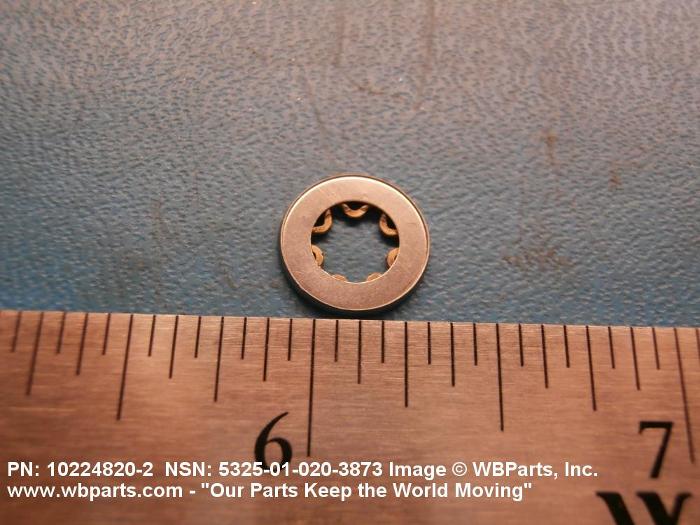

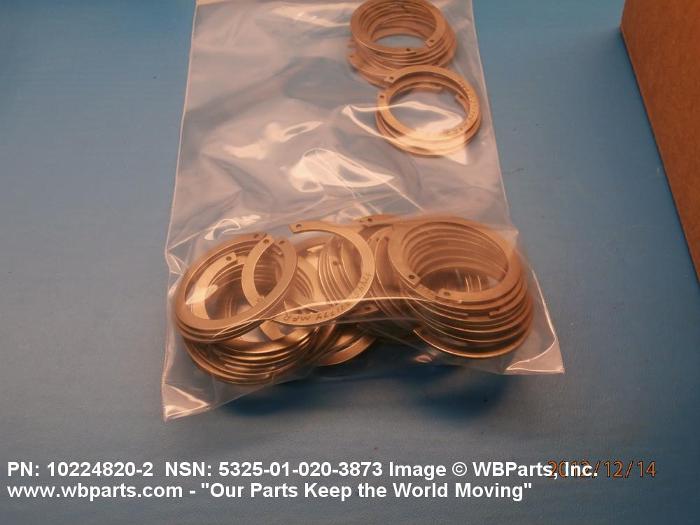

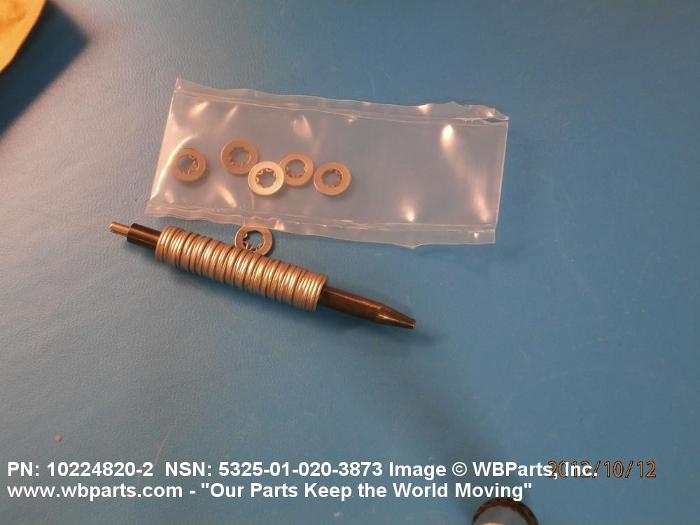

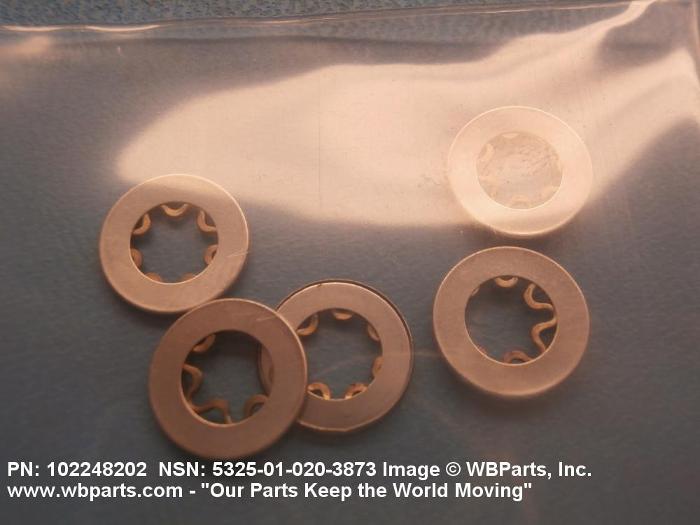

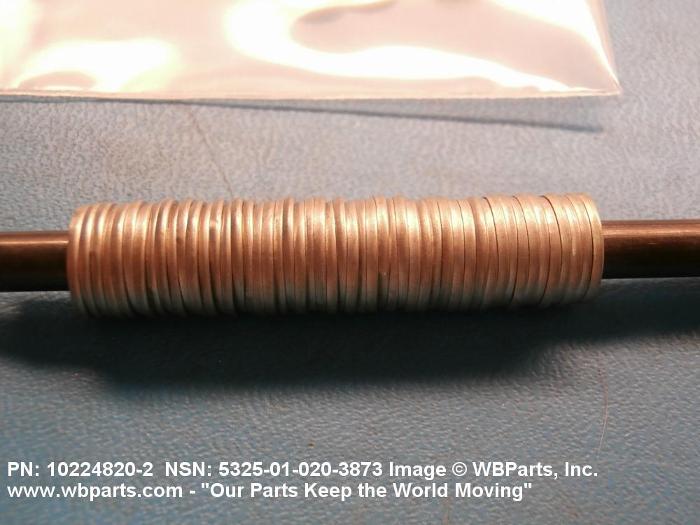

Drawings & Photos | NSN 5325-01-020-3873
Demand History | NSN 5325-01-020-3873
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA18163 | 2021-06-03 | 50 | United States |
| 5325-01-020-3873 | 2019-06-26 | 65 | US |
| 5325-01-020-3873 | 2014-09-08 | 20 | US |
| 5325-01-020-3873 | 2014-07-02 | 500 | DIBBS |
| 5325-01-020-3873 | 2014-05-12 | 550 | DIBBS |
| 5325-01-020-3873 | 2014-04-30 | 550 | DIBBS |
| 5325-01-020-3873 | 2013-11-18 | 500 | DIBBS |
| 5325-01-020-3873 | 2013-11-03 | 500 | DIBBS |
| 5325-01-020-3873 | 2013-06-07 | 50 | DIBBS |
| 5325-01-020-3873 | 2013-03-12 | 36 | United States |
| 5325-01-020-3873 | 2013-03-12 | 36 | United States |
| 5325-01-020-3873 | 2013-03-11 | 36 | United States |
| 5325-01-020-3873 | 2013-02-19 | 36 | United States |
| 5325-01-020-3873 | 2013-01-20 | 50 | DIBBS |
| 102248202 | 2012-12-10 | 33 | United States |
| 102248202 | 2012-10-10 | 30 | United States |
| 102248202 | 2012-10-05 | 30 | United States |
| 5325-01-020-3873 | 2012-06-17 | 50 | DIBBS |
| 5325-01-020-3873 | 2010-07-06 | 6 | DIBBS |
Cross Reference | NSN 5325-01-020-3873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10224820-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| CA18163 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CA18163 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| MIL-STD-130K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5325-01-020-3873
Related Products | NSN 5325-01-020-3873
5325-01-020-4413, 5325-01-020-4562, 5325-01-020-4718, 5325-01-020-4719, 5325-01-020-4720
Technical Data | NSN 5325-01-020-3873
| Characteristic | Specifications |
|---|---|
| MATERIAL | COBALT ALLOY SPRING WIRE AND CORROSION RESISTANT STEEL,MIL-S-5059,TYPE 301,1/4 HARD |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 45.0 ROCKWELL C MINIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| INSIDE DIAMETER | 0.187 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10224820-2 |
Restrictions/Controls & Freight Information | NSN 5325-01-020-3873
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AC | U.S. Army Chemical Research, Development and Engineering Center Aberdeen Proving Ground, MD 21010-5423 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-020-3873
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
