NSN 5325-01-051-7937 HN5G511, HN5G-51-1, HN5G51-1
Product Details | NONMETALLIC GROMMET
5325-01-051-7937 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: HN5G511, HN5G-51-1, HN5G51-1, 55911, 559-1-1, 5325-01-051-7937, 01-051-7937, 5325010517937, 010517937
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 DEC 1977 | 01-051-7937 | 33729 ( GROMMET, NONMETALLIC ) |

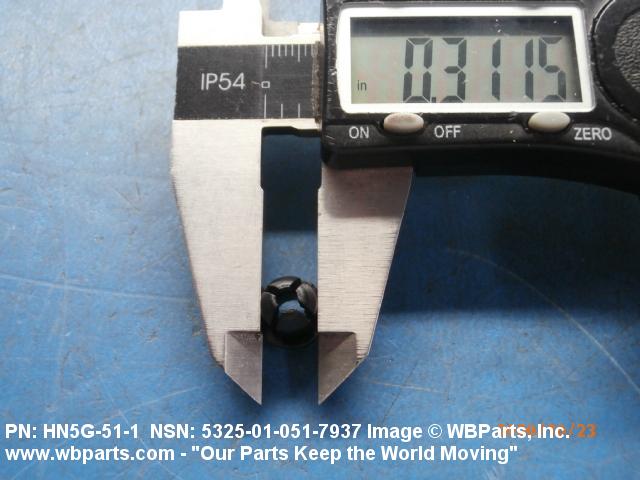

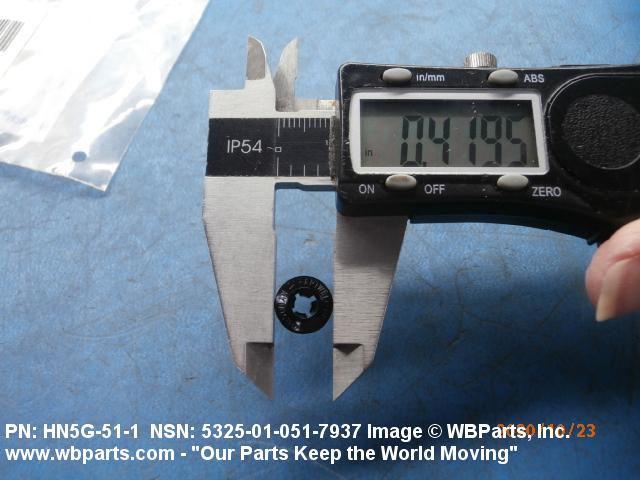

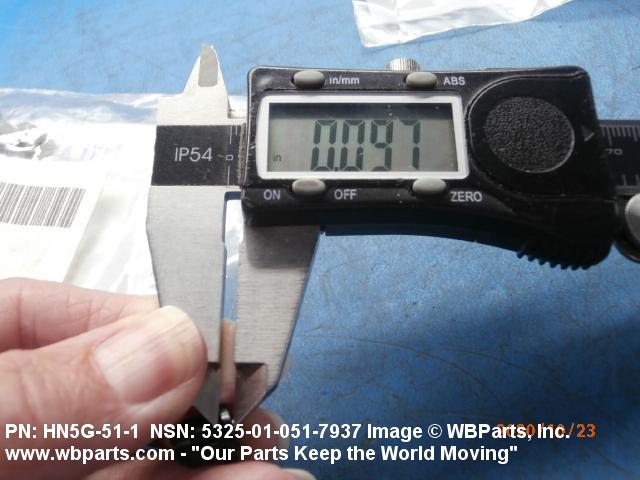

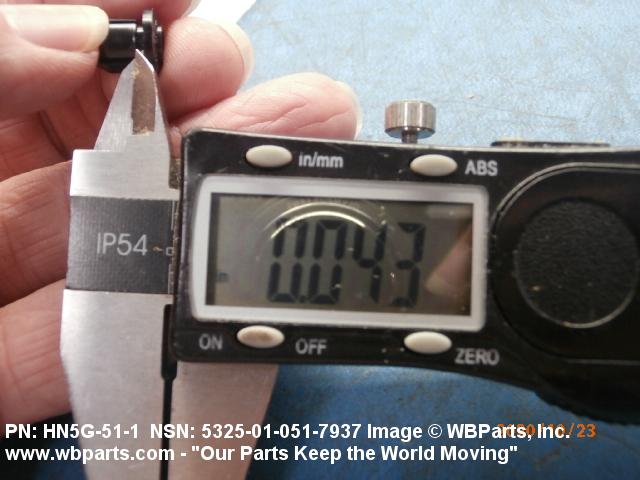

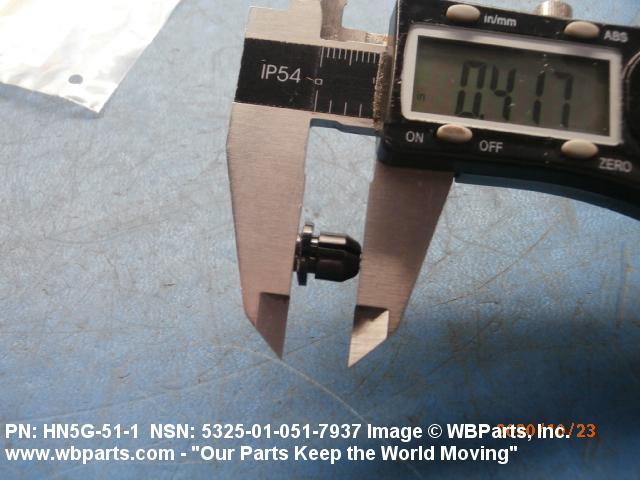

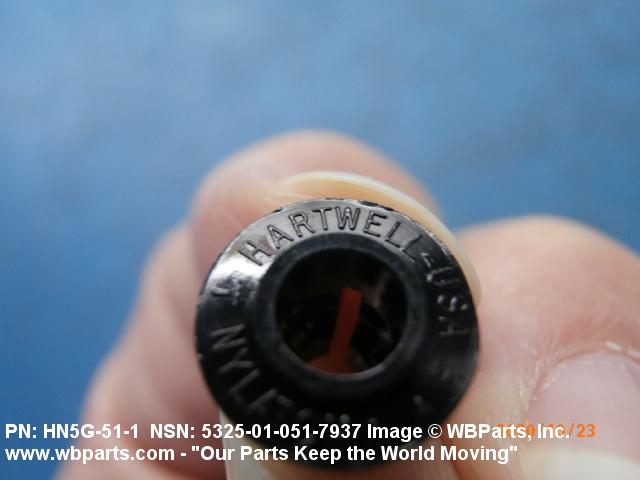

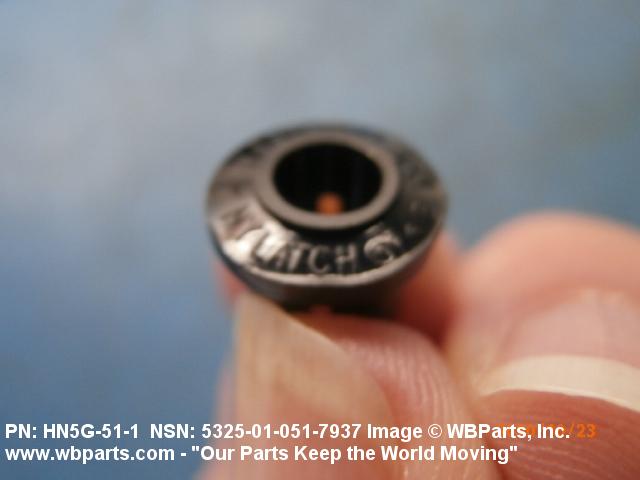

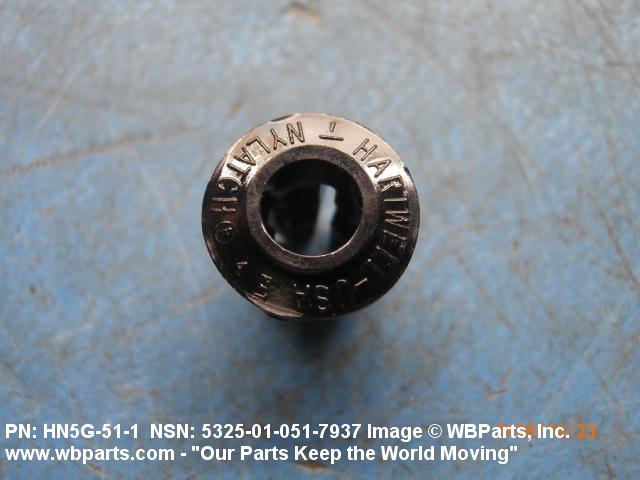

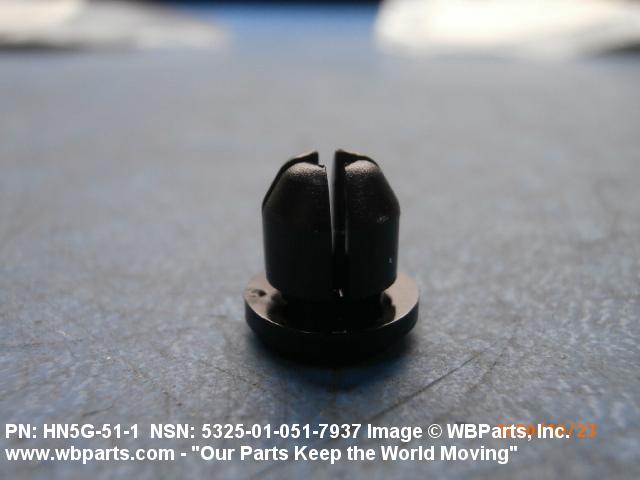

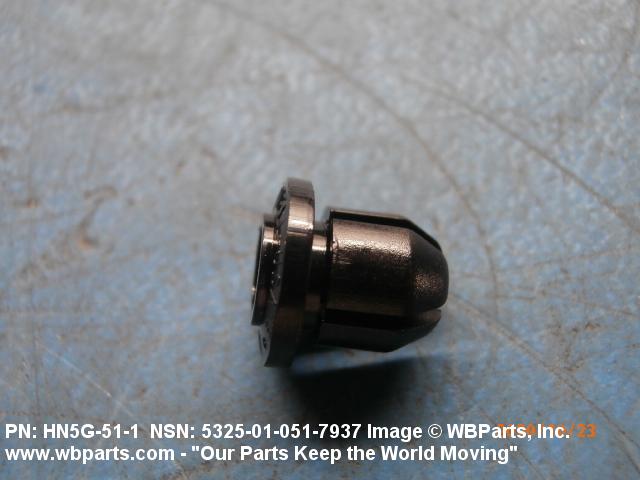

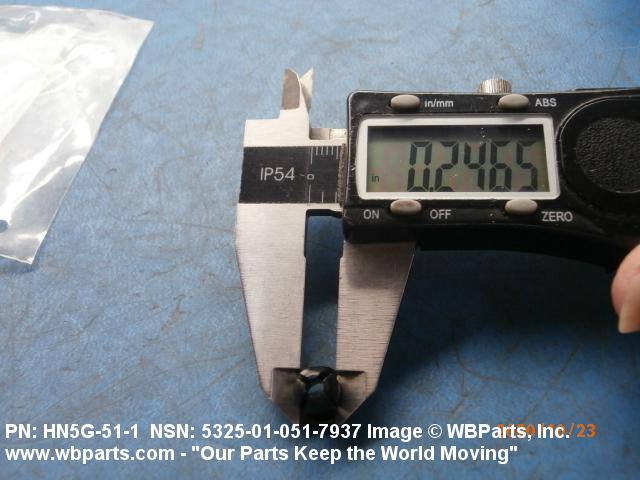

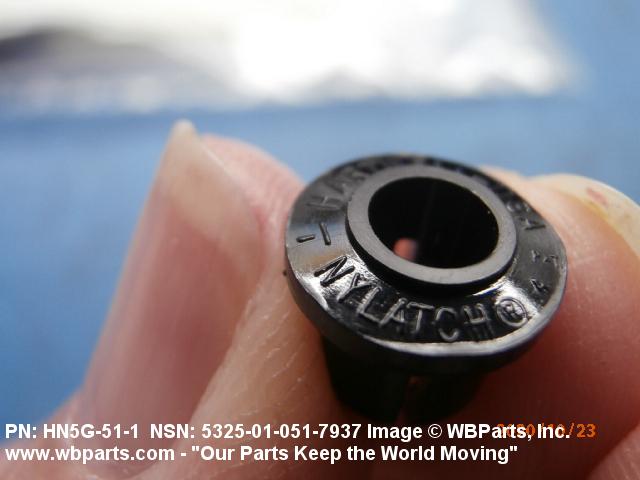

Drawings & Photos | NSN 5325-01-051-7937
Demand History | NSN 5325-01-051-7937
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-051-7937 | 2025-02-57 | 100 | United States |
| HN5G511 | 2023-08-243 | 100 | United States |
| 5325-01-051-7937 | 2021-02-56 | 4 | United States |
| HN5G511 | 2020-10-294 | 50 | United States |
| 55911 | 2020-10-294 | 50 | United States |
| 5325-01-051-7937 | 2020-09-253 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-051-7937
Related Products | NSN 5325-01-051-7937
Technical Data | NSN 5325-01-051-7937
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYCARBONATE OVERALL |
| COLOR | BLACK BARREL |
| GROMMET STYLE | 27 ROUND |
| HOLE DIAMETER | 0.312 INCHES NOMINAL |
| GROOVE WIDTH | 0.042 INCHES NOMINAL |
| FLANGE THICKNESS | 0.095 INCHES NOMINAL |
| OVERALL HEIGHT | 0.466 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.420 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 0.297 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| NONMETALLIC HARDNESS RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5325-01-051-7937
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-051-7937
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | JCD | |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
