Product Details | SCREW THREAD INSERT
5325-01-089-9371 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: NVSTD2535, NV-STD-253-5, TR13714, KHF90003, KHF9000-3, KNKDL1032, KNKDL1032J, KNKDL1032JS, KNKDL1032S, 70-267184-1, 9352754, 935275-4, 10018639, 10018639015, 10018639-015, 1001863915, 10018639-15, 5544211, 5906133, 642AS07141, 642AS0714-1, 5325-01-089-9371, 01-089-9371, 5325010899371, 702671841, 010899371
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 FEB 1980 | 01-089-9371 | 11444 ( INSERT, SCREW THREAD ) |

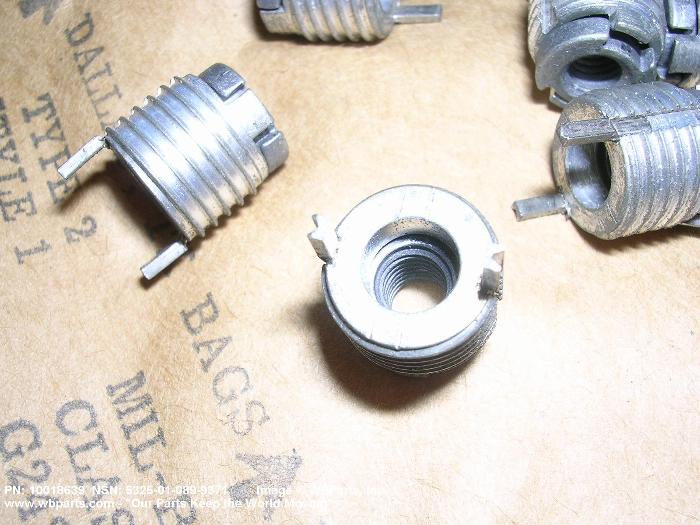

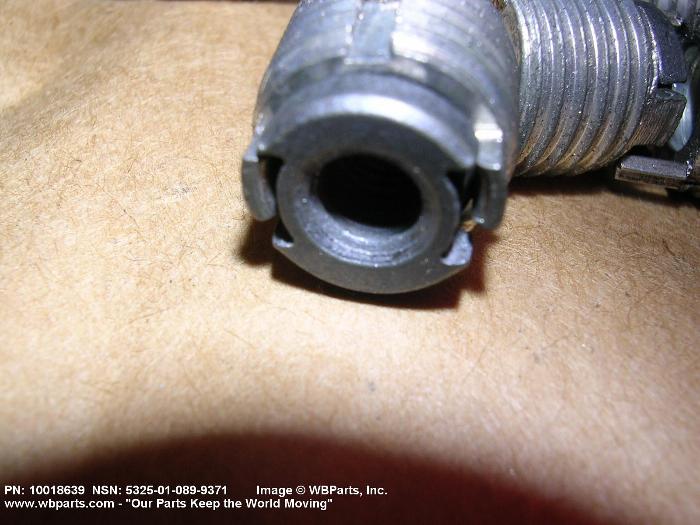

Drawings & Photos | NSN 5325-01-089-9371
Demand History | NSN 5325-01-089-9371
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-089-9371 | 2024-05-02 | 40 | US |
| 5325-01-089-9371 | 2023-09-06 | 435 | US |
| KNKDL1032J | 2022-03-09 | 10 | US |
| 5325-01-089-9371 | 2022-01-14 | 500 | United States |
| 5325-01-089-9371 | 2021-09-03 | 85 | United States |
| 70-267184-1 | 2021-08-02 | 416 | DIBBS |
| KNKDL1032 | 2021-08-02 | 416 | DIBBS |
| KNKDL1032JS | 2021-08-02 | 416 | DIBBS |
| KNKDL1032S | 2021-08-02 | 416 | DIBBS |
| NV-STD-253-5 | 2021-08-02 | 416 | DIBBS |
| TR13714 | 2021-08-02 | 416 | DIBBS |
| 70-267184-1 | 2020-12-14 | 212 | DIBBS |
| KNKDL1032 | 2020-12-14 | 212 | DIBBS |
| KNKDL1032JS | 2020-12-14 | 212 | DIBBS |
| KNKDL1032S | 2020-12-14 | 212 | DIBBS |
| NV-STD-253-5 | 2020-12-14 | 212 | DIBBS |
| TR13714 | 2020-12-14 | 212 | DIBBS |
| 70-267184-1 | 2020-12-02 | 212 | DIBBS |
| KNKDL1032 | 2020-12-02 | 212 | DIBBS |
| KNKDL1032JS | 2020-12-02 | 212 | DIBBS |
| KNKDL1032S | 2020-12-02 | 212 | DIBBS |
| NV-STD-253-5 | 2020-12-02 | 212 | DIBBS |
| TR13714 | 2020-12-02 | 212 | DIBBS |
| 5325-01-089-9371 | 2017-06-01 | 320 | GU |
| 5325-01-089-9371 | 2016-03-21 | 4 | MANUAL |
| 70-267184-1 | 2016-03-21 | 4 | United States |
| KNKDL1032J | 2014-07-02 | 200 | United States |
| 10018639015 | 2014-06-06 | 8 | United States |
| 5325-01-089-9371 | 2014-06-06 | 8 | United States |
| 5325-01-089-9371 | 2014-06-06 | 8 | United States |
| KNKDL1032J | 2013-08-29 | 36 | United States |
| KNKDL1032 | 2013-06-11 | 36 | United States |
| 9352754 | 2013-02-28 | 400 | US |
| 10018639015 | 2013-02-01 | 800 | US |
| 5325-01-089-9371 | 2012-11-20 | 3000 | US |
| KNKDL1032JS | 2012-11-06 | 3080 | us |
| 935275-4 | 2012-07-12 | 50 | Singapore |
| 642AS0714-1 | 2012-06-02 | 11 | United Kingdom |
| KNKDL1032J | 2012-01-24 | 20 | US |
| KNKDL1032 | 2011-11-10 | 25 | US |
| KNKDL1032JS | 2011-06-07 | 2 | us |
| 5325-01-089-9371 | 2011-05-19 | 40 | US |
| 5325-01-089-9371 | 2011-04-27 | 30 | US |
| KNKDL1032J | 2010-11-22 | 12 | United States |
| KNKDL1032JS | 2010-11-22 | 12 | United States |
| KNKDL1032JS | 2010-09-23 | 760 | US |
| 5325-01-089-9371 | 2010-09-20 | 760 | US |
| KNKDL1032JS | 2010-09-20 | 760 | US |
| KNKDL1032J | 2010-06-21 | 50 | US |
| KNKDL1032J | 2010-03-25 | 530 | United States |
| 5325-01-089-9371 | 2010-02-25 | 760 | US |
| 5325-01-089-9371 | 2010-02-25 | 1370 | US |
| KNKDL1032 | 2010-02-24 | 160 | United States |
| 5325-01-089-9371 | 2010-02-02 | 50 | United States |
| KNKDL1032JS | 2010-02-02 | 6000 | US |
| KNKDL1032J | 2010-02-02 | 24 | United States |
| KNKDL1032JS | 2009-11-19 | 1225 | United States |
| 5544211 | 2009-11-03 | 1224 | US |
| 5325-01-089-9371 | 2009-08-27 | 500 | US |
| 5325-01-089-9371 | 2009-06-15 | 25 | US |
| 5325-01-089-9371 | 2009-06-15 | 100 | US |
| KNKDL1032J | 2009-02-19 | 205 | United States |
| KNKDL1032JS | 2009-02-16 | 400 | US |
| KNKDL1032J | 2008-09-03 | 180 | US |
| KNKDL1032J | 2008-06-10 | 10 | US |
| KNKDL1032J | 2008-05-16 | 200 | US |
| KNKDL1032JS | 2008-04-22 | 35 | US |
| KNKDL1032JS | 2008-02-27 | 50 | United States |
| 5325-01-089-9371 | 2007-11-07 | 50 | US |
Cross Reference | NSN 5325-01-089-9371
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10018639 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10018639-015 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10018639-15 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 10018639-15 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 5544211 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5906133 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 642AS0714-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 70-267184-1 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 935275-4 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| KHF9000-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNKDL1032 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNKDL1032 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| KNKDL1032J | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNKDL1032JS | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNKDL1032S | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NV-STD-253-5 | 77646 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA AEROSPACE SYSTEMS SECTOR |
| TR13714 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5325-01-089-9371
Related Products | NSN 5325-01-089-9371
5325-01-089-9568, 5325-01-090-0426, 5325-01-090-0427, 5325-01-090-0501, 5325-01-090-0762
Technical Data | NSN 5325-01-089-9371
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | H26 KEYLOCK |

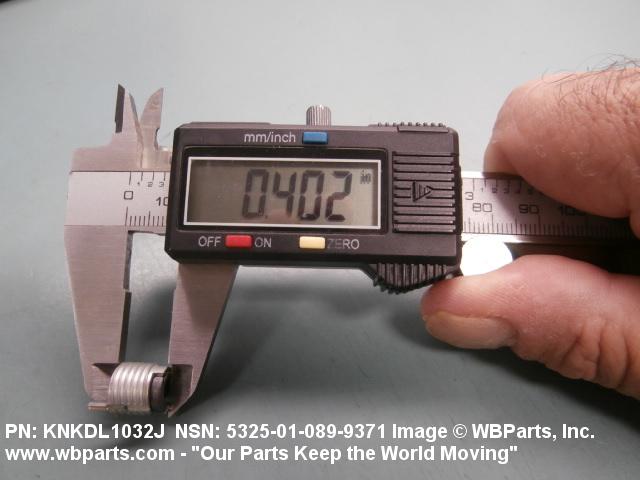

| LENGTH | 0.385 INCHES MINIMUM AND 0.415 INCHES MAXIMUM |
| INTERNAL THREAD RELIEF DEPTH | 0.150 INCHES NOMINAL |
| FULL INTERNAL THREAD LENGTH | 0.250 INCHES NOMINAL |
| INSERT SIZE | 7/16-20 UNF 2A |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |

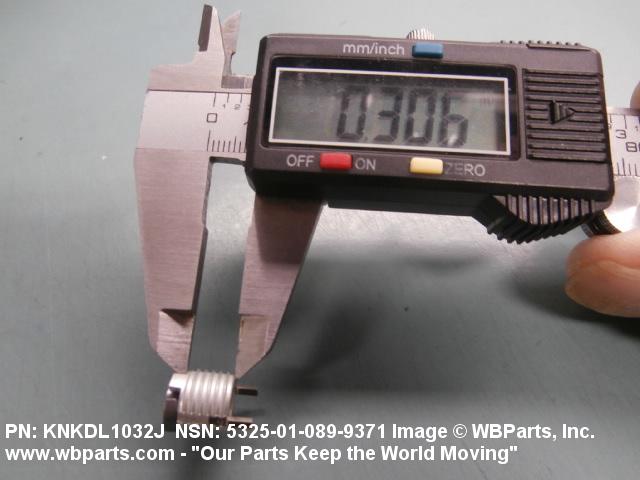

| THREAD LENGTH | 0.290 INCHES NOMINAL |
