NSN 5325-01-098-0775 AJW380, AJW3-80, 121JW380Z3C
Product Details | TURNLOCK FASTENER STUD
5325-01-098-0775 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: AJW380, AJW3-80, 121JW380Z3C, 121J-W380-Z3C, 21876, 5325-01-098-0775, 01-098-0775, 5325010980775, 010980775
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUL 1980 | 01-098-0775 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-098-0775
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-098-0775
Technical Data | NSN 5325-01-098-0775
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1118 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 1 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

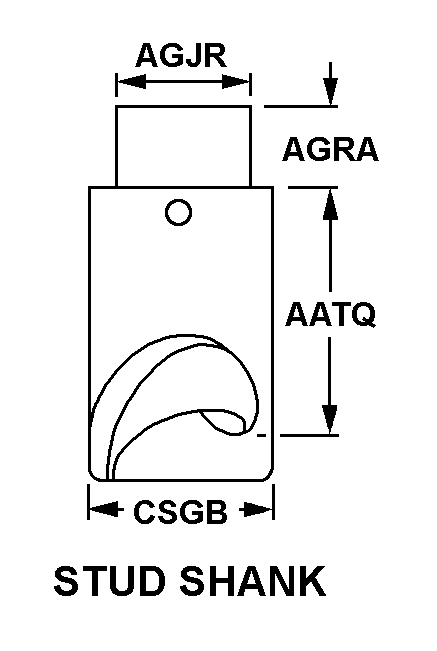

| TURNLOCK STUD SHANK STYLE | 3 STUD SHANK |
| GRIP LENGTH | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| MINOR DIAMETER LENGTH | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.182 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 10 FILLISTER WING |
| HEAD LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.250 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5325-01-098-0775
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
