NSN 5325-01-117-7452 70219-02554-105, 01-117-7452, 7021902554105

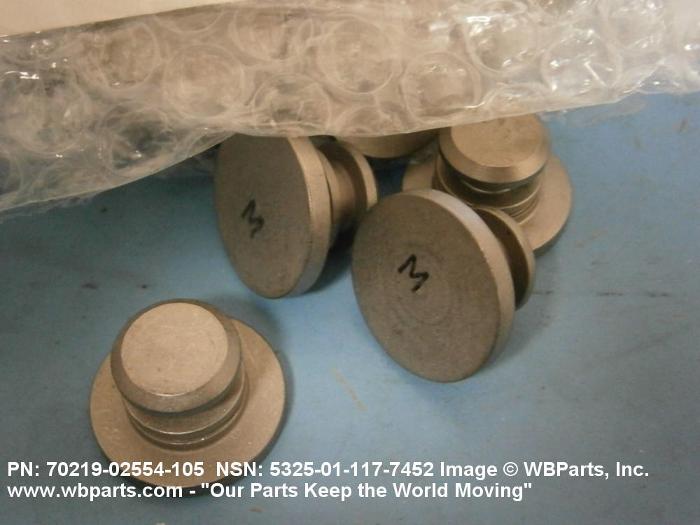

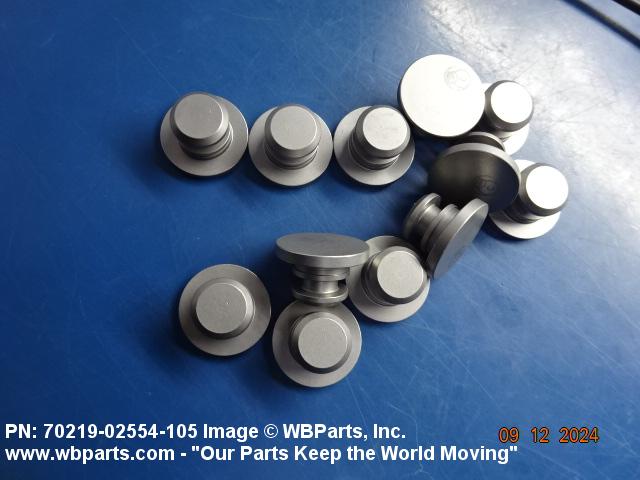

Product Details | TURNLOCK FASTENER STUD
5325-01-117-7452 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: 70219-02554-105, 5325-01-117-7452, 01-117-7452, 5325011177452, 7021902554105, 011177452
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1981 | 01-117-7452 | 18421 ( STUD, TURNLOCK FASTENER ) |

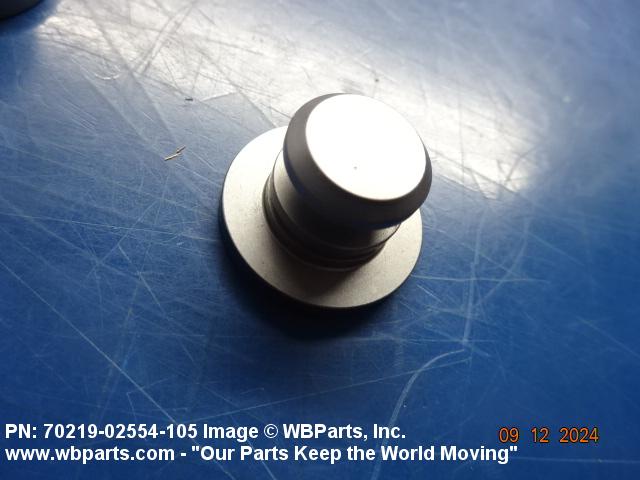

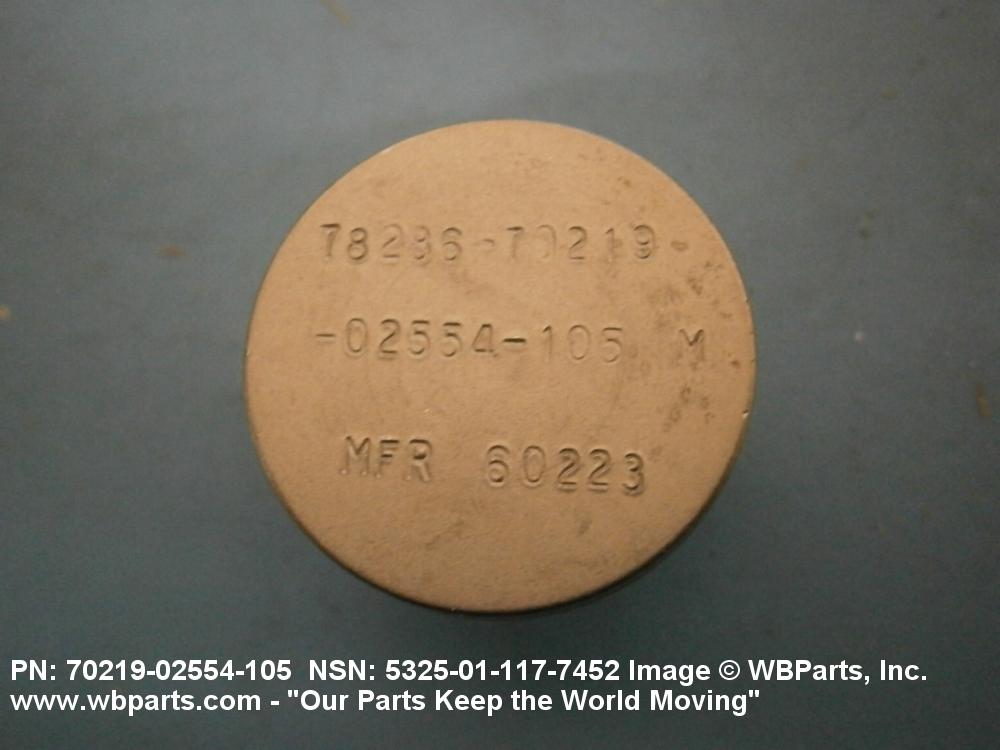

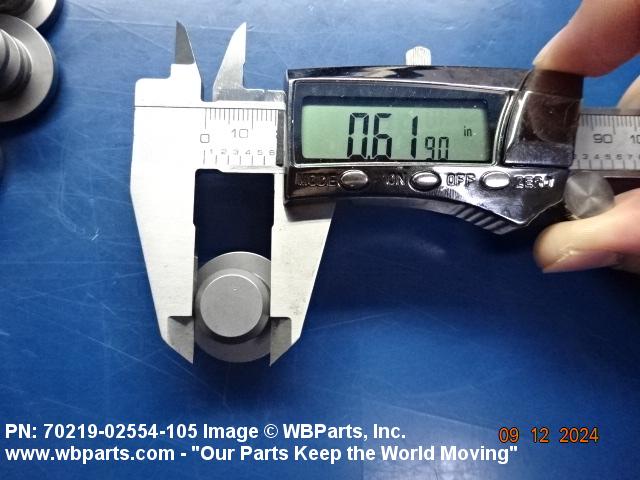

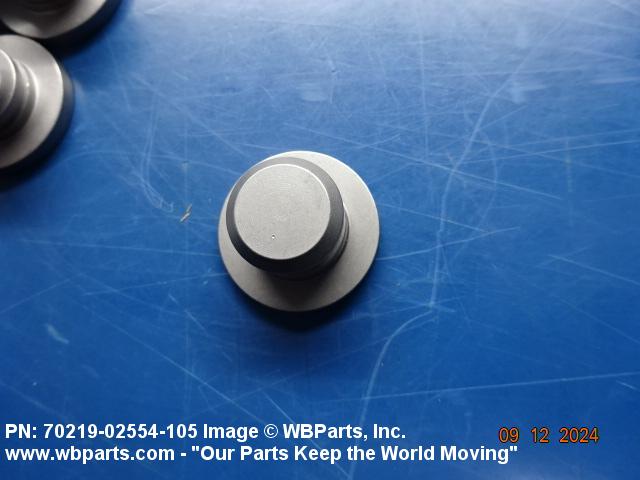

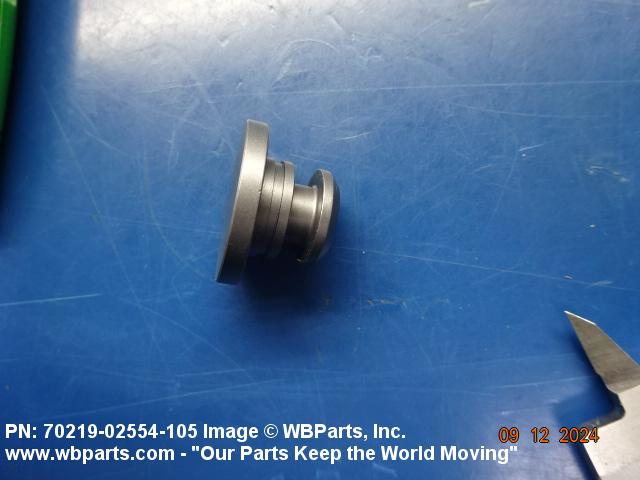

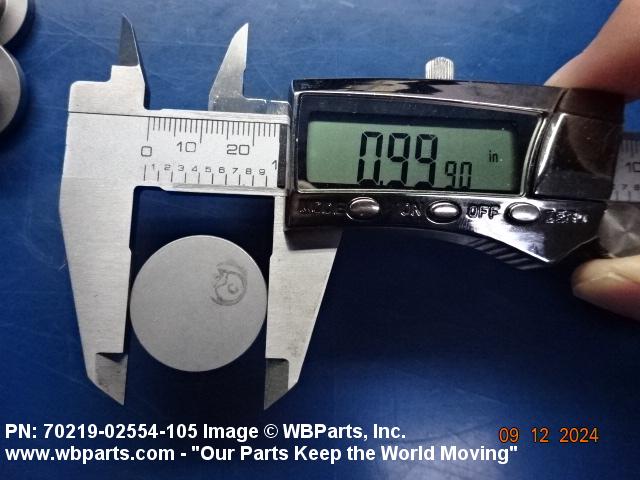

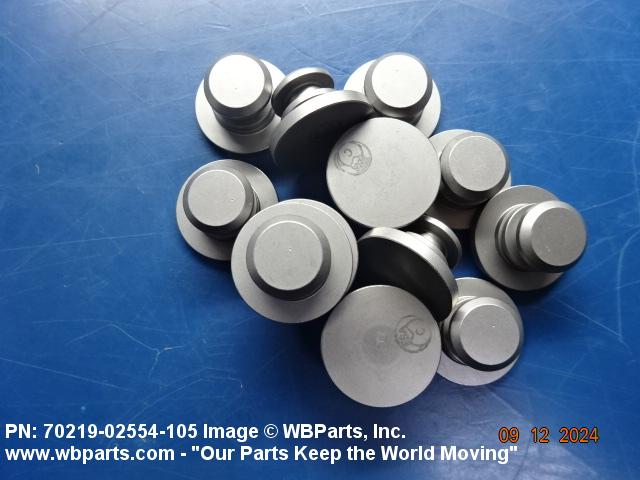

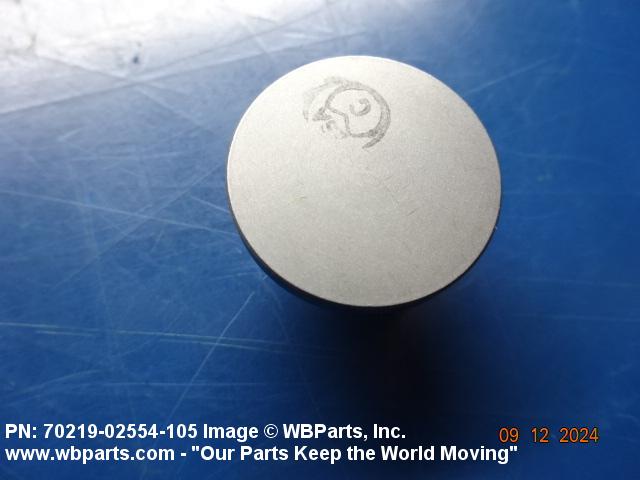

Drawings & Photos | NSN 5325-01-117-7452
Demand History | NSN 5325-01-117-7452
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7021-90-255-4105 | 2025-06-176 | 8 | United States |
| 7021-90-255-4105 | 2025-06-168 | 30 | United States |
| 5325-01-117-7452 | 2024-09-248 | 12 | United States |
| 5325-01-117-7452 | 2024-04-107 | 2 | DIBBS |
| 5325-01-117-7452 | 2024-04-106 | 10 | DIBBS |
| 5325-01-117-7452 | 2024-04-106 | 14 | DIBBS |
| 5325-01-117-7452 | 2024-04-98 | 10 | DIBBS |
| 5325-01-117-7452 | 2024-04-98 | 14 | DIBBS |
| 5325-01-117-7452 | 2023-05-135 | 1700 | United States |
| 70219-02554-105 | 2023-05-133 | 1700 | DIBBS |
| 70219-02554-105 | 2023-04-115 | 1700 | DIBBS |
| 70219-02554-105 | 2023-04-107 | 1700 | DIBBS |
| 5325-01-117-7452 | 2022-12-340 | 30 | United States |
| 5325-01-117-7452 | 2022-10-276 | 507 | DIBBS |
| 5325-01-117-7452 | 2022-09-263 | 507 | DIBBS |
| 5325-01-117-7452 | 2022-07-188 | 989 | DIBBS |
| 5325-01-117-7452 | 2019-09-245 | 529 | DIBBS |
| 7021-90-255-4105 | 2017-05-121 | 1 | United States |
| 7021-90-255-4105 | 2014-05-149 | 4 | US |
| 5325-01-117-7452 | 2011-11-307 | 16 | United States |
| 5325-01-117-7452 | 2011-02-39 | 100 | US |
| 7021-90-255-4105 | 2009-10-274 | 5 | US |
| 5325-01-117-7452 | 2009-04-117 | 1293 | DIBBS |
| 5325-01-117-7452 | 2008-12-346 | 99 | DIBBS |
| 5325-01-117-7452 | 2008-01-22 | 250 | DIBBS |
Cross Reference | NSN 5325-01-117-7452
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70219-02554-105 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
