NSN 5325-01-127-8098 MS35489139, MS35489-139, Z-222

Product Details | NONMETALLIC GROMMET

5325-01-127-8098 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.

Part Alternates: MS35489139, MS35489-139, Z-222, Z222, 5325-01-127-8098, 01-127-8098, 5325011278098, 011278098

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 MAR 1982	01-127-8098	33729 ( GROMMET, NONMETALLIC )

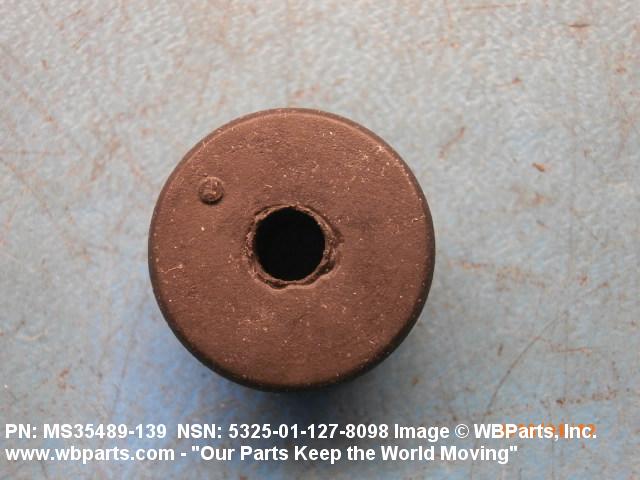

Drawings & Photos | NSN 5325-01-127-8098

Part Number	Request Date	QTY	Origin
5325-01-127-8098	2025-01-14	1	DIBBS
MS35489139	2024-08-232	75	United States
MS35489139	2024-08-232	150	United States
MS35489139	2024-08-232	300	United States
MS35489139	2024-07-191	200	United States
5325-01-127-8098	2023-10-282	100	United States
5325-01-127-8098	2023-07-198	20	DIBBS
MS35489139	2023-05-146	150	United States
MS35489139	2021-09-246	10	UK
5325-01-127-8098	2020-12-344	25	United States
MS35489139	2020-01-29	14	IN
5325-01-127-8098	2019-04-100	50	United States
Z222	2019-04-91	25	United States
MS35489139	2018-12-347	25	United States
5325-01-127-8098	2018-08-242	100	United States
MS35489139	2018-01-08	100	United States
5325-01-127-8098	2013-10-280	20	DIBBS
5325-01-127-8098	2013-09-266	20	DIBBS
MS35489139	2013-04-106	200	United States
MS35489139	2013-02-59	200	United States
MS35489139	2012-11-332	400	United States
MS35489139	2012-02-60	100	United States
5325-01-127-8098	2012-02-46	80	US
MS35489139	2012-02-46	160	US
MS35489139	2012-02-46	400	US
MS35489139	2012-02-46	800	US
5325-01-127-8098	2011-11-307	50	United States
5325-01-127-8098	2011-10-298	30	United States

Cross Reference | NSN 5325-01-127-8098

Part Number	Cage Code	Manufacturer
MS35489-139	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Z-222	76385	MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-127-8098

Compare

Related Products | NSN 5325-01-127-8098

5325-01-127-8187, 5325-01-127-8781, 5325-01-127-8782, 5325-01-127-8898, 5325-01-127-8900

Technical Data | NSN 5325-01-127-8098

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLOR	BLACK OVERALL
GROMMET STYLE	1 ROUND
HOLE DIAMETER	0.188 INCHES NOMINAL
GROOVE WIDTH	0.250 INCHES NOMINAL
FLANGE THICKNESS	0.062 INCHES NOMINAL
OVERALL HEIGHT	0.375 INCHES NOMINAL
LARGE FLANGE OUTSIDE DIAMETER	0.750 INCHES NOMINAL
GROOVE OUTSIDE DIAMETER	0.562 INCHES NOMINAL
GROMMET CONSTRUCTION TYPE	SOLID
NONMETALLIC HARDNESS RATING	NOT RATED
FEATURES PROVIDED	COOLANT RESISTANT AND OIL RESISTANT
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35489-139

Restrictions/Controls & Freight Information | NSN 5325-01-127-8098

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Q	36 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	846	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-127-8098

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 EA : Each
