NSN 5325-01-136-4144 CA18132, 2350211003, 235-021-1003
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-136-4144 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: CA18132, 2350211003, 235-021-1003, 5325-01-136-4144, 01-136-4144, 5325011364144, 011364144
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 AUG 1982 | 01-136-4144 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

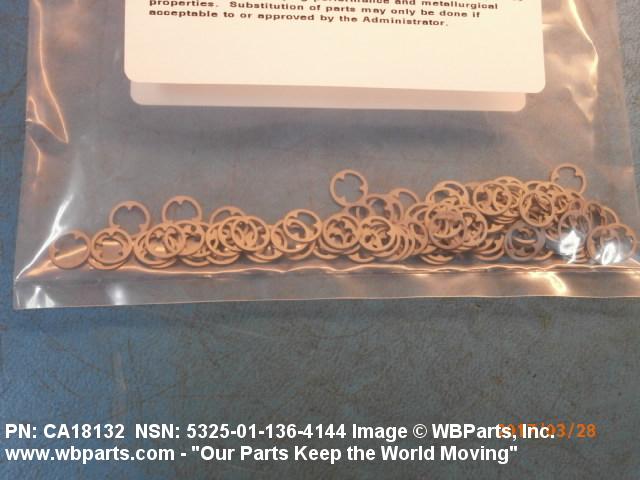

Drawings & Photos | NSN 5325-01-136-4144
Demand History | NSN 5325-01-136-4144
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA18132 | 2023-04-93 | 30 | Croatia |
| CA18132 | 2022-11-306 | 2031 | DIBBS |
| CA18132 | 2022-09-250 | 1224 | DIBBS |
| CA18132 | 2022-05-132 | 50 | Croatia |
| CA18132 | 2021-04-118 | 1163 | DIBBS |
| 5325-01-136-4144 | 2017-03-66 | 24 | United States |
| CA18132 | 2015-09-267 | 100 | IL |
| CA18132 | 2015-01-30 | 50 | Ecuador |
| 5325-01-136-4144 | 2014-09-261 | 981 | DIBBS |
| 5325-01-136-4144 | 2014-08-219 | 981 | DIBBS |
| CA18132 | 2014-02-56 | 30 | Ecuador |
| 5325-01-136-4144 | 2013-12-339 | 1590 | DIBBS |
| CA18132 | 2013-10-275 | 50 | Malaysia |
| CA18132 | 2013-09-268 | 11 | Canada |
| CA18132 | 2012-02-44 | 110 | NG |
| CA18132 | 2012-01-05 | 40 | United States |
| CA18132 | 2010-06-166 | 1000 | United States |
| CA18132 | 2009-09-245 | 500 | US |
| CA18132 | 2009-09-244 | 2500 | US |
| 5325-01-136-4144 | 2009-08-239 | 1246 | DIBBS |
| CA18132 | 2009-04-98 | 250 | US |
| 5325-01-136-4144 | 2009-01-07 | 605 | DIBBS |
| 5325-01-136-4144 | 2008-02-35 | 524 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-136-4144
Related Products | NSN 5325-01-136-4144
Technical Data | NSN 5325-01-136-4144
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| TURNLOCK RECEPTACLE STYLE | 33 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.687 INCHES NOMINAL |
| RECEPTACLE OVERALL LENGTH | 0.937 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.562 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.437 INCHES NOMINAL |
| MOUNTING STYLE | 1 PLAIN |
| MANUFACTURERS CODE | 95542 |
| MFR SOURCE CONTROLLING REFERENCE | 235-021-1003 |
Restrictions/Controls & Freight Information | NSN 5325-01-136-4144
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-136-4144
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GE | EA6B Special Electronic Aircraft (ICap configuration) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
