NSN 5325-01-155-4481 5S5686AA, 5S56-8-6AA, 9712622C
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-155-4481 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 5S5686AA, 5S56-8-6AA, 9712622C, 971262-2C, 5325-01-155-4481, 01-155-4481, 5325011554481, 011554481
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1983 | 01-155-4481 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

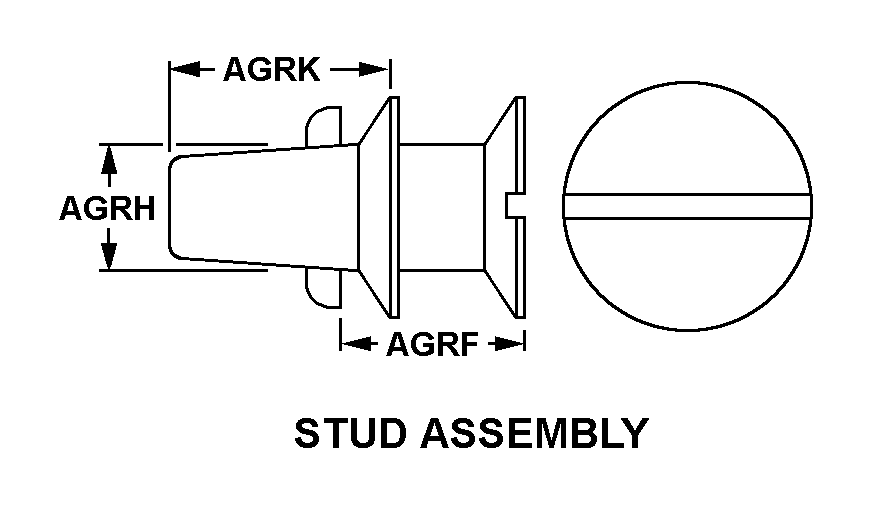

Drawings & Photos | NSN 5325-01-155-4481
Demand History | NSN 5325-01-155-4481
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-155-4481 | 2009-06-180 | 1185 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-155-4481
Technical Data | NSN 5325-01-155-4481
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 PIN ALUMINUM ALLOY 7075 RETAINER STEEL COMP 302 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-46078 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-W-423 COMP 321 FED SPEC SINGLE MATERIAL RESPONSE PIN QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | PASSIVATE PIN ANODIZE RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OR QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PIN MIL-A-8625,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE RETAINER MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OR QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STUD |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.294 INCHES MINIMUM AND 0.306 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 6 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.230 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.310 INCHES NOMINAL |
| EYELET LENGTH | 0.140 INCHES NOMINAL |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.110 INCHES MINIMUM AND 0.124 INCHES MAXIMUM |
