NSN 5325-01-176-0619 003077-001, 01-176-0619, 011760619
Product Details | TURNBUTTON FASTENER SOCKET
5325-01-176-0619 A metal device functioning as a female receptacle for a STUD, TURNBUTTON FASTENER. May include a clinch plate.
Part Alternates: 003077-001, 5325-01-176-0619, 01-176-0619, 5325011760619, 011760619, 003077001
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 APR 1984 | 01-176-0619 | 18139 ( SOCKET, TURNBUTTON FASTENER ) |
Drawings & Photos | NSN 5325-01-176-0619
Cross Reference | NSN 5325-01-176-0619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003077-001 | 51404 | CIBA CORNING DIAGNOSTICS CORP A JOINT VENTURE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-176-0619
Related Products | NSN 5325-01-176-0619
Technical Data | NSN 5325-01-176-0619
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC CAP STEEL COMP 303 CLINCH PLATE |

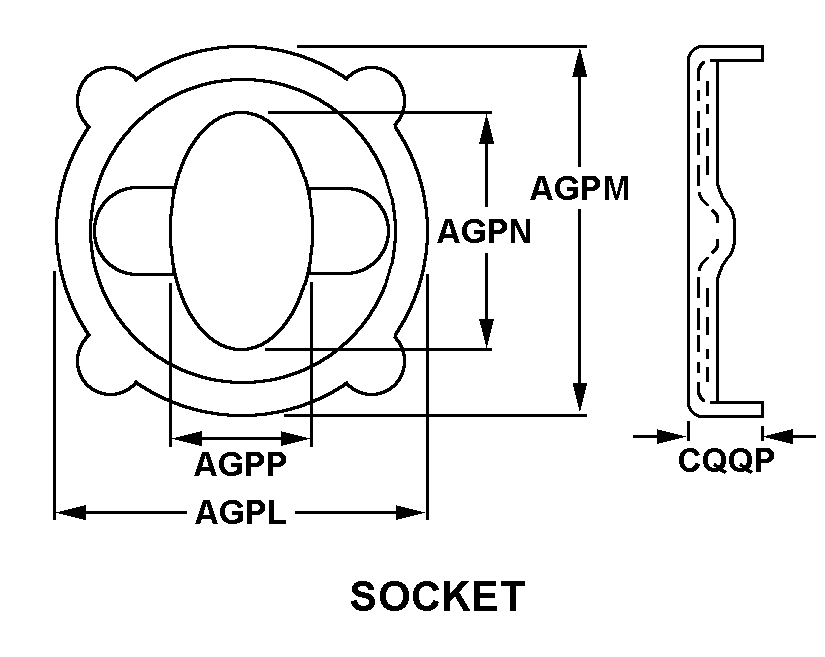

| TURNBUTTON SOCKET STYLE | 3 SOCKET |
| SOCKET OVERALL WIDTH | 0.750 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 0.750 INCHES NOMINAL |
| SOCKET HOLE LENGTH | 0.436 INCHES NOMINAL |
| SOCKET HOLE WIDTH | 0.250 INCHES NOMINAL |
| TURNBUTTON OVERALL HEIGHT | 0.187 INCHES NOMINAL |

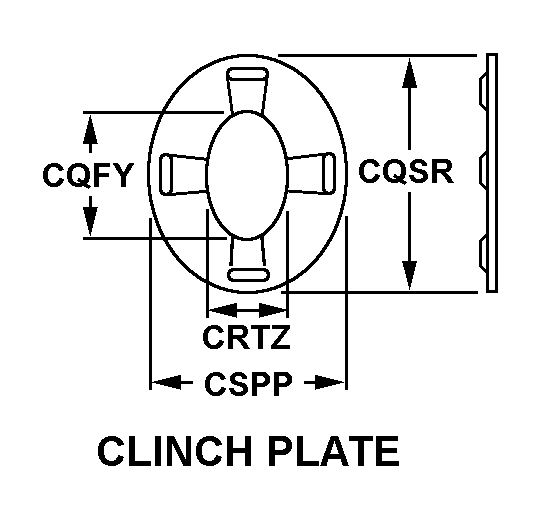

| TURNBUTTON CLINCH PLATE STYLE | 7 CLINCH PLATE |
| PLATE HOLE LENGTH | 0.436 INCHES NOMINAL |
| PLATE OVERALL LENGTH | 0.750 INCHES NOMINAL |
| PLATE HOLE WIDTH | 0.250 INCHES NOMINAL |
| PLATE OVERALL WIDTH | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | WHITE DELRIN TURNING KNOB,PRESS FIT OVER FASTENER |
| III CUBIC MEASURE | 0.334 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 0.001 POUNDS |
| III PURCHASE DESCRIPTION IDENTIFICATION | 51404-003077-001 |
| MANUFACTURERS CODE | 51404 |
| DESIGN CONTROL REFERENCE | 003077-001 |
Restrictions/Controls & Freight Information | NSN 5325-01-176-0619
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-176-0619
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
