NSN 5325-01-177-8466 MS20230BP4, 01-177-8466, 011778466
Product Details | METALLIC GROMMET
5325-01-177-8466 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: MS20230BP4, 5325-01-177-8466, 01-177-8466, 5325011778466, 011778466
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 APR 1984 | 01-177-8466 | 06314 ( GROMMET, METALLIC ) |

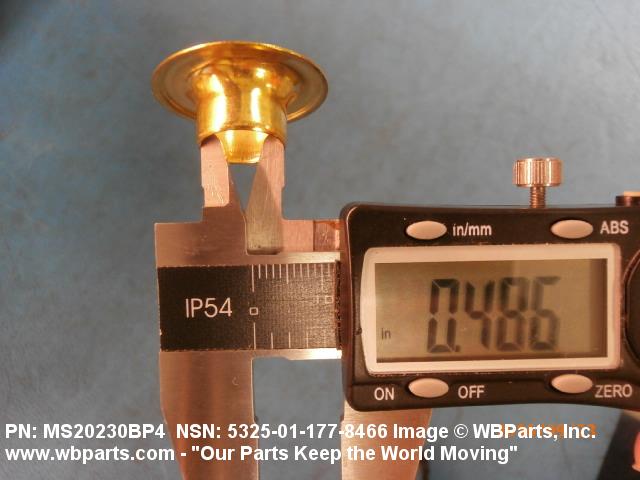

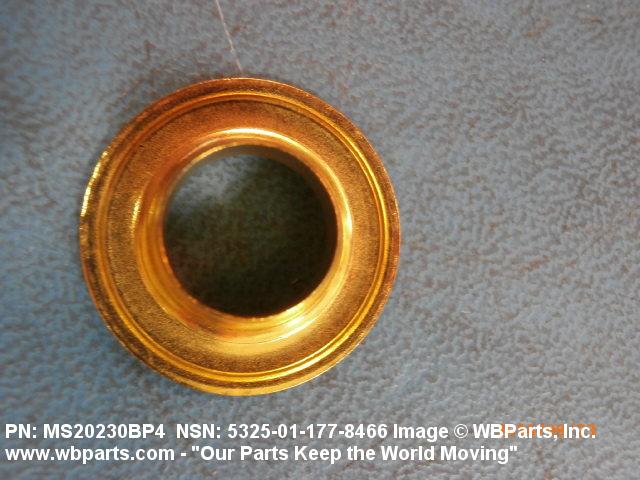

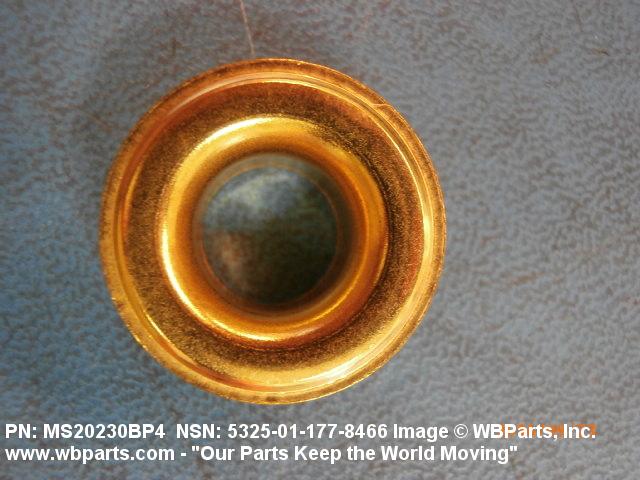

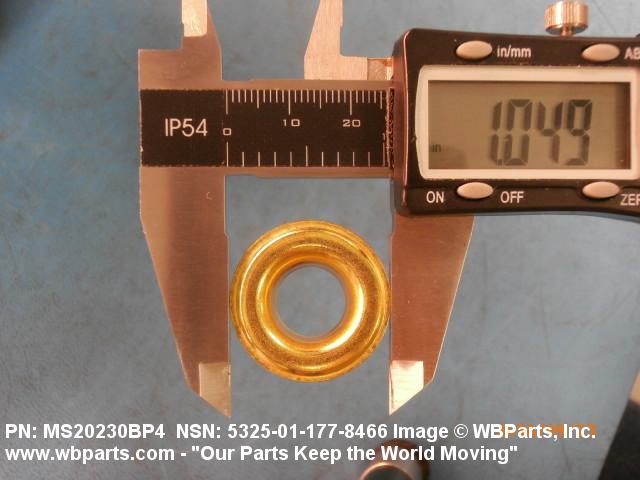

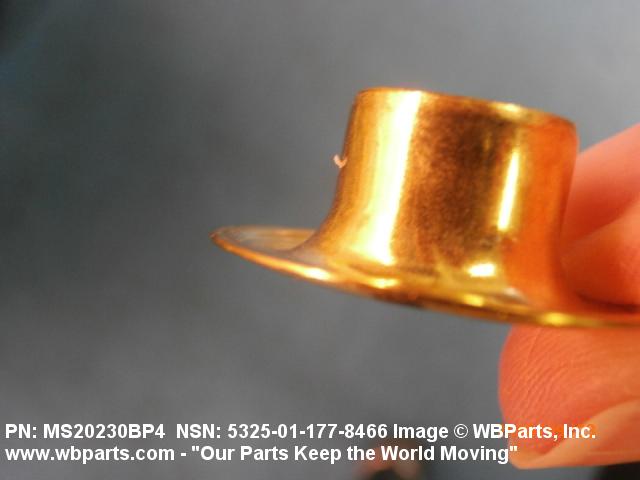

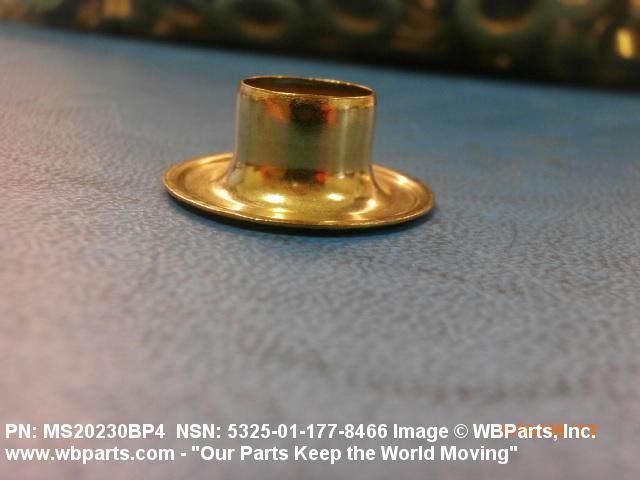

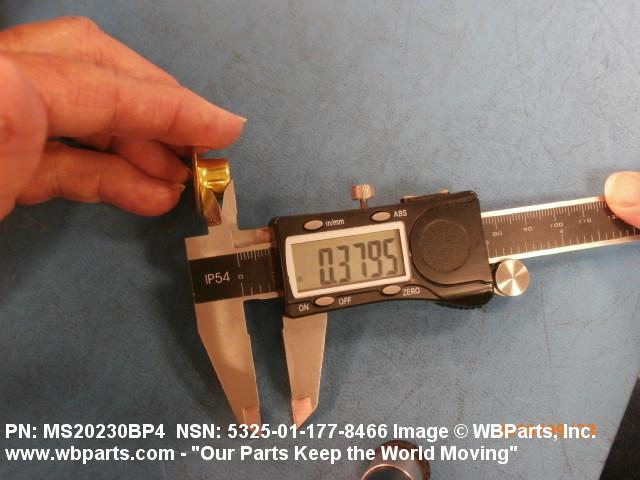

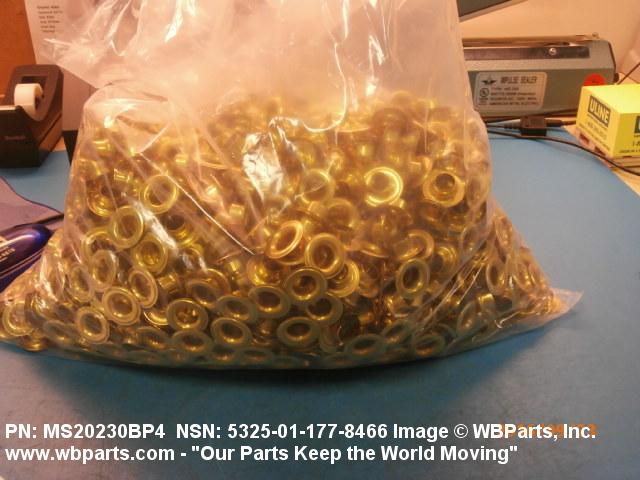

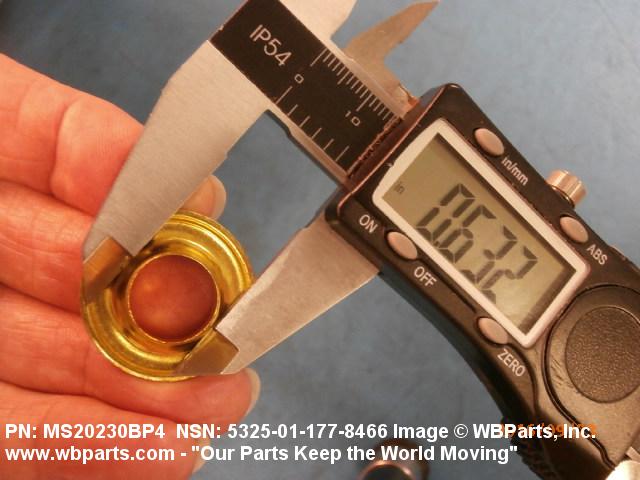

Drawings & Photos | NSN 5325-01-177-8466
Demand History | NSN 5325-01-177-8466
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20230BP4 | 2019-04-95 | 30 | United States |
| 5325-01-177-8466 | 2018-07-207 | 100 | US |
| 5325-01-177-8466 | 2018-06-173 | 10000 | KR |
| 5325-01-177-8466 | 2018-06-173 | 10000 | KR |
| 5325-01-177-8466 | 2018-04-101 | 10 | US |
| 5325-01-177-8466 | 2016-07-211 | 4630 | South Korea |
| MS20230BP4 | 2016-06-179 | 10000 | South Korea |
| MS20230BP4 | 2016-05-131 | 1000 | South Korea |
| MS20230BP4 | 2015-07-189 | 14400 | South Korea |
| 5325-01-177-8466 | 2014-10-303 | 1 | Taiwan |
| MS20230BP4 | 2011-07-193 | 7200 | us |
| 5325-01-177-8466 | 2009-12-347 | 100 | DIBBS |
| 5325-01-177-8466 | 2009-04-114 | 40 | DIBBS |
| MS20230BP4 | 2008-11-322 | 5000 | US |
Cross Reference | NSN 5325-01-177-8466
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20230BP4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-177-8466
Related Products | NSN 5325-01-177-8466
Technical Data | NSN 5325-01-177-8466
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| BARREL STYLE | 2 TAPERED ROUND TYPE |
| BARREL HEIGHT | 0.380 INCHES NOMINAL |
| BARREL OUTSIDE DIAMETER | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| BARREL LARGEST OUTSIDE DIAMETER | 0.625 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| FLANGE STYLE | 1 FLANGE |
| FLANGE OUTSIDE DIAMETER | 1.045 INCHES MINIMUM AND 1.055 INCHES MAXIMUM |
| WASHER STYLE | 1 FLAT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20230BP4 |
Restrictions/Controls & Freight Information | NSN 5325-01-177-8466
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-177-8466
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
