NSN 5325-01-186-5924 4002T7S, 01-186-5924, 011865924
Product Details | TURNLOCK FASTENER EYELET
5325-01-186-5924 A metallic item designed to be inserted into a preformed hole to guide and retain a STUD, TURNLOCK FASTENER. Excludes EYELET, METALLIC.
Part Alternates: 4002T7S, 5325-01-186-5924, 01-186-5924, 5325011865924, 011865924
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1984 | 01-186-5924 | 18422 ( EYELET, TURNLOCK FASTENER ) |

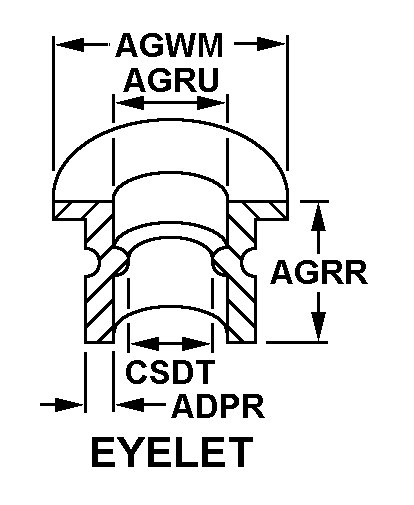

Drawings & Photos | NSN 5325-01-186-5924
Cross Reference | NSN 5325-01-186-5924
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4002T7S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-186-5924
Related Products | NSN 5325-01-186-5924
Technical Data | NSN 5325-01-186-5924
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TURNLOCK EYELET STYLE | 16 EYELET |
| BODY THICKNESS | ANY ACCEPTABLE |
| EYELET HEIGHT | 0.185 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| LARGEST INSIDE DIAMETER | 0.388 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 0.620 INCHES MINIMUM AND 0.623 INCHES MAXIMUM |
| EYELET INSIDE DIAMETER | 0.351 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 4002T7S |
Restrictions/Controls & Freight Information | NSN 5325-01-186-5924
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
