NSN 5325-01-191-4625 TA03M59HB34, 01-191-4625, 011914625
Product Details | NONMETALLIC GROMMET
5325-01-191-4625 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: TA03M59HB34, 5325-01-191-4625, 01-191-4625, 5325011914625, 011914625
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 OCT 1984 | 01-191-4625 | 33729 ( GROMMET, NONMETALLIC ) |

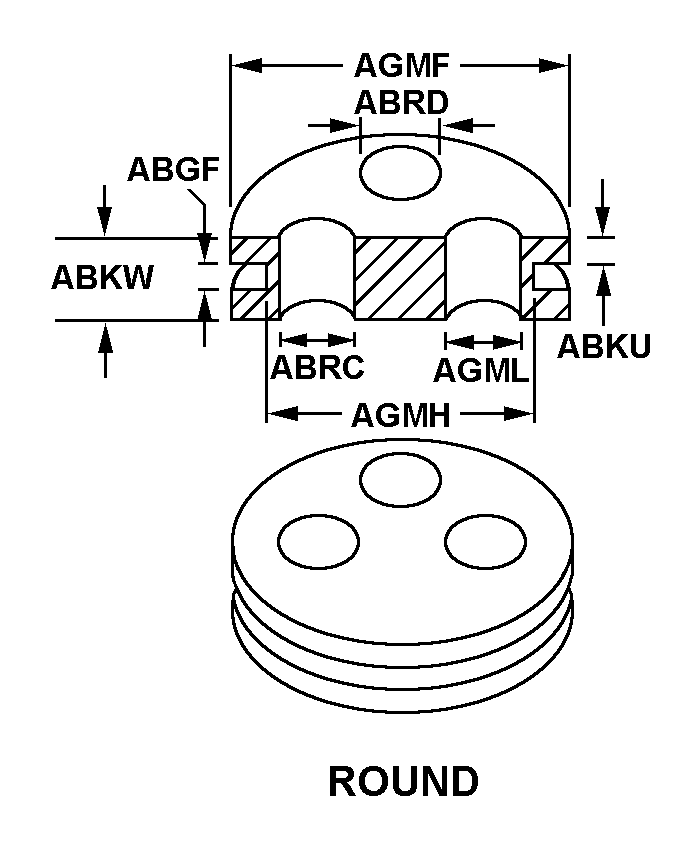

Drawings & Photos | NSN 5325-01-191-4625
Cross Reference | NSN 5325-01-191-4625
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TA03M59HB34 | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-191-4625
Technical Data | NSN 5325-01-191-4625
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 GRA6,B3,F3,GK2,MZ ASSN STD SINGLE MATERIAL RESPONSE OR TA612 FSCM 84971 GRA6,B3,F3,GK2,MZ MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | PINK OVERALL |
| GROMMET STYLE | 9 ROUND |
| GROOVE WIDTH | 0.505 INCHES MINIMUM AND 0.525 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.080 INCHES NOMINAL |
| OVERALL HEIGHT | 0.675 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.531 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.358 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 1.640 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| THIRD HOLE DIAMETER | 0.531 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| NONMETALLIC HARDNESS RATING | 55.0 MINIMUM SHORE DUROMETER A AND 65.0 MAXIMUM SHORE DUROMETER A |
Restrictions/Controls & Freight Information | NSN 5325-01-191-4625
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
