NSN 5325-01-193-2507 CA170896HS, CA17089-6HS, FT50756

Product Details | TURNLOCK FASTENER STUD

5325-01-193-2507 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: CA170896HS, CA17089-6HS, FT50756, FT5075-6, 4381015, 438101-5, 5325-01-193-2507, 01-193-2507, 5325011932507, 011932507

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	31 OCT 1984	01-193-2507	18421 ( STUD, TURNLOCK FASTENER )

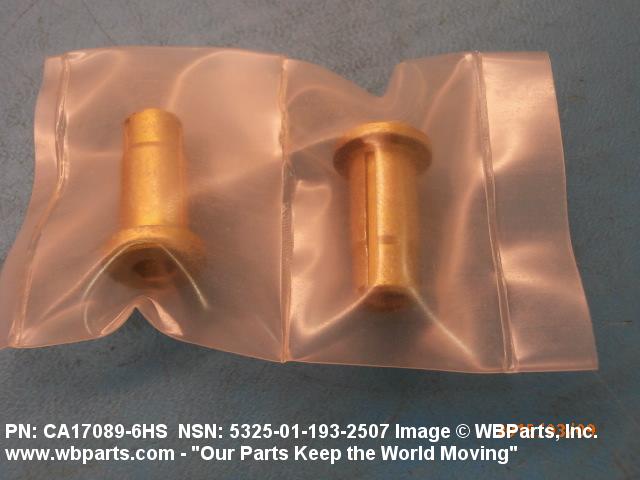

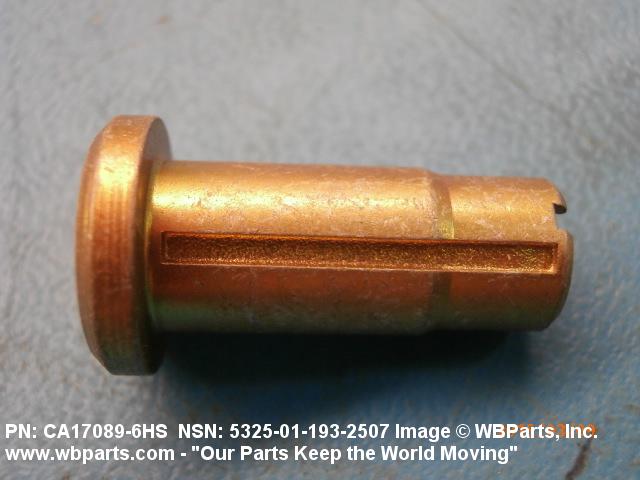

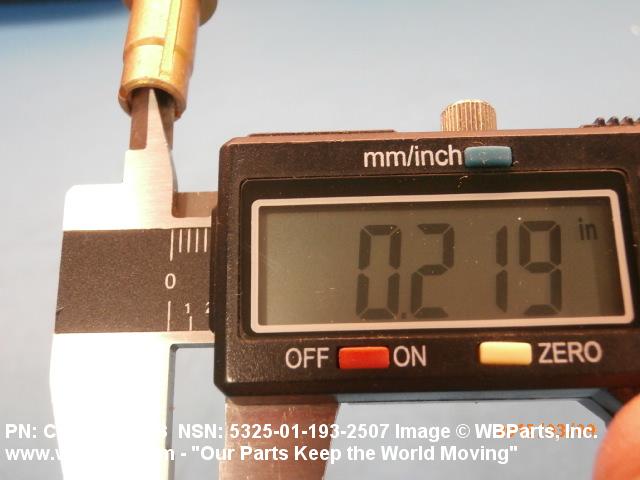

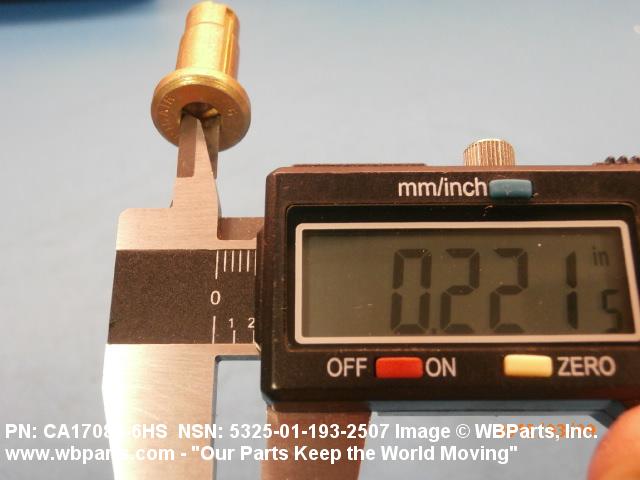

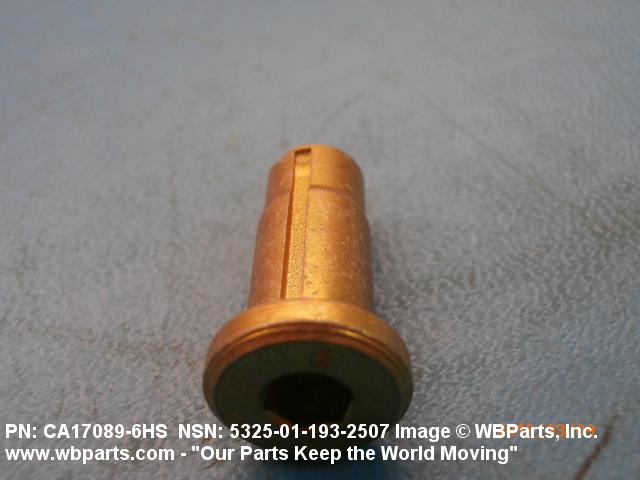

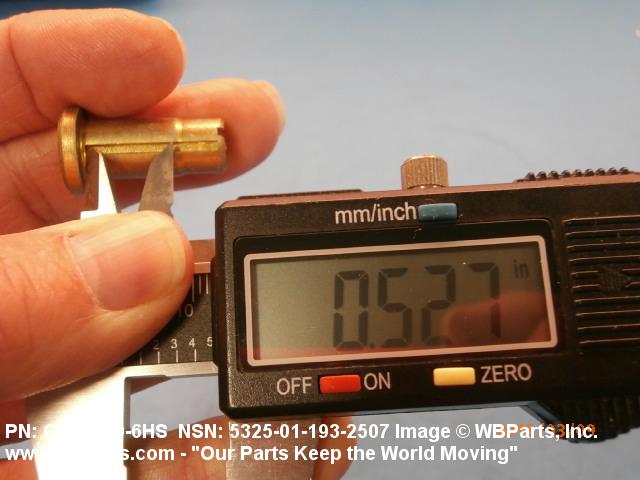

Drawings & Photos | NSN 5325-01-193-2507

Part Number	Request Date	QTY	Origin
CA17089-6HS	2024-02-51	66	DIBBS
FT5075-6	2024-02-51	66	DIBBS
CA17089-6HS	2024-02-46	66	DIBBS
FT5075-6	2024-02-46	66	DIBBS
CA17089-6HS	2023-05-143	122	DIBBS
FT5075-6	2023-05-143	122	DIBBS
5325-01-193-2507	2020-06-157	1	DIBBS-RFPs
CA17089-6HS	2019-06-174	207	DIBBS
FT5075-6	2019-06-174	207	DIBBS
CA170896HS	2018-06-155	8	United States
5325-01-193-2507	2018-01-18	201	DIBBS
5325-01-193-2507	2017-03-88	116	DIBBS
CA170896HS	2015-03-61	26	United States
4381015	2015-02-54	26	United States
5325-01-193-2507	2015-02-32	138	DIBBS
5325-01-193-2507	2012-12-362	28	DIBBS
5325-01-193-2507	2012-10-290	27	DIBBS
5325-01-193-2507	2012-07-212	22	DIBBS
5325-01-193-2507	2012-05-130	39	DIBBS
5325-01-193-2507	2012-03-90	39	DIBBS
5325-01-193-2507	2012-02-46	20	DIBBS
5325-01-193-2507	2011-11-307	25	DIBBS
5325-01-193-2507	2011-08-213	30	DIBBS
5325-01-193-2507	2011-06-164	25	DIBBS
5325-01-193-2507	2011-01-28	9	DIBBS
5325-01-193-2507	2011-01-06	55	DIBBS
5325-01-193-2507	2010-04-103	31	DIBBS
5325-01-193-2507	2009-02-48	22	DIBBS
5325-01-193-2507	2008-12-347	17	DIBBS
5325-01-193-2507	2008-08-217	24	DIBBS
CA170896HS	2007-07-198	16	United States

Cross Reference | NSN 5325-01-193-2507

Part Number	Cage Code	Manufacturer
438101-5	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
CA17089-6HS	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
FT5075-6	58794	FASTENER TECHNOLOGY CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-193-2507

Compare

Related Products | NSN 5325-01-193-2507

5325-01-193-2508, 5325-01-193-2906, 5325-01-193-2907, 5325-01-193-2908, 5325-01-193-2954

Technical Data | NSN 5325-01-193-2507

Characteristic	Specifications
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
TURNLOCK STUD SHANK STYLE	17 STUD SHANK

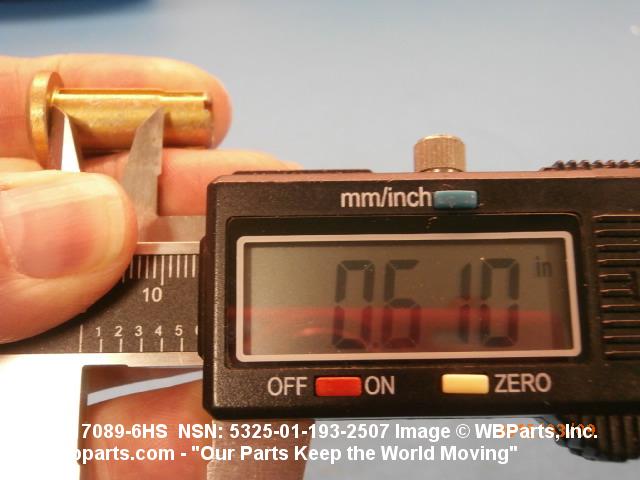

GRIP LENGTH	0.620 INCHES NOMINAL

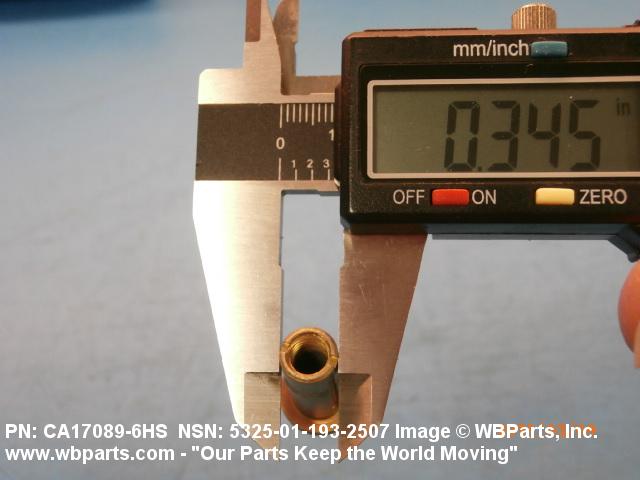

MINOR DIAMETER	0.345 INCHES NOMINAL

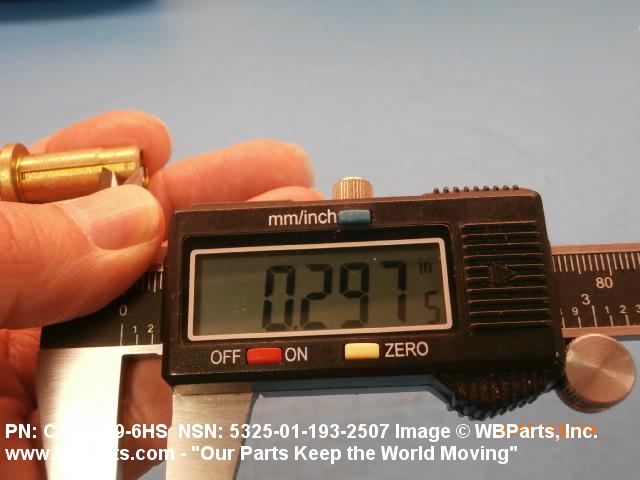

EXTENSION LENGTH	0.300 INCHES NOMINAL

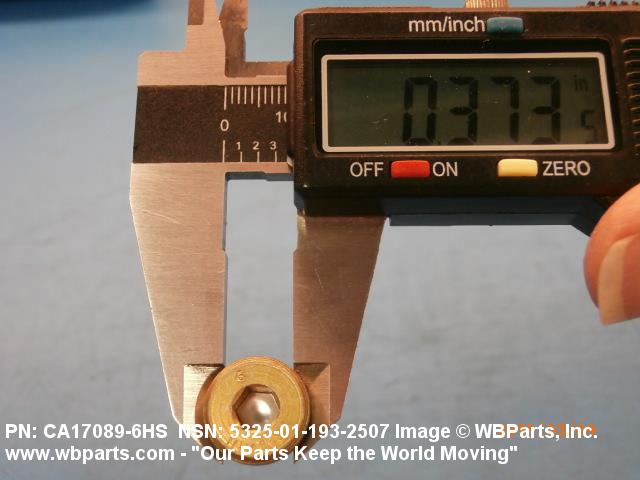

STUD SHANK MAJOR DIAMETER	0.3730 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM
TURNLOCK STUD HEAD STYLE	3 FLAT FILLISTER

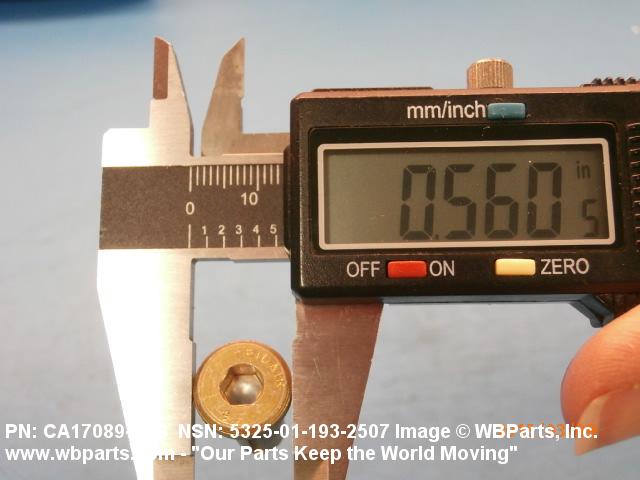

DIAMETER	0.552 INCHES MINIMUM AND 0.563 INCHES MAXIMUM

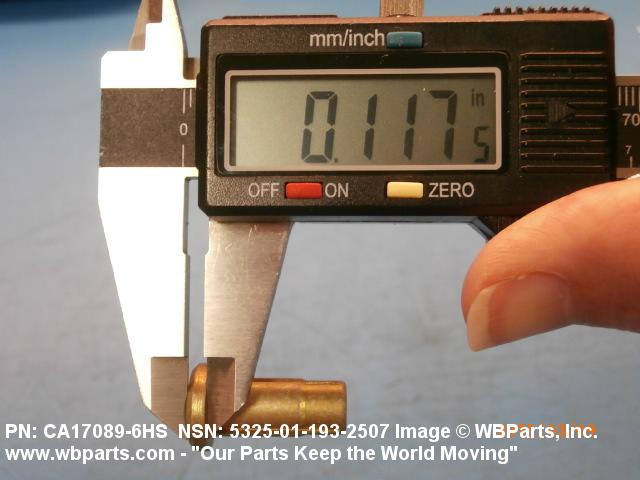

STUD HEAD HEIGHT	0.105 INCHES MINIMUM AND 0.120 INCHES MAXIMUM
STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.250-28 UNF
SECURING DEVICE TYPE	RING

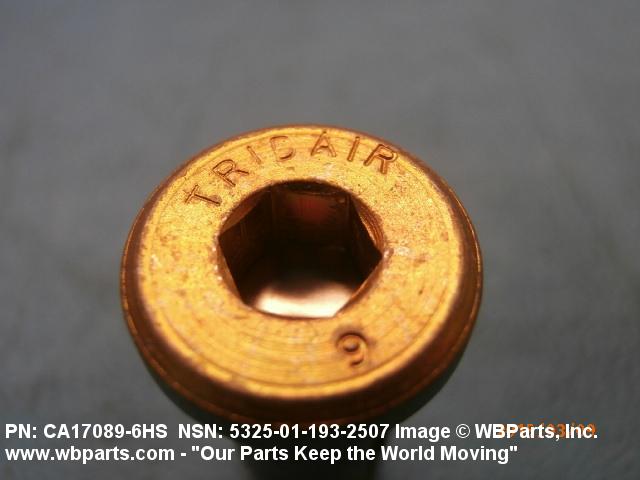

DRIVE TYPE	SOCKET
MATERIAL ACCOMMODATED THICKNESS	0.501 INCHES MINIMUM AND 0.570 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5325-01-193-2507

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	066440	FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-193-2507

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
