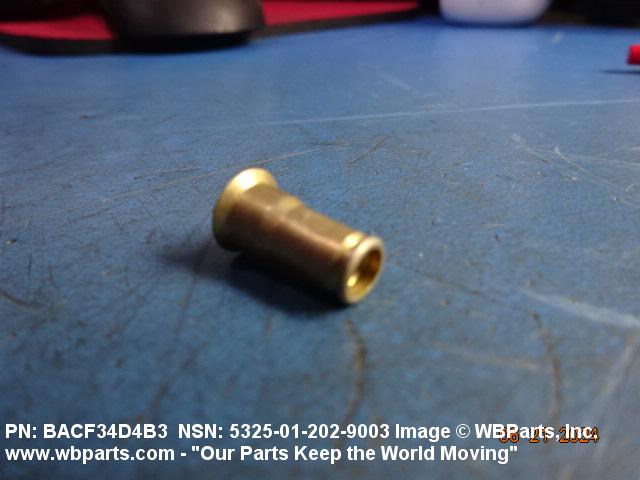

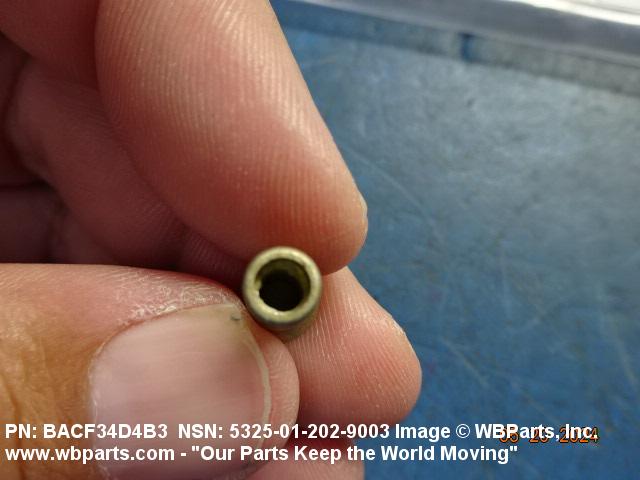

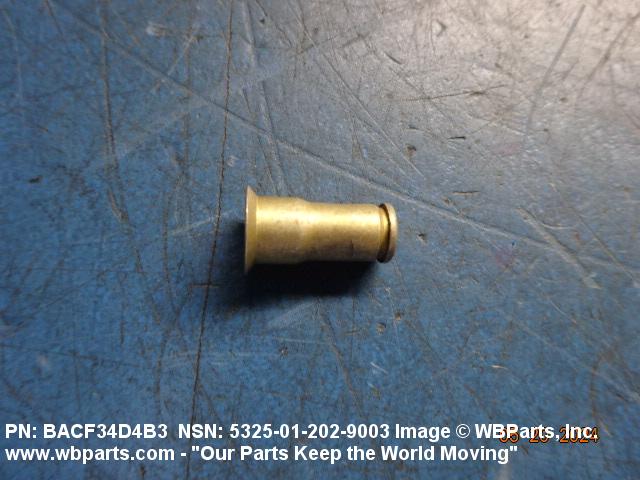

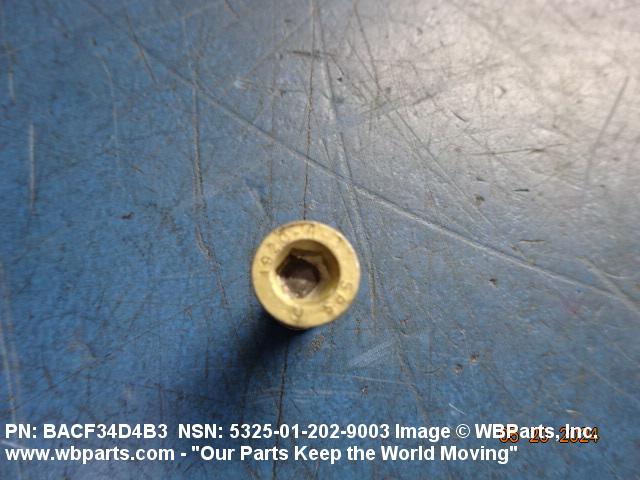

Product Details | TURNLOCK FASTENER STUD
5325-01-202-9003 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: BACF34D4B3, 5325-01-202-9003, 01-202-9003, 5325012029003, 012029003
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1985 | 01-202-9003 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-202-9003
Demand History | NSN 5325-01-202-9003
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACF34D4B3 | 2024-11-309 | 145 | United States |
| BACF34D4B3 | 2024-06-158 | 18 | United States |
| BACF34D4B3 | 2024-05-122 | 40 | United States |
| 5325-01-202-9003 | 2017-07-200 | 10 | US |
| 5325-01-202-9003 | 2013-03-85 | 436 | DIBBS |
| 5325-01-202-9003 | 2013-01-24 | 54 | DIBBS |
| 5325-01-202-9003 | 2013-01-17 | 70 | DIBBS |
| 5325-01-202-9003 | 2012-11-310 | 39 | DIBBS |
| 5325-01-202-9003 | 2012-05-131 | 125 | DIBBS |
| 5325-01-202-9003 | 2011-08-238 | 124 | DIBBS |
| 5325-01-202-9003 | 2011-02-34 | 227 | DIBBS |
| 5325-01-202-9003 | 2009-09-267 | 139 | DIBBS |
| 5325-01-202-9003 | 2009-09-245 | 299 | DIBBS |
Cross Reference | NSN 5325-01-202-9003
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-202-9003
Related Products | NSN 5325-01-202-9003
Technical Data | NSN 5325-01-202-9003
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 16 STUD SHANK |

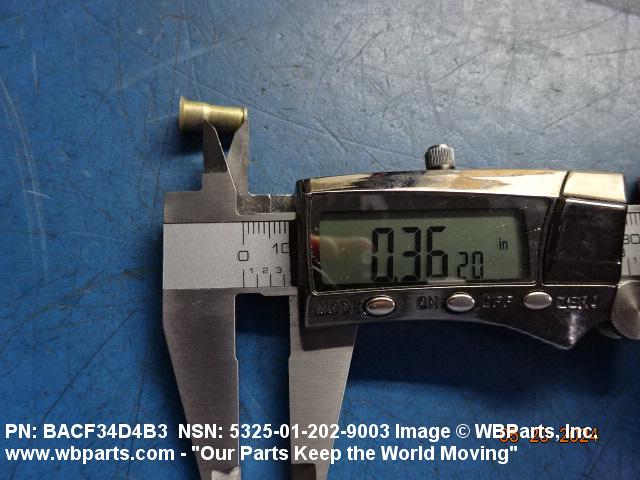

| GRIP LENGTH | 0.250 INCHES NOMINAL |
| EXTENSION LENGTH | 0.361 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |

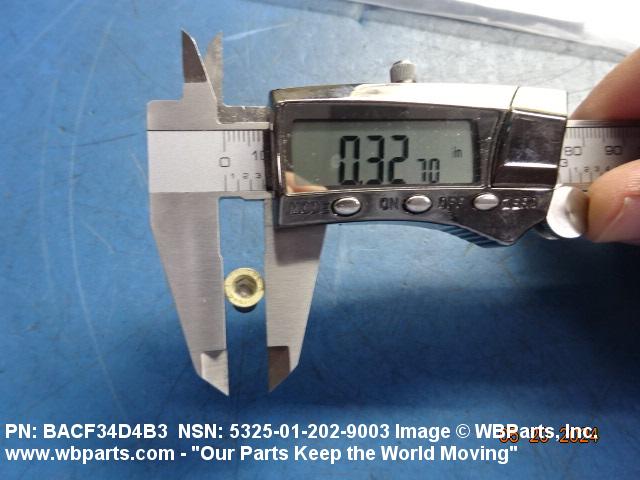

| DIAMETER | 0.325 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |
