Product Details | TURNLOCK FASTENER STUD ASSEMBLY

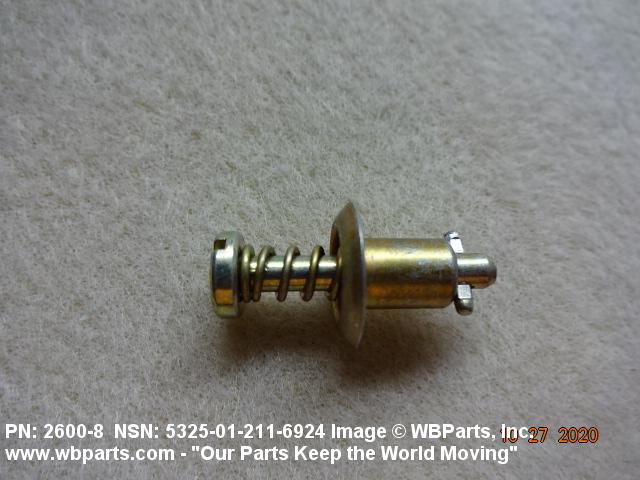

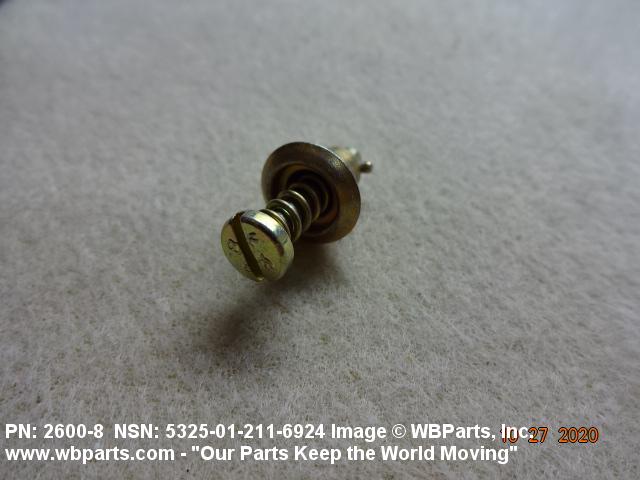

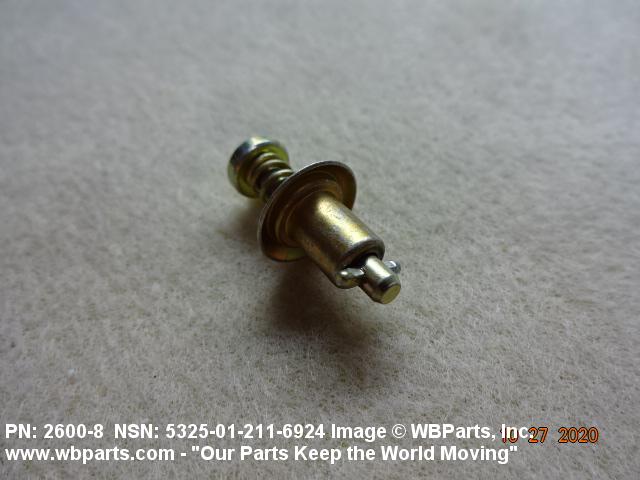

5325-01-211-6924 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: HS44318, HS4431-8, 11260008, 1126000-8, 26008, 2600-8, 26AC8, 5325-01-211-6924, 01-211-6924, 5325012116924, 012116924
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JUN 1985 | 01-211-6924 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-211-6924
Demand History | NSN 5325-01-211-6924
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1126000-8 | 2024-04-12 | 10544 | DIBBS |
| 2600-8 | 2024-04-12 | 10544 | DIBBS |
| 26AC8 | 2024-04-12 | 10544 | DIBBS |
| HS4431-8 | 2024-04-12 | 10544 | DIBBS |
| 1126000-8 | 2024-04-04 | 10544 | DIBBS |
| 2600-8 | 2024-04-04 | 10544 | DIBBS |
| 26AC8 | 2024-04-04 | 10544 | DIBBS |
| HS4431-8 | 2024-04-04 | 10544 | DIBBS |
| 1126000-8 | 2024-03-27 | 10544 | DIBBS |
| 2600-8 | 2024-03-27 | 10544 | DIBBS |
| 26AC8 | 2024-03-27 | 10544 | DIBBS |
| HS4431-8 | 2024-03-27 | 10544 | DIBBS |
| 1126000-8 | 2024-01-25 | 2918 | DIBBS |
| 2600-8 | 2024-01-25 | 2918 | DIBBS |
| 26AC8 | 2024-01-25 | 2918 | DIBBS |
| HS4431-8 | 2024-01-25 | 2918 | DIBBS |
| 1126000-8 | 2024-01-17 | 2918 | DIBBS |
| 2600-8 | 2024-01-17 | 2918 | DIBBS |
| 26AC8 | 2024-01-17 | 2918 | DIBBS |
| HS4431-8 | 2024-01-17 | 2918 | DIBBS |
| 1126000-8 | 2023-12-26 | 5448 | DIBBS |
| 2600-8 | 2023-12-26 | 5448 | DIBBS |
| 26AC8 | 2023-12-26 | 5448 | DIBBS |
| HS4431-8 | 2023-12-26 | 5448 | DIBBS |
| 1126000-8 | 2023-12-18 | 5448 | DIBBS |
| 2600-8 | 2023-12-18 | 5448 | DIBBS |
| 26AC8 | 2023-12-18 | 5448 | DIBBS |
| HS4431-8 | 2023-12-18 | 5448 | DIBBS |
| 5325-01-211-6924 | 2023-05-25 | 50 | South Korea |
| 1126000-8 | 2023-01-26 | 5347 | DIBBS |
| 2600-8 | 2023-01-26 | 5347 | DIBBS |
| 26AC8 | 2023-01-26 | 5347 | DIBBS |
| HS4431-8 | 2023-01-26 | 5347 | DIBBS |
| 1126000-8 | 2023-01-18 | 5347 | DIBBS |
| 2600-8 | 2023-01-18 | 5347 | DIBBS |
| 26AC8 | 2023-01-18 | 5347 | DIBBS |
| HS4431-8 | 2023-01-18 | 5347 | DIBBS |
| 1126000-8 | 2021-06-27 | 4469 | DIBBS |
| 2600-8 | 2021-06-27 | 4469 | DIBBS |
| 26AC8 | 2021-06-27 | 4469 | DIBBS |
| HS4431-8 | 2021-06-27 | 4469 | DIBBS |
| 1126000-8 | 2020-01-05 | 5939 | DIBBS |
| 2600-8 | 2020-01-05 | 5939 | DIBBS |
| 26AC8 | 2020-01-05 | 5939 | DIBBS |
| HS4431-8 | 2020-01-05 | 5939 | DIBBS |
| HS44318 | 2019-08-20 | 2 | US |
| 5325-01-211-6924 | 2016-03-30 | 9826 | DIBBS |
| 5325-01-211-6924 | 2015-10-08 | 3572 | DIBBS |
| 26008 | 2015-06-18 | 2 | US |
| 1126000-8 | 2014-06-06 | 50 | United States |
| 5325-01-211-6924 | 2008-11-12 | 4118 | DIBBS |
| 5325-01-211-6924 | 2008-10-22 | 4419 | DIBBS |
| 5325-01-211-6924 | 2008-07-28 | 1749 | DIBBS |
| 5325-01-211-6924 | 2008-02-05 | 7541 | DIBBS |
Cross Reference | NSN 5325-01-211-6924
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1126000-8 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 2600-8 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 26AC8 | 69370 | HO-HO-KUS, INC. |
| HS4431-8 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS4431-8 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5325-01-211-6924
Related Products | NSN 5325-01-211-6924
5325-01-211-7015, 5325-01-211-7016, 5325-01-211-7276, 5325-01-211-7286, 5325-01-211-7378
Technical Data | NSN 5325-01-211-6924
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |

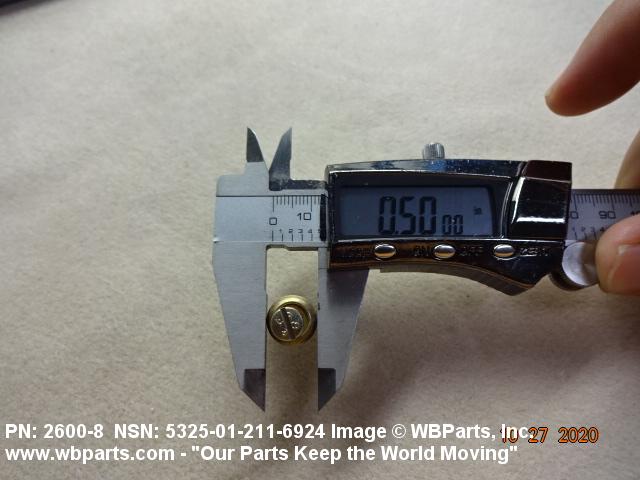

| DIAMETER | 0.500 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 8 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.527 INCHES NOMINAL |

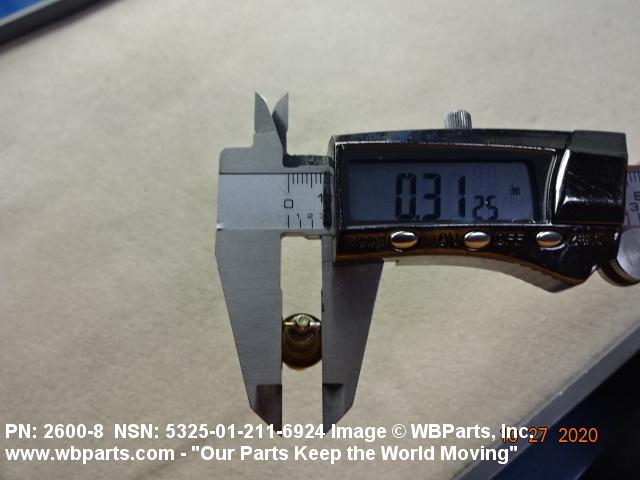

| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| SECURING DEVICE TYPE | SPRING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.240 INCHES MINIMUM AND 0.269 INCHES MAXIMUM |
| FEATURES PROVIDED | ALL METAL LOCKING ELEMENT |
| SPECIFICATION/STANDARD DATA | 02731-HS4431 MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 8V613 |
| MFR SOURCE CONTROLLING REFERENCE | HS4431-8 |
