NSN 5325-01-212-2361 CA170893HS, CA17089-3HS, 002004195003

Product Details | TURNLOCK FASTENER STUD

5325-01-212-2361 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: CA170893HS, CA17089-3HS, 002004195003, 002-004195-003, 5325-01-212-2361, 01-212-2361, 5325012122361, 012122361

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 JUL 1985	01-212-2361	18421 ( STUD, TURNLOCK FASTENER )

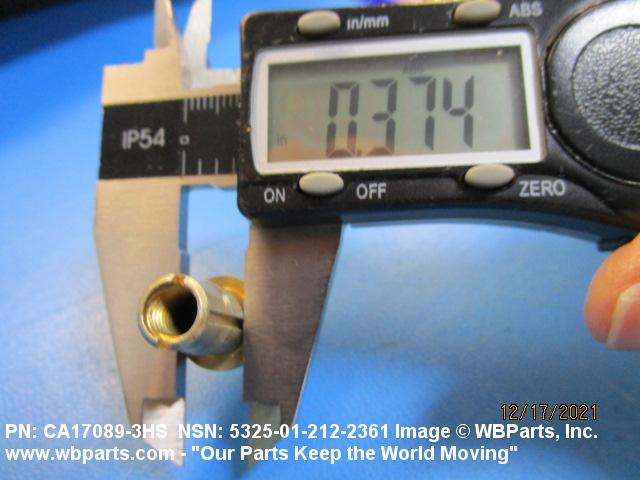

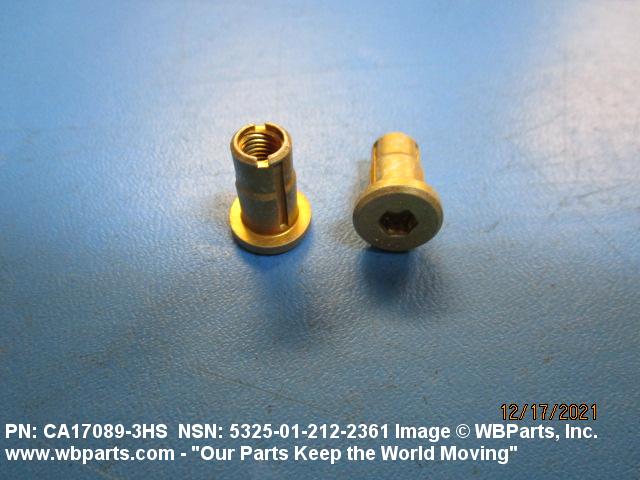

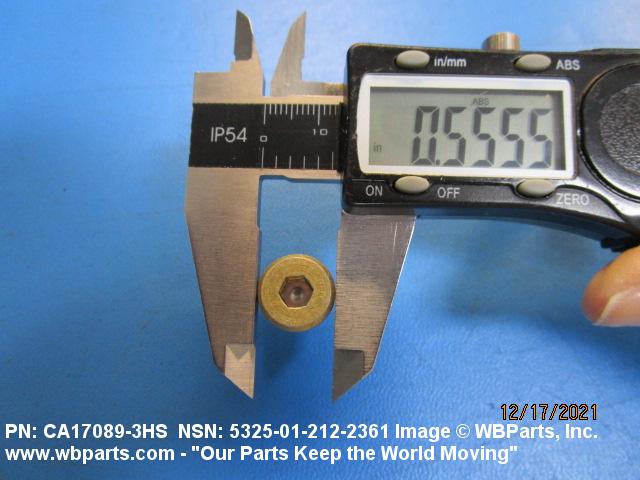

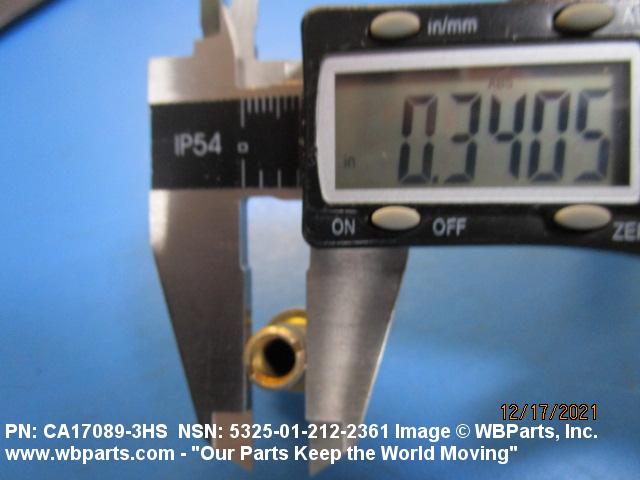

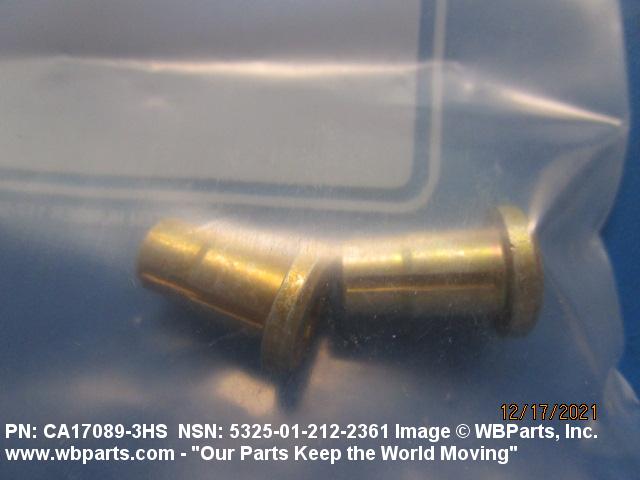

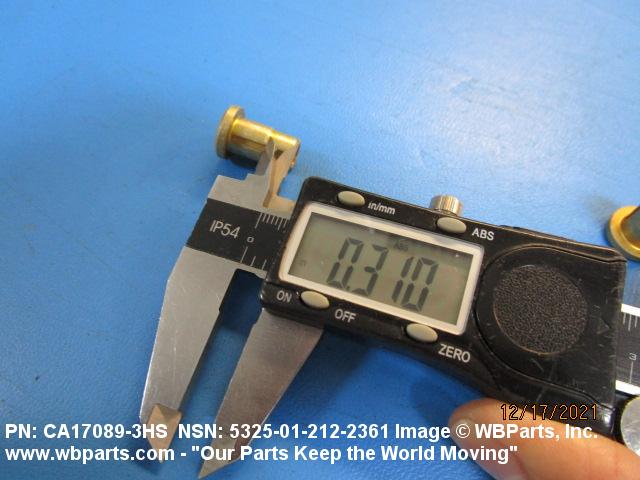

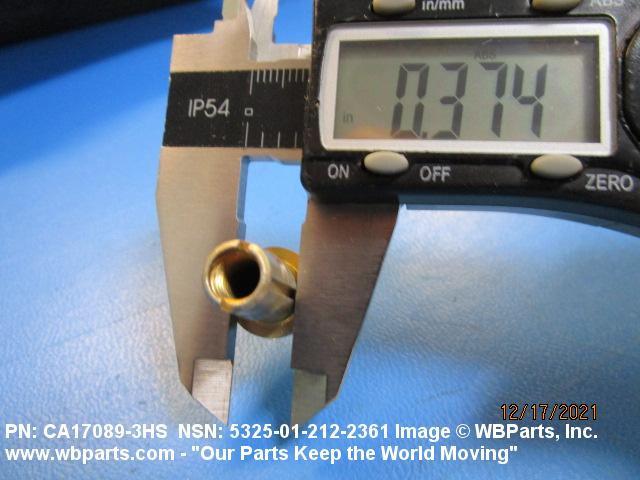

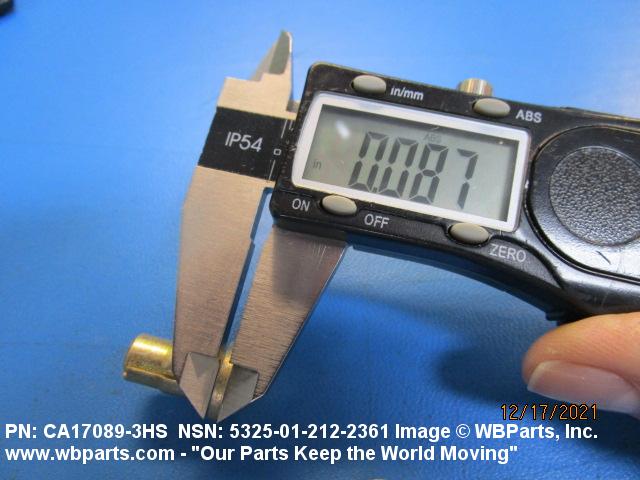

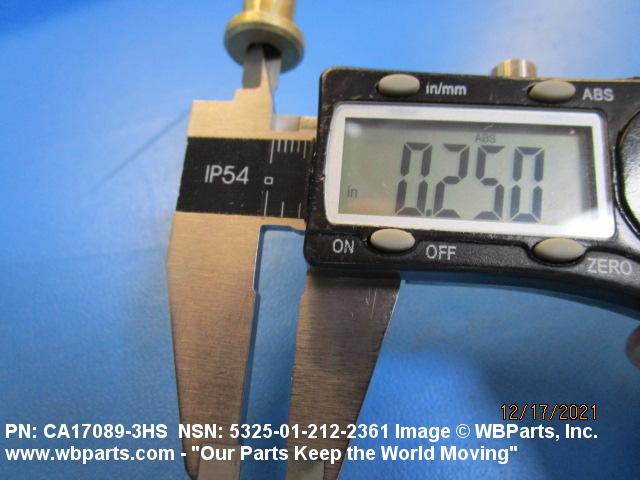

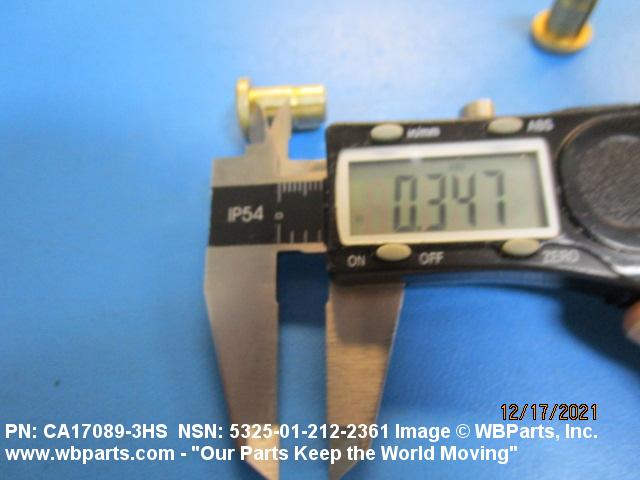

Drawings & Photos | NSN 5325-01-212-2361

Part Number	Request Date	QTY	Origin
CA17089-3HS	2024-08-219	79	DIBBS
CA17089-3HS	2022-05-122	131	DIBBS
CA17089-3HS	2022-04-109	131	DIBBS
CA170893HS	2021-12-342	2	United States
5325-01-212-2361	2021-12-336	2	United States
5325-01-212-2361	2021-10-287	30	United States
5325-01-212-2361	2021-09-250	30	United States
5325-01-212-2361	2021-09-250	30	United States
5325-01-212-2361	2021-07-208	32	United States
5325-01-212-2361	2017-11-329	129	DIBBS
5325-01-212-2361	2017-11-320	129	DIBBS
5325-01-212-2361	2011-06-168	620	DIBBS
5325-01-212-2361	2011-05-132	269	DIBBS
5325-01-212-2361	2011-03-84	127	DIBBS
5325-01-212-2361	2010-10-298	148	DIBBS
5325-01-212-2361	2010-09-258	70	DIBBS
5325-01-212-2361	2010-05-131	100	DIBBS
5325-01-212-2361	2010-04-104	48	DIBBS
5325-01-212-2361	2010-03-65	36	DIBBS
5325-01-212-2361	2010-02-41	54	DIBBS
5325-01-212-2361	2010-01-19	43	DIBBS
5325-01-212-2361	2009-11-306	74	DIBBS

Cross Reference | NSN 5325-01-212-2361

Part Number	Cage Code	Manufacturer
002-004195-003	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
002-004195-003	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
CA17089-3HS	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-212-2361

Compare

Related Products | NSN 5325-01-212-2361

5325-01-212-2362, 5325-01-212-2403, 5325-01-212-2404, 5325-01-212-3071, 5325-01-212-3081

Technical Data | NSN 5325-01-212-2361

Characteristic	Specifications
DRIVE TYPE	SOCKET
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OVERALL
STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.250-28 UNF
TURNLOCK STUD SHANK STYLE	STUD SHANK
MATERIAL ACCOMMODATED THICKNESS	0.291 INCHES MINIMUM AND 0.360 INCHES MAXIMUM
GRIP LENGTH	0.360 INCHES NOMINAL
EXTENSION LENGTH	0.300 INCHES NOMINAL
DIAMETER	0.552 INCHES MINIMUM AND 0.563 INCHES MAXIMUM
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
TURNLOCK STUD HEAD STYLE	FLAT FILLISTER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
STUD SHANK MAJOR DIAMETER	0.3730 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM
STUD HEAD HEIGHT	0.062 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5325-01-212-2361

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	066440	FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-212-2361

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
