NSN 5325-01-242-7083 MS3548917, MS35489-17, 944.87.31.017

Product Details | NONMETALLIC GROMMET

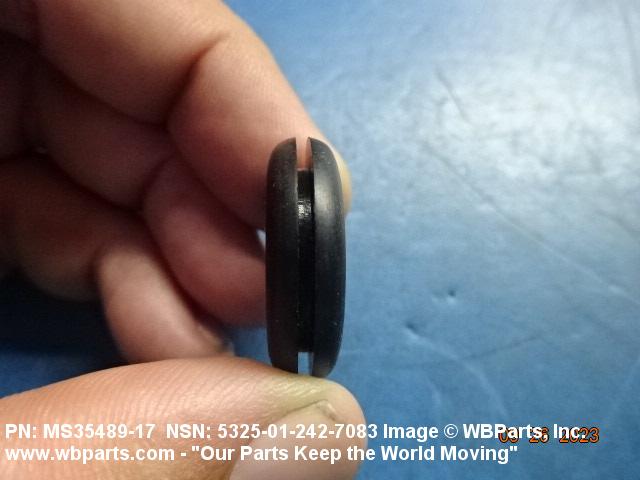

5325-01-242-7083 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.

Part Alternates: MS3548917, MS35489-17, 944.87.31.017, 9448731017, 5325-01-242-7083, 01-242-7083, 5325012427083, 012427083

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	16 OCT 1986	01-242-7083	33729 ( GROMMET, NONMETALLIC )

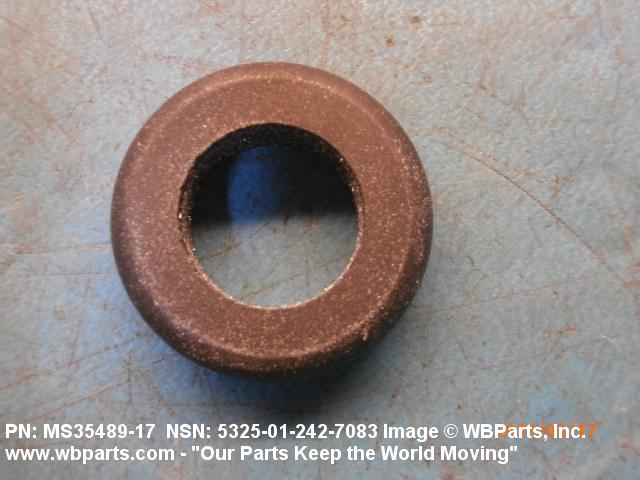

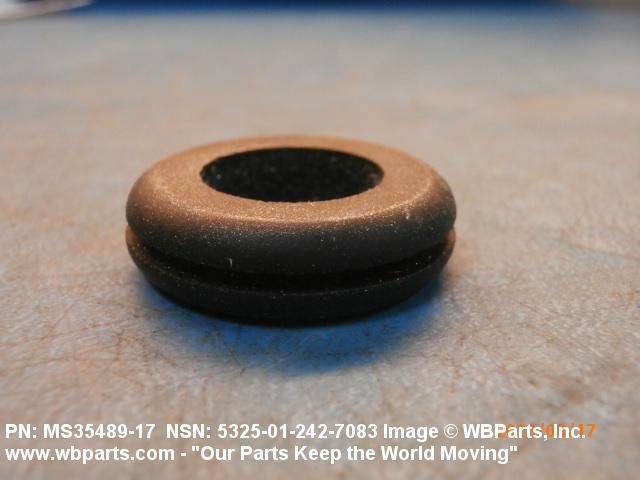

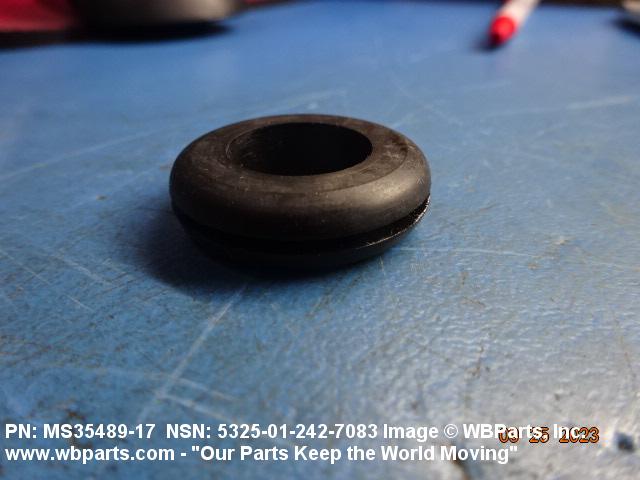

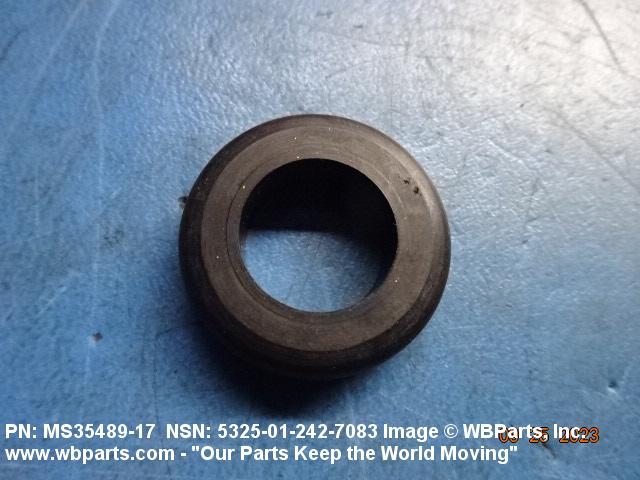

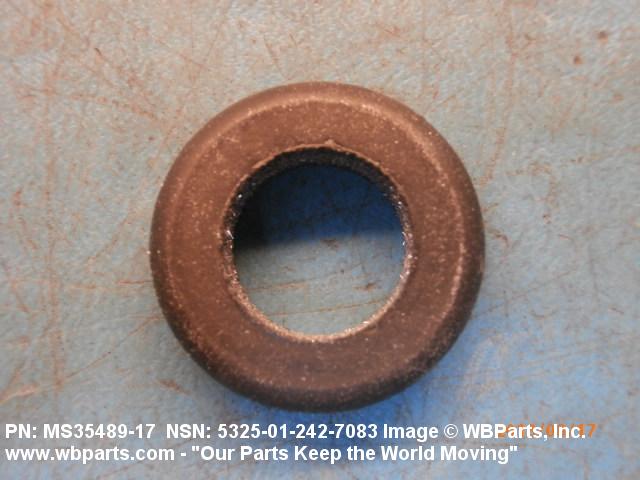

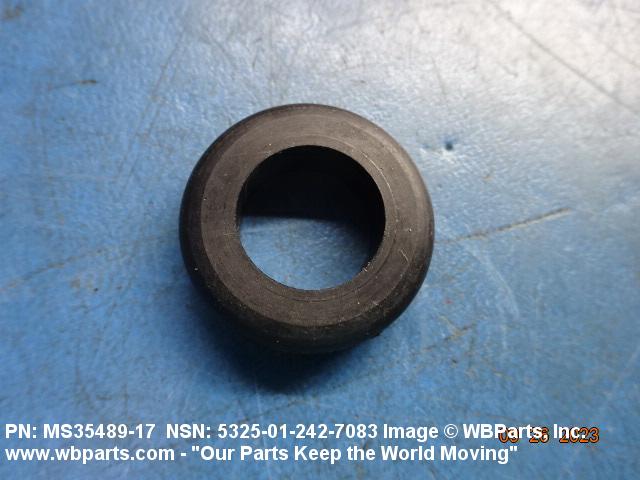

Drawings & Photos | NSN 5325-01-242-7083

Part Number	Request Date	QTY	Origin
MS3548917	2025-11-316	5	Israel
MS3548917	2025-10-304	150	United States
MS3548917	2025-05-140	25	United States
MS3548917	2024-11-310	200	United States
5325-01-242-7083	2024-08-218	4	AE
5325-01-242-7083	2024-08-215	20	AE
MS3548917	2024-06-180	15	AE
MS3548917	2024-05-150	200	United States
MS3548917	2023-12-352	120	United States
MS3548917	2023-09-249	150	United States
MS3548917	2023-08-215	27	US
5325-01-242-7083	2022-05-142	1500	DIBBS
5325-01-242-7083	2020-11-314	9254	DIBBS
5325-01-242-7083	2020-10-304	9254	DIBBS
5325-01-242-7083	2019-01-15	30000	DIBBS
5325-01-242-7083	2018-12-359	2066	DIBBS
5325-01-242-7083	2018-11-332	1572	DIBBS
5325-01-242-7083	2018-11-305	12251	DIBBS
MS3548917	2018-07-206	1	United States
5325-01-242-7083	2018-03-67	6376	DIBBS
5325-01-242-7083	2018-01-08	11599	DIBBS
5325-01-242-7083	2014-11-320	41757	DIBBS
5325-01-242-7083	2012-06-181	61404	DIBBS
5325-01-242-7083	2012-02-59	25000	DIBBS
MS3548917	2010-12-361	25	United States
5325-01-242-7083	2008-09-269	98000	DIBBS

Cross Reference | NSN 5325-01-242-7083

Part Number	Cage Code	Manufacturer
944.87.31.017	S4080	PILATUS AIRCRAFT LTD
MS35489-17	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-242-7083

Compare

Related Products | NSN 5325-01-242-7083

5325-01-242-7361, 5325-01-242-7541, 5325-01-242-7542, 5325-01-242-8077, 5325-01-242-8078

Technical Data | NSN 5325-01-242-7083

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM D2000,BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLOR	BLACK OVERALL
GROMMET STYLE	1 ROUND

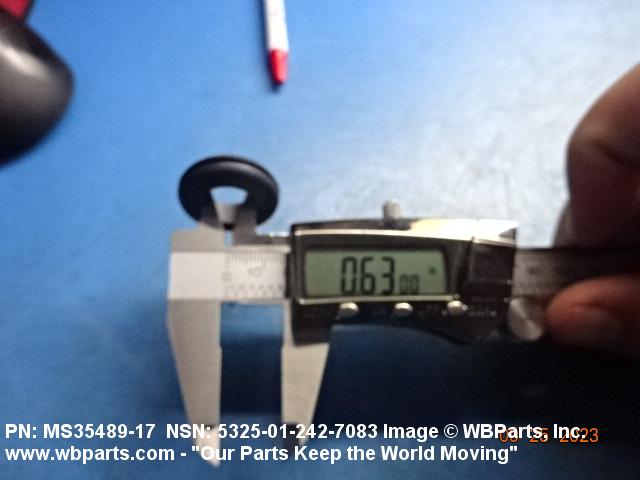

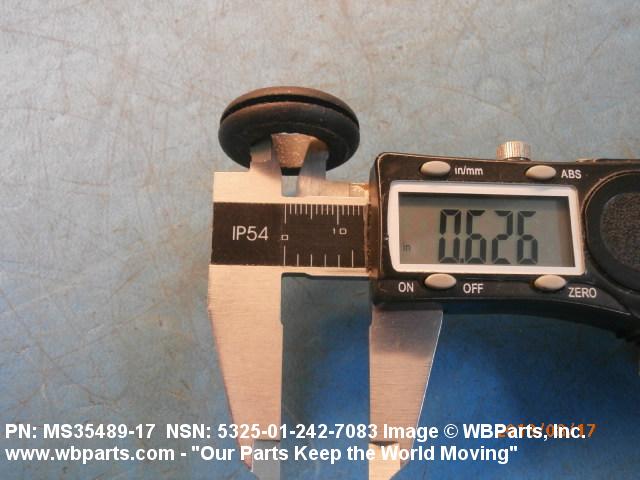

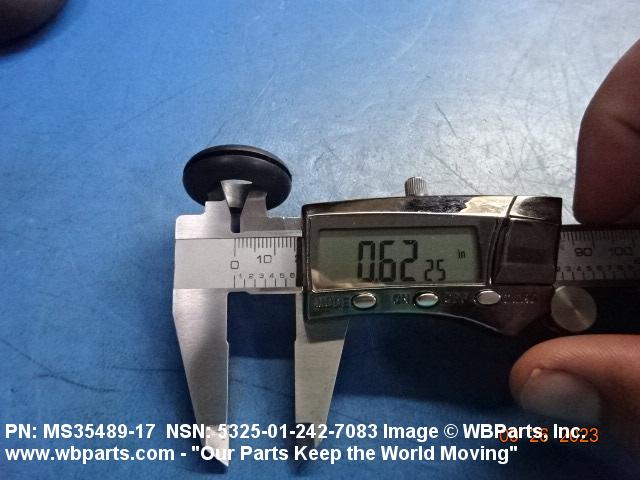

HOLE DIAMETER	0.625 INCHES NOMINAL

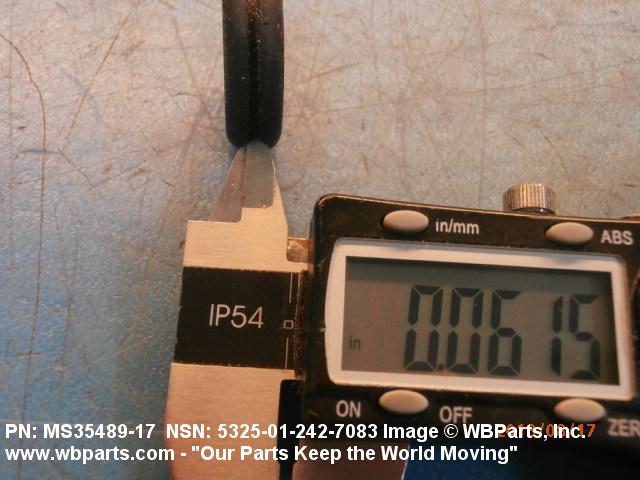

GROOVE WIDTH	0.062 INCHES NOMINAL

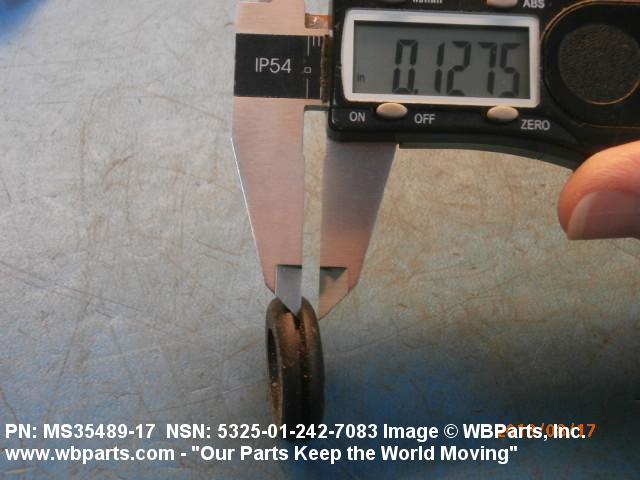

FLANGE THICKNESS	0.125 INCHES NOMINAL

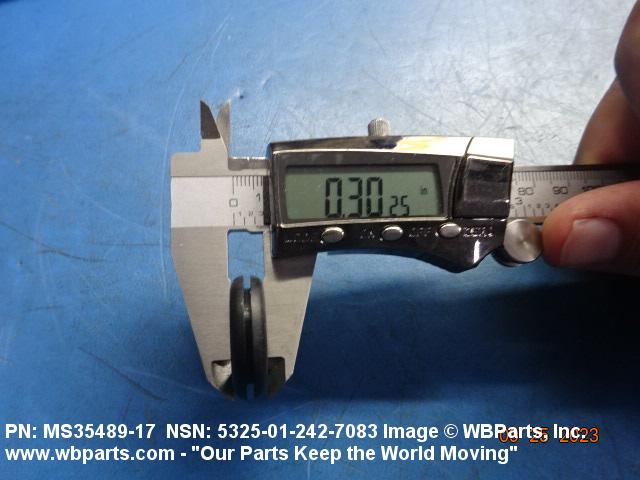

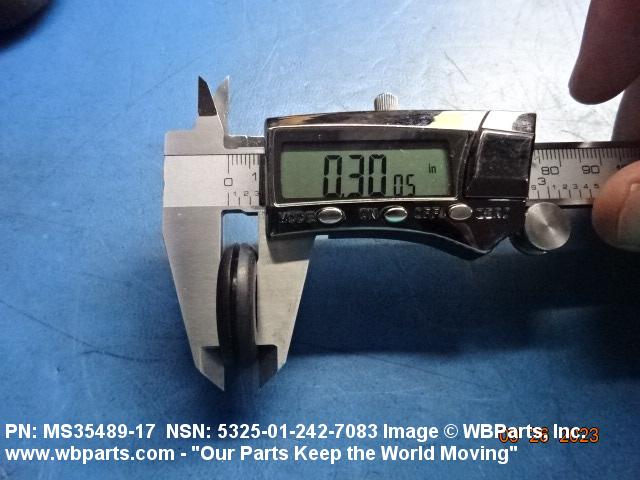

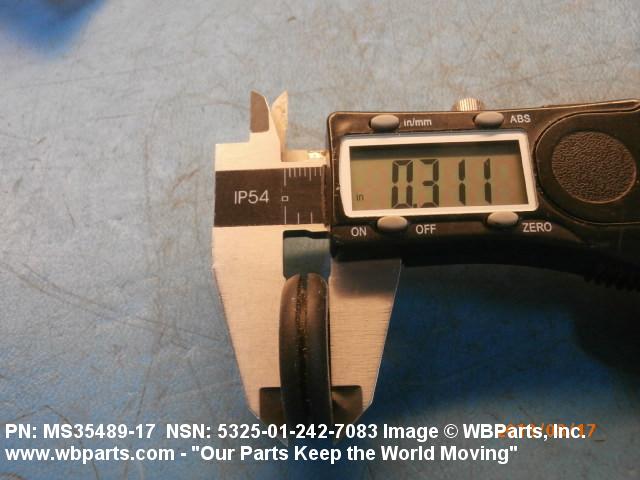

OVERALL HEIGHT	0.312 INCHES NOMINAL

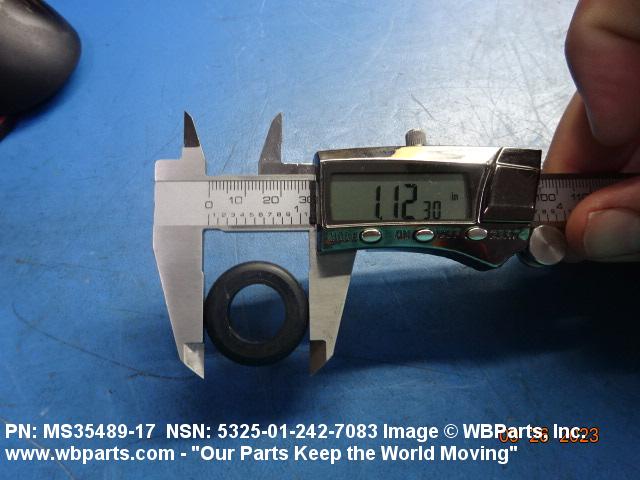

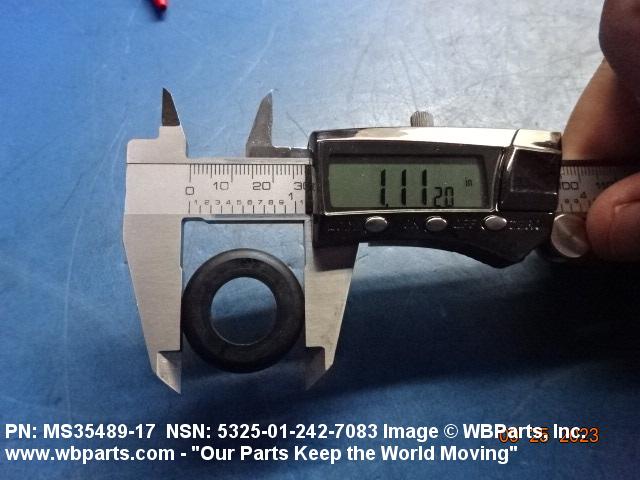

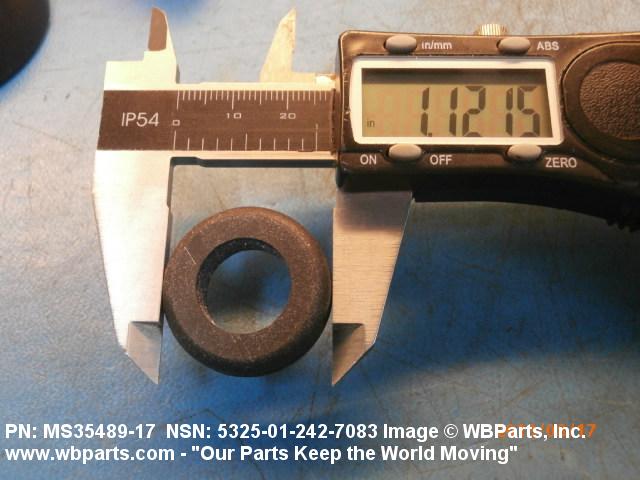

LARGE FLANGE OUTSIDE DIAMETER	1.125 INCHES NOMINAL

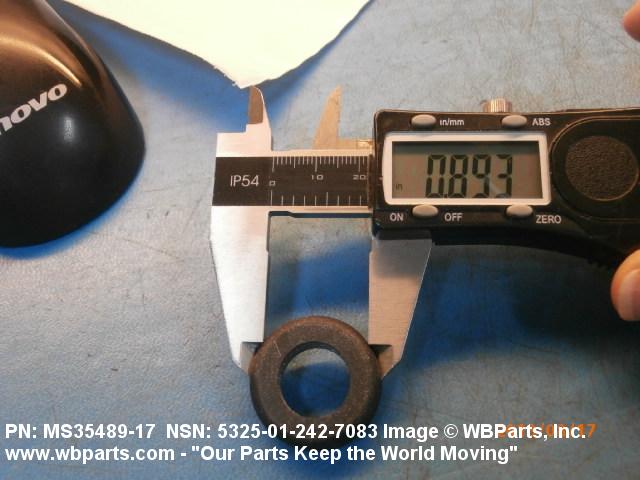

GROOVE OUTSIDE DIAMETER	0.875 INCHES NOMINAL
GROMMET CONSTRUCTION TYPE	SOLID
NONMETALLIC HARDNESS RATING	45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A
FEATURES PROVIDED	COOLANT RESISTANT AND OIL RESISTANT
SPECIAL FEATURES	CERTIFIED FREE FROM MERCURY CONTAMINATION
TEST DATA DOCUMENT	81349-MIL-P-23199 SPECIFICATION
SPECIAL TEST FEATURES	SPECIAL QUALITY CONTROL TESTING
DEPARTURE FROM CITED DOCUMENT	AS MODIFIED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS
CRITICALITY CODE JUSTIFICATION	ZZZW AND FEAT
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35489-17
