NSN 5325-01-292-6369 CA1721HS2, CA1721HS-2, 01-292-6369
Product Details | TURNLOCK FASTENER STUD
5325-01-292-6369 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: CA1721HS2, CA1721HS-2, 5325-01-292-6369, 01-292-6369, 5325012926369, 012926369
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JAN 1989 | 01-292-6369 | 18421 ( STUD, TURNLOCK FASTENER ) |

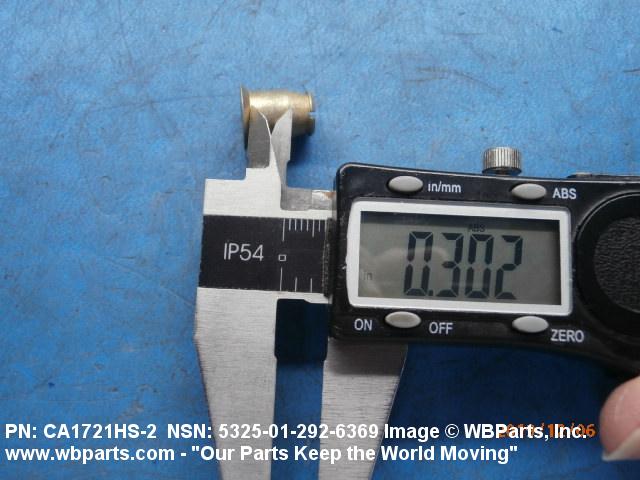

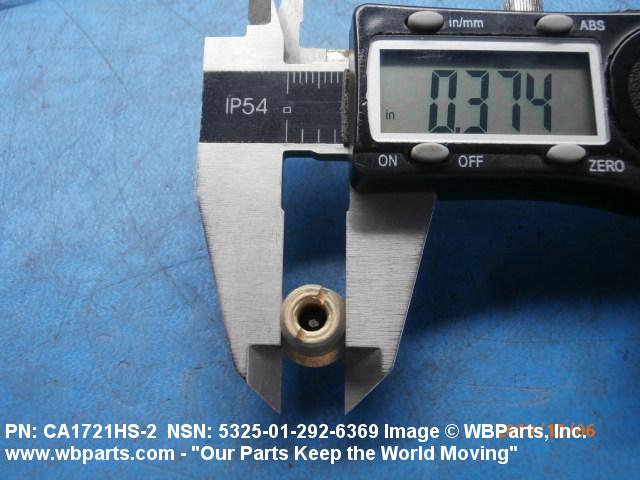

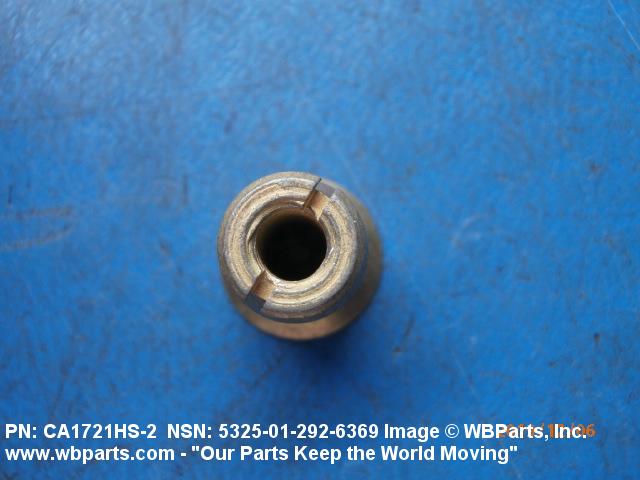

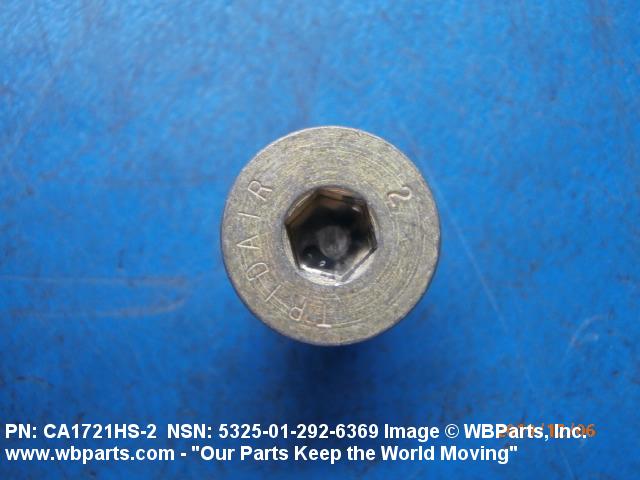

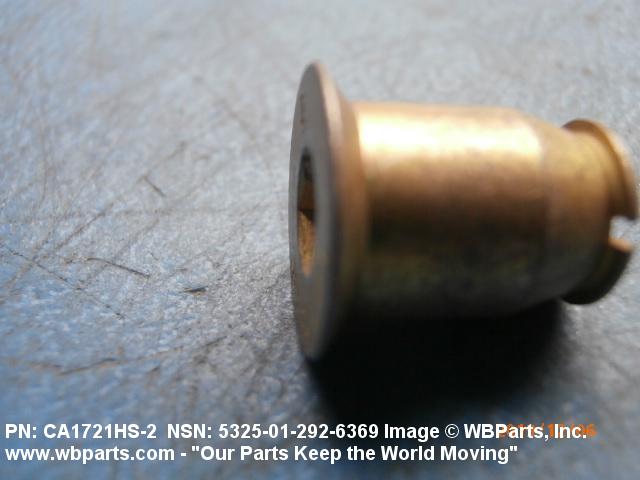

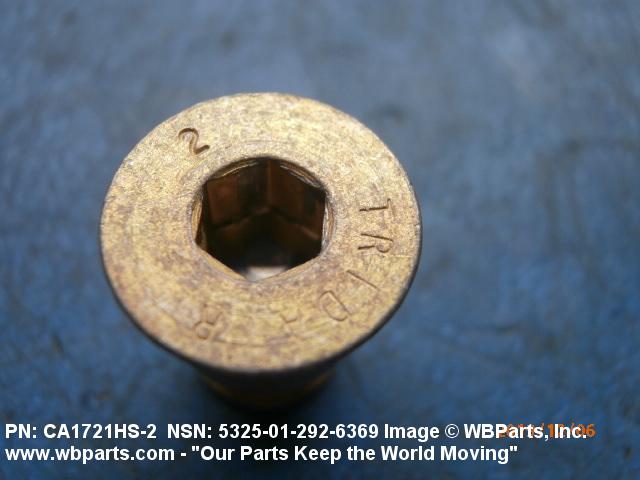

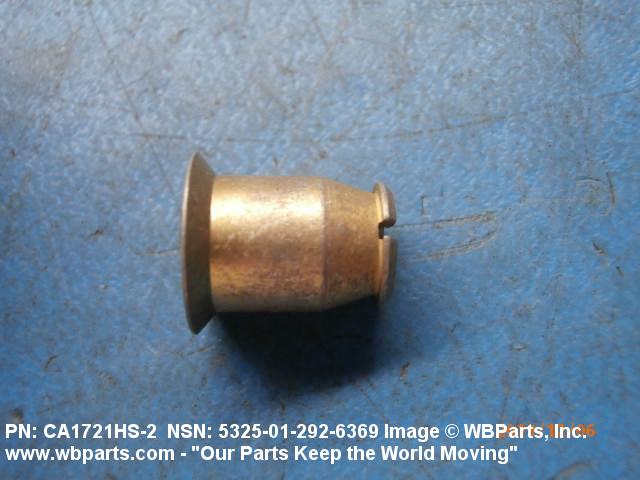

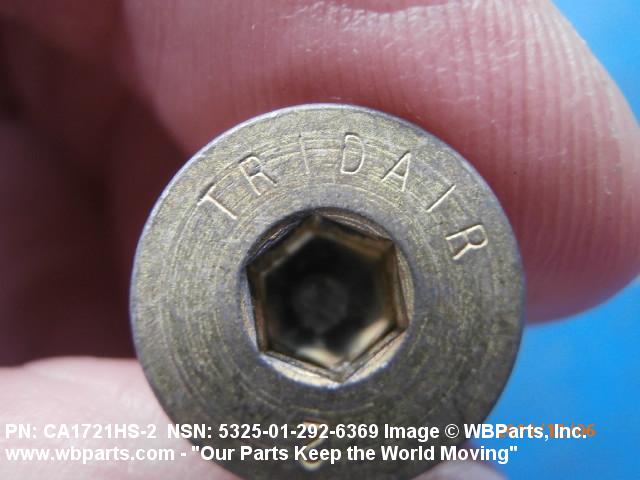

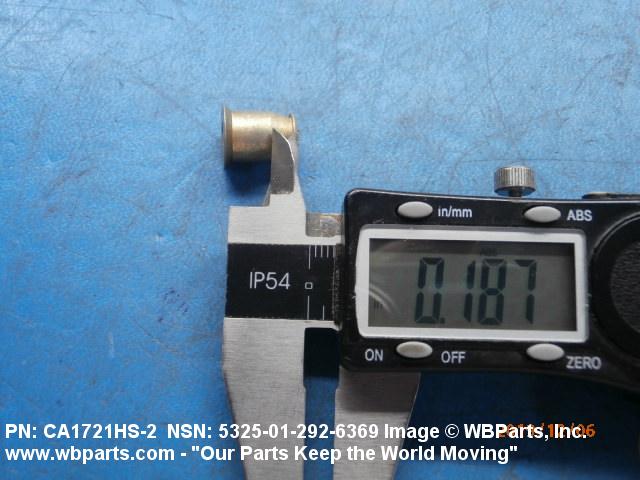

Drawings & Photos | NSN 5325-01-292-6369
Demand History | NSN 5325-01-292-6369
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-292-6369 | 2023-12-340 | 92 | US |
| CA1721HS2 | 2019-11-319 | 50 | United States |
| CA1721HS2 | 2019-10-290 | 50 | United States |
Cross Reference | NSN 5325-01-292-6369
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA1721HS-2 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-292-6369
Technical Data | NSN 5325-01-292-6369
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL2 FED SPEC 1ST TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 16 STUD SHANK |
| GRIP LENGTH | 0.251 INCHES MINIMUM AND 0.343 INCHES MAXIMUM |
| EXTENSION LENGTH | 0.188 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.3730 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |
| DIAMETER | 0.490 INCHES MINIMUM |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNF |
| DRIVE TYPE | SOCKET |
Restrictions/Controls & Freight Information | NSN 5325-01-292-6369
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
