NSN 5325-01-338-7443 DAA3234D731011, DAA3234D731-011, 01-338-7443
Product Details | NONMETALLIC GROMMET
5325-01-338-7443 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: DAA3234D731011, DAA3234D731-011, 5325-01-338-7443, 01-338-7443, 5325013387443, 013387443
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1991 | 01-338-7443 | 33729 ( GROMMET, NONMETALLIC ) |

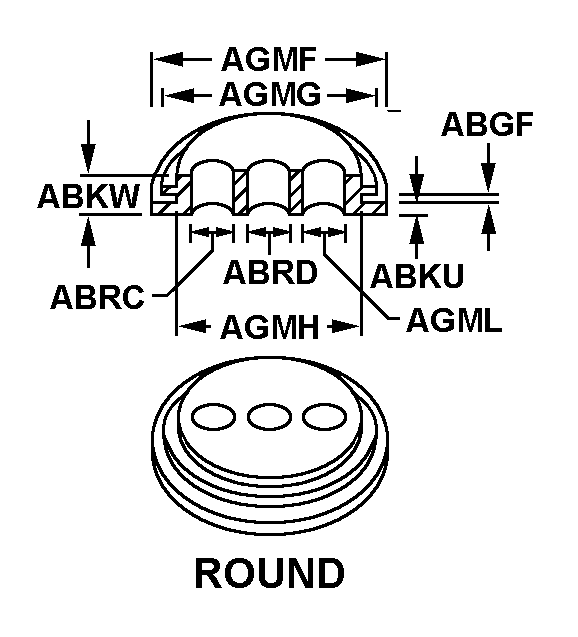

Drawings & Photos | NSN 5325-01-338-7443
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-338-7443
Technical Data | NSN 5325-01-338-7443
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| GROMMET STYLE | 19 ROUND |
| GROOVE WIDTH | 0.135 INCHES NOMINAL |
| FLANGE THICKNESS | 0.090 INCHES NOMINAL |
| OVERALL HEIGHT | 0.330 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.390 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.390 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| LARGE FLANGE OUTSIDE DIAMETER | 1.870 INCHES NOMINAL |
| SMALL FLANGE OUTSIDE DIAMETER | 1.562 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| THIRD HOLE DIAMETER | 0.390 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SPLIT |
Restrictions/Controls & Freight Information | NSN 5325-01-338-7443
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-338-7443
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BQ | TN:B-2 TSSP, NORTHROP GRUMMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F59 | Northrop Grumman IS ACS 2501 Liberty Parkway, Suite 101 Midwest, OK 73110-2885 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
