NSN 5325-01-343-6281 HN4G421, HN4G-42-1, 01-343-6281
Product Details | NONMETALLIC GROMMET
5325-01-343-6281 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: HN4G421, HN4G-42-1, 5325-01-343-6281, 01-343-6281, 5325013436281, 013436281
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 AUG 1991 | 01-343-6281 | 33729 ( GROMMET, NONMETALLIC ) |

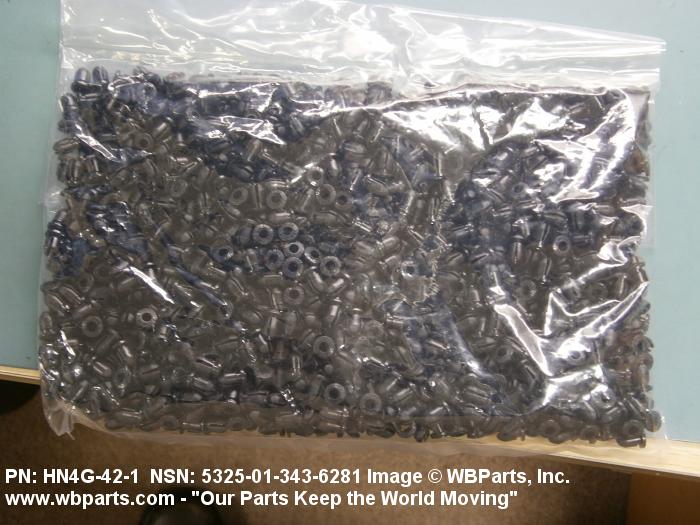

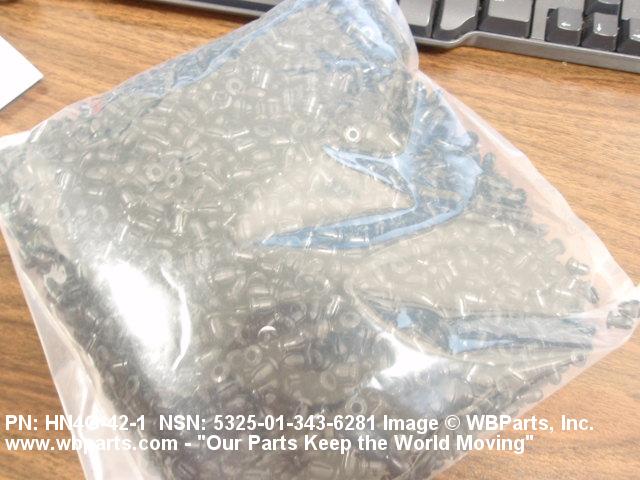

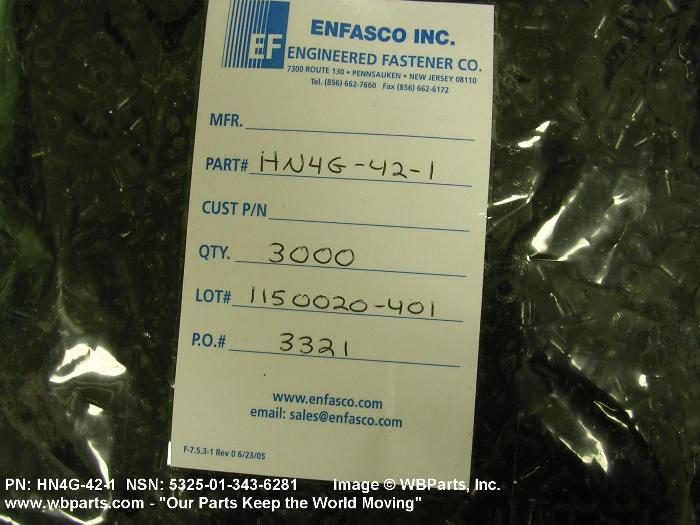

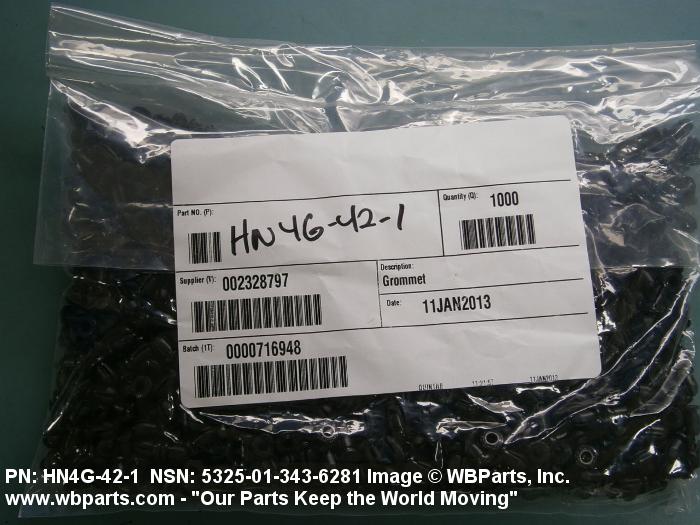

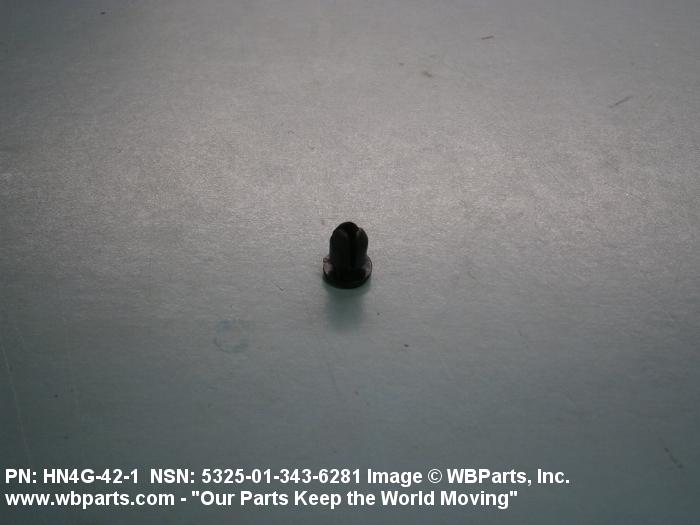

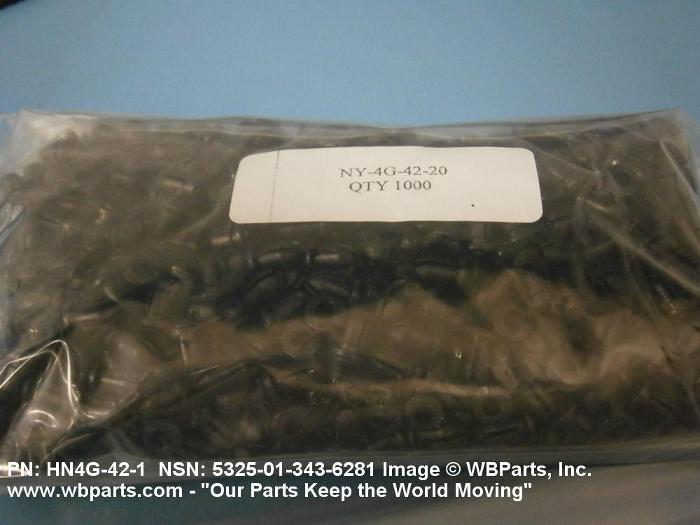

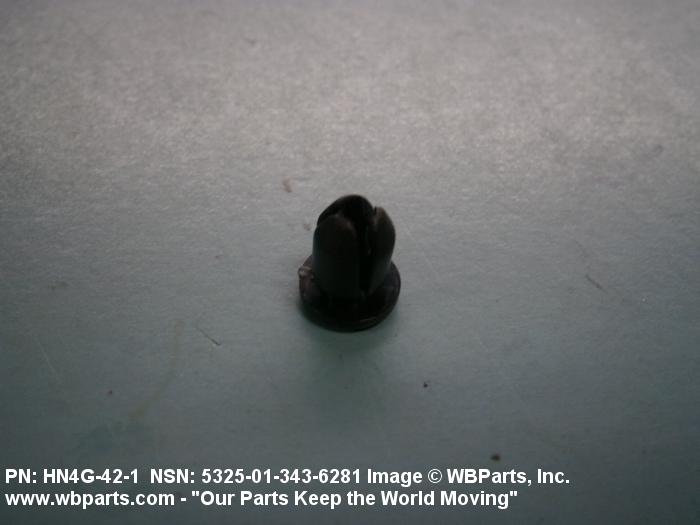

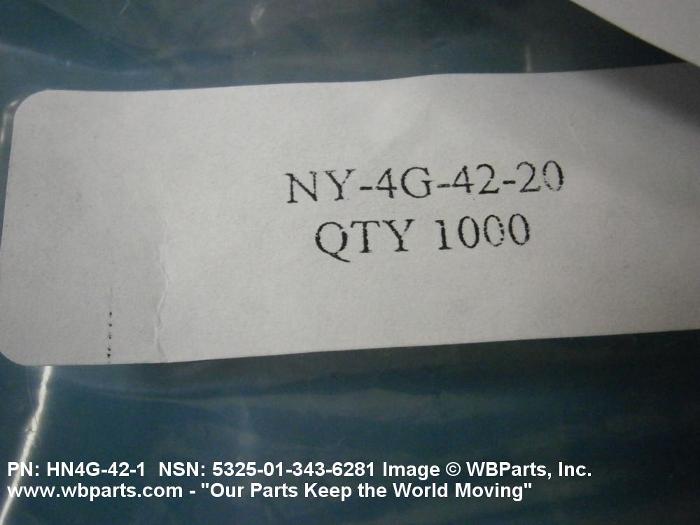

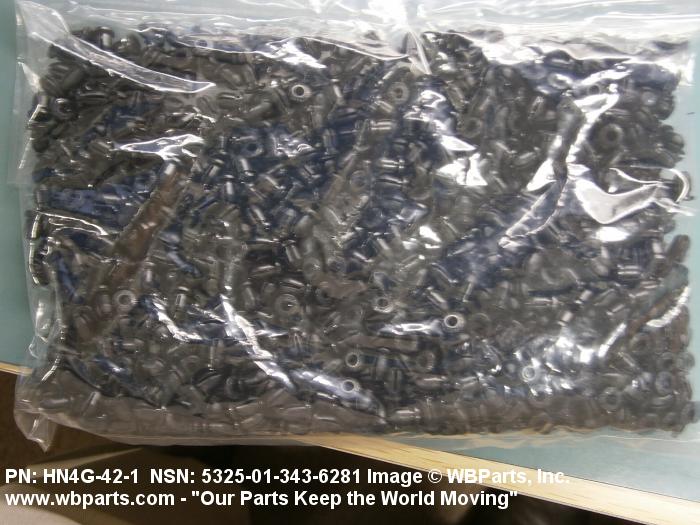

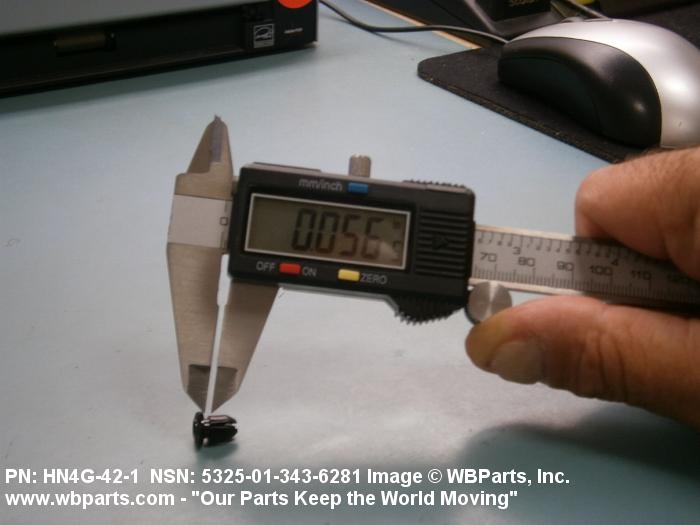

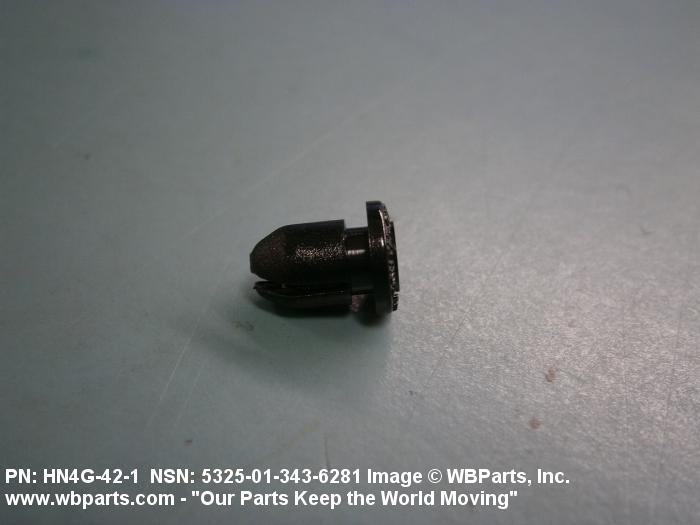

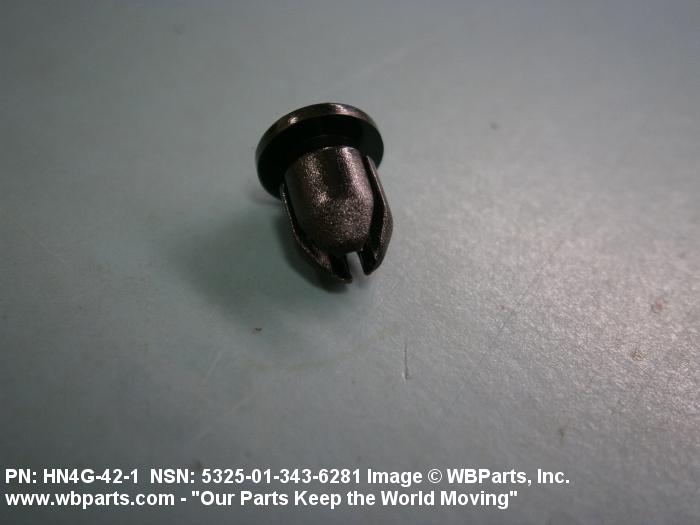

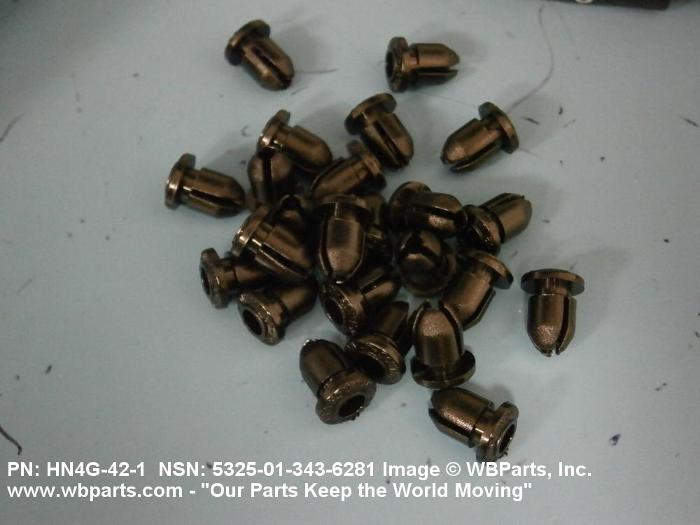

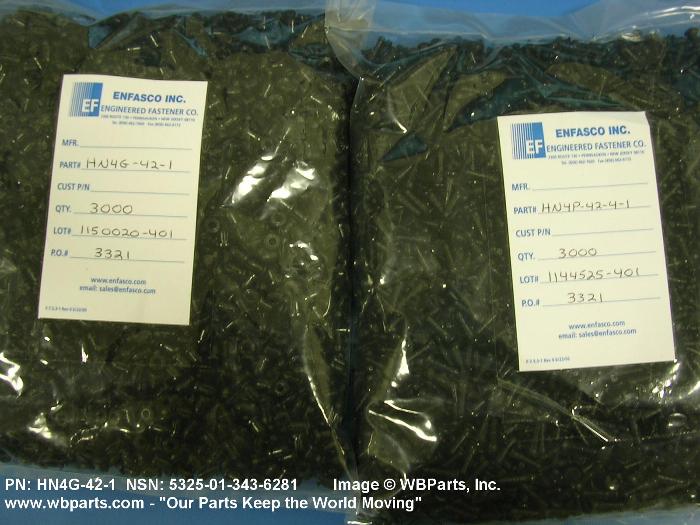

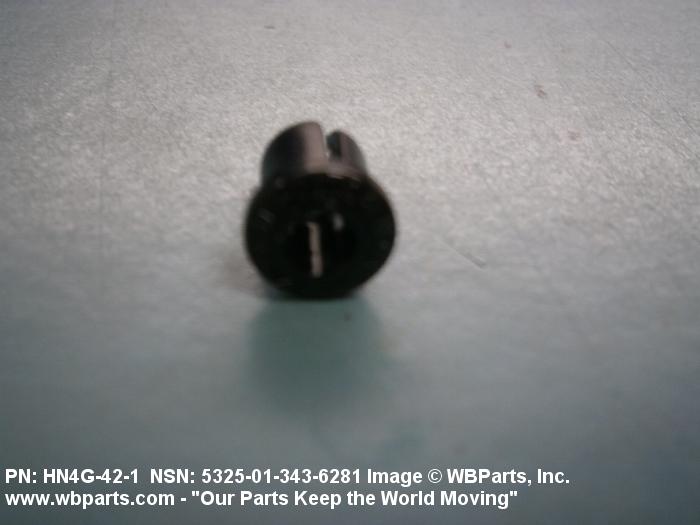

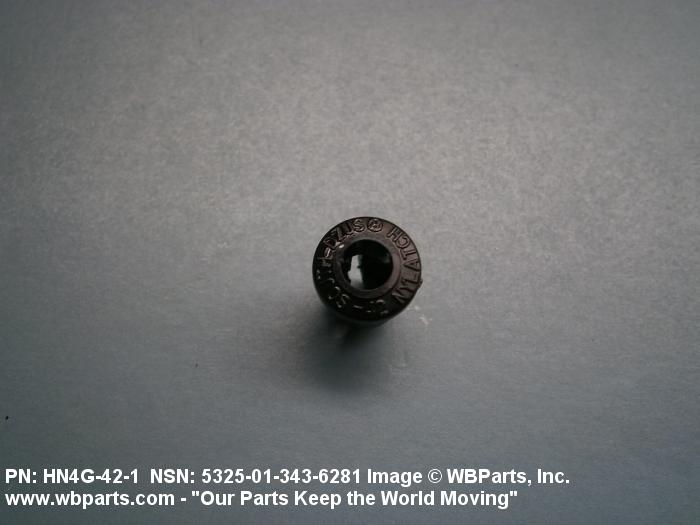

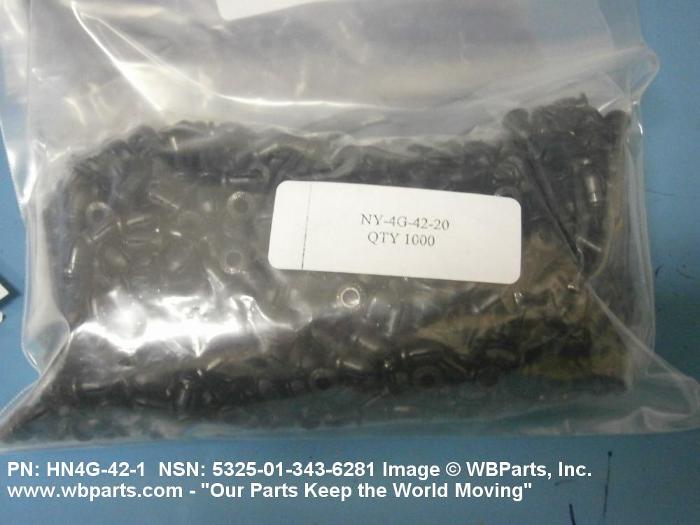

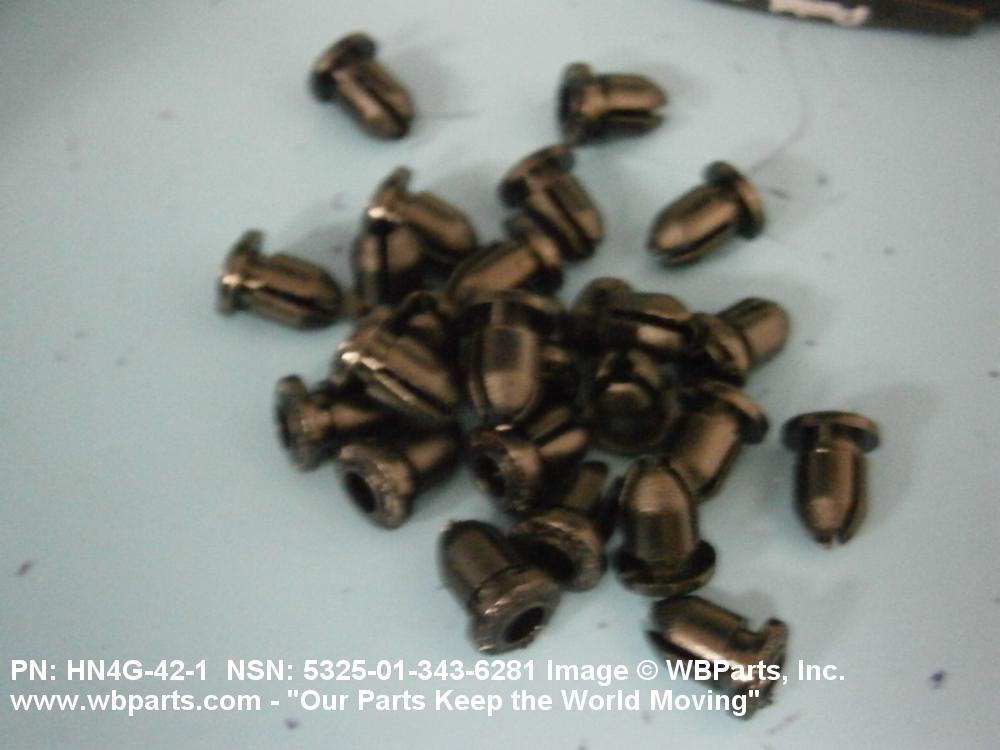

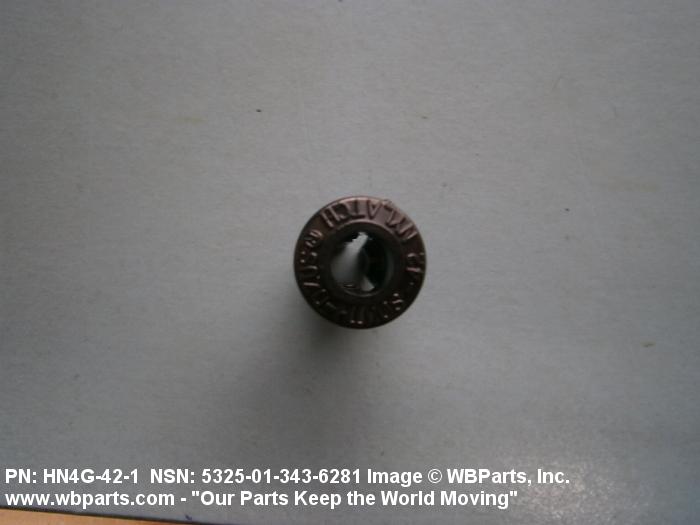

Drawings & Photos | NSN 5325-01-343-6281
Demand History | NSN 5325-01-343-6281
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-343-6281 | 2016-10-292 | 100 | US |
| 5325-01-343-6281 | 2013-06-161 | 3000 | Ireland |
| 5325-01-343-6281 | 2013-06-161 | 3000 | Ireland |
| 5325-01-343-6281 | 2012-05-136 | 3000 | Ireland |
| 5325-01-343-6281 | 2010-09-250 | 3000 | Ireland |
| 5325-01-343-6281 | 2010-02-36 | 3000 | Ireland |
| HN4G421 | 2008-06-158 | 1000 | Ireland |
| HN4G421 | 2008-06-158 | 3000 | Ireland |
| HN4G421 | 2008-02-43 | 1000 | Ireland |
Cross Reference | NSN 5325-01-343-6281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HN4G-42-1 | 83014 | HARTWELL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-343-6281
Technical Data | NSN 5325-01-343-6281
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYCARBONATE OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 27 ROUND |
| GROOVE WIDTH | 0.057 INCHES NOMINAL |
| FLANGE THICKNESS | 0.064 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.336 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| NONMETALLIC HARDNESS RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5325-01-343-6281
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
