NSN 5325-01-355-1010 CA23549043, CA235490-4-3, CA3549043
Product Details | TURNLOCK FASTENER ASSEMBLY
5325-01-355-1010 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.
Part Alternates: CA23549043, CA235490-4-3, CA3549043, CA35490-4-3, 5325-01-355-1010, 01-355-1010, 5325013551010, 013551010
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAR 1992 | 01-355-1010 | 61968 ( FASTENER ASSEMBLY, TURNLOCK ) |

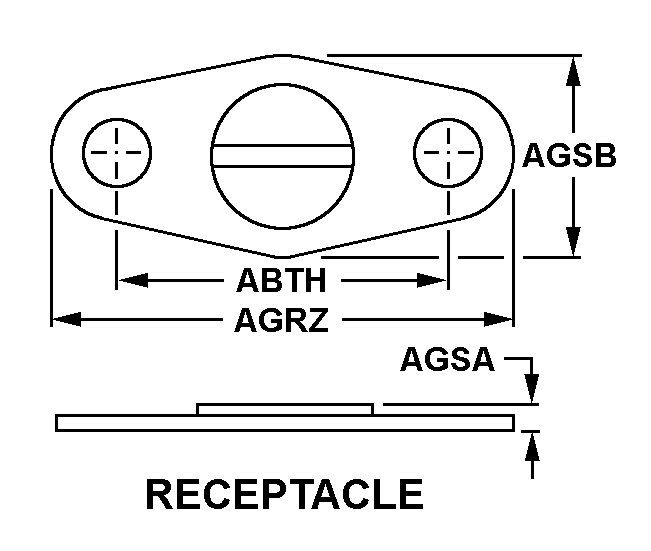

Drawings & Photos | NSN 5325-01-355-1010
Demand History | NSN 5325-01-355-1010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA3549043 | 2007-01-31 | 140 | JP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-355-1010
Related Products | NSN 5325-01-355-1010
Technical Data | NSN 5325-01-355-1010
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 GROMMET STEEL RECEPTACLE STEEL COMP 8740 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE GROMMET AMS5528 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | PASSIVATE GROMMET PASSIVATE RECEPTACLE CADMIUM AND CHROMATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE GROMMET QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE RECEPTACLE QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| TURNLOCK STUD SHANK STYLE | 14 STUD SHANK |
| GRIP LENGTH | 0.412 INCHES MINIMUM AND 0.444 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.375 INCHES NOMINAL |
| TURNLOCK EYELET STYLE | 3 EYELET |
| BODY THICKNESS | 0.0115 INCHES NOMINAL |
| EYELET HEIGHT | 0.189 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 0.336 INCHES NOMINAL |
| EYELET INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.256 INCHES MAXIMUM |
| TURNLOCK RECEPTACLE STYLE | 18 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.685 INCHES MINIMUM AND 0.689 INCHES MAXIMUM |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| SECURING DEVICE TYPE | GROMMET |
| MATERIAL ACCOMMODATED THICKNESS | 0.110 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-01-355-1010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
