NSN 5325-01-365-8070 1974AS189002, 1974AS189-002, 01-365-8070
Product Details | TRIM SPRING TENSION FASTENER
5325-01-365-8070 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.
Part Alternates: 1974AS189002, 1974AS189-002, 5325-01-365-8070, 01-365-8070, 5325013658070, 013658070
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 OCT 1992 | 01-365-8070 | 18517 ( FASTENER, SPRING TENSION, TRIM ) |

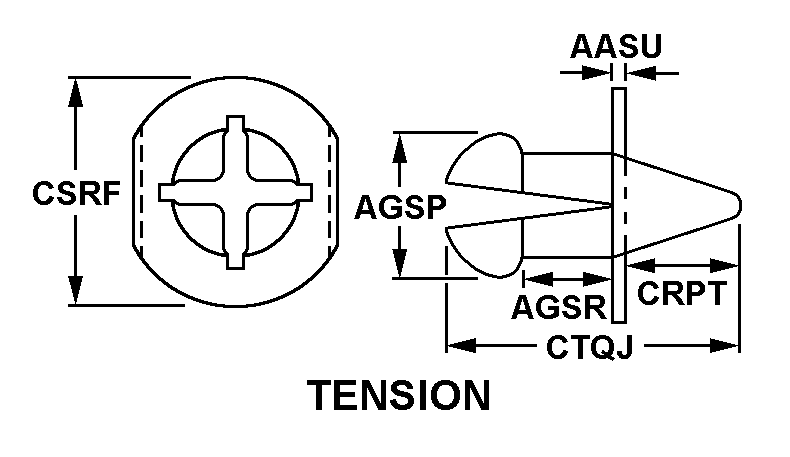

Drawings & Photos | NSN 5325-01-365-8070
Demand History | NSN 5325-01-365-8070
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-365-8070 | 2009-11-306 | 200 | United States |
| 5325-01-365-8070 | 2008-06-157 | 45 | DIBBS |
Cross Reference | NSN 5325-01-365-8070
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1974AS189-002 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-365-8070
Technical Data | NSN 5325-01-365-8070
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC ACETAL RECEPTACLE MECHANISM |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-D4181-83 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE MECHANISM |
| FASTENER STYLE | BH6 TENSION |
| HEAD HEIGHT | 0.020 INCHES NOMINAL |
| PRONG DIAMETER | 0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| LENGTH FROM HEAD TO SHOULDER | 0.040 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| FASTENER SHANK LENGTH | 0.090 INCHES NOMINAL |
| FASTENER OUTSIDE DIAMETER | 0.125 INCHES NOMINAL |
| FASTENER OVERALL LENGTH | 0.101 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| SPECIAL FEATURES | THREADS 0.86-56 UNC-2A ON HEADED END |
Restrictions/Controls & Freight Information | NSN 5325-01-365-8070
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-365-8070
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
