NSN 5325-01-388-9613 20011321, 2001132-1, 01-388-9613
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-388-9613 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 20011321, 2001132-1, 5325-01-388-9613, 01-388-9613, 5325013889613, 013889613
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 1994 | 01-388-9613 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

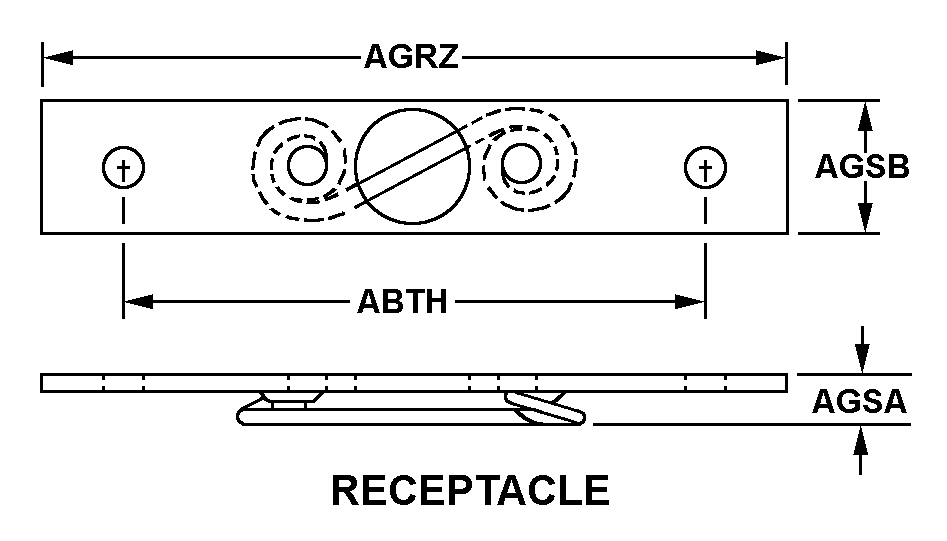

Drawings & Photos | NSN 5325-01-388-9613
Cross Reference | NSN 5325-01-388-9613
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2001132-1 | 95750 | AERONAUTICAL INSTRUMENT AND RADIO COMPANY, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-388-9613
Technical Data | NSN 5325-01-388-9613
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| TURNLOCK RECEPTACLE STYLE | 48 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.625 INCHES NOMINAL |
| RECEPTACLE OVERALL LENGTH | 1.986 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.063 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.380 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-01-388-9613
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
