NSN 5325-01-392-1656 UA4T20Y218, 5714-20-20-25218, 01-392-1656

Product Details | TURNLOCK FASTENER STUD

5325-01-392-1656 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: UA4T20Y218, 5714-20-20-25218, 5325-01-392-1656, 01-392-1656, 5325013921656, 5714202025218, 013921656

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 JUN 1994	01-392-1656	18421 ( STUD, TURNLOCK FASTENER )

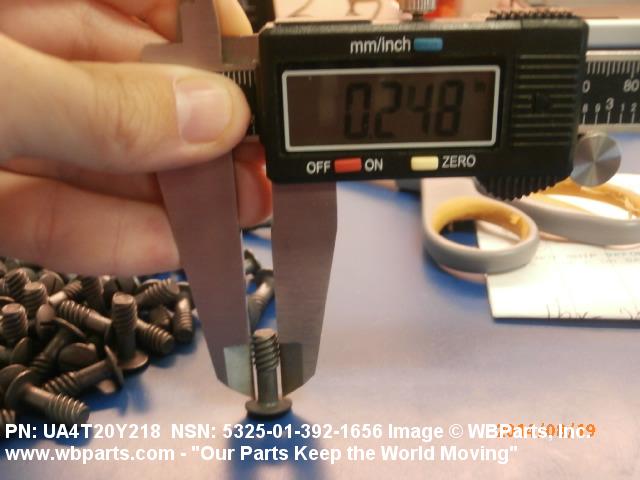

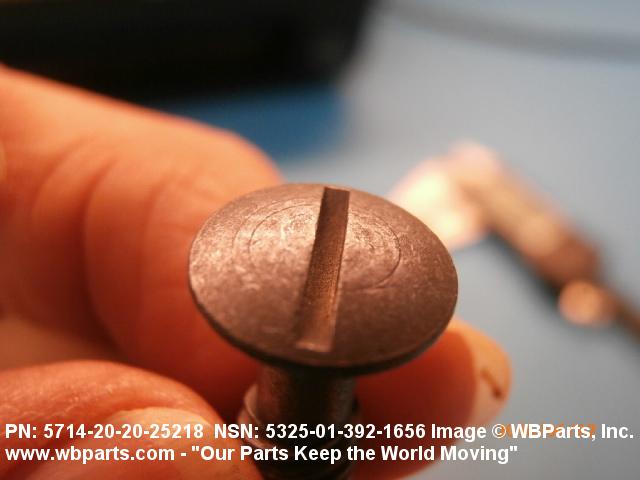

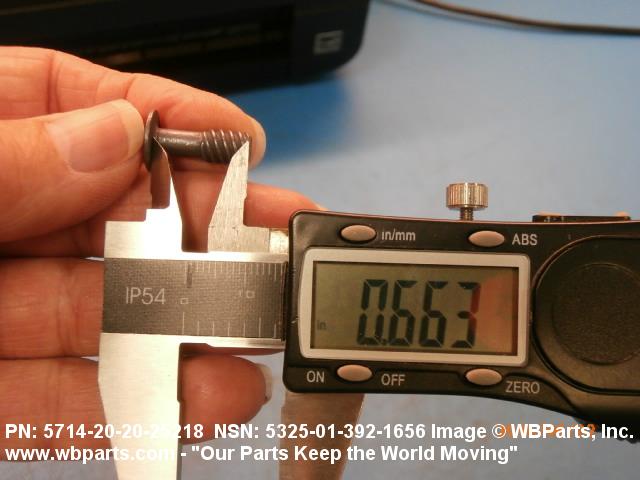

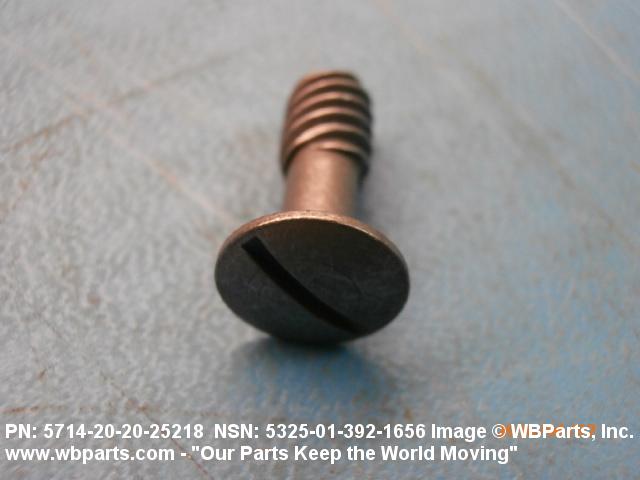

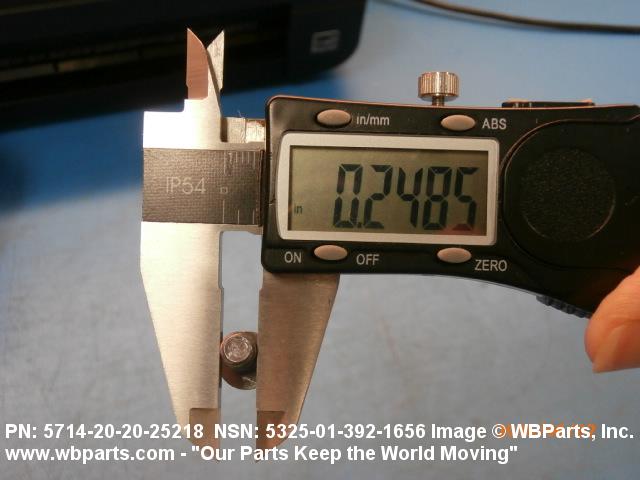

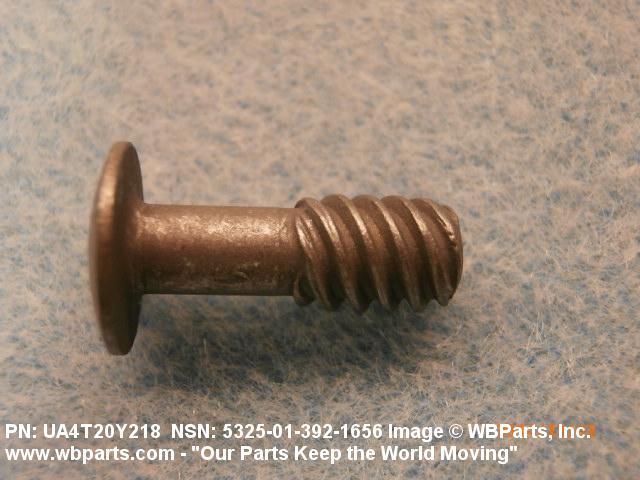

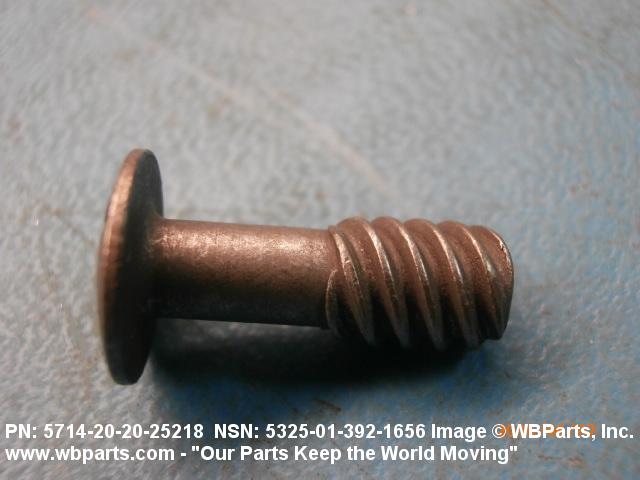

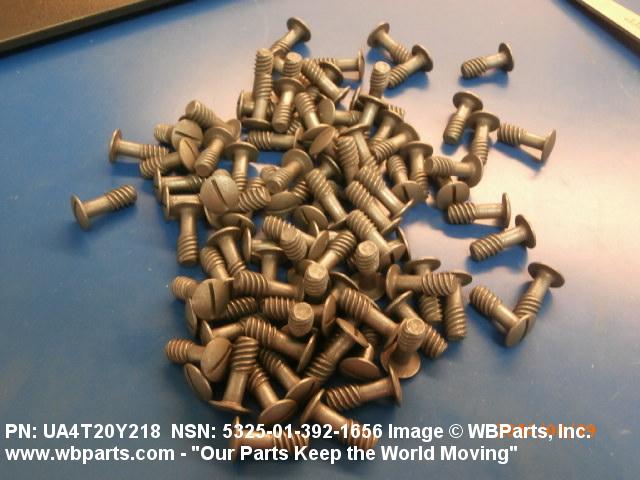

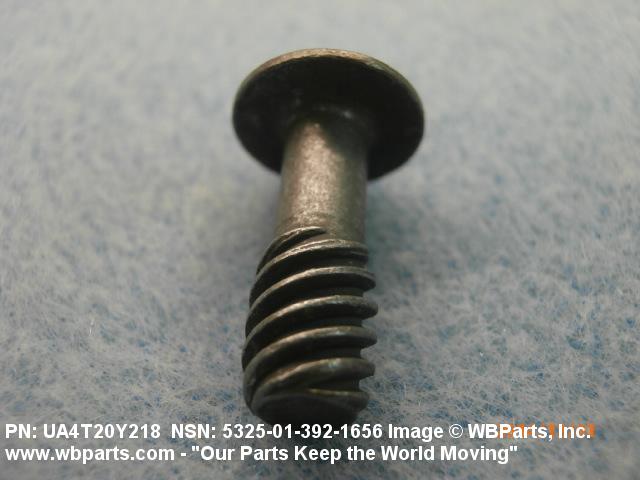

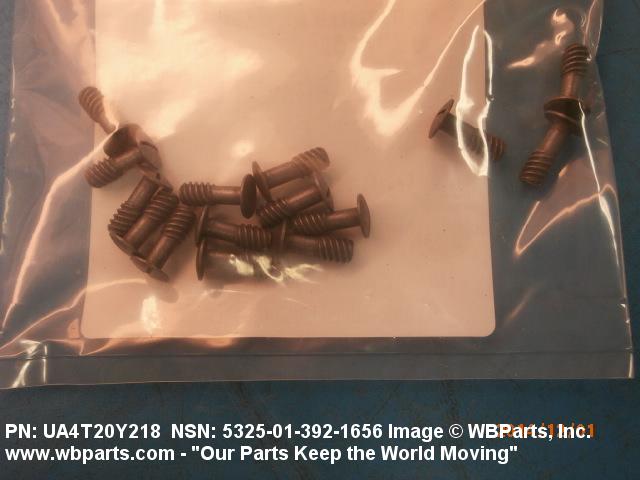

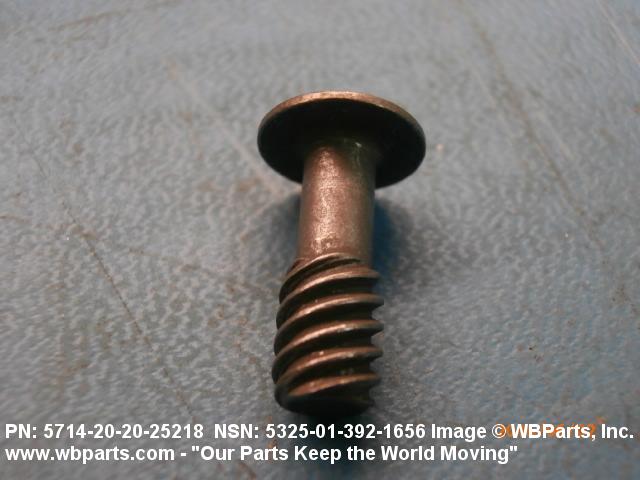

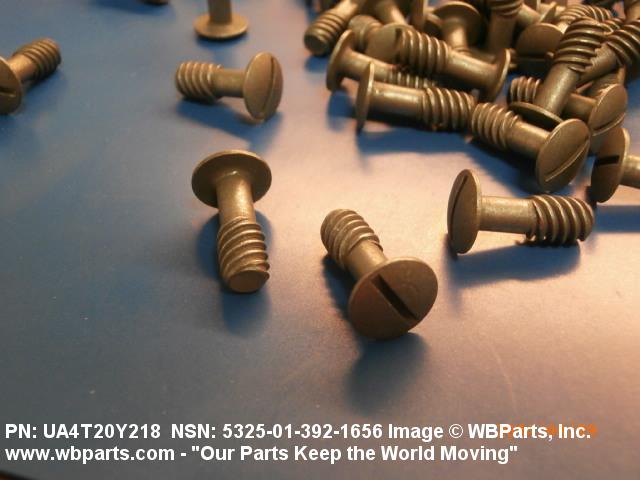

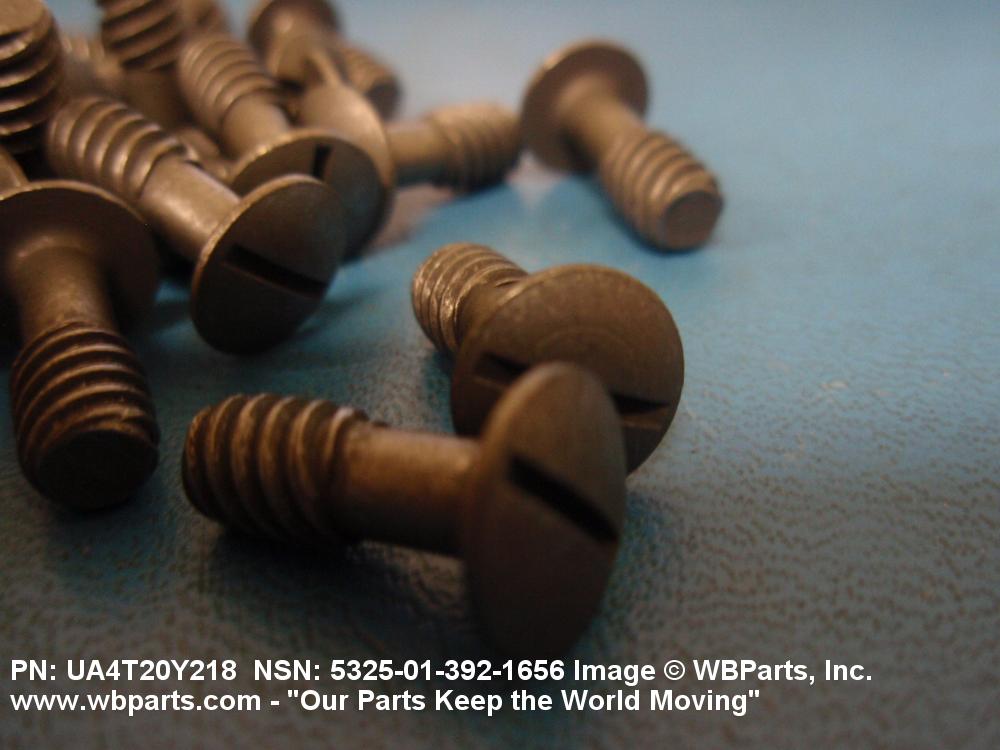

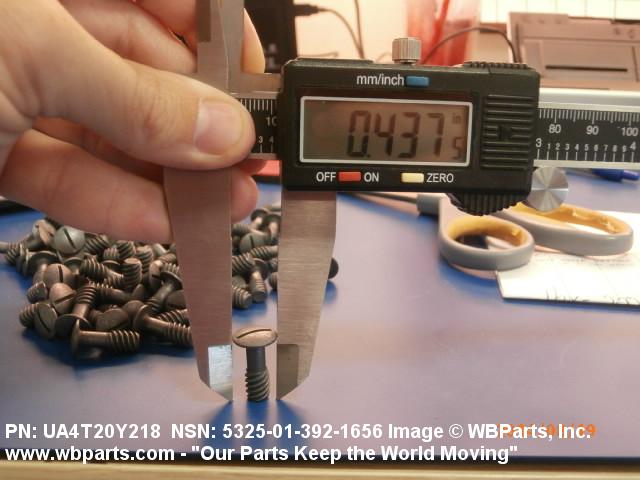

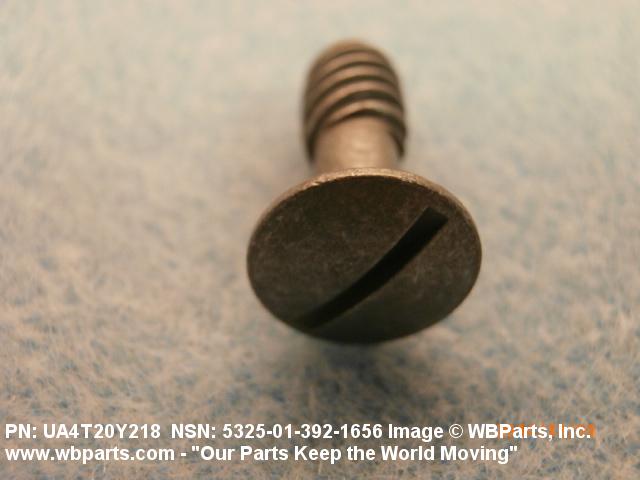

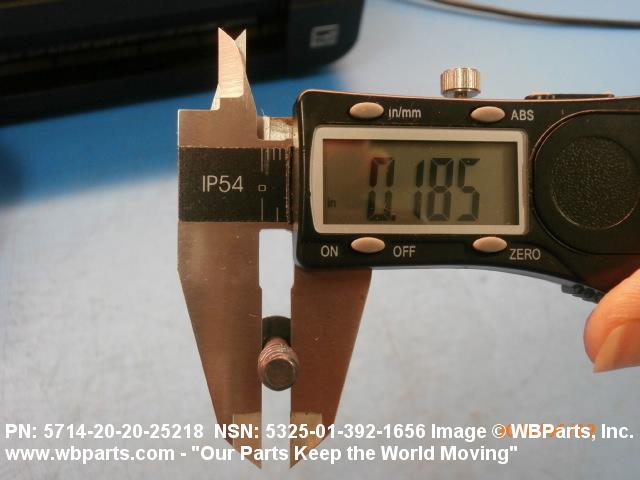

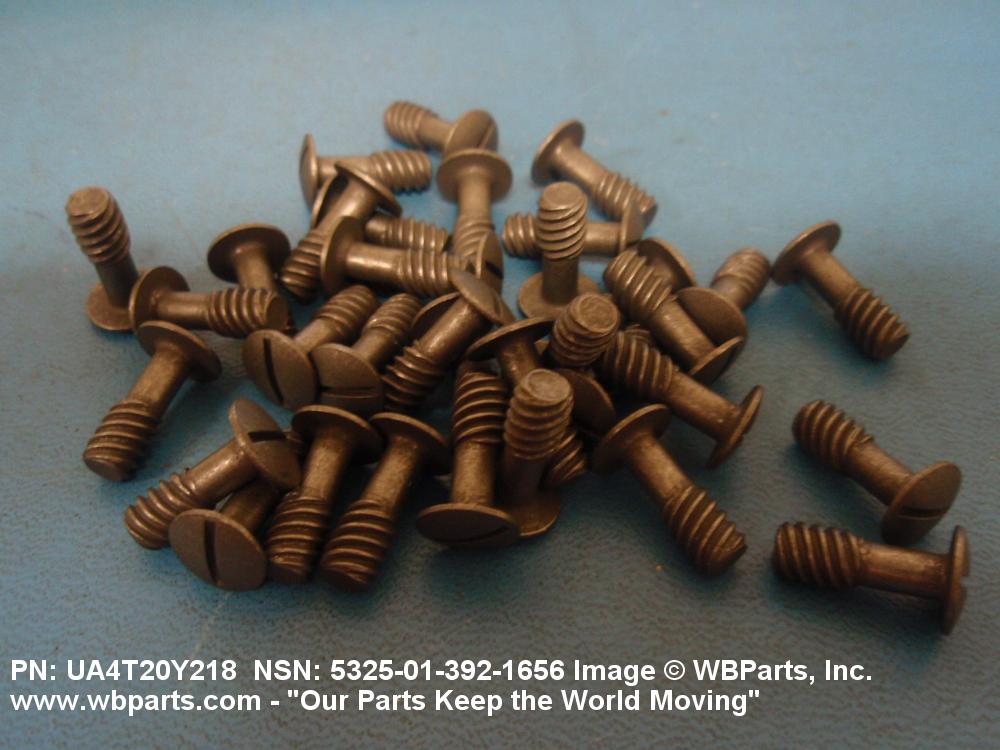

Drawings & Photos | NSN 5325-01-392-1656

Part Number	Request Date	QTY	Origin
UA4T20Y218	2020-05-134	10	United States
UA4T20Y218	2020-05-134	100	United States
UA4T20Y218	2020-05-134	200	United States
UA4T20Y218	2020-05-134	275	United States
UA4T20Y218	2020-04-118	10	United States
UA4T20Y218	2020-04-118	100	United States
UA4T20Y218	2020-04-118	200	United States
UA4T20Y218	2020-04-118	275	United States
UA4T20Y218	2018-11-330	275	United States
UA4T20Y218	2018-11-330	1000	United States
UA4T20Y218	2017-08-229	40	United States
UA4T20Y218	2017-08-229	50	United States
UA4T20Y218	2017-08-229	100	United States
UA4T20Y218	2017-03-62	30	United States
UA4T20Y218	2017-03-62	50	United States
UA4T20Y218	2017-03-62	100	United States
UA4T20Y218	2017-02-45	40	United States
UA4T20Y218	2017-02-45	50	United States
UA4T20Y218	2017-02-45	100	United States
UA4T20Y218	2016-03-63	40	United States
UA4T20Y218	2014-11-317	6	United States
UA4T20Y218	2014-08-217	95	United States
UA4T20Y218	2011-03-90	35	United States
UA4T20Y218	2011-03-67	35	United States
5325-01-392-1656	2008-05-126	71	DIBBS

Cross Reference | NSN 5325-01-392-1656

Part Number	Cage Code	Manufacturer
5714-20-20-25218	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
UA4T20Y218	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-392-1656

Compare

Related Products | NSN 5325-01-392-1656

5325-01-392-1993, 5325-01-392-2072, 5325-01-392-2073, 5325-01-392-2714, 5325-01-392-2894

Technical Data | NSN 5325-01-392-1656

Characteristic	Specifications
MATERIAL	STEEL OVERALL
TURNLOCK STUD SHANK STYLE	13 STUD SHANK

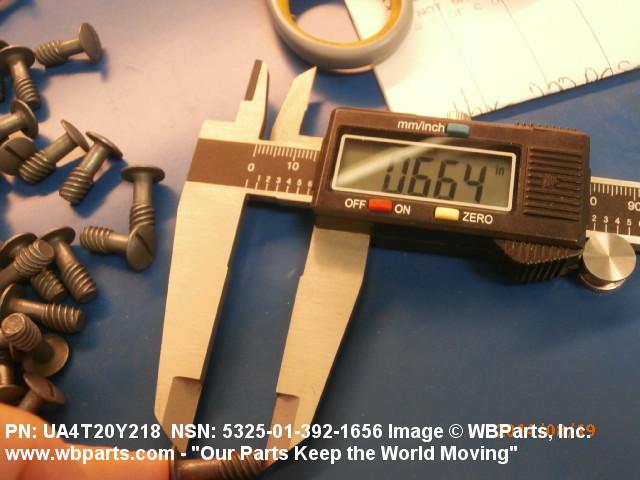

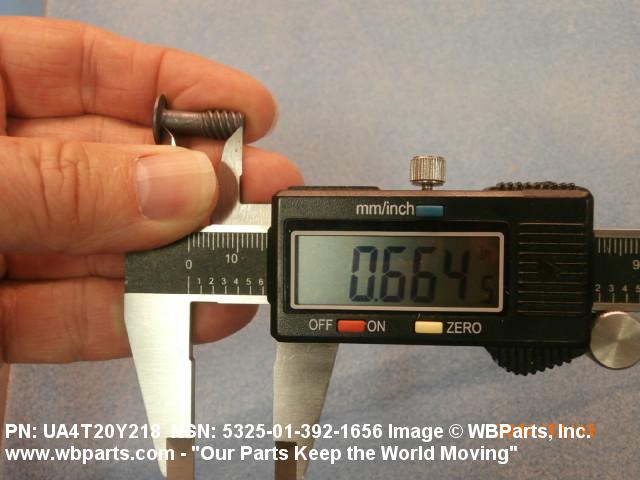

GRIP LENGTH	0.665 INCHES NOMINAL
STUD SHANK MAJOR DIAMETER	0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM
TURNLOCK STUD HEAD STYLE	2 FILLISTER

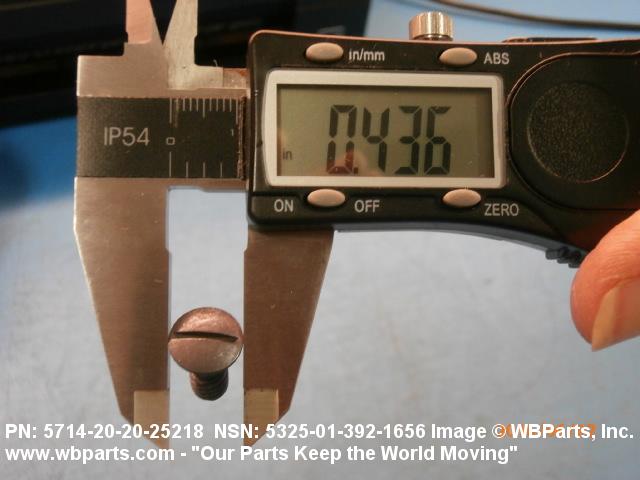

DIAMETER	0.438 INCHES MINIMUM
SECURING DEVICE TYPE	GROMMET
DRIVE TYPE	SLOTTED
MATERIAL ACCOMMODATED THICKNESS	0.101 INCHES MINIMUM AND 0.200 INCHES MAXIMUM
SPECIAL FEATURES	SOLID DRY FILM LUBRICANT, WITH 4 LEAD THREAD

Restrictions/Controls & Freight Information | NSN 5325-01-392-1656

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-392-1656

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
