NSN 5325-01-395-9438 221B1707P1, 01-395-9438, 013959438
Product Details | PUSH BUTTON FASTENER SOCKET
5325-01-395-9438 A metal device designed to function as a female receptacle for a STUD, PUSH BUTTON FASTENER. May include a clinch plate.
Part Alternates: 221B1707P1, 5325-01-395-9438, 01-395-9438, 5325013959438, 013959438
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 SEP 1994 | 01-395-9438 | 17968 ( SOCKET, PUSH BUTTON FASTENER ) |
Drawings & Photos | NSN 5325-01-395-9438
Cross Reference | NSN 5325-01-395-9438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 221B1707P1 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-395-9438
Related Products | NSN 5325-01-395-9438
Technical Data | NSN 5325-01-395-9438
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BARREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | A582S30300 COND A ASSN STD SINGLE MATERIAL RESPONSE BARREL |
| SURFACE TREATMENT | PASSIVATE BARREL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC 2ND TREATMENT RESPONSE BARREL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.688-27 UNS |

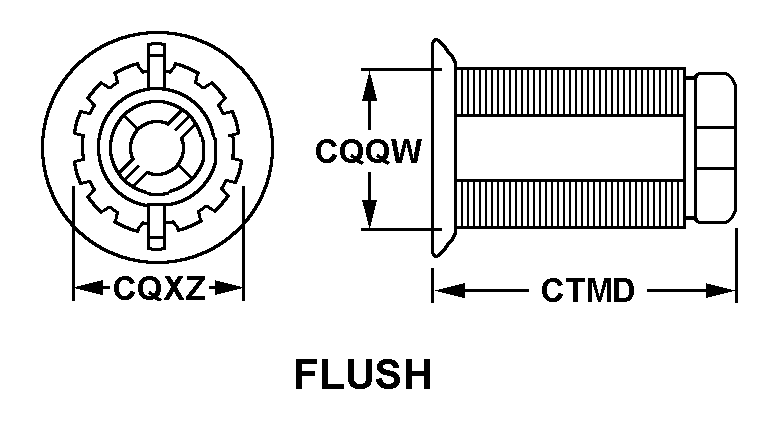

| PUSH BUTTON SOCKET STYLE | 7 FLUSH |
| SOCKET INSIDE DIAMETER | 0.771 INCHES MINIMUM AND 0.774 INCHES MAXIMUM |
| SOCKET WIDTH ACROSS FLATS | 0.844 INCHES NOMINAL |
| PUSH BUTTON SOCKET OVERALL LENGTH | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5325-01-395-9438
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
