NSN 5325-01-397-5925 PFSC3544ADRB, PFSC35-44A-D-RB, 9600912001

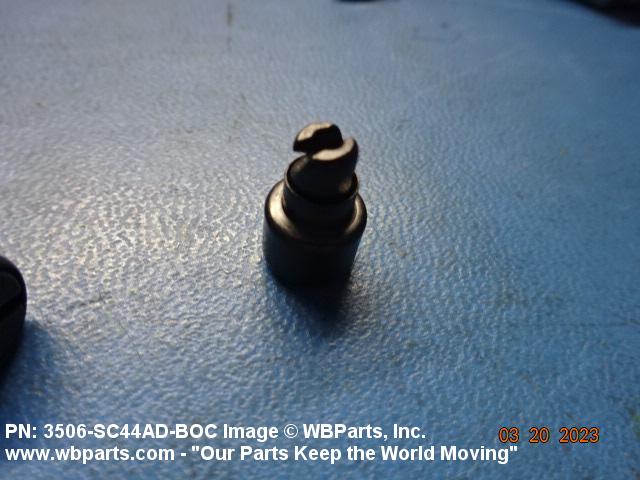

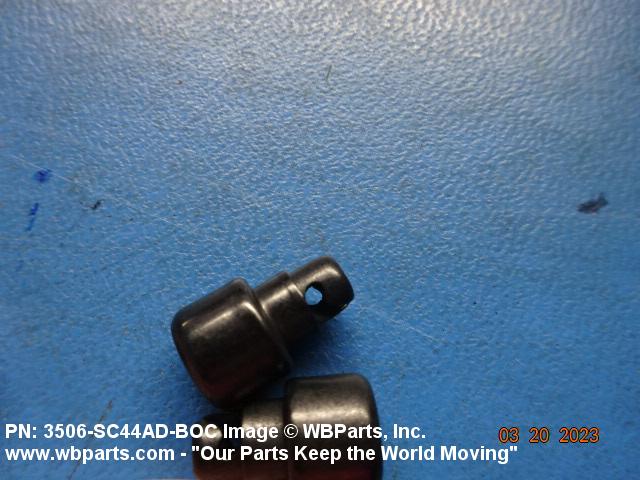

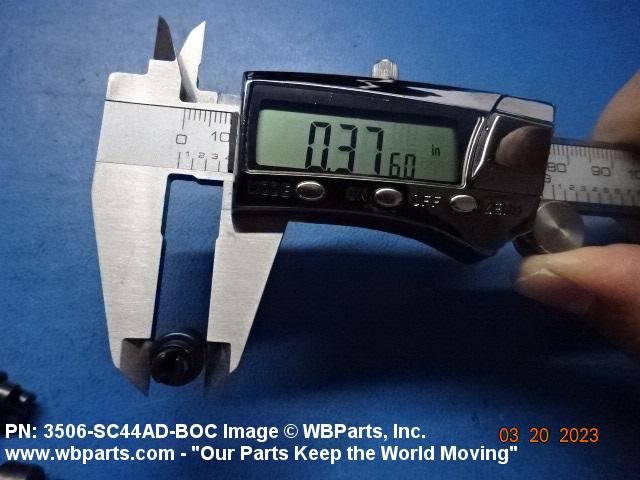

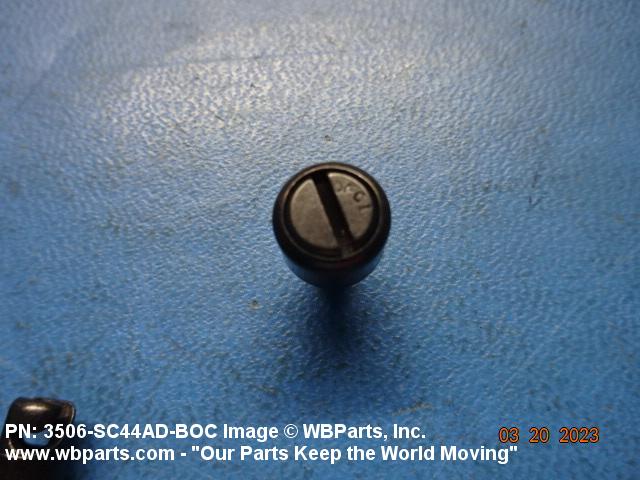

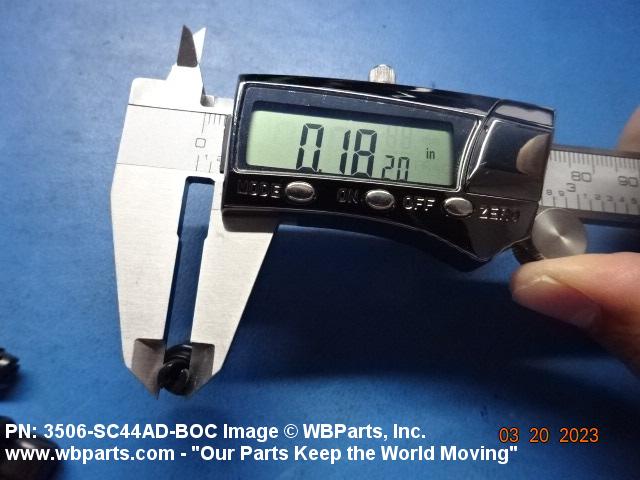

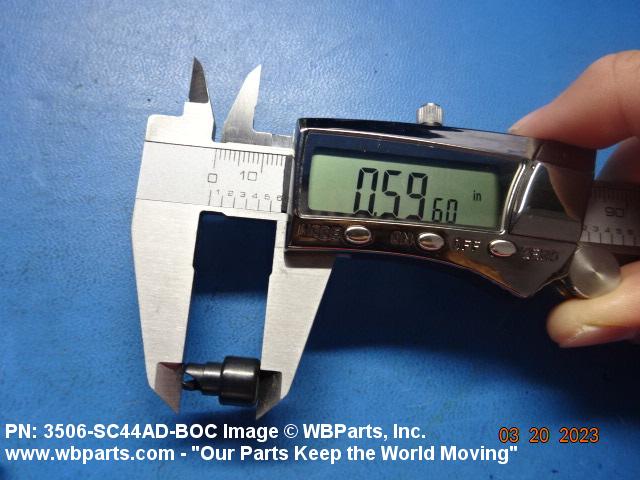

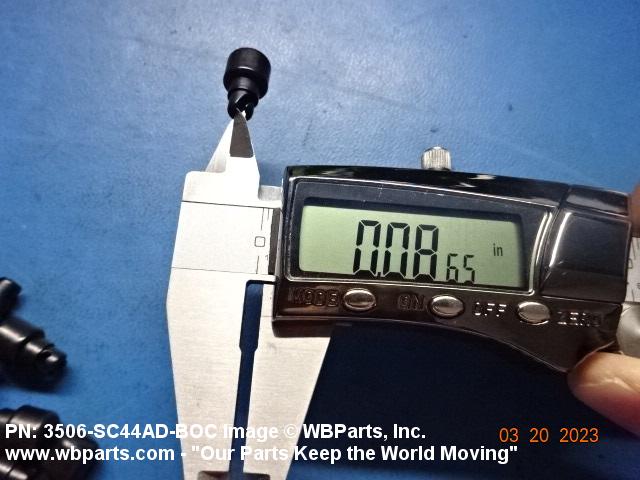

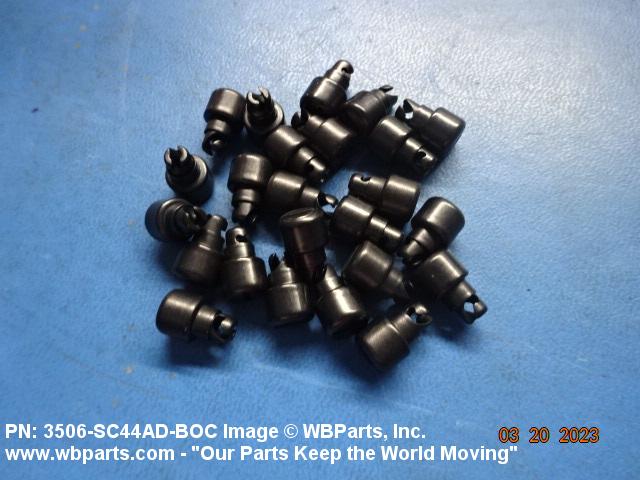

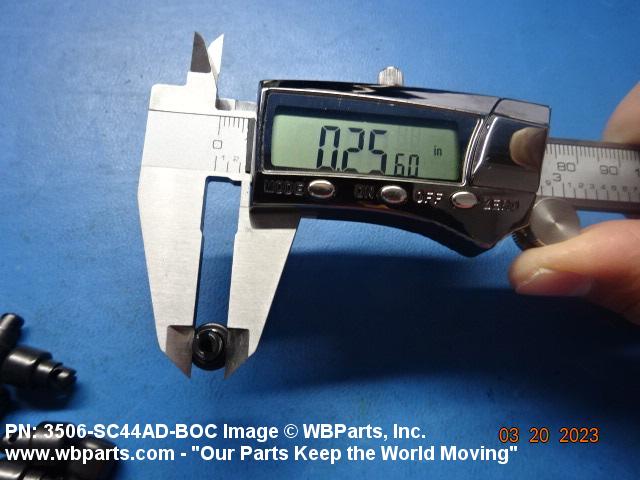

Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-397-5925 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: PFSC3544ADRB, PFSC35-44A-D-RB, 9600912001, 9600912-001, 3506SC44ADBOC, 3506-SC44AD-BOC, 5325-01-397-5925, 01-397-5925, 5325013975925, 013975925
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 1994 | 01-397-5925 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
