NSN 5325-01-408-4099 AW35T24CBY, AW35T24DCBY, 2351W2024C3Y

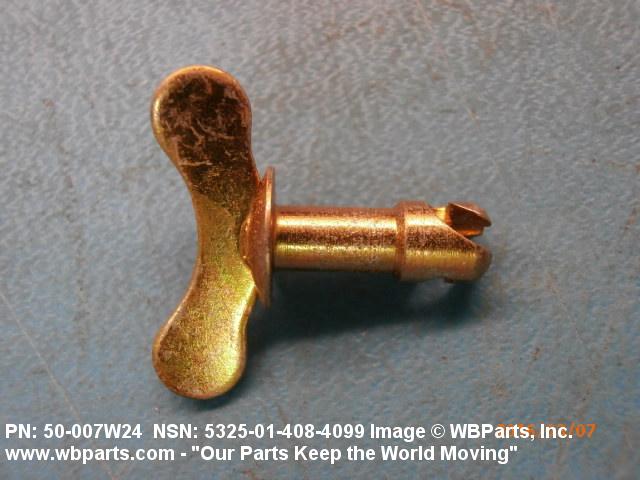

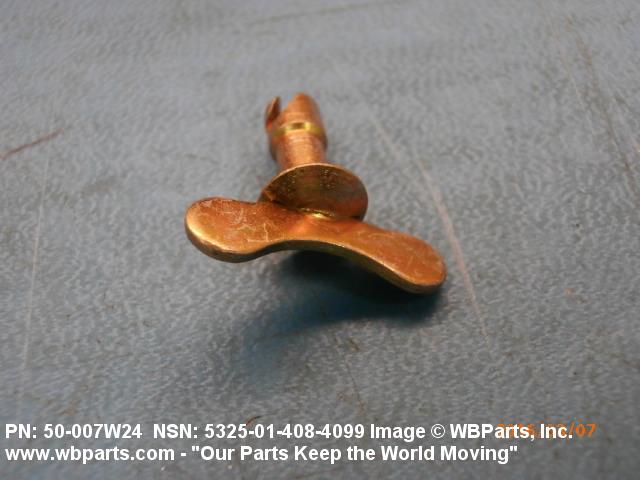

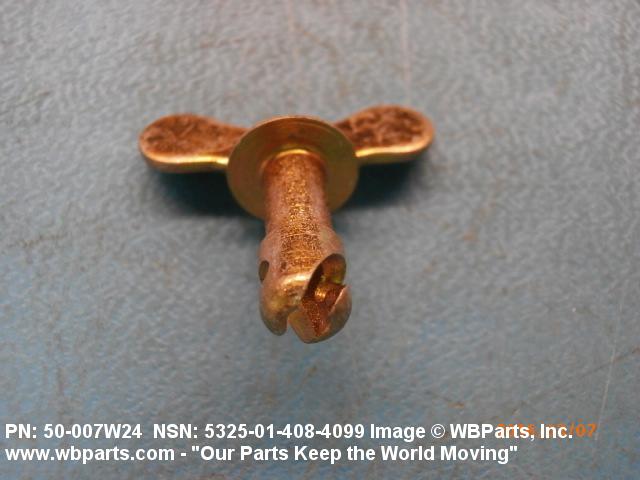

Product Details | TURNLOCK FASTENER STUD
5325-01-408-4099 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: AW35T24CBY, AW35T24DCBY, 2351W2024C3Y, 2351-W20-24-C3Y, 50007W24, 50-007W24, 5325-01-408-4099, 01-408-4099, 5325014084099, 014084099
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 FEB 1995 | 01-408-4099 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-408-4099
Demand History | NSN 5325-01-408-4099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2351-W20-24-C3Y | 2024-06-156 | 261 | DIBBS |
| 50-007W24 | 2024-06-156 | 261 | DIBBS |
| 2351-W20-24-C3Y | 2023-09-262 | 161 | DIBBS |
| 50-007W24 | 2023-09-262 | 161 | DIBBS |
| 2351-W20-24-C3Y | 2023-08-227 | 145 | DIBBS |
| 50-007W24 | 2023-08-227 | 145 | DIBBS |
| 5325-01-408-4099 | 2016-03-63 | 10 | United States |
| 5325-01-408-4099 | 2008-02-35 | 1179 | DIBBS |
Cross Reference | NSN 5325-01-408-4099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2351-W20-24-C3Y | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 50-007W24 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 50-007W24 | 97499 | BELL HELICOPTER TEXTRON INC. |
| AW35T24CBY | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| AW35T24DCBY | 62060 | SOUTHCO INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-408-4099
Related Products | NSN 5325-01-408-4099
Technical Data | NSN 5325-01-408-4099
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY2, CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

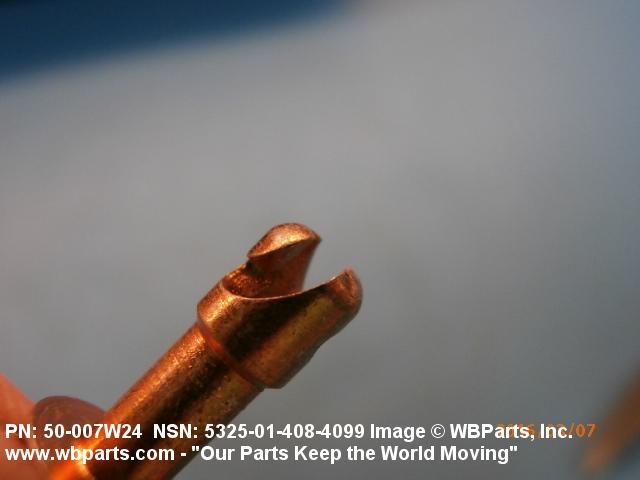

| TURNLOCK STUD SHANK STYLE | 1 STUD SHANK |

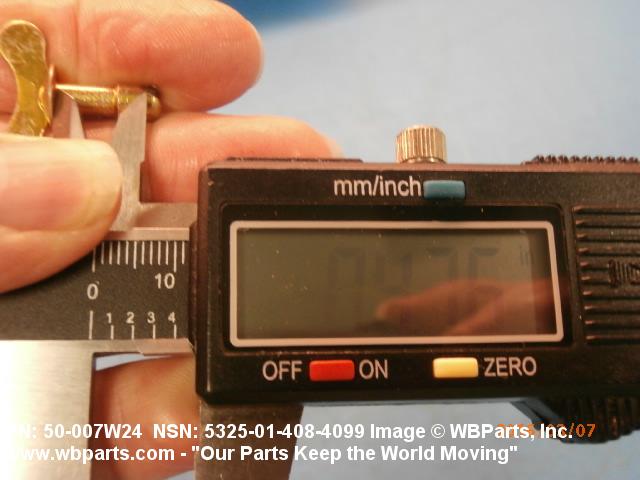

| GRIP LENGTH | 0.460 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |

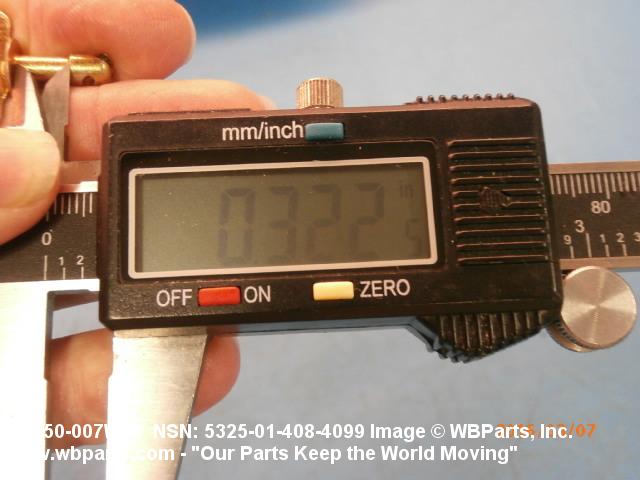

| SHANK NECK LENGTH | 0.320 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |

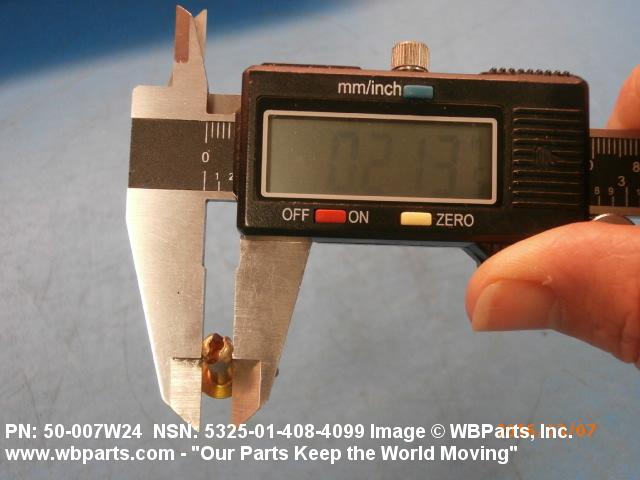

| STUD SHANK MAJOR DIAMETER | 0.212 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |

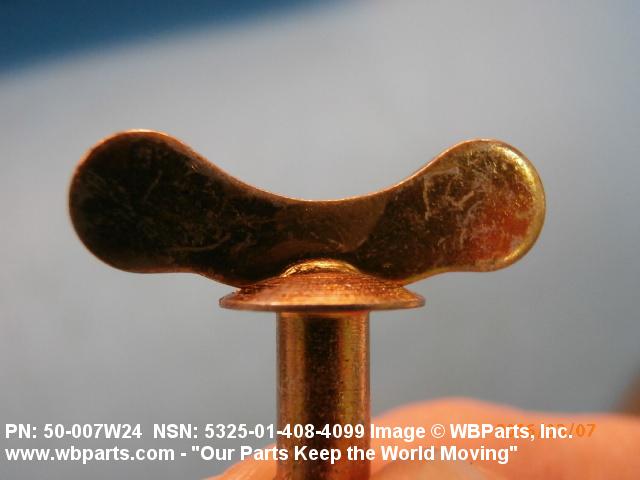

| TURNLOCK STUD HEAD STYLE | 10 FILLISTER WING |

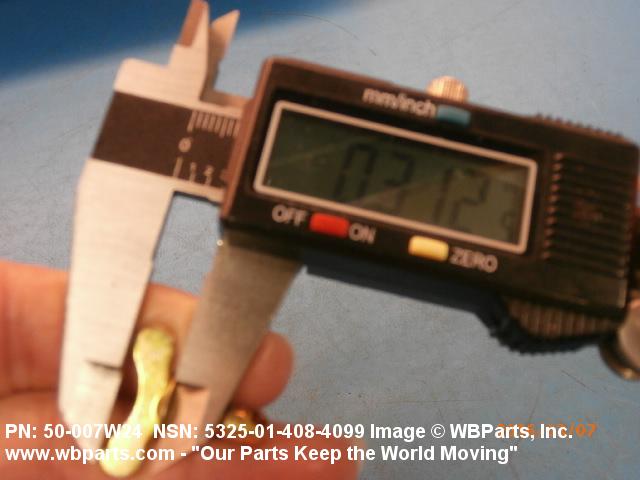

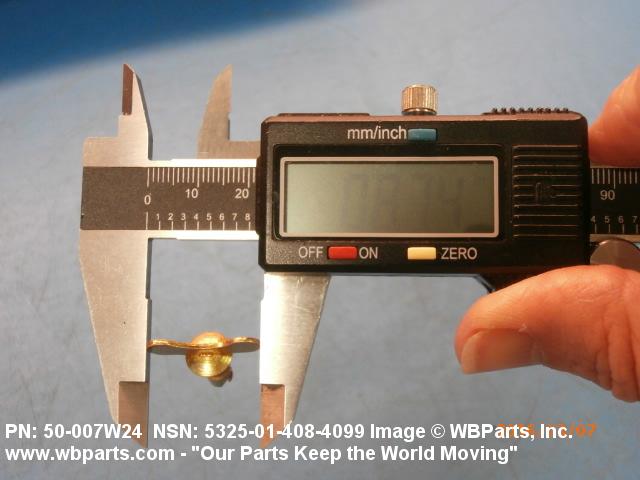

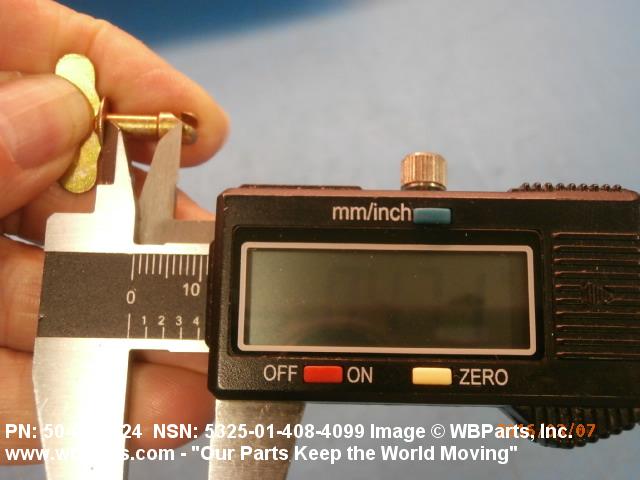

| HEAD LENGTH | 0.865 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
