NSN 5325-01-413-5599 MS35489142, MS35489-142, 129003-220
Product Details | NONMETALLIC GROMMET
5325-01-413-5599 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS35489142, MS35489-142, 129003-220, 5325-01-413-5599, 01-413-5599, 5325014135599, 129003220, 014135599
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 MAY 1995 | 01-413-5599 | 33729 ( GROMMET, NONMETALLIC ) |

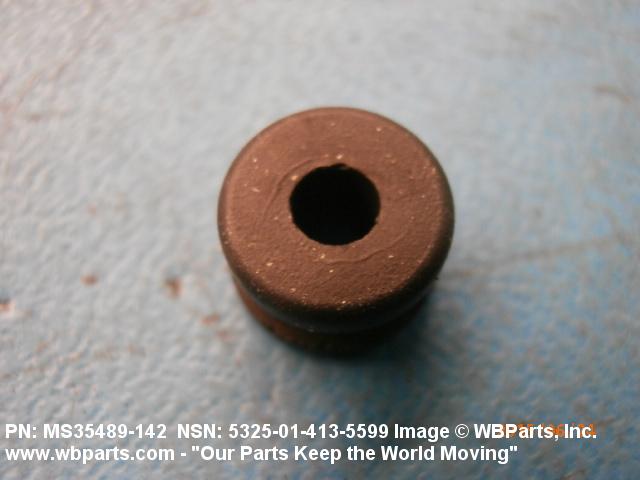

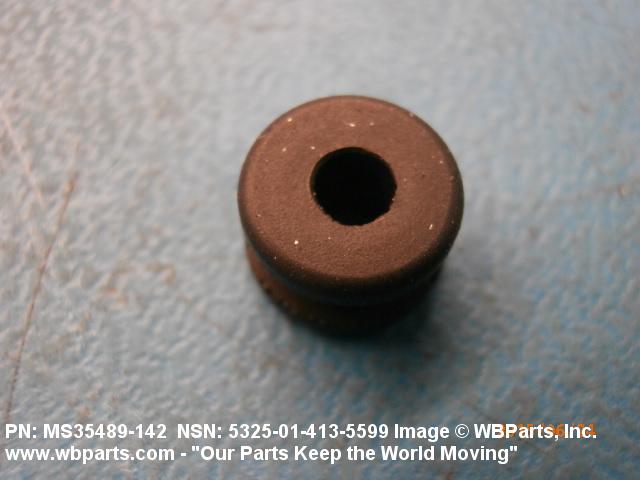

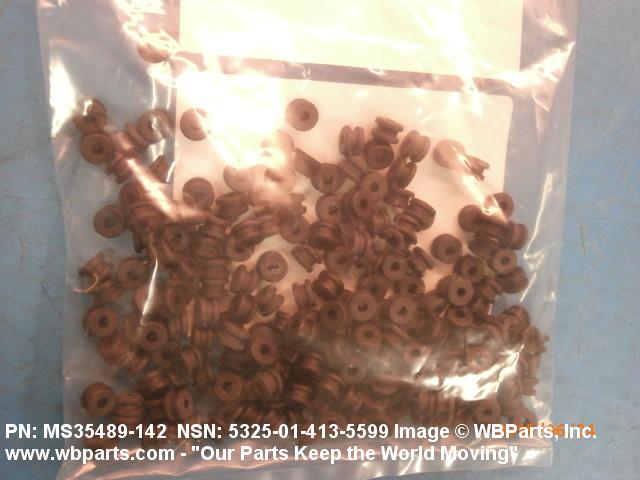

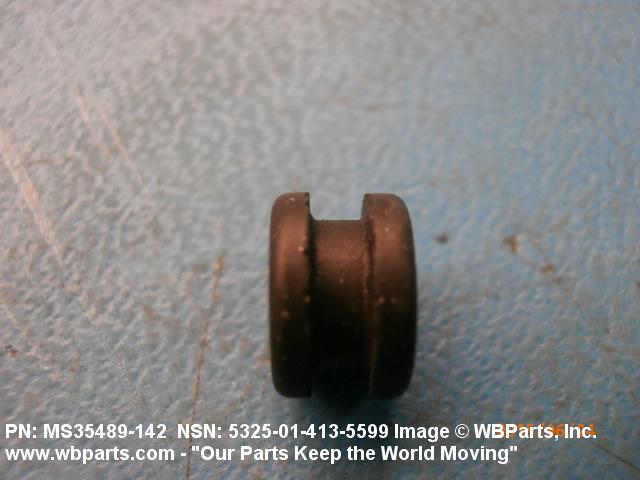

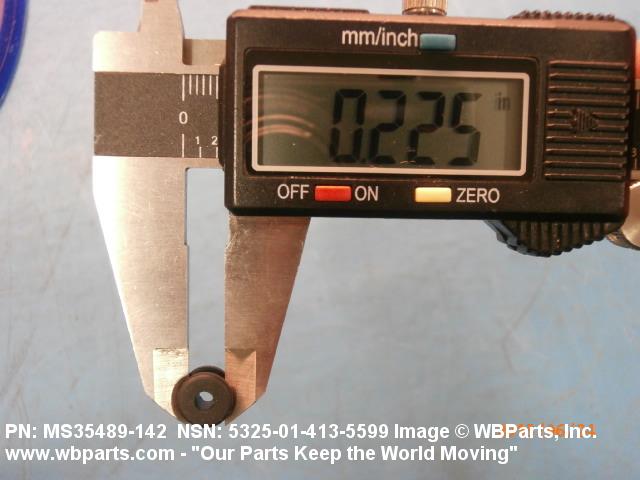

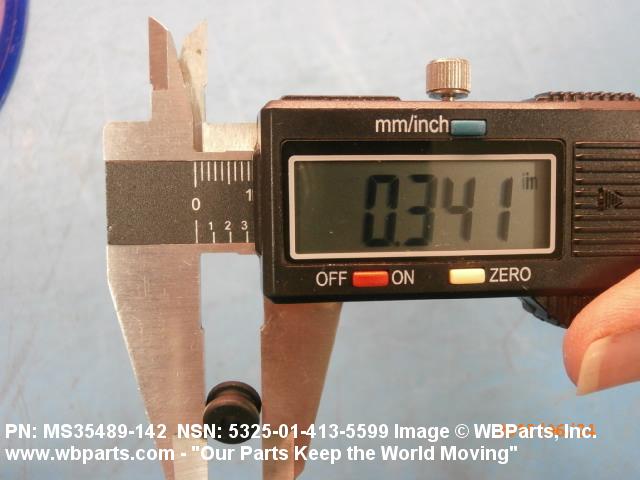

Drawings & Photos | NSN 5325-01-413-5599
Demand History | NSN 5325-01-413-5599
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-413-5599 | 2024-05-150 | 727 | DIBBS |
| 5325-01-413-5599 | 2023-08-228 | 667 | DIBBS |
| 5325-01-413-5599 | 2022-11-307 | 667 | DIBBS |
| 5325-01-413-5599 | 2019-06-154 | 667 | DIBBS |
| 5325-01-413-5599 | 2018-04-105 | 500 | DIBBS |
| 5325-01-413-5599 | 2015-10-285 | 650 | DIBBS |
| 5325-01-413-5599 | 2015-06-170 | 200 | United States |
| 5325-01-413-5599 | 2013-09-245 | 250 | DIBBS |
| MS35489142 | 2013-03-78 | 25 | US |
| 5325-01-413-5599 | 2013-02-43 | 269 | DIBBS |
| MS35489142 | 2011-03-73 | 50 | United States |
| MS35489142 | 2011-03-61 | 150 | United States |
| MS35489142 | 2011-02-54 | 50 | US |
| 5325-01-413-5599 | 2009-10-282 | 15 | US |
| 5325-01-413-5599 | 2009-04-106 | 7 | US |
| MS35489142 | 2008-08-224 | 1500 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-413-5599
Related Products | NSN 5325-01-413-5599
Technical Data | NSN 5325-01-413-5599
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMD2000BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 1 ROUND |

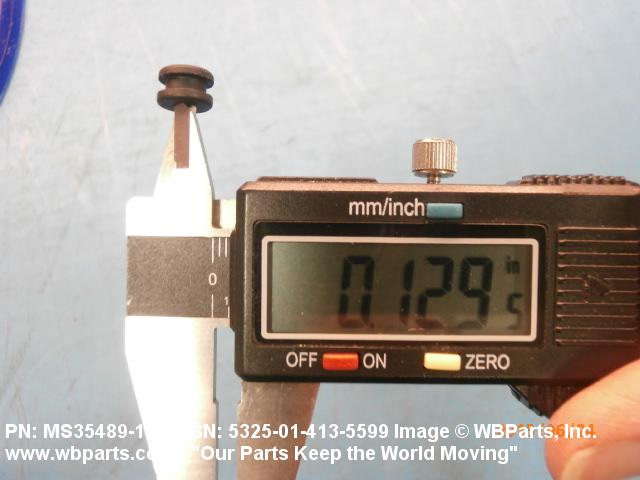

| HOLE DIAMETER | 0.125 INCHES NOMINAL |

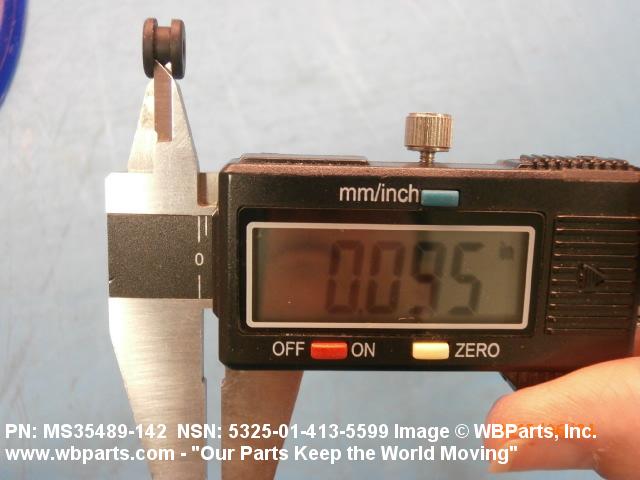

| GROOVE WIDTH | 0.094 INCHES NOMINAL |

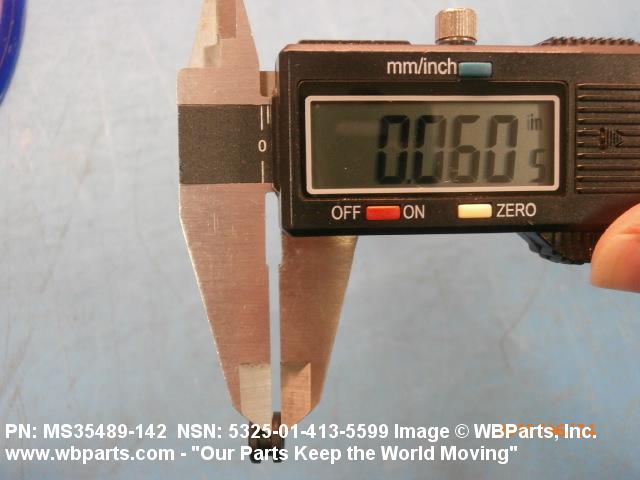

| FLANGE THICKNESS | 0.062 INCHES NOMINAL |

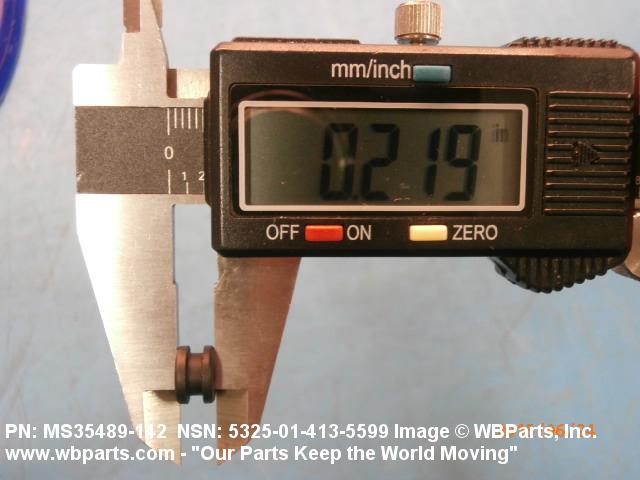

| OVERALL HEIGHT | 0.218 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.344 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | 45.0 NOMINAL SHORE DUROMETER A AND 55.0 MINIMUM SHORE DUROMETER A |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35489-142 |
Restrictions/Controls & Freight Information | NSN 5325-01-413-5599
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-413-5599
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
Q EA : Each |
