NSN 5325-01-420-6001 12420959002, 12420959-002, 01-420-6001
Product Details | NONMETALLIC GROMMET
5325-01-420-6001 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 12420959002, 12420959-002, 5325-01-420-6001, 01-420-6001, 5325014206001, 014206001
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1995 | 01-420-6001 | 33729 ( GROMMET, NONMETALLIC ) |
Drawings & Photos | NSN 5325-01-420-6001
Demand History | NSN 5325-01-420-6001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-420-6001 | 2013-08-240 | 937 | DIBBS |
| 5325-01-420-6001 | 2012-12-341 | 632 | DIBBS |
| 5325-01-420-6001 | 2011-07-188 | 1552 | DIBBS |
| 5325-01-420-6001 | 2011-05-151 | 428 | DIBBS |
| 5325-01-420-6001 | 2009-09-273 | 609 | DIBBS |
| 5325-01-420-6001 | 2009-05-141 | 366 | DIBBS |
| 5325-01-420-6001 | 2009-03-89 | 209 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-420-6001
Related Products | NSN 5325-01-420-6001
Technical Data | NSN 5325-01-420-6001
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER ETHYLENE-PROPYLENE-DIENE CLASS EPDM OR RUBBER POLYISOPRENE SYNTHETIC CLASS IR BARREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 ASSN STD SINGLE MATERIAL RESPONSE BARREL |

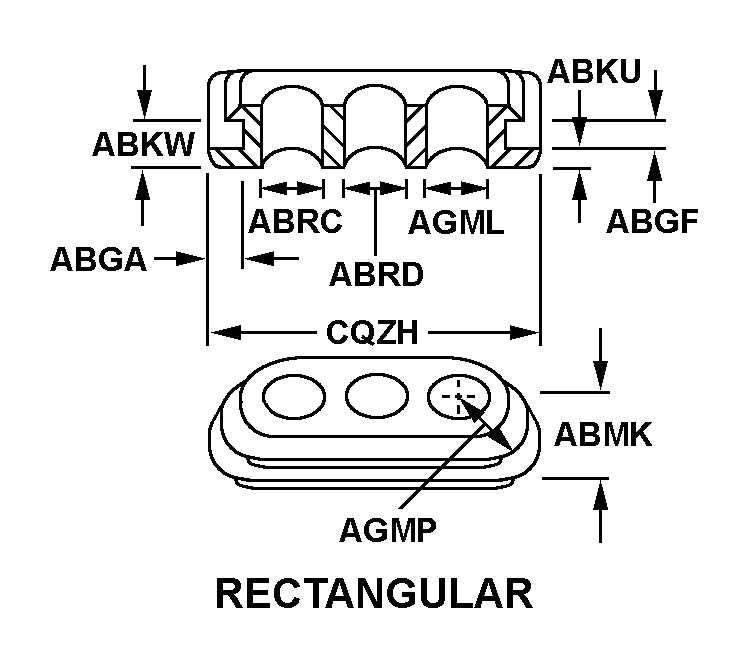

| GROMMET STYLE | 42 RECTANGULAR |
| GROOVE DEPTH | 6.410 MILLIMETERS NOMINAL |
| GROOVE WIDTH | 3.210 MILLIMETERS NOMINAL |
| FLANGE THICKNESS | 6.410 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 100.1 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 83.1 MILLIMETERS NOMINAL |
| FIRST HOLE DIAMETER | 25.4 MILLIMETERS NOMINAL |
| SECOND HOLE DIAMETER | 9.5 MILLIMETERS NOMINAL |
| THIRD HOLE DIAMETER | 19.1 MILLIMETERS NOMINAL |
| SMALL FLANGE RADIUS | 3.10 MILLIMETERS NOMINAL |
| GROMMET OVERALL LENGTH | 100.1 MILLIMETERS NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
Restrictions/Controls & Freight Information | NSN 5325-01-420-6001
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-420-6001
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
