NSN 5325-01-424-6299 5937-12039, 01-424-6299, 593712039
Product Details | RETAINING RING
5325-01-424-6299 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 5937-12039, 5325-01-424-6299, 01-424-6299, 5325014246299, 593712039, 014246299
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 FEB 1996 | 01-424-6299 | 07623 ( RING, RETAINING ) |

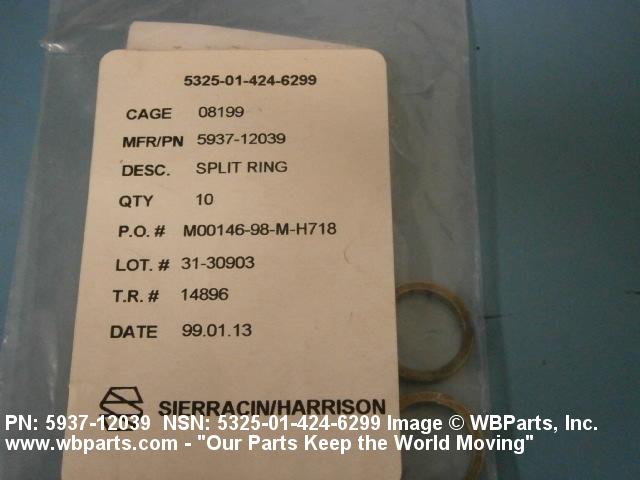

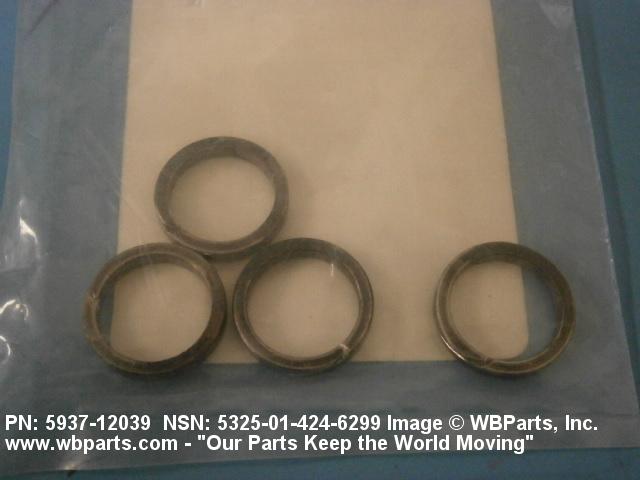

Drawings & Photos | NSN 5325-01-424-6299
Demand History | NSN 5325-01-424-6299
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 593712039 | 2011-12-347 | 4 | United States |
Cross Reference | NSN 5325-01-424-6299
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5937-12039 | 08199 | EATON AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-424-6299
Technical Data | NSN 5325-01-424-6299
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A56 SPIRAL |
| INSIDE DIAMETER | 0.520 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.667 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D1 ROUND |
| MATERIAL DIAMETER | 0.102 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
| III END ITEM IDENTIFICATION | COAST GUARD HH60J JAYHAWK HELICOPTER HYDRAULIC LINES |
| MANUFACTURERS CODE | 08199 |
| DESIGN CONTROL REFERENCE | 5937-12039 |
Restrictions/Controls & Freight Information | NSN 5325-01-424-6299
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
