NSN 5325-01-436-9981 154106118001, 154106118-001, 6438174
Product Details | POSITIVE LOCK RECEPTACLE
5325-01-436-9981 A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control.
Part Alternates: 154106118001, 154106118-001, 6438174, 643817-4, 5325-01-436-9981, 01-436-9981, 5325014369981, 014369981
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1996 | 01-436-9981 | 18015 ( RECEPTACLE, POSITIVE LOCK ) |

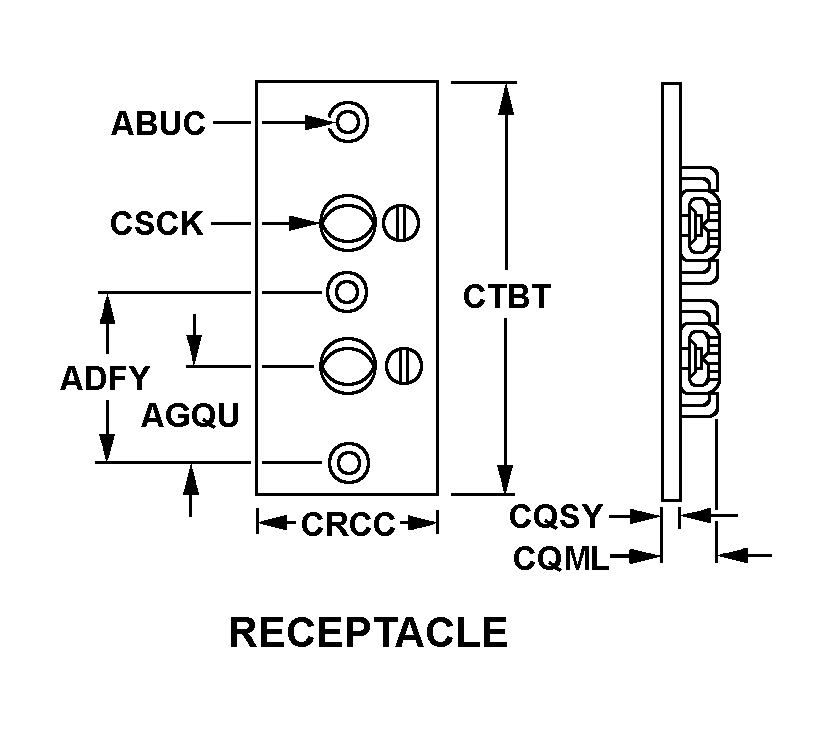

Drawings & Photos | NSN 5325-01-436-9981
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-436-9981
Technical Data | NSN 5325-01-436-9981
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE BARREL |
| POSITIVE LOCK RECEPTACLE STYLE | 10 RECEPTACLE |
| MOUNTING HOLE DIAMETER | 5.84 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 3.96 MILLIMETERS NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER | 1.57 MILLIMETERS NOMINAL |
| POSITIVE LOCK RECEPTACLE HEIGHT | 5.84 MILLIMETERS NOMINAL |
| RECEPTACLE MATERIAL THICKNESS | 1.57 MILLIMETERS NOMINAL |
| POSITIVE LOCK RECEPTACLE WIDTH | 15.85 MILLIMETERS NOMINAL |
| RECEPTACLE HOLE DIAMETER | 2.54 MILLIMETERS NOMINAL |
| POSITIVE LOCK RECEPTACLE LENGTH | 18.42 MILLIMETERS NOMINAL |
| MOUNTING HOLE TYPE | PLAIN |
Restrictions/Controls & Freight Information | NSN 5325-01-436-9981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-436-9981
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
