NSN 5325-01-463-8257 BACR10AM3A, CA2210A10R, CA2210A-10R
Product Details | RETAINING RING
5325-01-463-8257 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: BACR10AM3A, CA2210A10R, CA2210A-10R, 5325-01-463-8257, 01-463-8257, 5325014638257, 014638257
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1999 | 01-463-8257 | 07623 ( RING, RETAINING ) |

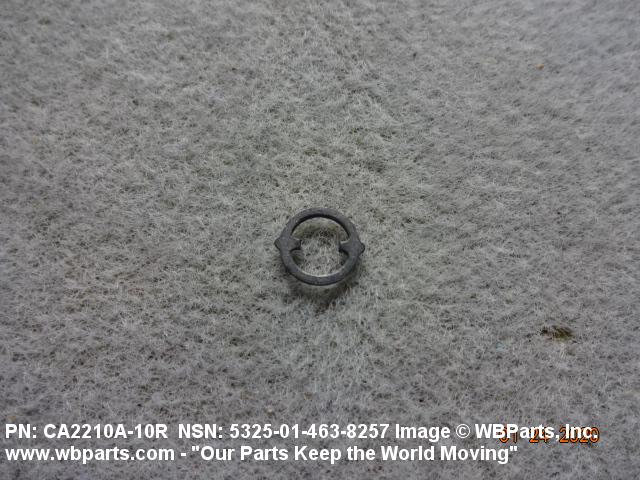

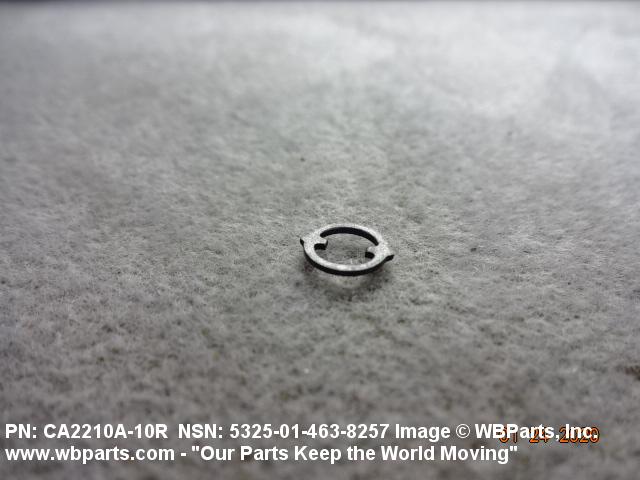

Drawings & Photos | NSN 5325-01-463-8257
Demand History | NSN 5325-01-463-8257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACR10AM3A | 2025-05-140 | 219 | DIBBS |
| CA2210A-10R | 2025-05-140 | 219 | DIBBS |
| BACR10AM3A | 2024-01-21 | 171 | DIBBS |
| CA2210A-10R | 2024-01-21 | 171 | DIBBS |
| BACR10AM3A | 2023-10-296 | 58 | DIBBS |
| CA2210A-10R | 2023-10-296 | 58 | DIBBS |
| 5325-01-463-8257 | 2023-01-25 | 20 | US |
| CA2210A10R | 2020-10-302 | 50 | United States |
| 5325-01-463-8257 | 2020-01-20 | 300 | United States |
| 5325-01-463-8257 | 2019-12-354 | 300 | United States |
| 5325-01-463-8257 | 2018-11-334 | 27 | DIBBS |
| 5325-01-463-8257 | 2018-11-326 | 27 | DIBBS |
| 5325-01-463-8257 | 2018-04-105 | 15 | DIBBS |
| CA2210A10R | 2017-07-192 | 250 | Australia |
| 5325-01-463-8257 | 2013-12-358 | 10 | United States |
| 5325-01-463-8257 | 2012-11-324 | 35 | DIBBS |
| 5325-01-463-8257 | 2012-02-39 | 5 | DIBBS |
| CA2210A10R | 2011-09-272 | 50 | us |
| CA2210A10R | 2011-09-272 | 100 | us |
| CA2210A10R | 2011-09-272 | 200 | us |
| 5325-01-463-8257 | 2011-08-231 | 4 | DIBBS |
| 5325-01-463-8257 | 2011-06-155 | 3 | DIBBS |
| 5325-01-463-8257 | 2010-12-361 | 84 | US |
| BACR10AM3A | 2007-08-229 | 20 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-463-8257
Related Products | NSN 5325-01-463-8257
Technical Data | NSN 5325-01-463-8257
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY, AMS 5525, COMP 660 |
| SURFACE TREATMENT | PASSIVATED |

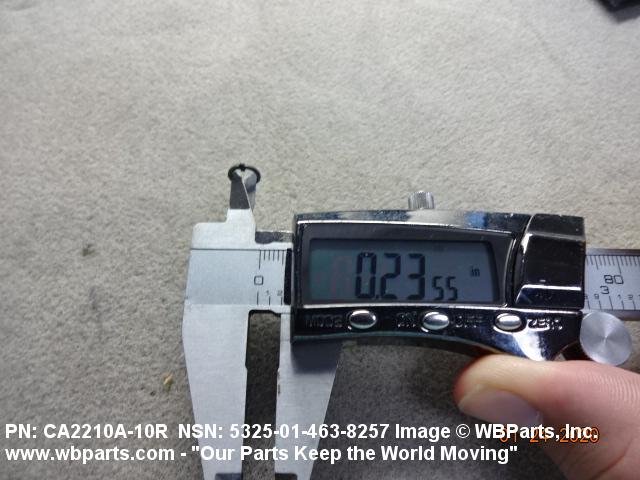

| INSIDE DIAMETER | 0.230 INCHES NOMINAL |

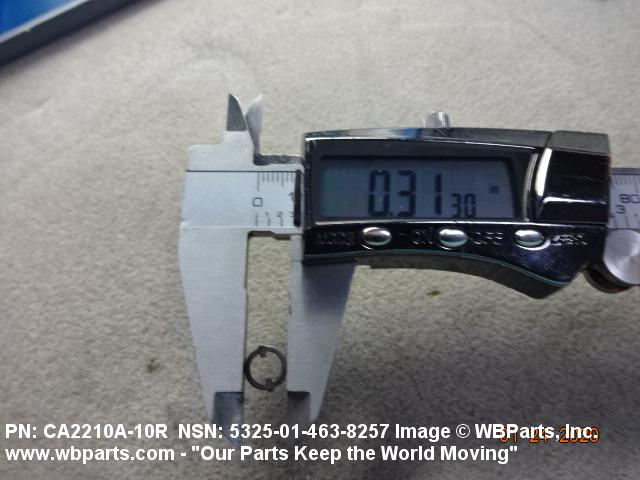

| OUTSIDE DIAMETER | 0.310 INCHES NOMINAL |

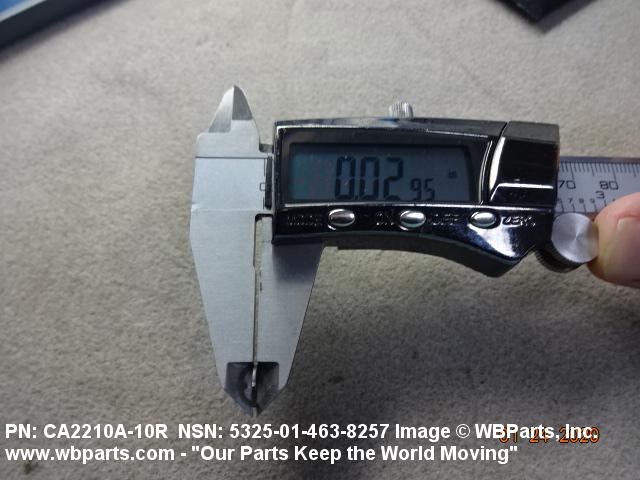

| MAJOR THICKNESS | 0.028 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-01-463-8257
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-463-8257
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
