NSN 5325-01-465-0087 HS44316, HS4431-6, 01-465-0087
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-465-0087 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: HS44316, HS4431-6, 5325-01-465-0087, 01-465-0087, 5325014650087, 014650087
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1999 | 01-465-0087 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

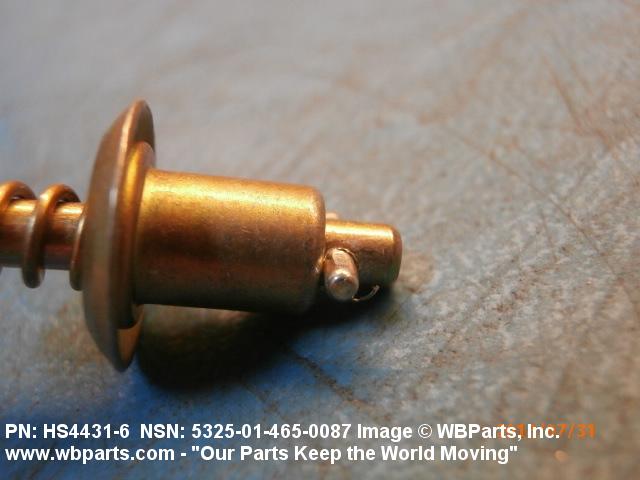

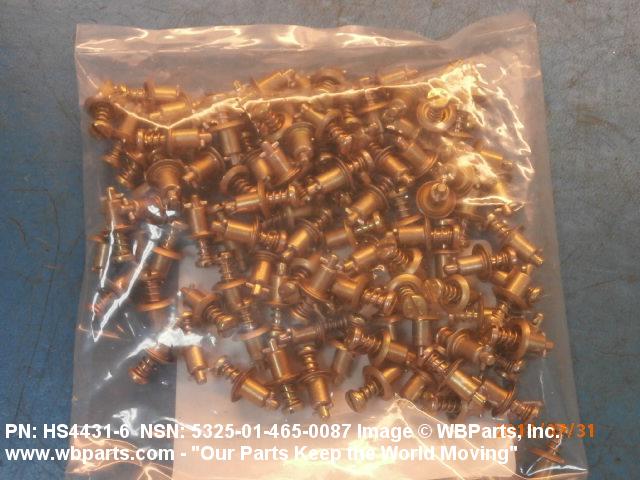

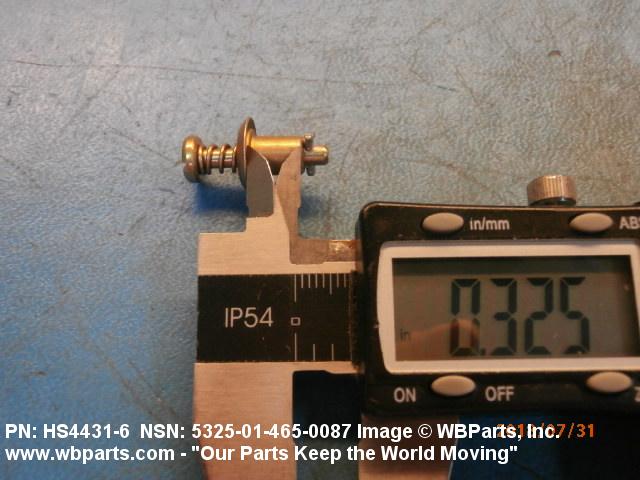

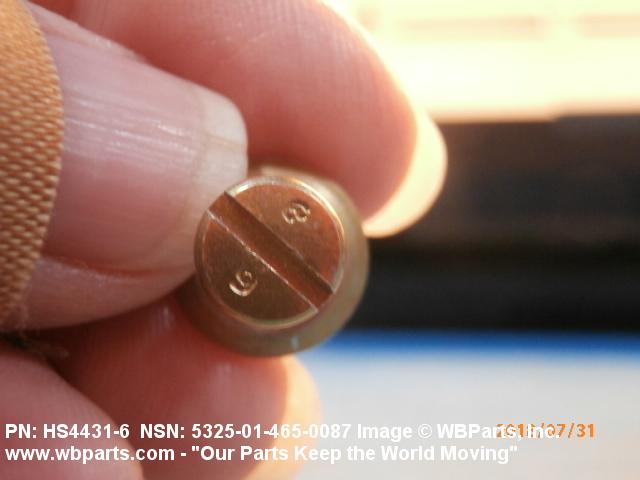

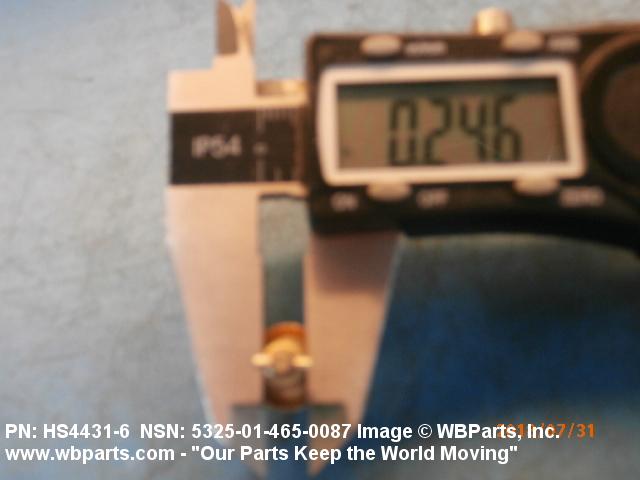

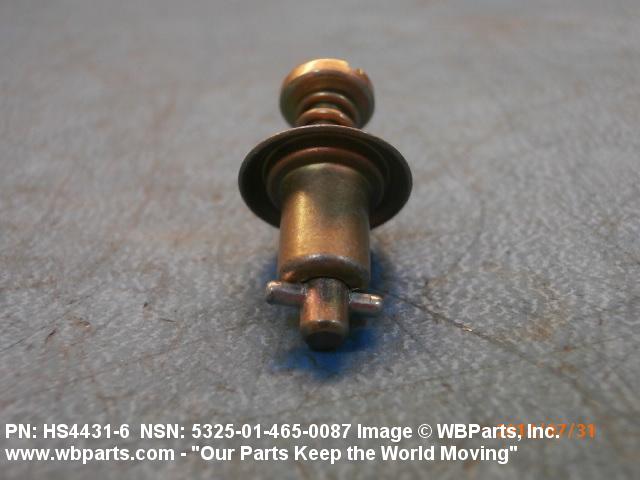

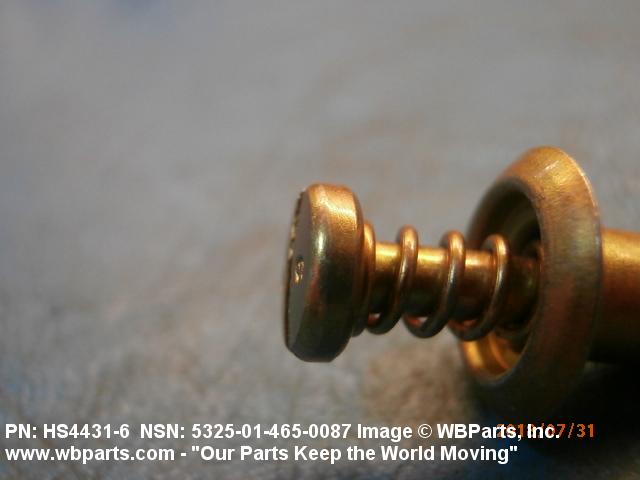

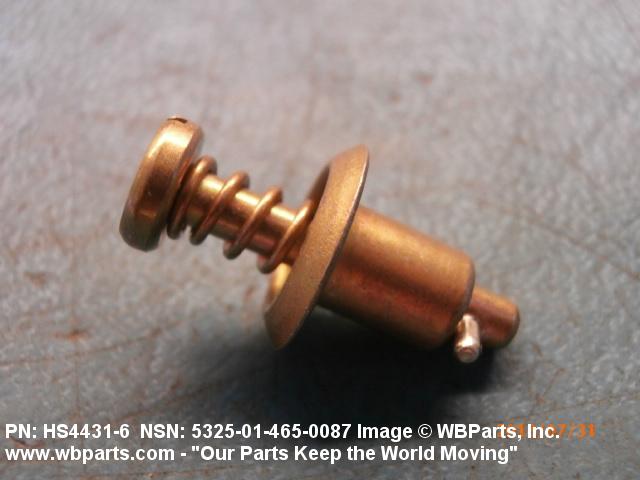

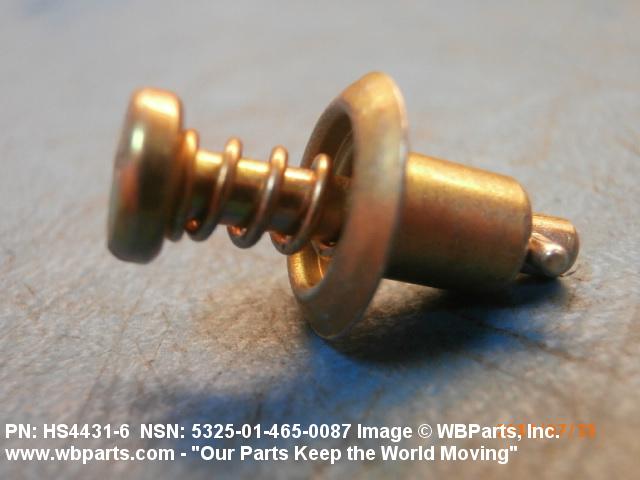

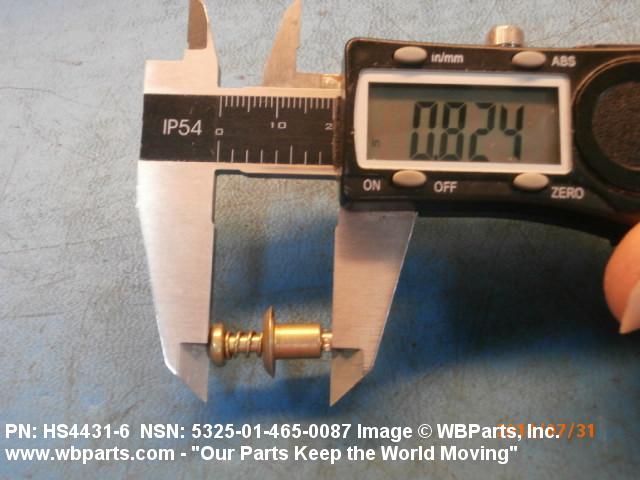

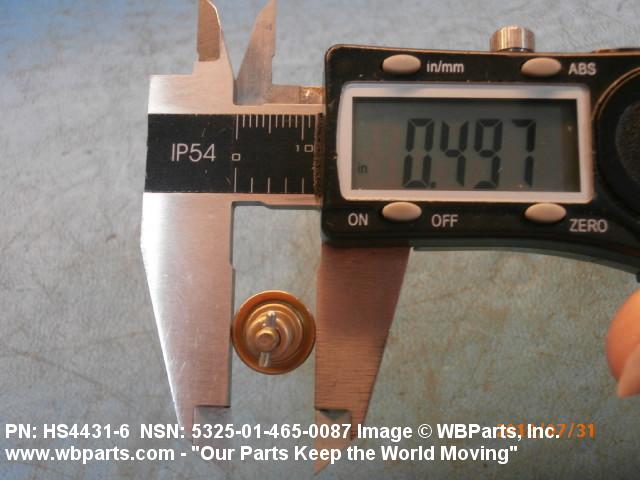

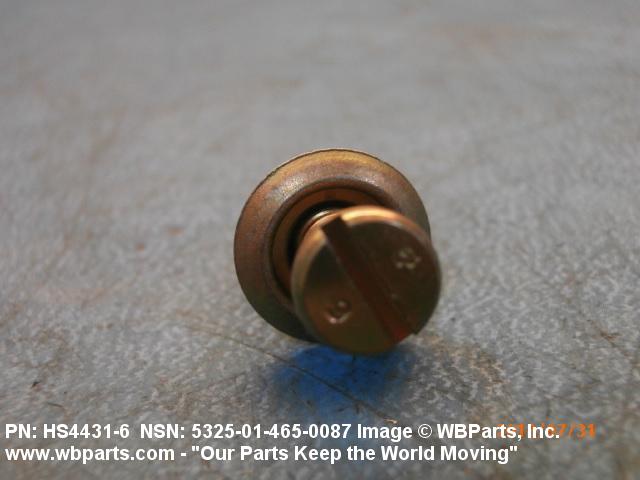

Drawings & Photos | NSN 5325-01-465-0087
Demand History | NSN 5325-01-465-0087
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HS4431-6 | 2025-10-280 | 6063 | DIBBS |
| HS4431-6 | 2024-11-319 | 5616 | DIBBS |
| HS4431-6 | 2024-08-231 | 4204 | DIBBS |
| HS4431-6 | 2024-04-113 | 1865 | DIBBS |
| HS4431-6 | 2024-04-105 | 1865 | DIBBS |
| HS4431-6 | 2023-03-75 | 1432 | DIBBS |
| HS4431-6 | 2023-02-34 | 1605 | DIBBS |
| HS4431-6 | 2023-01-19 | 1605 | DIBBS |
| HS4431-6 | 2022-02-48 | 790 | DIBBS |
| HS4431-6 | 2021-10-290 | 3044 | DIBBS |
| 5325-01-465-0087 | 2021-07-210 | 9115 | DIBBS |
| 5325-01-465-0087 | 2021-02-48 | 9115 | DIBBS |
| 5325-01-465-0087 | 2020-01-05 | 3055 | DIBBS |
| HS44316 | 2019-08-232 | 24 | US |
| 5325-01-465-0087 | 2019-07-206 | 379 | DIBBS |
| 5325-01-465-0087 | 2019-04-94 | 3000 | DIBBS |
| 5325-01-465-0087 | 2019-02-49 | 1133 | DIBBS |
| 5325-01-465-0087 | 2019-02-41 | 3353 | DIBBS |
| 5325-01-465-0087 | 2018-07-198 | 100 | United States |
| 5325-01-465-0087 | 2018-06-178 | 3246 | DIBBS |
| 5325-01-465-0087 | 2017-02-55 | 1 | DIBBS-RFPs |
| 5325-01-465-0087 | 2016-02-50 | 7189 | DIBBS |
| 5325-01-465-0087 | 2016-02-42 | 7189 | DIBBS |
| 5325-01-465-0087 | 2015-11-317 | 3995 | DIBBS |
| 5325-01-465-0087 | 2015-11-305 | 3995 | DIBBS |
| HS44316 | 2015-06-169 | 200 | Seychelles |
| HS44316 | 2012-07-185 | 10 | Singapore |
| 5325-01-465-0087 | 2012-02-47 | 14445 | DIBBS |
| 5325-01-465-0087 | 2011-06-179 | 1894 | DIBBS |
| 5325-01-465-0087 | 2011-06-157 | 18000 | DIBBS |
| 5325-01-465-0087 | 2010-01-21 | 10561 | DIBBS |
| 5325-01-465-0087 | 2009-06-152 | 13569 | DIBBS |
| 5325-01-465-0087 | 2009-02-54 | 3039 | DIBBS |
| 5325-01-465-0087 | 2009-02-49 | 2768 | DIBBS |
| 5325-01-465-0087 | 2009-02-48 | 2768 | DIBBS |
| 5325-01-465-0087 | 2008-11-330 | 15264 | DIBBS |
| 5325-01-465-0087 | 2008-10-280 | 16000 | DIBBS |
| 5325-01-465-0087 | 2008-04-93 | 16000 | DIBBS |
| 5325-01-465-0087 | 2008-02-36 | 4939 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-465-0087
Related Products | NSN 5325-01-465-0087
Technical Data | NSN 5325-01-465-0087
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, CLASS 2, TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.500 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.910 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| SECURING DEVICE TYPE | SPRING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.180 INCHES MINIMUM AND 0.209 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | HELICOPTER, MCDONNELL DOUGLAS CORP, APACHE ATTACK MODEL |
Restrictions/Controls & Freight Information | NSN 5325-01-465-0087
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | QE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-465-0087
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
